90 DEGREE Right Angle Gear Drives Planetary Gearboxes

EP301R2-PZEP305R4-PZEP306R2-HCEP311R4-HCRight Angle Gear Drives Planetary GearboxesSuperior performanceThe EP300R Series gearbox is a right angle gear drive and the best solution for all applications requiring high torque withminimum dimensions for fixed industrial equipment and heavy self-propelled......

Send Inquiry

Product Description

EP301R2-PZ

EP305R4-PZ

EP306R2-HC

EP311R4-HC

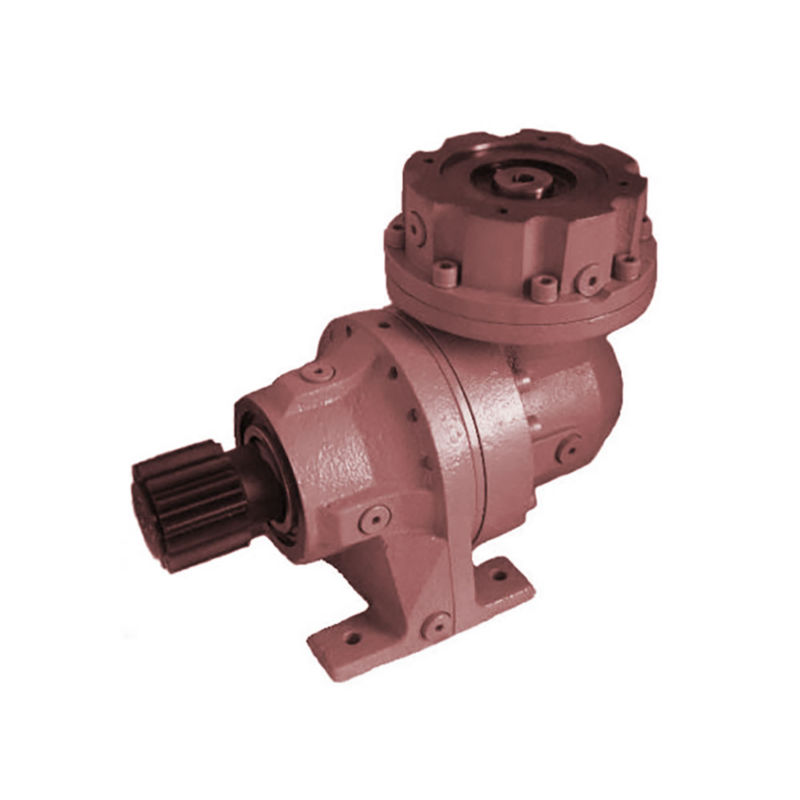

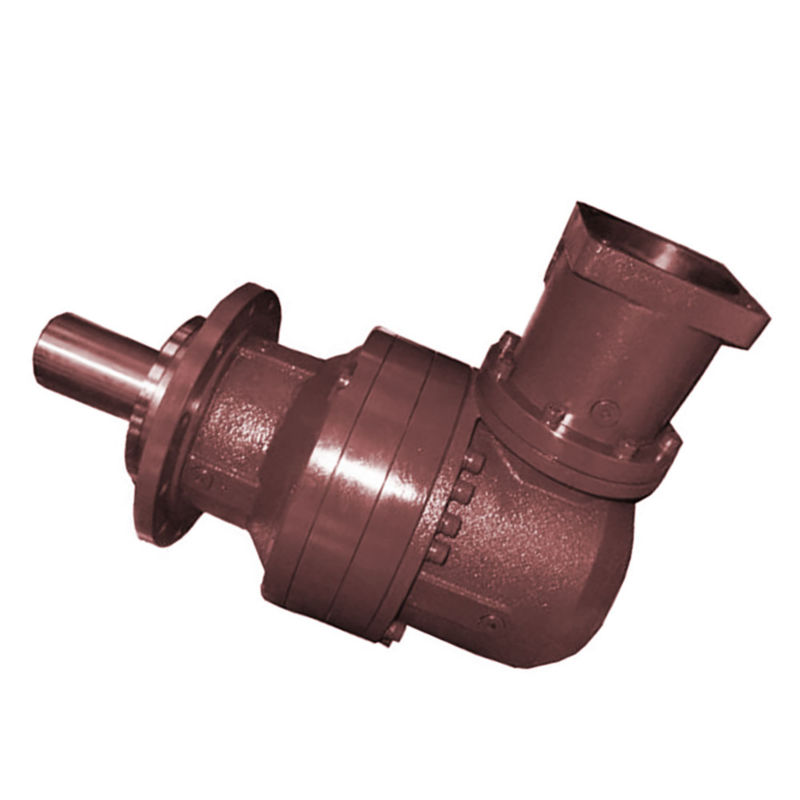

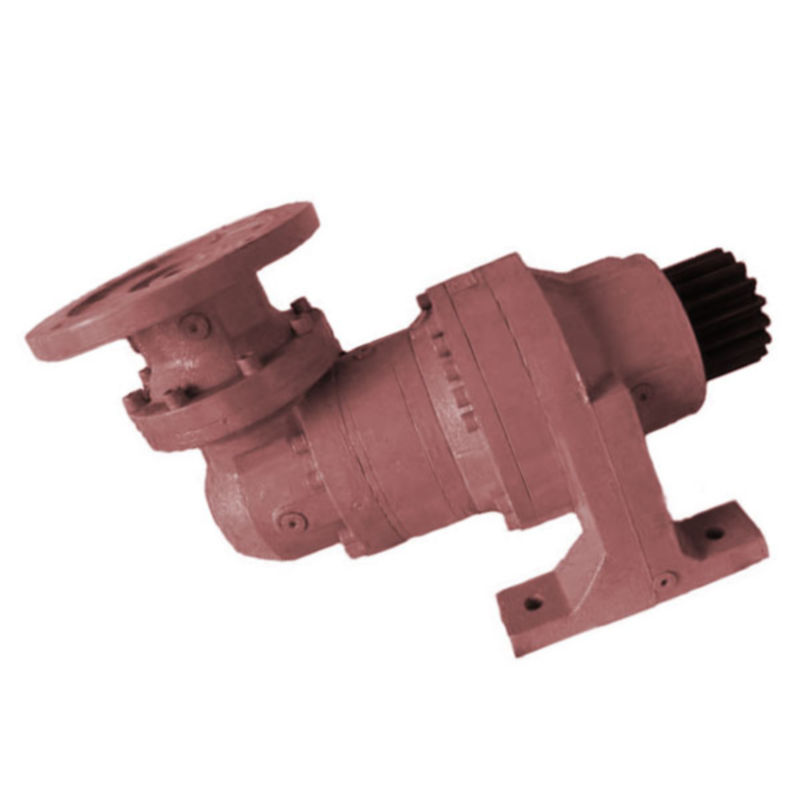

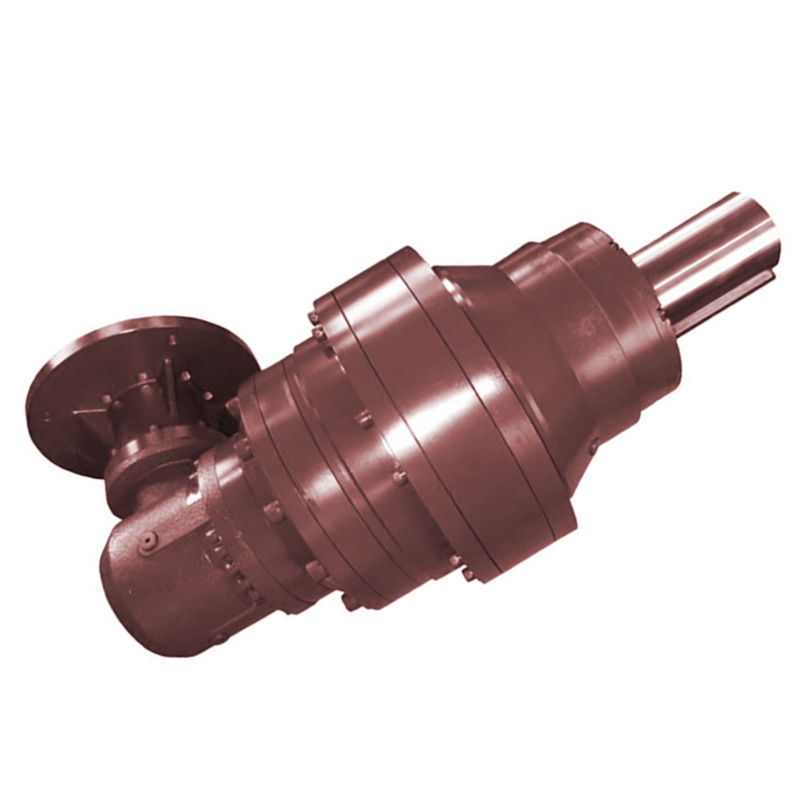

Right Angle Gear Drives Planetary Gearboxes
Superior performance
The EP300R Series gearbox is a right angle gear drive and the best solution for all applications requiring high torque with
minimum dimensions for fixed industrial equipment and heavy self-propelled machines. This planetary gearhead offers a substantial improvement over traditional gearboxes in terms of size and weight. The modular design combines high performance with low cost due to its compact size, excellent reliability, simple installation, and reduced maintenance. The EP300R Series planetary gearboxes come in a range of sizes to ensure optimum duration and silent running in all sorts of applications.
The EP300R Series is also available in a high power version, linking the performance of EP's planetary technology with the high quality and reliability of gearboxes: a solution that is more efficient, quieter, more compact, and offers a better
price/performance ratio compared with traditional gear units.
Key Features
Torque Range:1000-450.000 Nm
Transmissible Mechanical Power :up to 150 kW
Gear Ratios :6.9-9.000
Gear Unit Versions
Right angle (with a spiral bevel gear set)
Output Configuration
Foot and flange mounted
Output shaft: solid with key, splined, splined hollow, hollow with shrink disc
Input Configurations
Flanged axial piston hydraulic motors
Hydraulic orbit motors
IEC and Nema motor adaptors
Solid input shaft
Hydraulic Brake
Hydraulically released parking brake on request
Electric Brake
DC and AC type

Tipo			Torque Nm
EP300R	EP300R2, EP300R3, EP300R4	1000
EP301R	EP301R2, EP301R3, EP301R4	1750
EP303R	EP303R2, EP303R3, EP303R4	2500
EP305R	EP305R2, EP305R3, EP305R4	5000
EP306R	EP306R2, EP306R3, EP306R4	8500
EP307R	EP307R2, EP307R3, EP307R4	12500
EP309R	EP309R2, EP309R3, EP309R4	18000
EP310R	EP310R2, EP310R3, EP310R4	25000
EP311R	EP311R2, EP311R3, EP311R4	40000
EP313R	EP313R2, EP313R3, EP313R4	55000
EP315R	EP315R3, EP315R4	100000
EP316R	EP316R3, EP316R4	135000
EP317R	EP317R3, EP317R4	170000
EP318R	EP318R4	250000
EP319R	EP319R4	350000
EP321R	EP321R4	500000

Alternative Brand/Model Inquiry
Trasmital Bonfiglioli, Brevini Riduttori, Bosch Rexroth, Comer Industries, Reggiana Riduttori, Rossi, Zollern

Click here for more model types!

Raydafon GROUP is a Symbol of quality craftsmanship in China . Founded in 1988, specialize in the manufacturing of slewing drives , wheel drivck drives winch drives of gearboxes are used in a variety of applications including construction machine petroleum , coal , geological exploration , shipping , metallurgy , solar power , wind power , agriculture , andprotection .After years of developmental success , our products are intemational recognized for their quality . We export gearboxes to many places in the world , including Southeast Asia , the Middle East Germany , USA Canada Spain Australia , Turkey , and India . We are a consistently growing enterprise that seeks to satisfy our customatter their location
