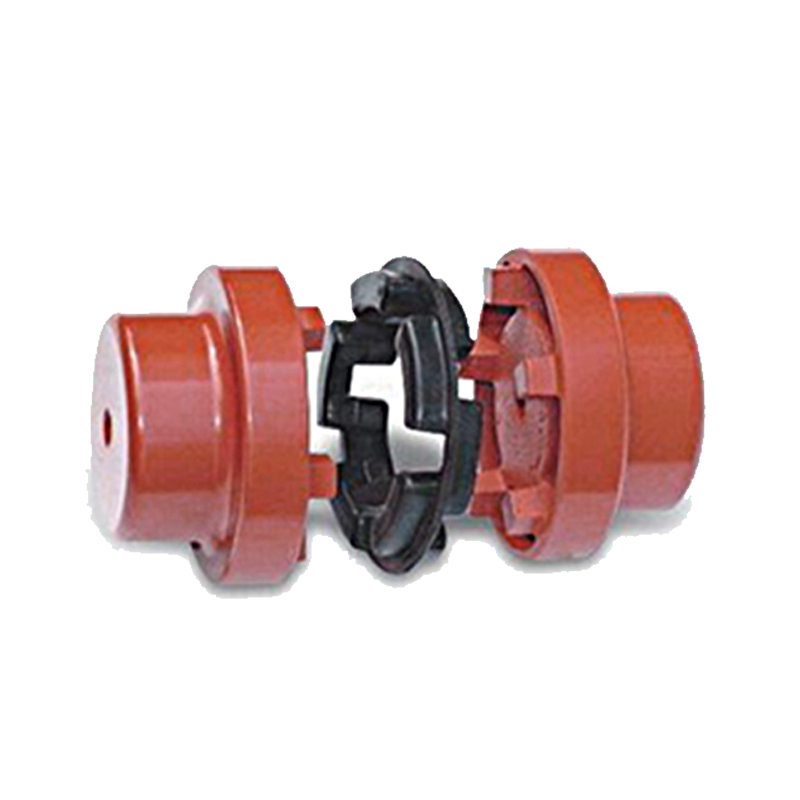

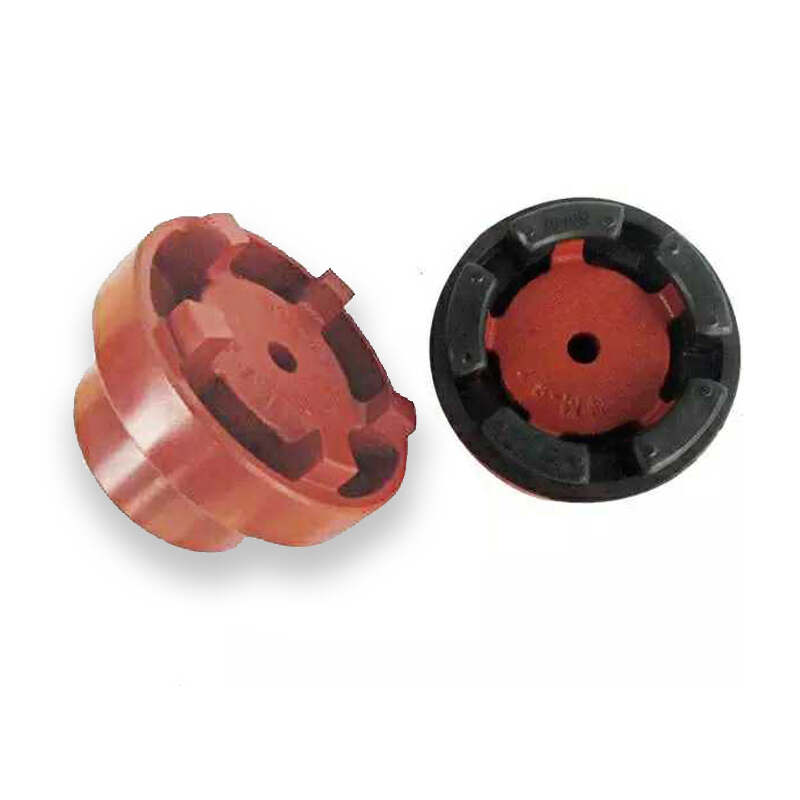

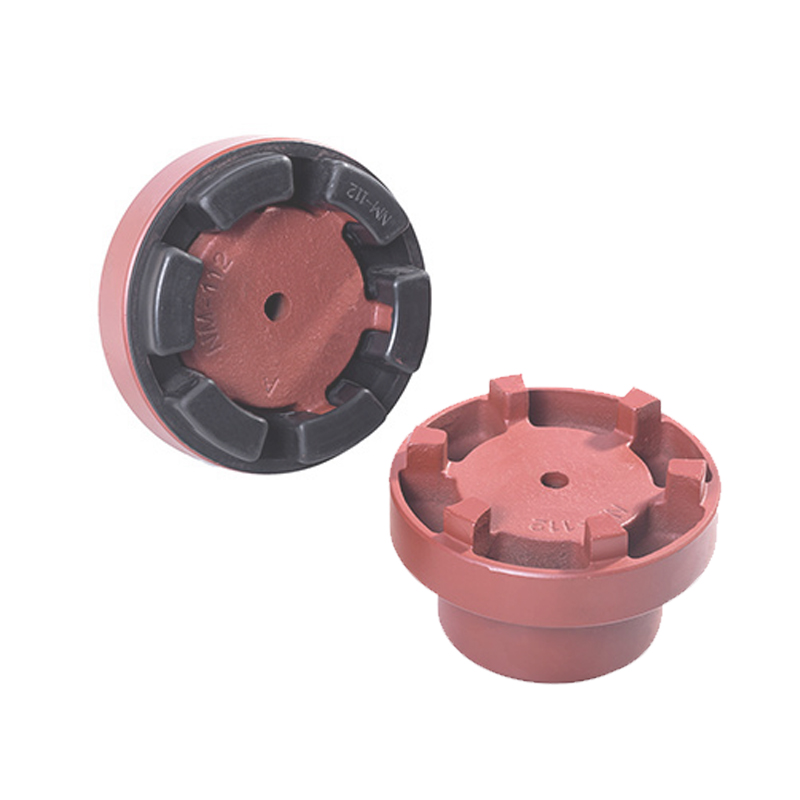

NM Coupling, a type of flexible coupling, is widely used in various industrial applications for connecting two shafts while accommodating misalignment and reducing vibration. Designed for durability and efficiency, NM couplings are essential components in machinery where precision and reliability are paramount. These couplings consist of two hubs made from materials like steel or aluminum, connected by a flexible element such as a spider or elastomer, which allows for angular, parallel, and axial misalignments. Common in pumps, compressors, and conveyor systems, NM couplings help extend equipment life by minimizing stress on connected components.
Below are the detailed specifications for standard NM couplings, which vary based on size and application. These parameters ensure optimal selection for your machinery requirements.
| Model | Bore Diameter Range (mm) | Max Torque (Nm) | Max Speed (RPM) | Weight (kg) | Material |
|---|---|---|---|---|---|
| NM-50 | 10-25 | 120 | 5000 | 0.8 | Steel |
| NM-100 | 20-40 | 350 | 4000 | 1.5 | Aluminum |
| NM-150 | 30-60 | 800 | 3000 | 2.8 | Steel |
| NM-200 | 40-80 | 1500 | 2500 | 4.5 | Stainless Steel |
Additional parameters include operating temperature range: -40°C to +120°C, and standard bore tolerance of H7 for precise fitting. For specialized applications, consult our technical team for custom solutions.
NM couplings offer numerous benefits that enhance machine performance and longevity. Their ability to dampen vibrations and shocks protects connected equipment from damage, while the flexible design allows for easy alignment during installation. This reduces wear and tear, leading to lower maintenance costs and increased operational efficiency. Moreover, NM couplings are compatible with various shaft types and can be used in harsh environments, making them a versatile choice for global industries.
What is an NM coupling used for?
NM coupling is primarily used to connect two rotating shafts in machinery, transmitting torque while accommodating misalignments and reducing vibrations. It is common in applications like pumps, compressors, and conveyors to ensure smooth operation and protect equipment from excessive stress.
How do I select the right NM coupling for my application?
To select the appropriate NM coupling, consider factors such as torque requirements, shaft sizes, speed, misalignment types, and environmental conditions. Refer to the product parameter table for specifications, and consult with engineering guidelines or a supplier for customized advice based on your specific needs.
Can NM couplings handle high temperatures?
Yes, standard NM couplings are designed to operate in temperatures ranging from -40°C to +120°C. For higher temperature applications, special materials or designs can be used; always check the manufacturer's specifications to ensure compatibility with your operating environment.
Are NM couplings maintenance-free?
Most NM couplings are maintenance-free as they do not require lubrication. However, periodic inspections are recommended to check for wear, especially in high-load or high-speed applications, to prevent unexpected failures and ensure long-term reliability.
What materials are NM couplings made from?
NM couplings are typically constructed from materials like steel, aluminum, or stainless steel for the hubs, and elastomers or polymers for the flexible elements. The choice of material depends on factors such as load capacity, corrosion resistance, and environmental conditions.
How do I install an NM coupling?
Installation involves sliding the coupling onto the shafts, ensuring proper alignment, and tightening the set screws or clamping mechanisms. Follow the manufacturer's instructions carefully, using tools like dial indicators for precision, to avoid misalignment issues and ensure optimal performance.
What are the common signs of NM coupling failure?
Common signs include unusual noises, vibration increases, visible wear on the flexible element, or difficulty in rotation. Regular monitoring and timely replacement of worn parts can prevent complete failure and downtime in machinery operations.
Can NM couplings be used in corrosive environments?
Yes, by selecting materials like stainless steel or coated components, NM couplings can withstand corrosive environments. Always verify the material compatibility with specific chemicals or conditions in your application to ensure durability and performance.
What is the typical lifespan of an NM coupling?
The lifespan varies based on usage conditions, such as load, speed, and alignment. Under normal operating conditions, NM couplings can last several years; however, in harsh environments or high-stress applications, more frequent inspections and replacements may be necessary.
Are there customizable options for NM couplings?
Yes, many manufacturers offer customizable NM couplings with variations in size, material, and design to meet specific requirements. Provide details like bore size, torque capacity, and environmental factors to get a tailored solution for your machinery.
