High Voltage KYN61-40.5 Armored Metal Enclosed Switchgear for Energy Storage Microgrid

KYN61-40.5 Armored Metal Enclosed SwitchgearKYN61-40.5 AC High Voltage Metal Armored Removable Switchgear is suitable for three-phase AC 50Hz power systems. It is mainly used in power plants, substations, industrial and mining enterprises, high-rise buildings for receiving and distributing electrica......

Send Inquiry

Product Description

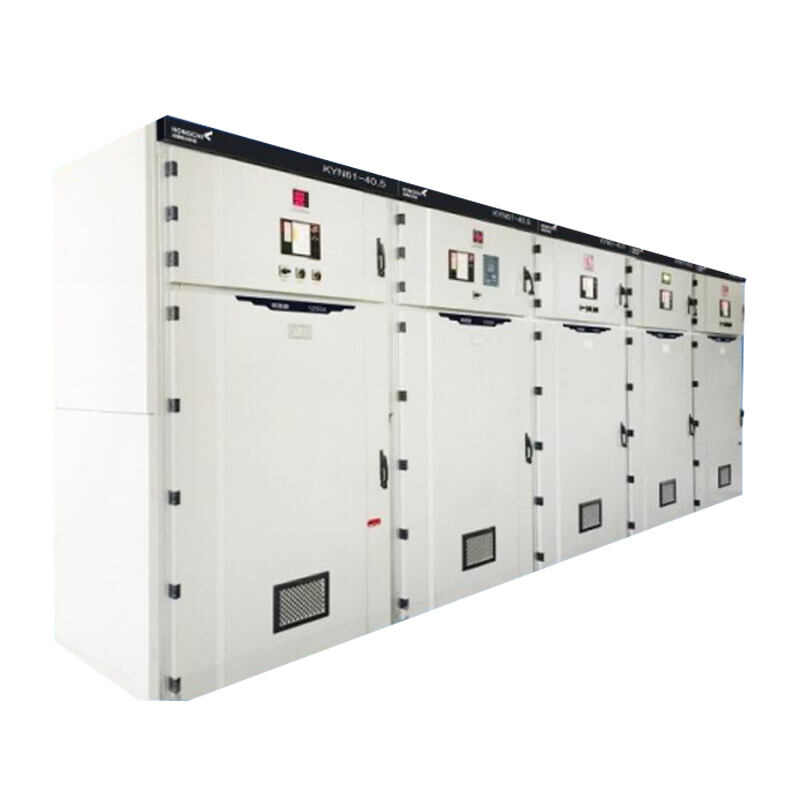

KYN61-40.5 Armored Metal Enclosed Switchgear

KYN61-40.5 AC High Voltage Metal Armored Removable Switchgear is suitable for three-phase AC 50Hz power systems. It is mainly used in power plants, substations, industrial and mining enterprises, high-rise buildings for receiving and distributing electrical
energy, and for controlling, protecting, and detecting circuits.

This switchgear can be equipped with various components such as SF6 circuit breakers and handcart vacuum circuit breakers, and the secondary circuit is equipped with advanced and reliable control and protection units. The product adopts advanced epoxy casting and reliable solid full insulated bus technology for full insulation design, with good electric field distribution. It is a power distribution equipment with advanced technology, stable performance, reasonable structure, convenient use, safety and reliability.

Project		Outline dimension parameters
Height	mm	2600
Width	mm	1400
Depth	mm	2600(3200)
Weight	kg	850~1850

Project	Unit	Parameters
Rated voltage	KV	40.5
Rated current of main busbar	A	1250、1600、2000、2500
Rated current of branch busbar	A	1250、1600、2000
Rated short time withstand current （4s）	KA	25、31.5、40
Rated peak withstand current	KA	63、80
Power frequency withstand voltage/fracture	KV	95/118
Lightning impulse withstand voltage/fracture	KV	185/215
Protection level	V	IP4X（When the circuit breaker room door is opened or the compartments are IP2X）
Auxiliary power supply voltage		DC/AC:110、220

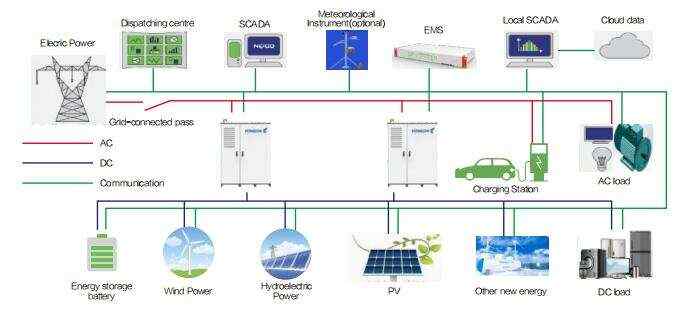

On-grid Microgrid in industral Park

The industrial park grid-connected microgrid system realizes a stable supply of clean energy. The system integrates renewable energy such as solar energy, wind energy, and energy storage to form an independent small power system, which is particularly suitable for enterprises and industrial buildings with high requirements for energy stability.

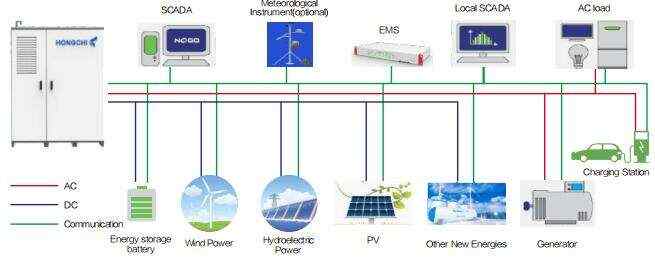

Off-grid Microgrid

The off-site microgrid system provides stable and reliable electricity for remote areas and special usage situations. The system operates independently without being connected to the main power grid. It is particularly suitable for places that are difficult to cover by the main power grid, such as remote areas, islands, urban suburbs, and tourist attractions.

Services available

1.FAT (Factory Acceptance Test) : - Ensure equipment or systems are operating according to specifications. - Provide customers with the opportunity to test the equipment before shipping.

2.Service support: - Provide technical support and maintenance services. - Online support and remote diagnostics.

3.Customized solutions:

- Customized solutions according to customer needs. 4.Delivery and installation services: - Provide fast and efficient distribution and on-site installation services.

We are a comprehensive private enterprise specializing in the electrical field, integrating scientific research, development, manufacturing, and installation. Lean scientific management, professional production testing equipment, and high-quality after-sales service have driven the steady development of Hongbo. The company attaches great importance to the penetration of technology and the improvement of quality, and has successively passed ISO three system certification, national mandatory product CCC certification, voluntary product certification CQC certification, enterprise credit AAA certification, etc.

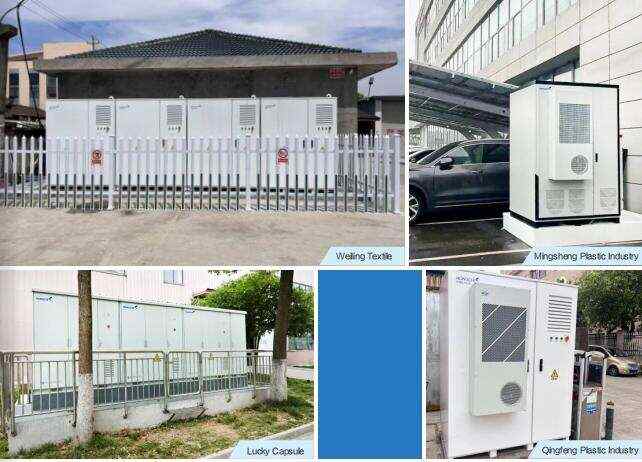

Performance cases

Hot Tags: High Voltage Kyn61-40.5 Armored Metal Enclosed Switchgear For Energy Storage Microgrid - Buy High Voltage Kyn61-40.5 Armored Metal Enclosed Switchgear For Energy Storage Microgrid Product on Raydafon
