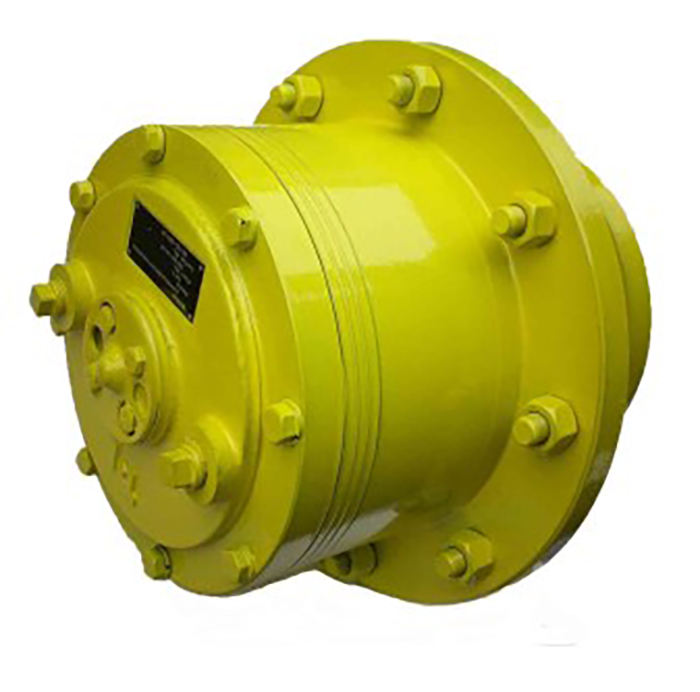

Model 3 Series Planetary Gearbox Replacement of AUBURN (wheel Drives)

Send Inquiry

Product Description

The Model 3 series planetary gearbox is a gearbox produced by Auburn Gear. It is designed specifically for high torque and high-power applications and can be used in various industrial and commercial equipment, including conveyors, mixers, and pumps. The Model 3 series planetary gearbox adopts a compact and durable design, and the planetary gear set can provide high efficiency and low backlash. The gearbox has various transmission ratios that can be customized to meet specific torque and output requirements.

FEATURE CHART: MODEL 3 SERIES,WHEEL DRIVES REDUCTION - STYLE WD (Differential version)

OPTIONS

DESCRIPTION

ORDER NUMBER

USE OPTION ORDER CODES TO BUILD ORDER NUMBER

MODEL SERIES

MODEL 3

MOTOR PILOT/HUBS

SAE A

MOTOR INPUT SPLINE

13T - 16/32
15T - 16/32
1”-6B

13
15
6B

RATIO OPTIONS

2.54, 3.67, 11.19, 13.66
15.51, 18.33, 20.78

02, 03, 11,13
15, 18, 20

OUTPUT OPTIONS

9/16×2.75
NONE

18
0

BRAKE

Without Brake

DISCONNECT

With disconnect

Without disconnect

NONE

Example of complete order code:

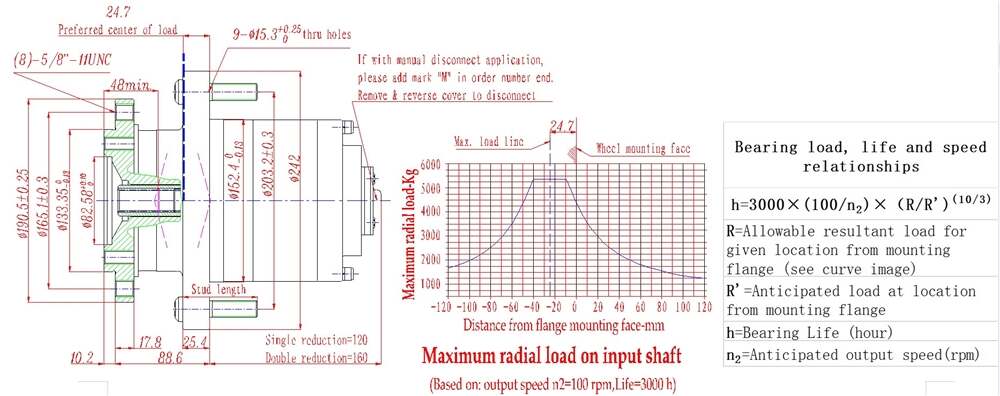

Model 3 Series, Wheel drives---dimensions

Some key features of the Model 3 series planetary gearbox include: 1. High torque capability: The gearbox can handle high torque loads and is suitable for heavy-duty applications. 2. Low backlash: The planetary gear set provides low backlash for smooth and precise operation. 3. Compact design: The gearbox adopts a compact design, which is easy to install and integrate into various devices. 4. Customizable: The gearbox can be customized to meet specific torque and output requirements, making it a universal solution for various applications. 5. High efficiency: The planetary gear set provides high efficiency, thereby reducing energy consumption and heat generation. The Model 3 series planetary gearbox is a reliable and efficient solution for high torque and high-power applications. It is designed to withstand harsh operating conditions and provide long-lasting performance through appropriate maintenance and upkeep.

Application of Type 3 Series Planetary Gearboxes The Model 3 series planetary gearbox is a multifunctional and efficient gearbox that can be used in various industrial and commercial applications. The following are some typical applications of the Model 3 series planetary gearbox: 1. Material handling: Model 3 series planetary gearbox is usually used for Material-handling equipment such as conveyors, elevators and cranes. Its high torque capability and low backlash make it an ideal choice for heavy-duty applications that require smooth and precise operation. 2. Packaging Machinery: The Model 3 series planetary gearbox is widely used in packaging machinery such as filling machines, capping machines, labeling machines, etc. Its compact design and high efficiency make it an excellent choice for this application. 3. Food processing: The Type 3 series planetary gearbox is used for food processing equipment such as mixers, grinders, slicers, etc. Its smooth, precise operation and low backlash make it an ideal choice for this application. 4. Agricultural machinery: Model 3 series planetary gearbox is used for agricultural machinery such as harvesters, spray and tillers. Its high torque capability and durability make it an excellent choice for this application. 5. Renewable energy: The Model 3 series planetary gearbox is used for renewable energy equipment such as wind turbines and solar trackers. Its high efficiency and low backlash make it very suitable for this application. Overall, the Model 3 series planetary gearbox is a multifunctional and efficient gearbox that can be used in various industrial and commercial applications. Its high torque capability, low backlash, compact design, and durability make it an excellent choice for applications that require smooth and precise operation. With its customizable options and various sizes and transmission ratios, the Model 3 series planetary gearbox can be customized to meet the specific needs of a wide range of applications.

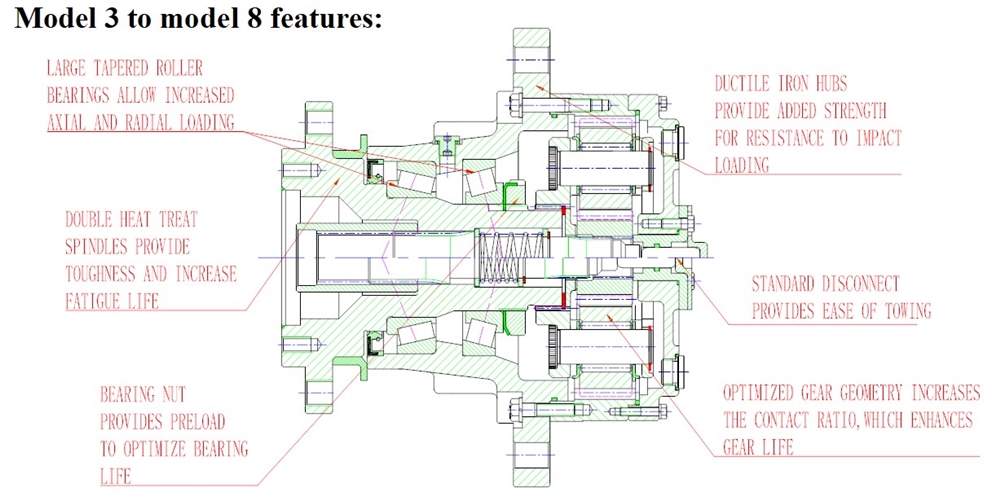

Our Factory At present, we produce NB3 series planetary gearbox, NB4 series track transmission, NB7 series rotary transmission, NB6 series wheel transmission, and American series planetary gear transmission; It has developed to 10000 specifications, with a reduction ratio range of 3.3 to 9000 and an output torque range of 500 to 450000N. m. Its products are exported to over 90% of the United States, Europe, Australia, South America, the Middle East, and Southeast Asia. We use well-known planetary gearboxes from Europe and America to manufacture products. The installation and dimensions of planetary gearboxes are identical and can be completely interchangeable for use. The company has a number of automatic integrated machining centers, CNC grinders, CNC gear machines, CNC machine tools and other high-quality equipment made in Made in Taiwan and Made in Taiwan, thus ensuring high-precision parts. Employees must undergo strict professional training, good skills, and excellent qualities. Adopting modern computer systems for comprehensive management, we have successfully passed the ISO9001:2000 quality system certification. This catalog introduces the Model 3 to Model 8 series of planetary gear transmissions in the United States. We provide services in design, engineering, prototype support, as well as complete testing and production capabilities. Product applications include aerial elevators, agriculture, automobiles, construction, forestry, industry, and the ocean.

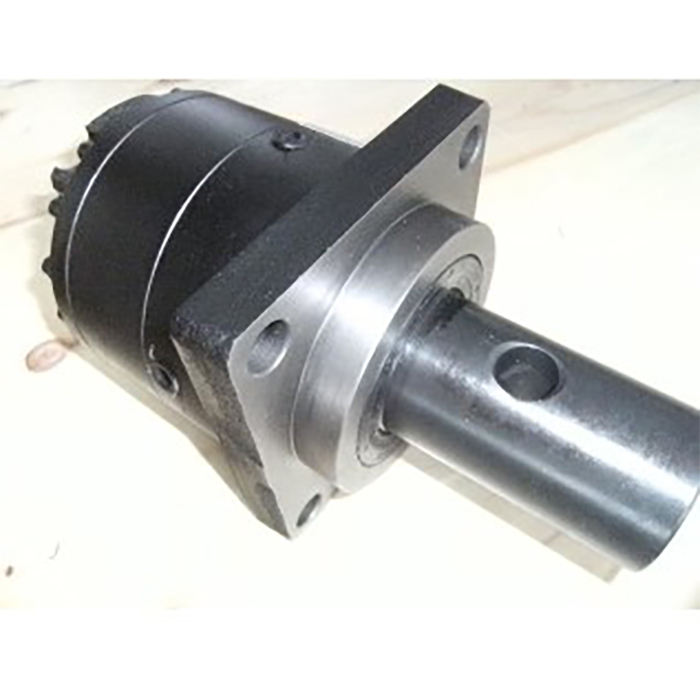

Other Types of Planetary Gearboxes

For more models or customization, please click here!

Click on the picture below for details

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
