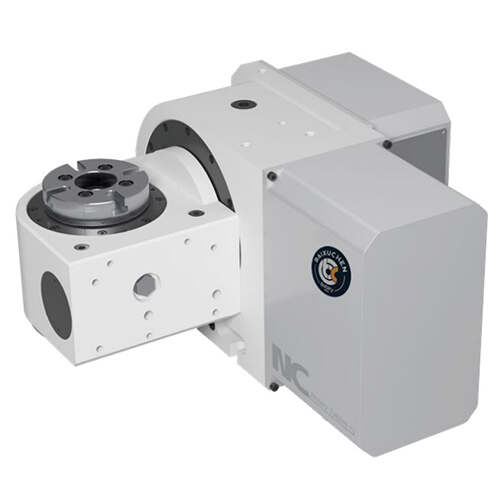

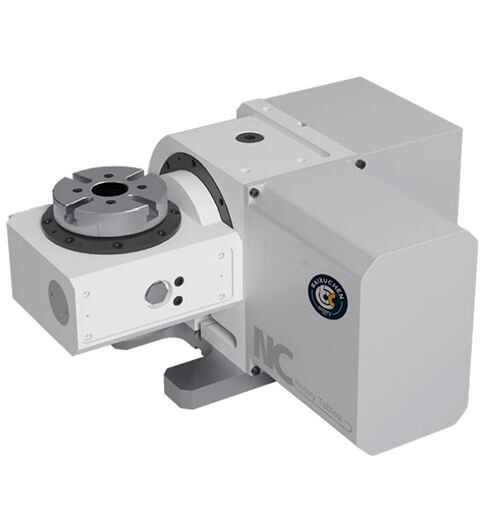

WT-RT170 Proper Price Metal Vertical Cnc 5 Axis Machining Center Accessories

Five axis linkage machining High segmentation accuracy, high performance and high efficiency Strong braking system, Optional hydraulic brakeProduct ModelWT-RT170Servo motor (optional)β4i HF-54;β8i HF-104Panel SizeΦ170mmReduction Ratio1:90 ;1:120Disk ApertureΦ50mmMaximum Rotation Speed Of Worktable 5......

Send Inquiry

Product Description

Five axis linkage machining

High segmentation accuracy, high performance and high efficiency

Strong braking system, Optional hydraulic brake

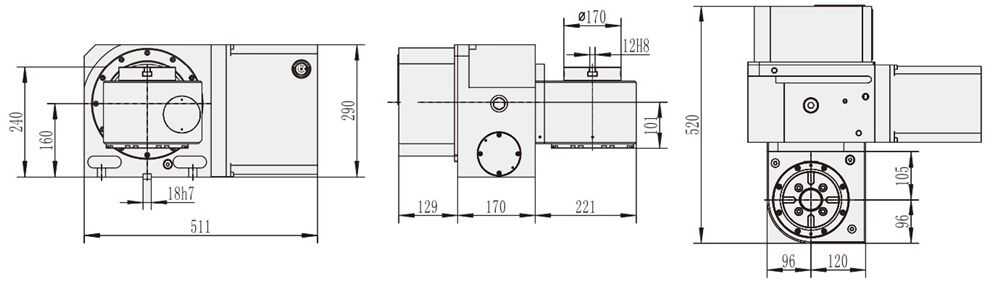

Product Model	WT-RT170	Servo motor (optional)	β4i HF-54;β8i HF-104
Panel Size	Φ170mm	Reduction Ratio	1:90 ;1:120
Disk Aperture	Φ50mm	Maximum Rotation Speed Of Worktable	55.5r.p.m; 33.3r.p.m
Center Trough Hole	Φ45mm	Minimum Setting Angle	0.001°deg
Disk Height	240mm	Segmentation Accuracy	15″sec;30″sec
Disk T-Slot	12H8mm	Repeat Positioning Accuracy	4″sec;4''sec
Positioning Button	18H7mm	Locking Method	5Kg/cm²; 35Kg/cm²
Tilt Axis Angle Range	-45 ~110°	Brake Torque	31Kg/m ; 140Kg/m
Net Weight (about)	120Kg	Allowable Cutting Force	18Kg.m; 55Kg.m
Horizontal placement	75KG	Placement	40KG
