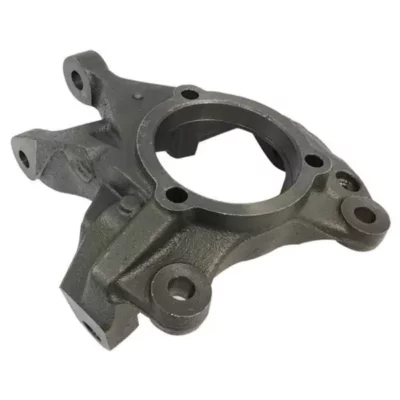

1.831kg 700ATV Steering Knuckle Kit With Forks Yoke Cast Steel Forged Front Left and Right

1.831kg 700ATV Steering Knuckle Kit With Forks Yoke Cast Steel Forged Front Left and Right

Web Menu

Product Search

Language

Exit Menu

Product FeaturesIf your steering wheel is too rough, the pleasure of driving a beach bike can quickly lead to sadness. Suitable for the 700 series beach bike, it is a perfect substitute when one day your casting experiences severe collision and fracture, or the ball head cannot be fixed due to eye d......

Send Inquiry

Product Description

Product Features

If your steering wheel is too rough, the pleasure of driving a beach bike can quickly lead to sadness. Suitable for the 700 series beach bike, it is a perfect substitute when one day your casting experiences severe collision and fracture, or the ball head cannot be fixed due to eye detachment. This steering knuckle accepts original wheels and wheel speed sensors. When you replace the steering knuckle to consider new hardware and ball joints, making installation easier and faster, this is a great time.

Product Performance
Max Input Torque	T max	N.m
Max Input Rotation Rate	n max	r/min
Centre.to-centre Spacing	A	mm
Gear Ratio	U

Over Dimension & Weight
Weight(kg)	1.831
Length	187
AxleTrack	159
Height	101

What is a steering knuckle?

The real name is "steering knuckle", which is one of the important components on the steering shaft of a car, ensuring stable driving and sensitively transmitting the direction of travel. The steering knuckle, also known as the 'sheep horn', is one of the important components on the steering shaft of a car, which can ensure stable driving and sensitively transmit the direction of travel. The function of the steering knuckle is to transmit and bear the load on the front of the car, support and drive the front wheels to rotate around the kingpin, and make the car turn. In the driving state of a car, it bears variable impact loads, therefore requiring high strength. 700ATV steering knuckle kit fork yoke cast steel forged left and right front The steering knuckle is a hinge that rotates the wheels, usually in a forked shape. The upper and lower forks have two coaxial holes for installing the kingpin, and the steering knuckle journal is used for installing the wheels. The two ears of the pin holes on the steering knuckle are connected to the fist shaped components at both ends of the front axle through the kingpin, causing the front wheel to deflect at a certain angle around the kingpin, causing the car to turn. To reduce wear, press a bronze bushing into the pin hole of the steering knuckle and lubricate the bushing by injecting grease into the nozzle installed on the steering knuckle. To ensure flexible steering, a bearing is installed between the lower ear of the steering knuckle and the front axle box component. An adjusting shim is also installed between the upper ear and the fist shaped part of the steering knuckle to adjust the gap between them.

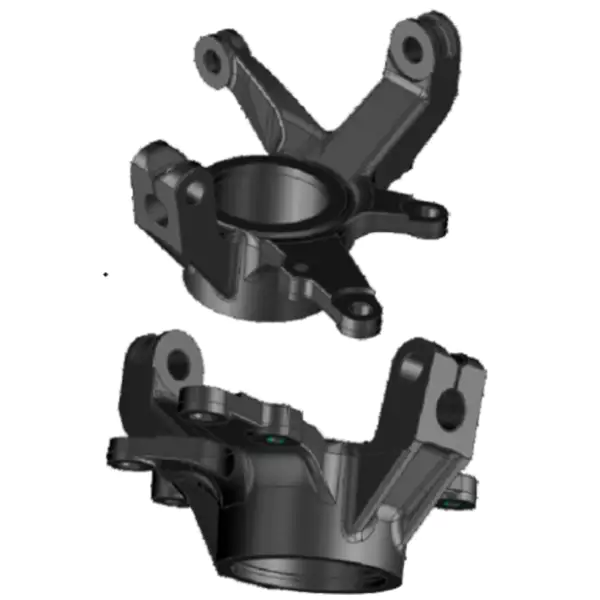

ATV related accessories

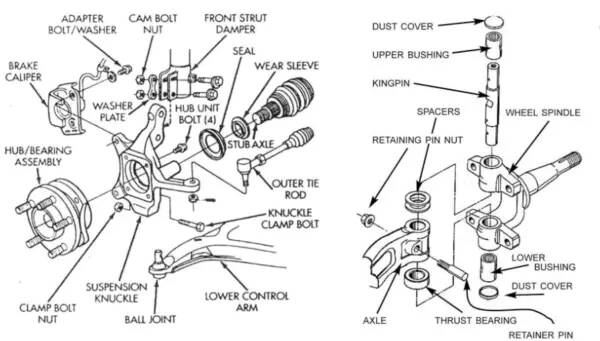

Steering Knuckle (Automotive Parts Drawing Automotive Suspension, Steering Knuckle refers to the suspension and steering components that include a wheel hub or spindle. Also known as a steering knuckle, spindle, strut, or hub. The wheel and tire assembly is connected to the wheel hub or spindle of the steering knuckle, and the tire/wheel rotates and assembles within the stable motion plane of the steering knuckle/suspension The attached photo of the double wishbone suspension shows that the steering knuckle is connected to the upper control arm at the top and the lower control arm at the bottom. The wheel assembly is connected to the center point of the steering knuckle. Pay attention to the extended arm of the steering knuckle, which is connected to the steering mechanism and used to rotate the steering knuckle and wheel assembly

For more details, please click here to contact us!

Certificates and Honors

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.

Hot Tags: 1.831kg 700atv Steering Knuckle Kit With Forks Yoke Cast Steel Forged Front Left And Right - Buy Steering Knuckle Kit,Steering Knuckle Kit With Forks Yoke,Steering Knuckle Kit With Forks Yoke Cast Steel Forged Front Left And Right Product on Raydafon

Input & Output Spline Parameters

Tooth system

Input internal spline

Output end internal spline

number of teeth

Pressure angle

the modification coefficient
