5kg Ea02 Reducer Gearbox Differential Assembly for Automotive

Product FeaturesThis product is a compact differential with a simple structure, which distributes the power of the two half shafts through the rotation of planetary gears.Product PerformanceMax Input TorqueT maxN.mMax Input Rotation Raten maxr/minCentre.to-centre SpacingAmmGear RatioUWhat is the fun......

Send Inquiry

Product Description

Product Features

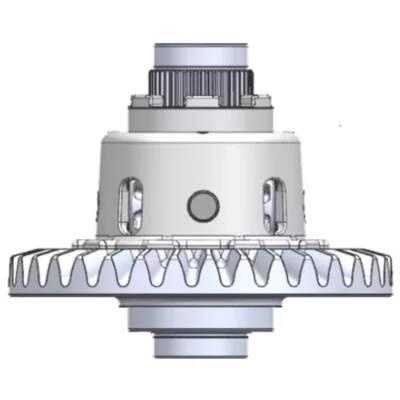

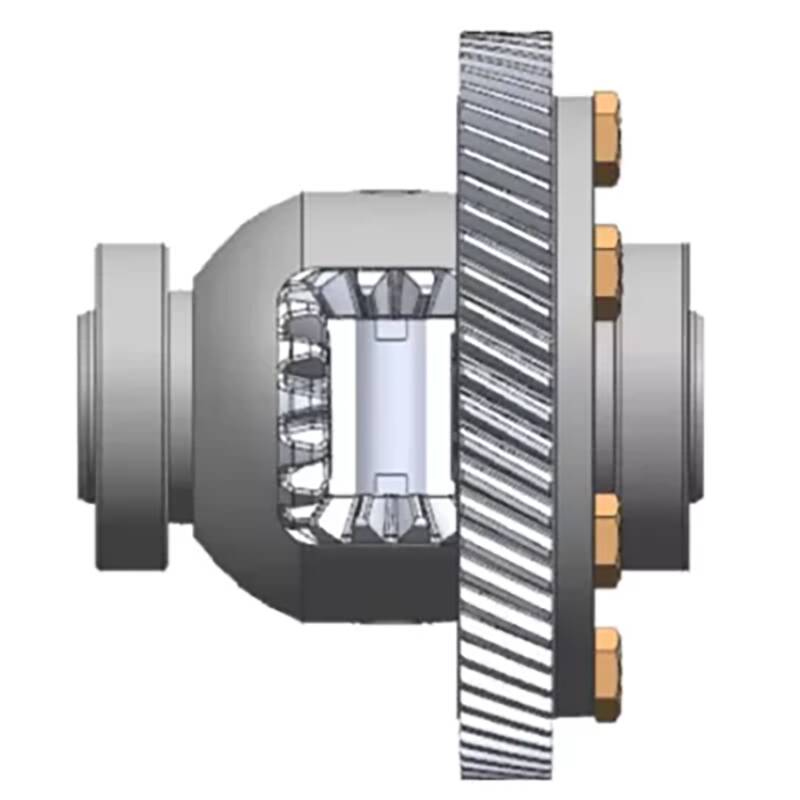

This product is a compact differential with a simple structure, which distributes the power of the two half shafts through the rotation of planetary gears.

Product Performance
Max Input Torque	T max	N.m
Max Input Rotation Rate	n max	r/min
Centre.to-centre Spacing	A	mm
Gear Ratio	U

What is the function of a car differential? Ea02 Automotive Differential Assembly The automotive differential is an important component in the automotive transmission system, whose main function is to balance the speed difference between different wheels to ensure that the vehicle can drive on different roads. Specifically, when a vehicle turns or drives on uneven roads, the differential can allow for different speeds between two or more wheels. When the vehicle turns left, the speed difference between the front and rear wheels can cause the vehicle to turn left, and the differential can balance this difference to ensure that the vehicle can turn smoothly. When driving on uneven roads, the differential can also balance the speed difference between different wheels to ensure smooth driving of the vehicle. In addition, some cars are also equipped with automatic differentials, which can automatically balance the speed difference between different wheels without the need for driver intervention, thereby improving the driving stability and safety of the vehicle.

Input & Output Spline Parameters
Tooth system		Input internal spline	Output end internal spline
modulus	m	1
number of teeth	z	22
Pressure angle	a	20°
the modification coefficient	x	+0.2
