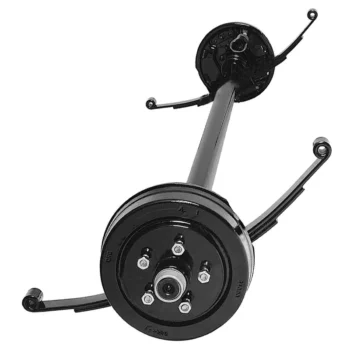

6000lbs Idler Trailer Axle Shaft Spring Axles With 6 Lug Hub Drum

Send Inquiry

Product Description

Characteristics of Trailer Axles Replace axles from Dexter, AL-KO, Hayes, Lippert, Rockwell USA, and almost any other brand. The axle is fully assembled The axle is pre wired in the axle tube. Equipped with high-temperature axle grease. Quick lubricating grease. The Zerk attachment on the spindle uses a rubber plug on the hub cover to simply lubricate the bearings. Lubricate the axle without removing the entire hub. Bottom suspension - The bottom of the axle is welded with a spring seat (the axle is located at the top of the spring) This can reduce the ride height. For optimal use, please use it with a double hole spring High strength Camber angle angle steel axle tube structure ensures uniform tire wear and extends tire service life. Powder coated black.

Hub Face	95"
Spring center	80"
Capacity Per Axle (LBS)	6000lbs

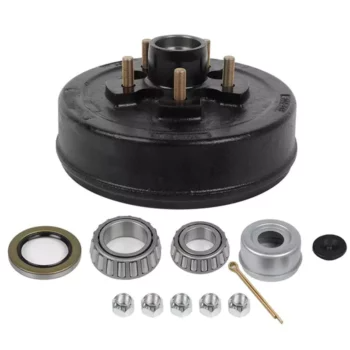

Hubs/drums	6 Stud hub drum
PCD	139.7mm
Size	1/2" UNF
Tube	3" hollow tube.

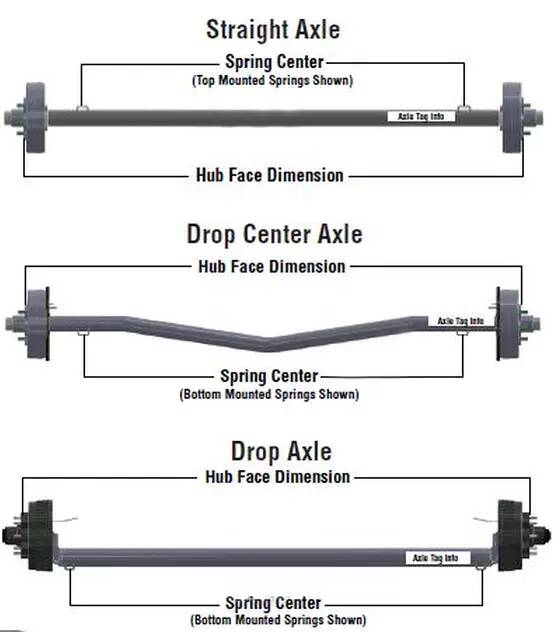

How to measure the axle correctly? Hub surface (HF): Measure from one end of the axle protruding from the lug bolt to the other end at the same point. This is the wheel hub surface. Spring center (SC): Measure the distance from the middle of a spring on one axis to the center of another spring on the same axis. The difference between the measured values of the hub surface and the center of the spring should be approximately 15 ". (7-1/2" on each side

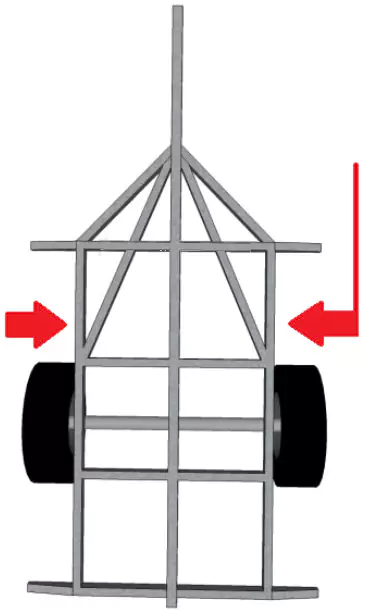

The most important measurement is from the center of the spring to the center of the spring. Do you want to place the spring in the center of the trailer frame

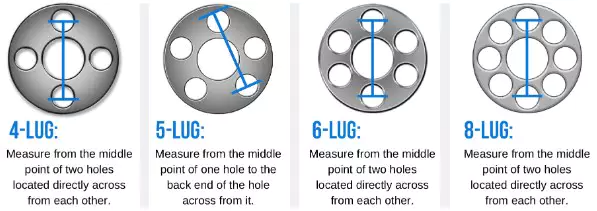

How to measure your bolt pattern With this information, you can calculate the first part of the bolt pattern. The number of studs should always be the initial step in studying bolt patterns, as you will see on any product list. How to measure your bolt pattern In this case, you know you have a 6 earring, but what is the second number? This is the diameter of the circle formed by the center of the wheel lug. It can appear in inches or millimeters, so it's important to know which one you're looking at. The bolt patterns of 4-6 and 8 lugs can be measured from the center of the stud to the center of the opposite stud. The pattern of the 5 lug bolts is a bit difficult to measure, but you can easily complete it according to the figure below.

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
