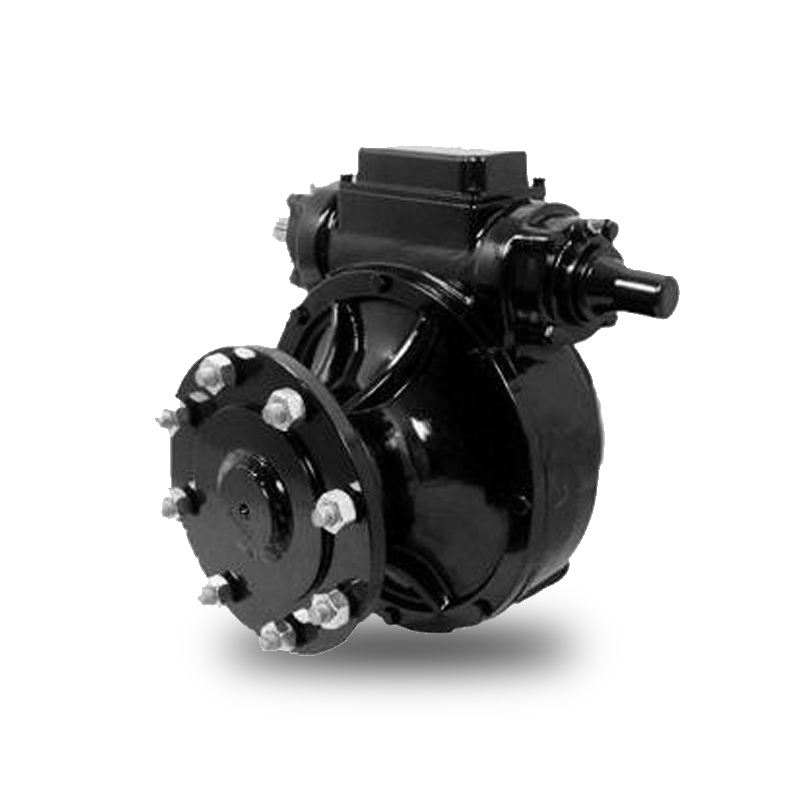

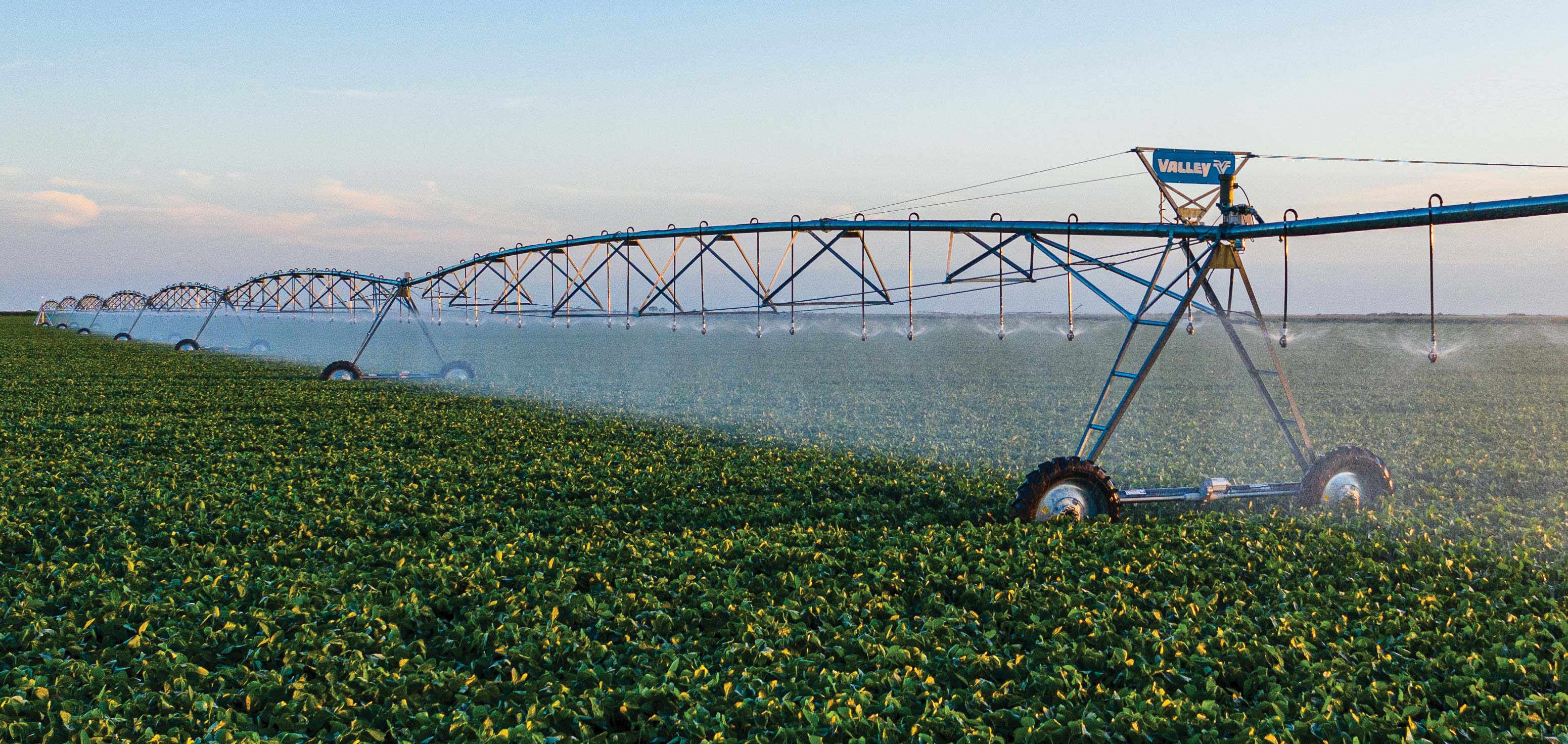

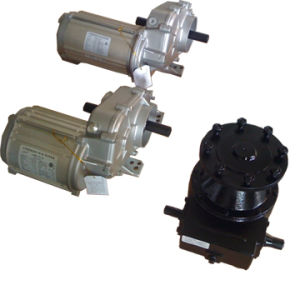

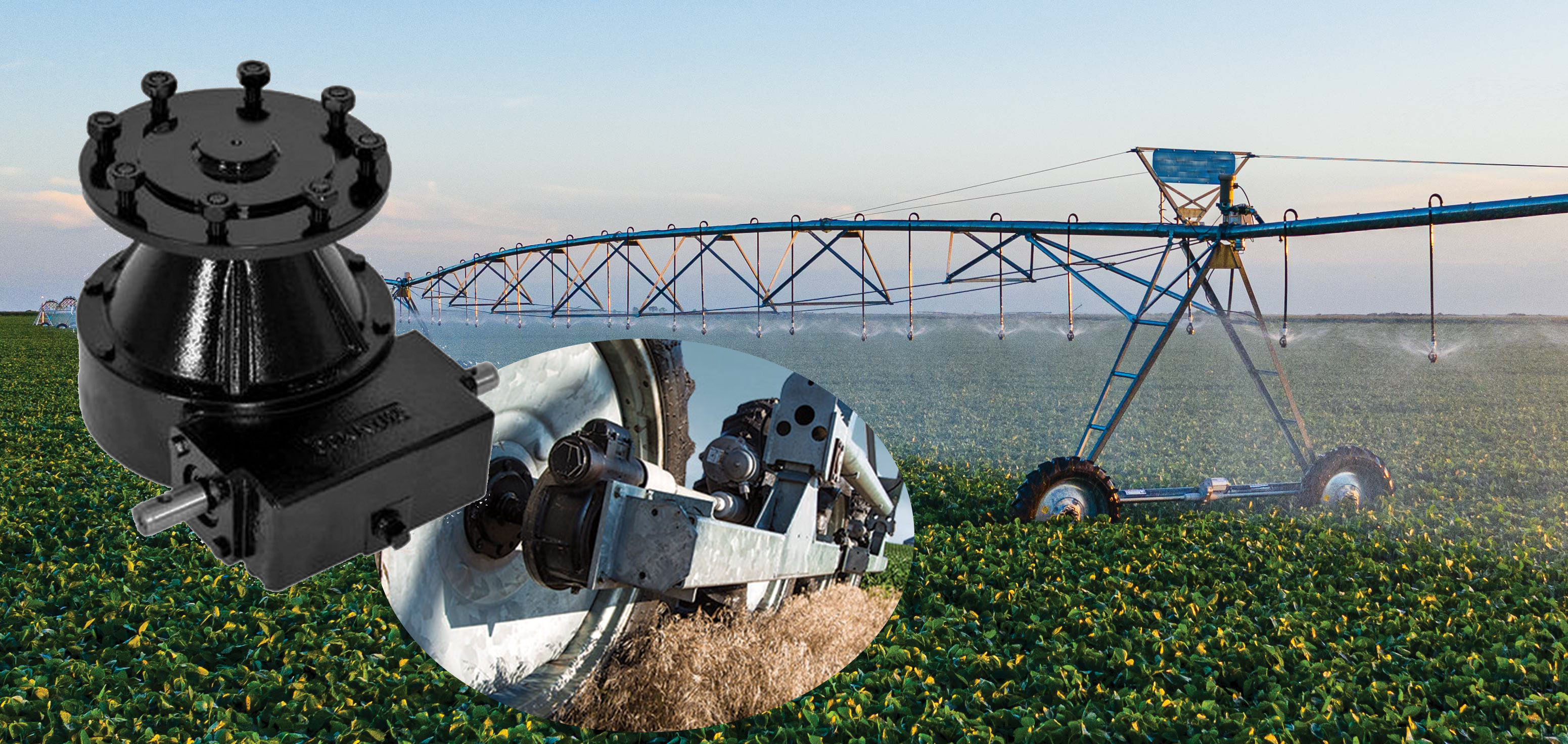

Agricultural Farm Wheel Drive Gearmotor Center Pivot Irrigation System Part Gearbox for Valley Sprinkler Zimmatic Centre

FeaturesExcellent design: Based on independent testing, it is three times longer than the life of similar transmissions.Greater torque capacity: According to independent test, big gear can provide 20% torque capacity.Durable: The longer output shaft increases the clearance between mud and crops, red......

Send Inquiry

Product Description

Features Excellent design: Based on independent testing, it is three times longer than the life of similar transmissions. Greater torque capacity: According to independent test, big gear can provide 20% torque capacity. Durable: The longer output shaft increases the clearance between mud and crops, reducing the chance of seal damage. Minimize bearing load: special offset rims place tires close to the gearbox to minimize bearing load and extend service life. Highest load rating: The input and output bearings are both made in the United States, and the case hardened to achieve the highest load rating in the industry. Handling Extreme Conditions: The gearbox housing is designed to handle high stress areas and extreme operating conditions. Additional load capacity: The bronze big gear option provides additional load capacity, and the hardened steel worm can be used for extreme operating conditions or extended service life under less severe conditions.

Large-capacity rubber diaphragm	Expands with heat and pressure to minimize water condensation.
Input and output bearings	Case hardened to provide the highest quality and highest load rating available in the industry.
Worm gear	High-strength ductile iron provides significantly longer wear life than steel when combined with a cast iron bull gear.
Tooth design	Industry exclusive 25° tooth angle provides 40% longer life and better reliability in tough conditions compared to normal 14 1/2° tooth designs.
Largest bull gear neck and keyway	Provides strength in critical load-bearing area.
Expansion chamber	Cap made of corrosion-resistant cast aluminum; rubber diaphragm allows oil to expand and contract during operation. Vented cap prevents pressure buildup and prevents seals from leaking.
Threaded endcap	Allows accurate bearing preload to increase bearing life.
52:1 gear ratio	Fully recessed tooth design keeps oil between engaged gears.
Bull gear	High-strength cast iron provides the highest load capacity and longest life in the industry. Optional bronze gear is available for extreme conditions.
Multi-viscosity gearbox oil	Exceeds 85w140 GL5 oil for long gear wear under extreme load conditions.
