Couplings are vital mechanical components used to connect two shafts together, enabling the transmission of power in various industrial applications. They accommodate misalignment, reduce shock loads, and protect equipment from damage. In this guide, we provide a detailed overview of couplings, including product parameters, specifications, and answers to common questions.
Our couplings are designed for durability and high performance. Below are the key parameters in a detailed list and table format.
| Model | Material | Torque Capacity (Nm) | Max Speed (RPM) | Bore Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|
| CF-100 | Steel | 100 | 5000 | 10-25 | 0.8 |
| CF-200 | Stainless Steel | 250 | 7000 | 20-40 | 1.5 |
| CF-500 | Aluminum Alloy | 500 | 8000 | 30-60 | 2.2 |
| CF-1000 | Steel | 1000 | 6000 | 50-100 | 5.0 |
| CF-2000 | Stainless Steel | 2000 | 4000 | 80-150 | 12.0 |
| CF-5000 | Steel | 5000 | 3000 | 120-200 | 25.0 |
Here are some common questions and detailed answers to help you understand couplings better.
What is a coupling and what is its primary function?
A coupling is a mechanical device that connects two shafts to transmit power while accommodating misalignment, reducing vibration, and protecting machinery from overloads. It ensures smooth operation in systems like motors, pumps, and conveyors.
What are the main types of couplings available?

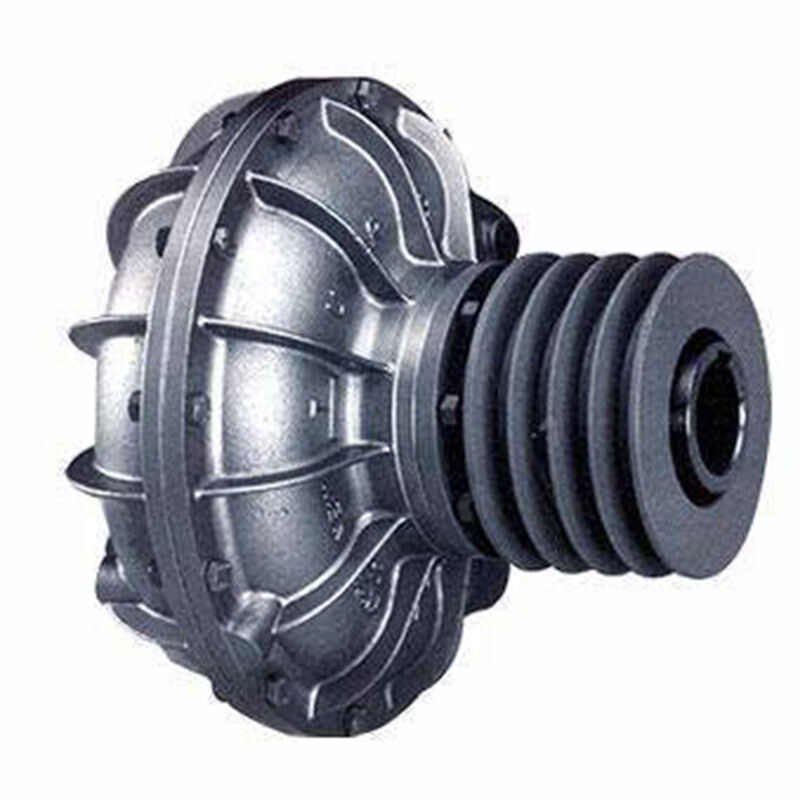

The main types include flexible couplings (e.g., jaw couplings, gear couplings), which allow for some misalignment and absorb shocks; rigid couplings, used where precise alignment is required; and fluid couplings, which use hydraulic fluid to transmit power smoothly, often in heavy-duty applications.
How do I select the right coupling for my application?
Selection depends on factors such as torque requirements, speed, misalignment tolerance, environmental conditions (e.g., temperature, humidity), and space constraints. Consult the product specifications, like torque capacity and material, and consider consulting an engineer for complex setups.
What maintenance is required for couplings?
Regular inspection for wear, lubrication (if applicable, as in gear couplings), and alignment checks are essential. Flexible couplings may need periodic replacement of elastic elements. Follow the manufacturer's guidelines, typically involving visual checks every 6 months and full maintenance annually.
Can couplings be used in high-temperature environments?
Yes, certain couplings made from materials like stainless steel or specialized alloys can operate in temperatures up to 150°C or higher. Always check the operating temperature range specified in the product parameters to ensure compatibility.
What are the signs of coupling failure?
Common signs include unusual noises (e.g., grinding or clicking), vibration increases, visible wear or cracks, misalignment issues, and reduced efficiency in power transmission. Immediate inspection and replacement are recommended to prevent equipment damage.
Are there couplings suitable for corrosive environments?
Absolutely. Couplings made from stainless steel, aluminum with coatings, or non-metallic materials like plastics are designed for corrosive settings, such as chemical processing or marine applications. Ensure the material specification matches the environment's demands.
How does misalignment affect coupling performance?
Misalignment can lead to increased stress, wear, and premature failure. Flexible couplings are designed to handle angular, parallel, or axial misalignment to some degree, but excessive misalignment beyond the rated capacity can compromise performance and lifespan.
Can I customize a coupling for specific needs?
Yes, many manufacturers offer customization options for bore size, material, and keyway configurations. Provide detailed requirements, such as torque and speed, to get a coupling tailored to your application, ensuring optimal performance and durability.
What standards do your couplings comply with?
Our couplings meet international standards like ISO 9001 for quality management, ANSI (American National Standards Institute) for dimensional consistency, and DIN (Deutsches Institut für Normung) for European compliance, ensuring reliability and safety in global markets.
