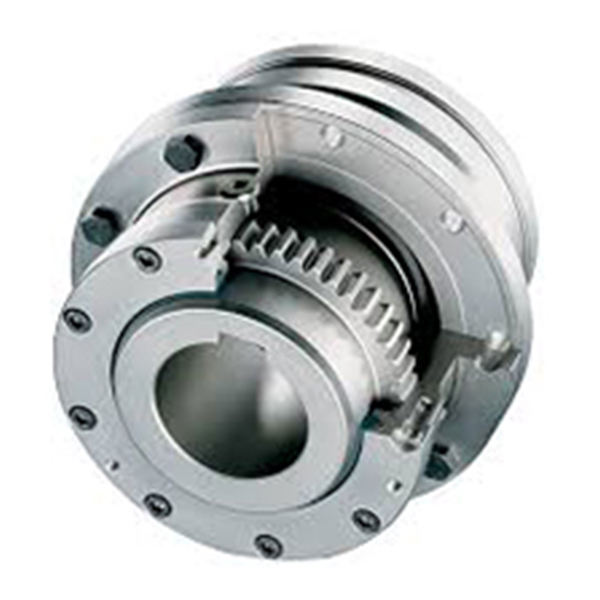

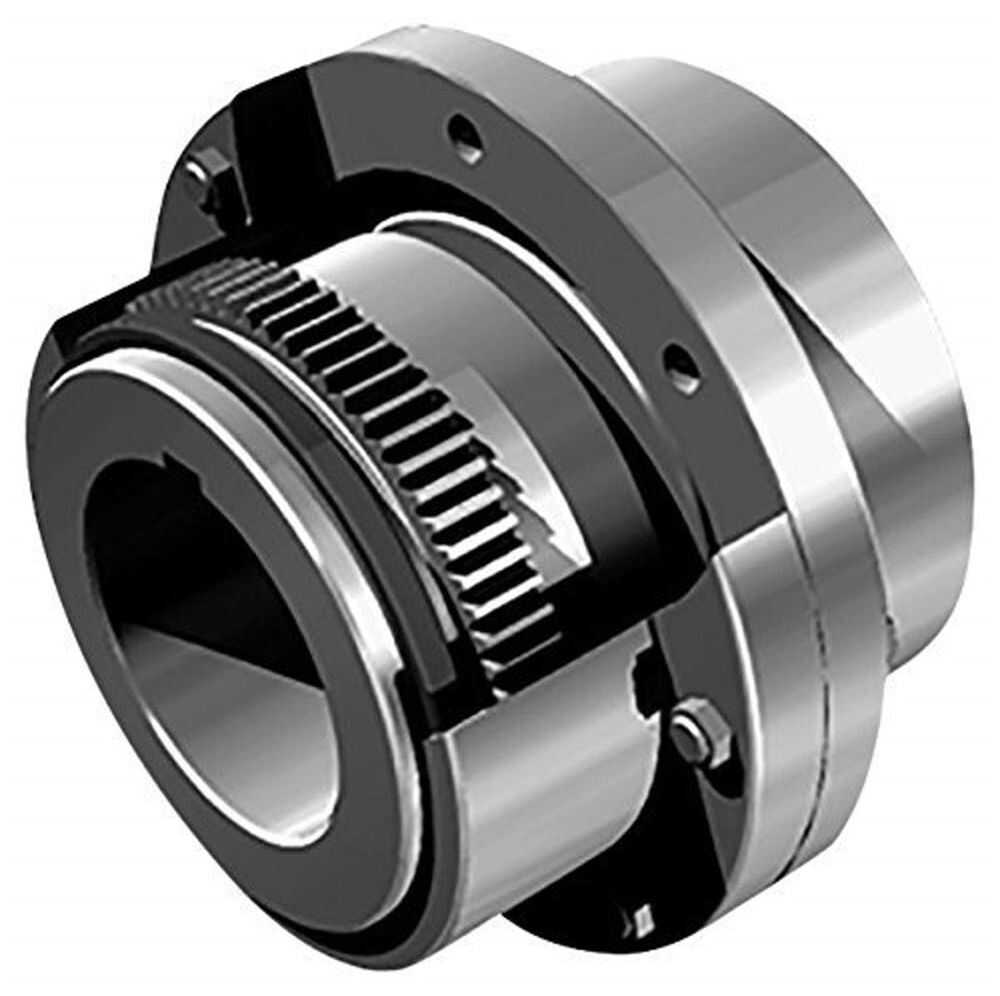

Curved Radial Size Tooth Small Radius External Cnc Machining Stainless Steel Sleeve Gear Coupling

Typical case of diaphragm coupling applied to variable frequency speed control equipment

JMB type coupling is applied to Daqing Oilfield Thermal Power Plant

According to the requirements of Daqing Electric Power Corporation, Daqing Oilfield Thermal Power Plant should dynamically adjust the power generation according to the load of the power grid and market demand, and carry out the transformation of the frequency converter and the suction fan. The motor was originally a 1600KW, 730RPM non-frequency variable speed motor matched by Shenyang Motor Factory. The speed control mode after changing the frequency is manual control. Press the button speed to increase 10RPM or drop 10RPM. The coupling is still the original elastic decoupling coupling, and the elastic de-coupling coupling after frequency conversion is frequently damaged, which directly affects the normal power generation.

It is found through analysis that in the process of frequency conversion speed regulation, the pin of the coupling can not bear the inertia of the speed regulation process (the diameter of the fan impeller is 3.3 meters) and is cut off, which has great damage to the motor and the fan.

Later, they switched to the JMB460 double-diaphragm wheel-type coupling of our factory (patent number: ZL.99246247.9). After 1 hour of destructive experiment and more than one year of operation test, the equipment is running very well, and there is no Replace the diaphragm. 12 units have been rebuilt and the operation is in good condition.

Other Application Case

Q: Are you a factory or trading company?

A:We're a direct factory,we have our own casting foundry and machining factory over 25 years.

Q: Do you make customized products based on our design drawings?

A: Yes, we are a professional metal fabrication factory with 20 experiences to make custom products according to clients' drawings.

Q: Will my drawing be safe after you get it?

A: Yes, we will not release your design to third party unless with your permission.

Q: What is the MOQ?

A: Usually we don't set MOQ, but the more, the cheaper. Besides, we are happy to make prototype or sample for clients to ensure quality standard.

Q: Whether some samples can be provided?

A: Yes, just need some sample cost and express cost,we will provide some parts which we have stock.

Q: How fast can my samples be finished?

A: Generally 5-7 Working days

Q: How to deal with the parts received when they are found to be in poor quality?

A: In case of non- conformance, please contact us immediately, we will check the problems and have them reworked or repaired at the first time. If none of these works, we support a refund.
