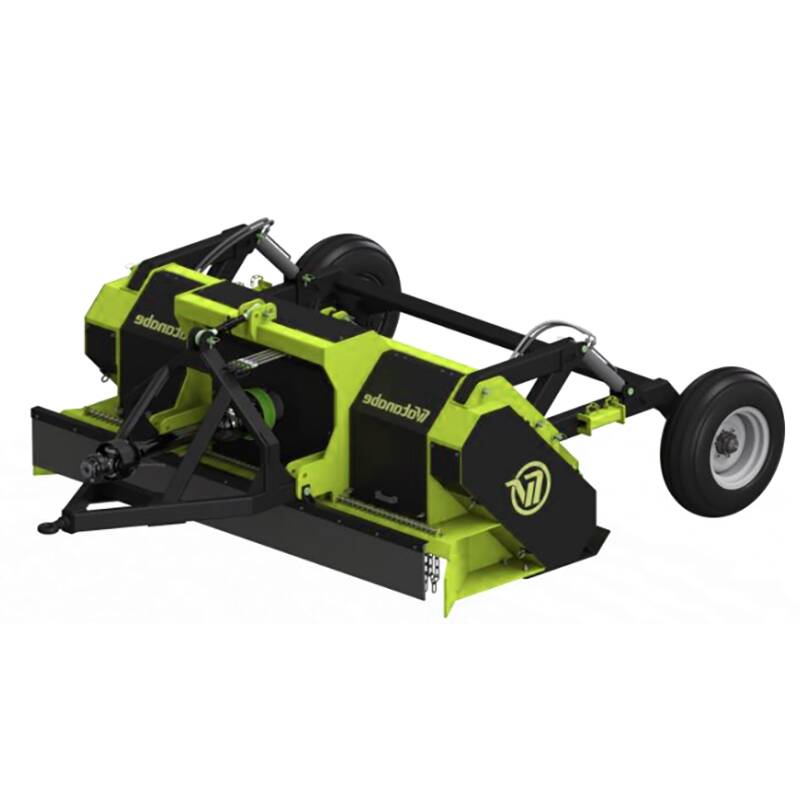

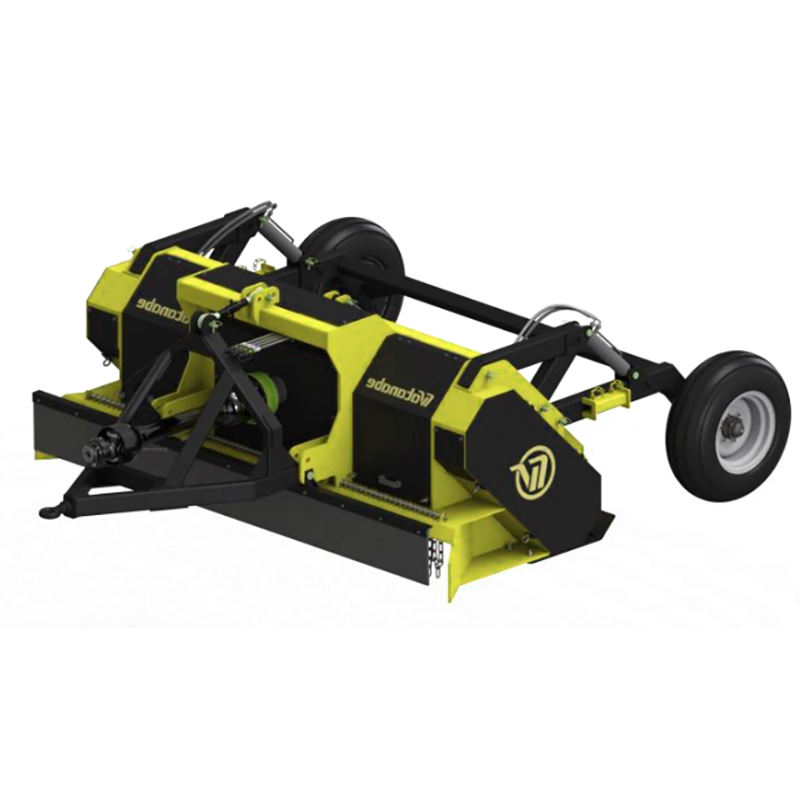

Custom High Quality 3400kg Mulchers Stone Crushers Rock Pickers for Sale

Key Features:1. Collection Mechanism: Reel or Rake: A rotating reel or rake lifts rocks from the soil surface.Scoop or Bucket: Some models use a scoop to gather rocks and soil, sifting out smaller particles.Conveyor or Chain: Transfers collected rocks into a hopper or piles them to the side. ......

Send Inquiry

Product Description

Key Features:

1. Collection Mechanism: Reel or Rake: A rotating reel or rake lifts rocks from the soil surface.Scoop or Bucket: Some models use a scoop to gather rocks and soil, sifting out smaller particles.Conveyor or Chain: Transfers collected rocks into a hopper or piles them to the side.

2. Hopper: A storage bin (capacity typically 1-3 cubic yards) holds collected rocks until it’s full and ready to be dumped.

3. Sifting System: Features grids, screens, or bars to separate rocks from soil, allowing dirt to fall back to the ground.
Adjustable spacing to pick rocks of specific sizes (e.g., 2-30 cm diameter).

4. Power Source: PTO-driven (30-100 HP, depending on size) or hydraulically operated for larger models.

5. Durable Build: Constructed with heavy-duty steel and reinforced components to handle abrasive rocks.

6. Adjustable Depth: Controls how deep the picker digs (e.g., surface only or up to 10 cm) to target rocks at different
levels.

TECHNICAL DATA	CT-2100
Dimensions
Length (mm.)	6000
Width (mm.)	3050
Height (mm.)	2340
Weight	3400 Kg
Bottom linkage category	2
Working Width	1,95 m
Bunker capacity	2,5 m³
Tractor requirements
Engine power (min.)	110 cv
Working speed	3 - 5 Km/h
Oil flow (min.)	60 L/min.
Required control valves	2
