H Series Industrial Swing Arm Manipulator for Auto Spare Parts Automated Production

H Series Swing Arm ManipulatorProduct features:-Built-in cables for easier deployment.-First-line brand high-quality key motion components to achieve high-speed motion, high stability, and high reliability.-The swing arm type is equipped with an independent air source, which does not interfere with ......

Send Inquiry

Product Description

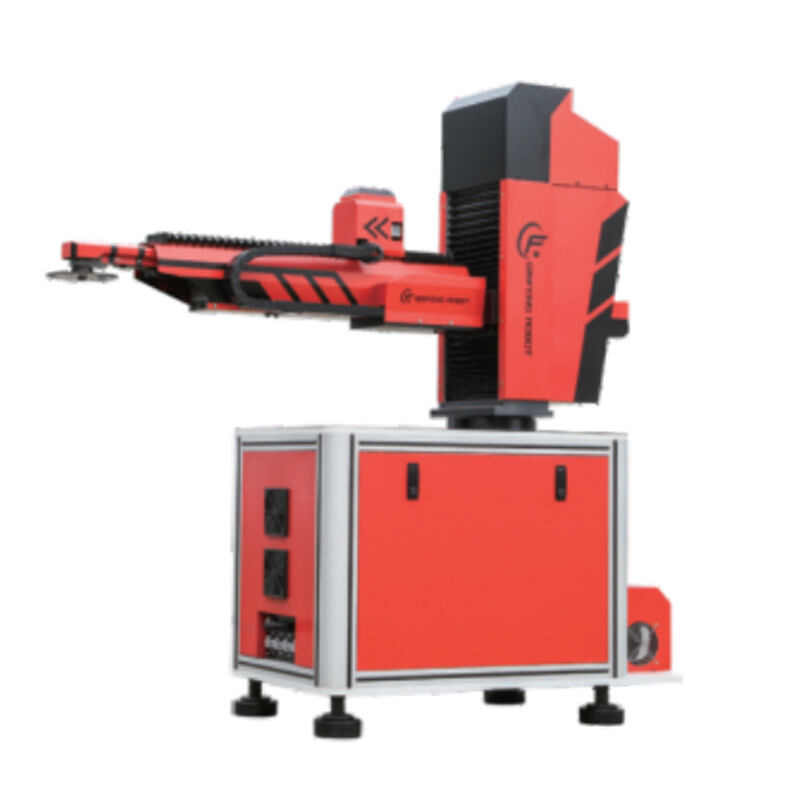

H Series Swing Arm Manipulator Product features:

-Built-in cables for easier deployment. -First-line brand high-quality key motion components to achieve high-speed motion, high stability, and high reliability. -The swing arm type is equipped with an independent air source, which does not interfere with the on-site air source and enhances the stability of the robot arm operation.

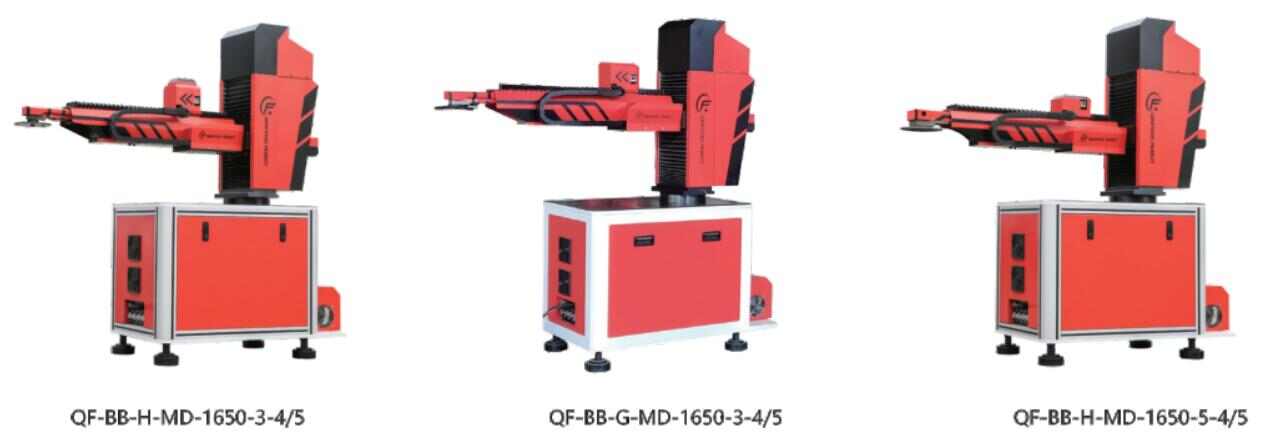

Model		QF-BB-H-MD-1650-3--4/5	QF-BB-G-MD-1650-3--4/5	QF-BB-H-MD-1650-5--4/5
Max working radius	mm	1650
Min working radius	mm	1120
Grip size	mm	≤400*400			≤600600(S version) ≤800800（L version
Center grip weight	kg	≤3			≤5
Max SPM	pcs/min	17	20	15
Position precision	mm	+-0.2
Body size （H is variable）	LWH	18006001800
Body weight	kg	350	480	400
Axial travel stroke	Arm swing angle	+-170
		Arm vertical telescopic stroke（Min grip level）	0-340（1000）
		Arm horizental telescopic stroke	530
		Arm turning angle	+-180
		Suction disc rotating angle	+-360

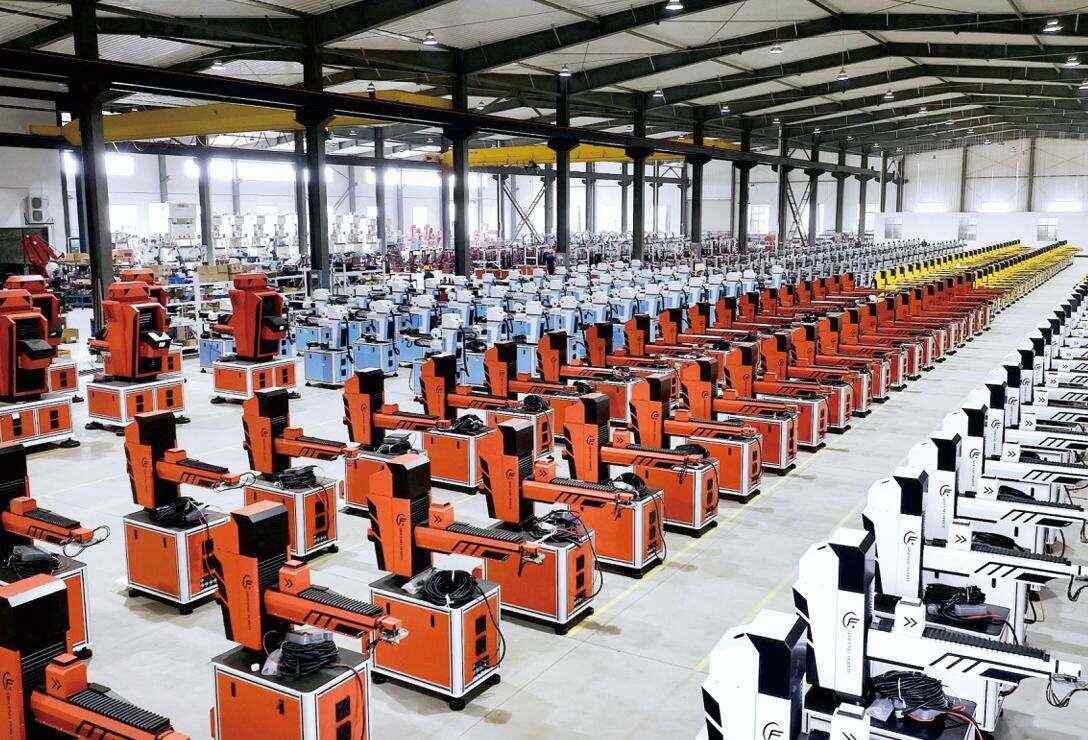

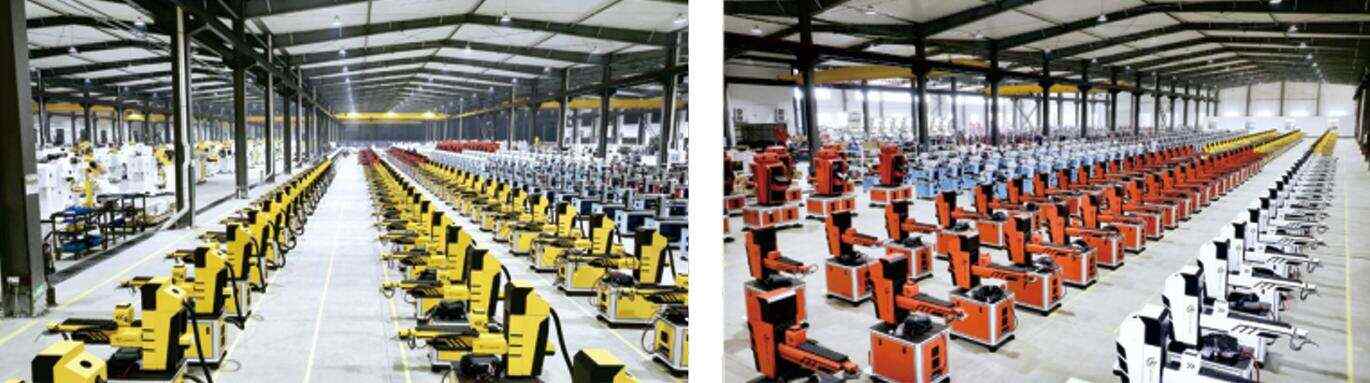

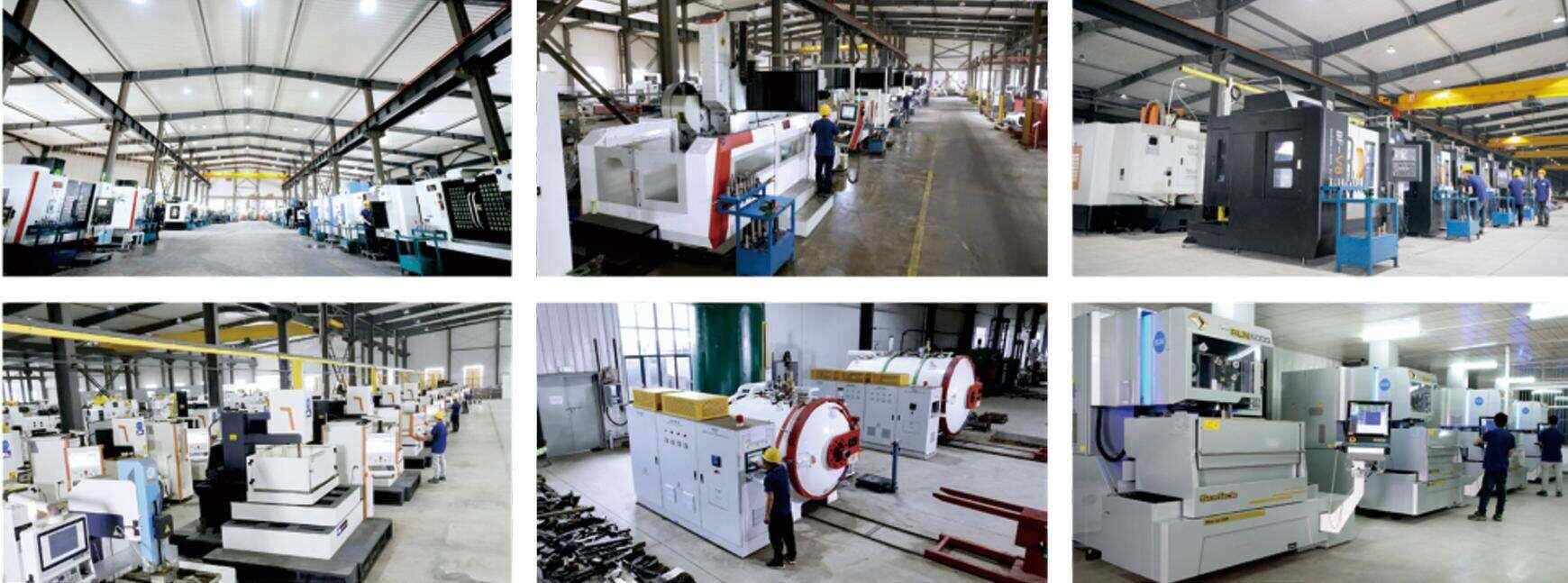

We are a manufacturer of stamping unmanned automation equipment integrating design, production, sales and service. The company is mainly engaged in the research and development and production of multi-station stamping and handling automation equipment and production lines. The main products include two-dimensional stamping manipulators, large/small three-dimensional stamping manipulators, independent handling manipulators, multi-machine linkage manipulators, single-machine in-mold manipulators and truss manipulators, etc., as well as other non-standard customized automation production lines. Widely used in automobiles, home appliances, communications, electrical, medical and other fields, providing customers with high-quality equipment and complete system solutions. Committed to promoting and popularizing stamping automation, providing safe, reliable, mature and stable stamping automation equipment to serve customers, improving the safety, production efficiency and automation level of stamping work, thereby freeing the operator's hands from simple, heavy and dangerous labor, allowing employees to do more valuable work.

Each machine undergoes more than 30,000 life tests before leaving the factory. We strictly follow the requirements of the quality management system and establish a complete management mechanism from product design, process development, production process, correction and prevention to customer satisfaction, insisting that every product delivered to customers is qualified.
