Product Description

Features of products
1. Highly Standard Modular Designed: The products are easily connected with and driven by different types of motors and various nput power. The same type geared motor can be adapted to optioned powers of motors. It is therefore easy to realize different solution for varied requirements.

2. Ratio: Featured many closely divided ratios and wide range of them. Very big final ratios can be obtained through combined unites to reach extremely low output speeds.

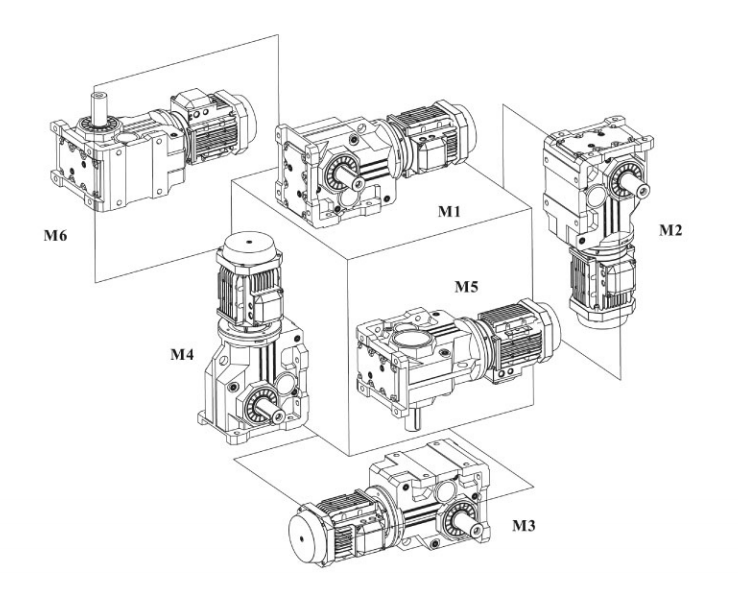

3. Mounting Arrangement: No strict limitation to the mounting arrangement.

4. High Strength, Compact Dimension: Housings are made of high strength cast iron. Gears and shaft gears are finished with gas carburizing process and precise grounding to sequentially get high loading capacity of per certain volume.

5. Long Service Life: Under the condition of accurately selecting type size and the normal maintenance and use, main components (expect those easily-disabled parts) can last as long as up to more than 25,000 hours. Easily-disabled parts include lubricating oil, oil seals, and bearings.

6. Low Noise: All key components are finished by precisely machining, accurate assembly, and finally tested, and therefore, fairly low noise is reached.

7. High Efficiency: The efficiency of gear unit can reach 95%, The efficiency of worm gear unit can reach 89%.

8. Large radial loading ability.

9. Axial load ability of up to 5% of radial load.

Housing	Cast Iron
Input power	0.12-200kw
Output torque	10-61900N.m
Output speed	0.08-261rpm
Bearing	C&U Bearing,NSK,SKF or on request
Ratio	5.36~178.37
Installation Form	Foot, Flange, Shaft Mounted
Seal	SKF,CTY,CFW or on request
Gears	Helical-bevel Gears
Input Configurations	Equipped with Electric Motors Solid Shaft Input IEC-normalized Motor Flange
Applicable Motors	Single Phase AC Motor, Three Phase AC Motor Brake Motors Inverter Motors Multi-speed Motors Explosion-proof Motor Roller Motor
Output Configurations	Solid Shaft Output Hollow Shaft Output
Installation	Foot-mounted B5 Flange-mounted B14 Flange-mounted Shaft-mounted
Lubrication	Oil-bath and Splash Lubrication

For more models, please contact us！

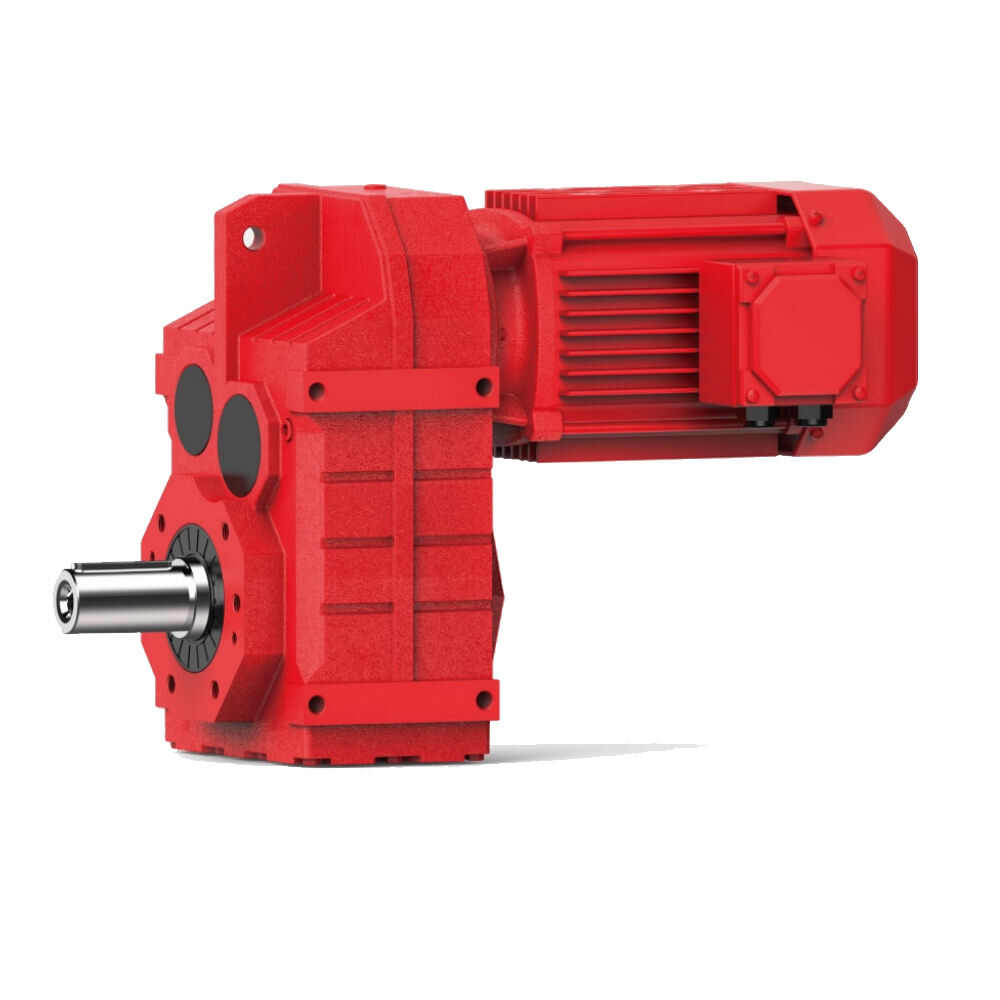

F helical gear reducer

◆ Parallel output, compact structure, large transmission torque, stable operation, low noise and long life.

◆ Installation method: base installation, flange installation, torque arm installation.

◆ Reduction ratio: basic type two level 4.3-25.3, three
level 28.2-273, combined to 18509.

◆ The rotation direction of the input and output of the basic two-stage is the same, and the three-stage is opposite; please consult when combining.

◆ Output mode: hollow shaft output or solid shaft output.

◆ Average efficiency: Level 2 96%, Level 3 94%, F/CR average efficiency 85%.

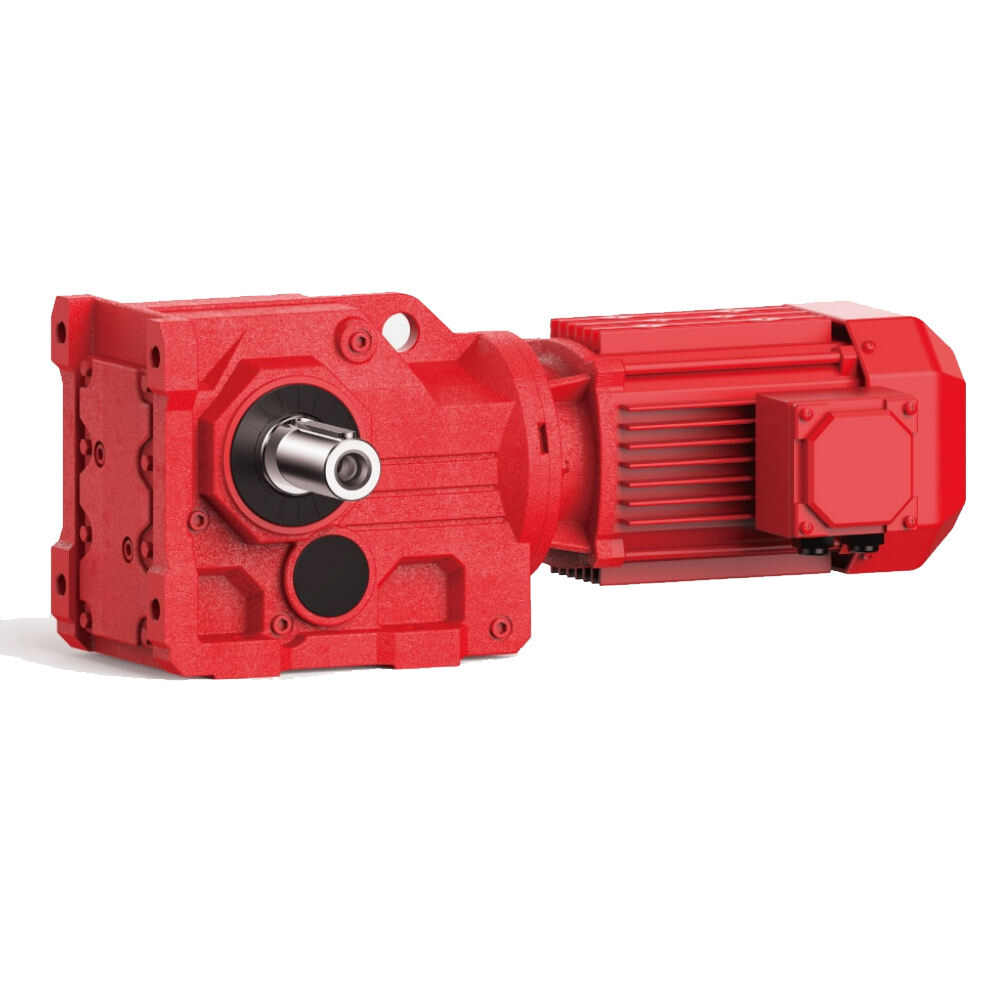

K helical bevel gear reducer

◆ Vertical output, compact structure, hard tooth surface transmission torque, high-precision gears ensure stable work, low noise and long life.

◆ Installation method: base installation, flange installation, torque arm installation, small flange installation.
◆ Input mode: motor direct connection, motor belt connection or input shaft, connection flange input.

◆ Output mode: hollow shaft output or solid shaft output, the average efficiency is 94%.

◆ Reduction ratio: basic type 8.1-191, combined to 13459.

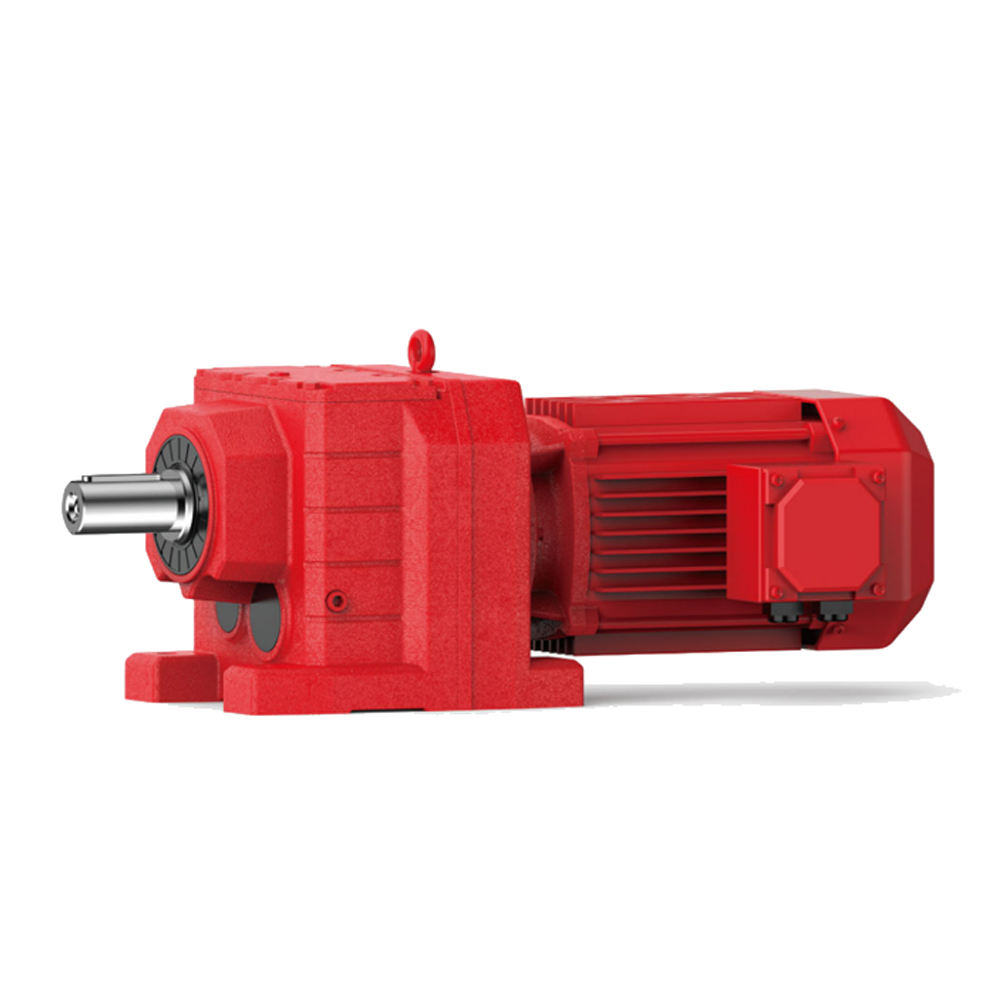

R helical gear reducer

◆Small bias output, compact structure, maximum use of cabinet space, the second and third levels are in the same cabinet.

◆Using an integral cast box, the box structure has good rigidity, which is easy to improve the strength of the shaft and the life of the bearing.

◆Installation method: pedestal installation, flanges with large and small flanges are easy to choose.

◆Solid shaft output, the average efficiency is 96% in the second stage, 94% in the third stage, and 85% in CR/CR. The CRM series specially designed for mixing can carry large axial and radial forces.

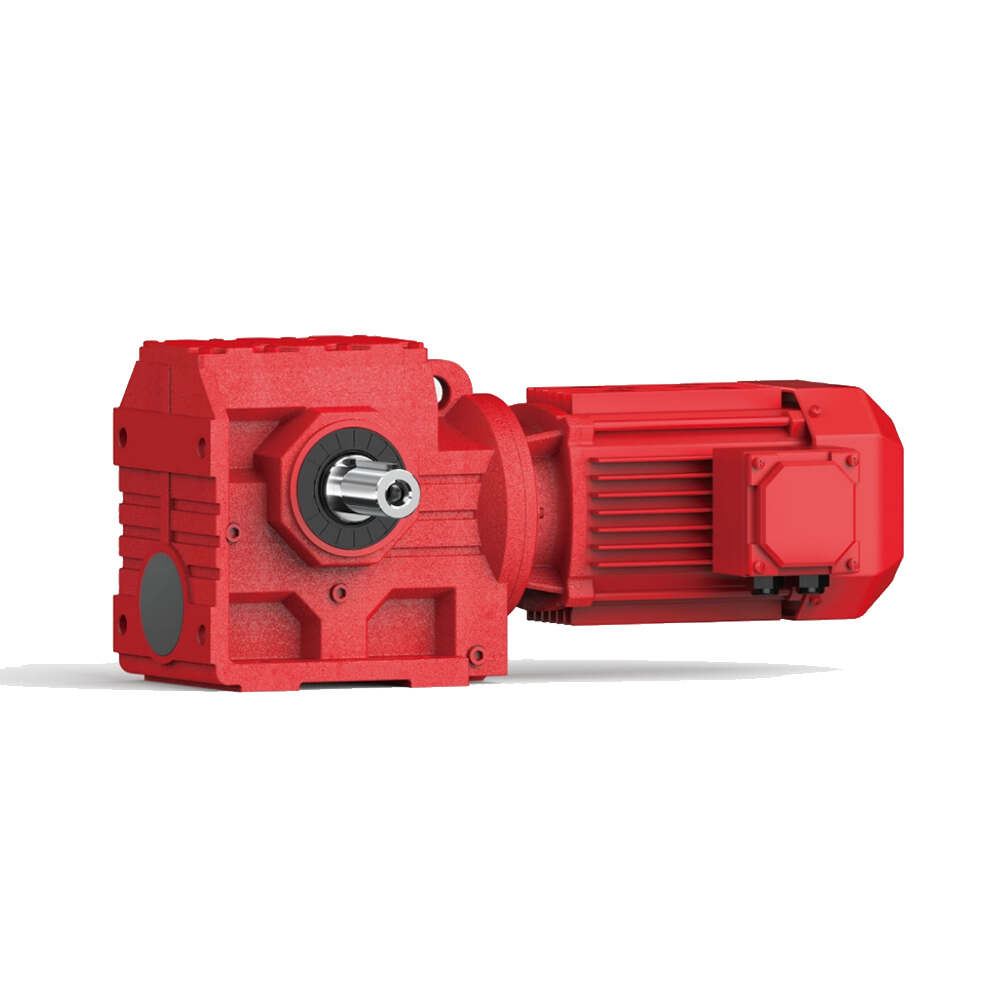

S series helical gear worm reducer

◆This series of products have complete specifications, wide speed range, good versatility, adapt to various installation methods, safe and reliable performance and long life, and have implemented international standards. ◆The uneven surface of the body has the effect of heat dissipation, strong vibration absorption, low temperature rise and low noise. ◆ The machine has good sealing performance and strong adaptability to the working environment. ◆It can be connected to various types of reducers and equipped with various types of motor drives, and can be installed in the 90-degree transmission operating position. ◆ The key components of the motor are made of highly wear-resistant materials and undergo special heat treatment. They have the characteristics of high machining accuracy, stable transmission, small size, large carrying capacity, and long life.
