High Voltage KYN28A-12 Armored Removable AC Metal Enclosed Switchgear for Power Plants Industrial Mining Industries

KYN28A-12 Armored Removable AC Metal Enclosed SwitchgearKYN61-40.5 AC High Voltage Metal Armored Removable Switchgear is suitable for three-phase AC 50Hz power systems. It is mainly used in power plants, substations, industrial and mining enterprises, high-rise buildings for receiving and distributi......

Send Inquiry

Product Description

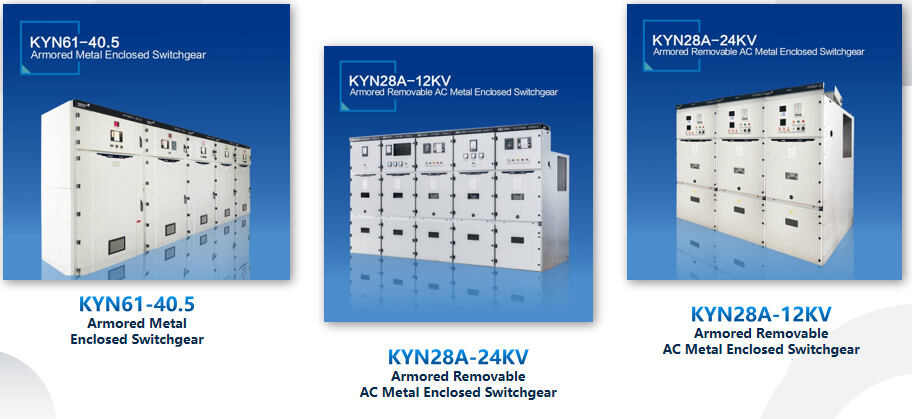

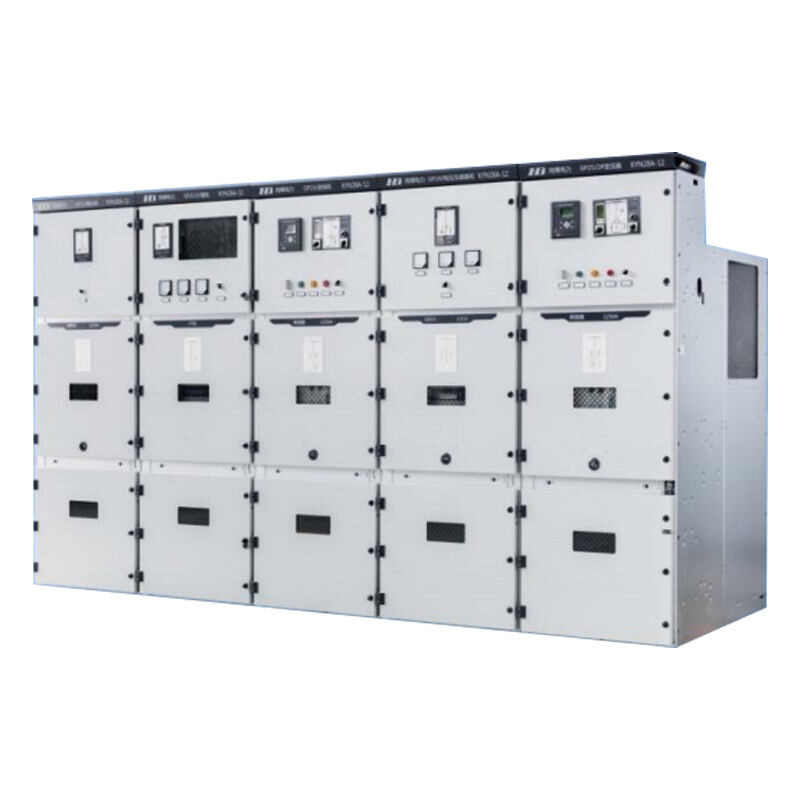

KYN28A-12 Armored Removable AC Metal Enclosed Switchgear

KYN61-40.5 AC High Voltage Metal Armored Removable Switchgear is suitable for three-phase AC 50Hz power systems. It is mainly used in power plants, substations, industrial and mining enterprises, high-rise buildings for receiving and distributing electrical
energy, and for controlling, protecting, and detecting circuits.

The switchgear is composed of two main parts: a cabinet and a central withdrawable component (i.e. handcart). The cabinet has four separate compartments with a protection level of IP4X, and the protection level of each compartment and circuit breaker compartment door is IP2X when opened. This switchgear has various functional schemes such as overhead incoming and outgoing lines, cable incoming and outgoing lines, and can be arranged and combined into various forms of distribution equipment. It can be installed, debugged, and maintained from the front, so it can be combined back-to-back to form a double arrangement and installed against the wall, improving the safety and flexibility of the switchgear and reducing the footprint.

Project			Unit	Parameters
Rated frequency			Hz	50
Rated voltage			KV	3 6 7.2 12
Rated insulation level	1min power frequency withstand voltage	KV	42
	Lightning impulse withstand voltage	KV	75
Rated current			A	630 1250 1600 2000 2500 3150
Rated short-circuit breaking current (effective value)*			KA	16 20 25 31.5 40
4S thermal stability current (effective value)*			KA	16 20 25 31.5 40
Rated dynamicstable current (effective value)*			KA	40 50 63 80 100
Protection level			KA	IP4X (When the circuit breaker room door is opened or the compartments are IP2X)

On-grid Microgrid in industral Park

The industrial park grid-connected microgrid system realizes a stable supply of clean energy. The system integrates renewable energy such as solar energy, wind energy, and energy storage to form an independent small power system, which is particularly suitable for enterprises and industrial buildings with high requirements for energy stability.

Off-grid Microgrid

The off-site microgrid system provides stable and reliable electricity for remote areas and special usage situations. The system operates independently without being connected to the main power grid. It is particularly suitable for places that are difficult to cover by the main power grid, such as remote areas, islands, urban suburbs, and tourist attractions.

Services available

1.FAT (Factory Acceptance Test) : - Ensure equipment or systems are operating according to specifications. - Provide customers with the opportunity to test the equipment before shipping.

2.Service support: - Provide technical support and maintenance services. - Online support and remote diagnostics.

3.Customized solutions:

- Customized solutions according to customer needs. 4.Delivery and installation services: - Provide fast and efficient distribution and on-site installation services.

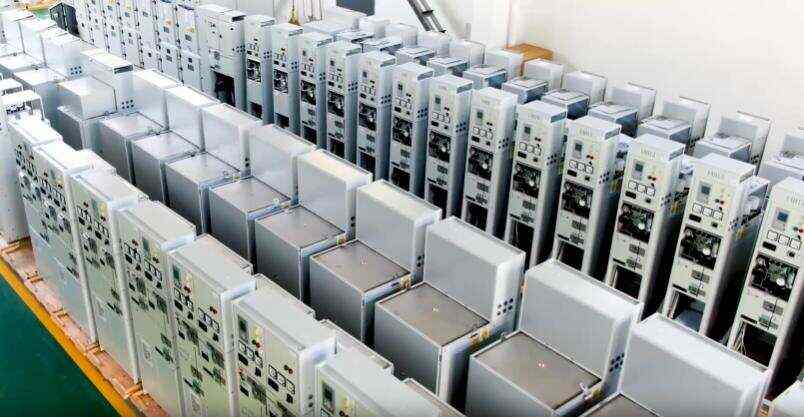

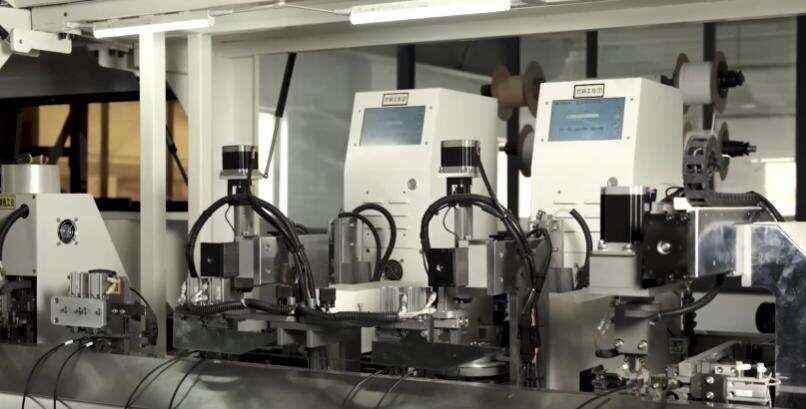

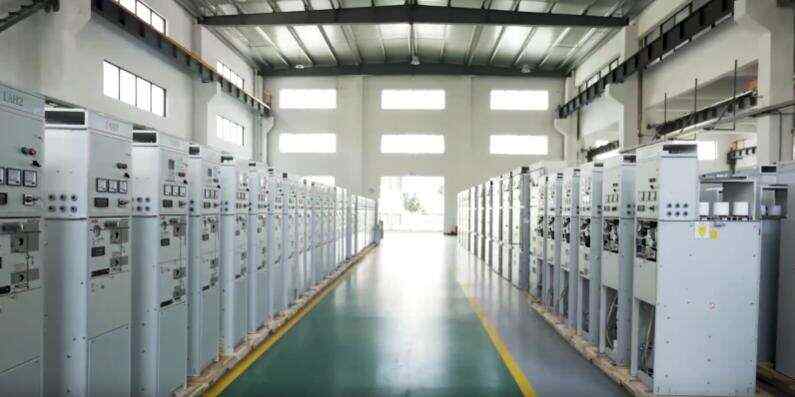

We are a comprehensive private enterprise specializing in the electrical field, integrating scientific research, development, manufacturing, and installation. Lean scientific management, professional production testing equipment, and high-quality after-sales service have driven the steady development of Hongbo. The company attaches great importance to the penetration of technology and the improvement of quality, and has successively passed ISO three system certification, national mandatory product CCC certification, voluntary product certification CQC certification, enterprise credit AAA certification, etc.

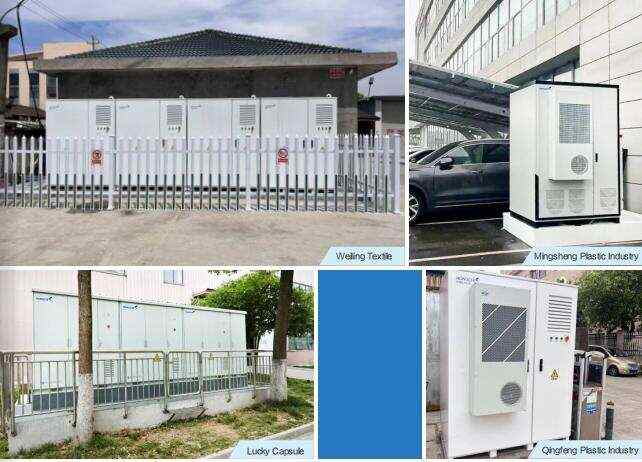

Performance cases
