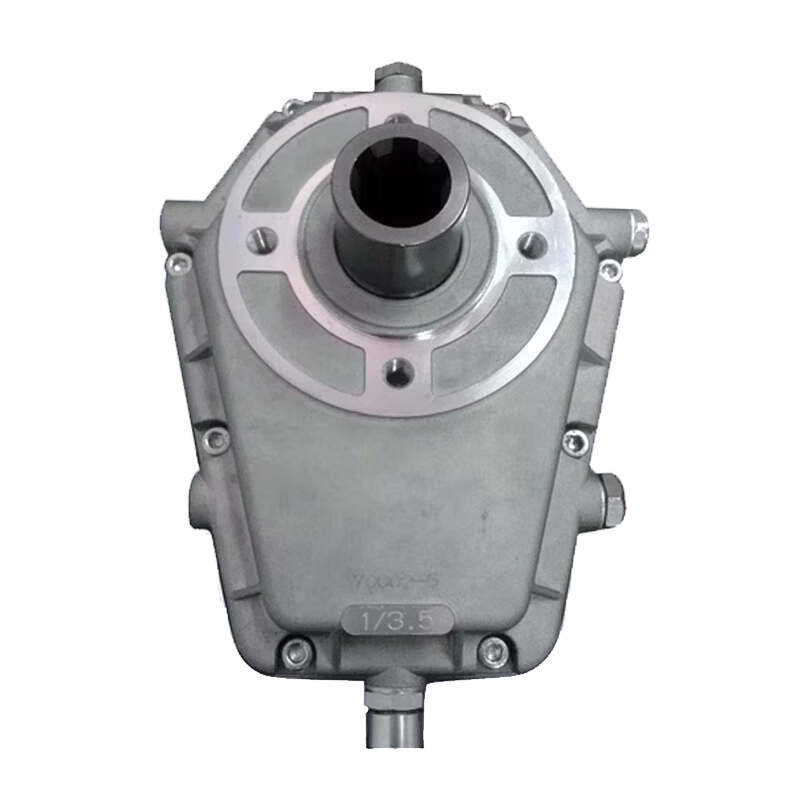

KM7002 Series Tractor Aluminium Pto Multipliter Gearbox PTO Speed Increaser for Hydraulic Pump

Aluminium Muitiplier KM7002The Gearboxes are designed for connecting gear pumps to farm tractor power take offs (PTO).Output speed of power take offs is 540rpm which can be compared with the proper running speeds of hydraulic pumps.Different input running speeds can also be suitable, provided that ......

Send Inquiry

Product Description

Aluminium Muitiplier KM7002

The Gearboxes are designed for connecting gear pumps to farm tractor power take offs (PTO).Output speed of power take offs is 540rpm which can be compared with the proper running speeds of hydraulic pumps.Different input running speeds can also be suitable, provided that the PTO gearbox output speed does not exceed 3000 rpm.

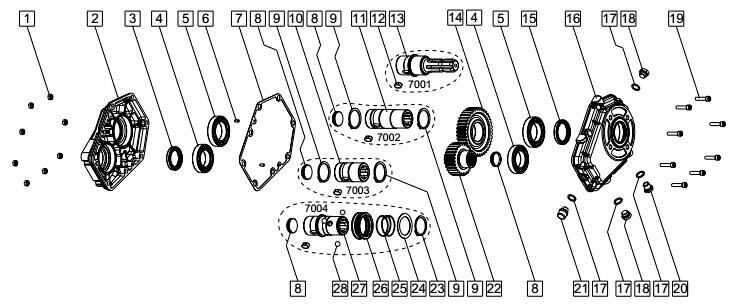

Spare Parts

No.	Description	Quantity	No.	Description	Quantity
1	Nut M8	8	15	Sealing ring 50x65x8	1
2	Cover	1	16	Housing	1
3	Sealing ring 45x65x8	1	17	Gasket	4
4	Bearing type 6009	2	18	Oil drain plug 3/8"	2
5	Bearing type 6010	2	19	Socket cap screw M8x 35	8
6	Peg6x12	2	20	Oil level plug 3/8"	1
7	Gasket	1	21	Oil filling cap 3/8"	1
8	Cap DIN 470 37	1	22	Pinion gear	1
9	Snap ring dia.50	2	23	Snap ring UNl 7435-50	1
10	Female 1 3/8" DlN 9611 short	1	24	Ring	1
11	Female 1 3/8" DiN 9611 long	1	25	Spring	1
12	Key 12x25	1	26	Spring ring	1
13	Male 1 3/8" DIN 9611	1	27	Female 1 3/8" DlN 9611 + tightening	1
14	Ring gear	1	28	Ball	3

Input torque Nm	Output toque Nm	Input speed r/min	Ratio	Output speed r/min	Power Kw	Weight Kg
380	260	540	1.5	810	20	8.3
430	210	540	2	1080	20	8.3
460	180	540	2.5	1350	20	8.3
490	160	540	3	1680	20	8.3
460	130	540	3.5	1836	20	8.3
437	115	540	3.8	2052	20	8.3
