Promotional Various Durable Using FWA Series FWA14 Slewing Drive Gearbox for Truck Mixers

Promotional Various Durable Using FWA Series FWA14 Slewing Drive Gearbox For Truck MixersHeavy-Duty Sweep DrivesIf you are in the market for heavy-duty slew drives, you are likely wondering what the differences are. Some slewing drives are standard, while others are designed with special features. R......

Send Inquiry

Product Description

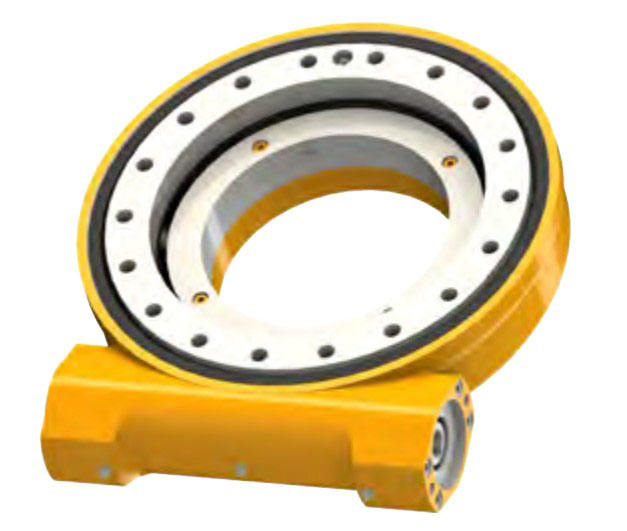

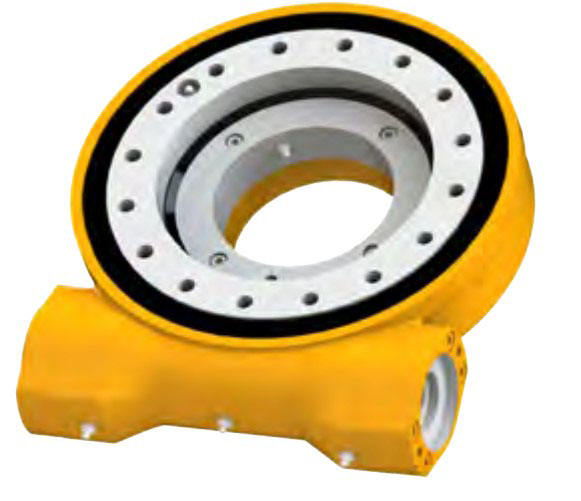

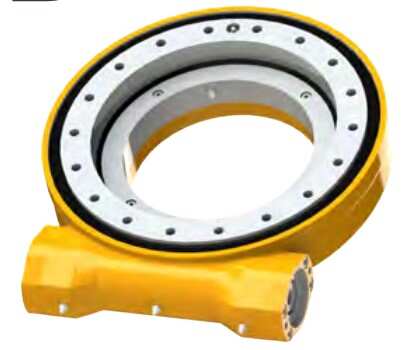

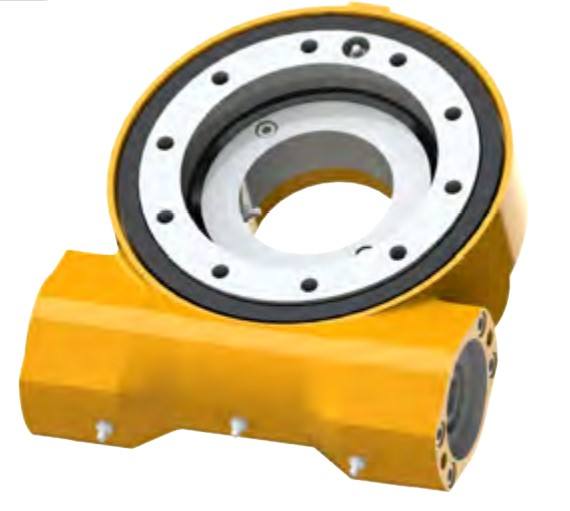

Promotional Various Durable Using FWA Series FWA14 Slewing Drive Gearbox For Truck Mixers

Heavy-Duty Sweep Drives If you are in the market for heavy-duty slew drives, you are likely wondering what the differences are. Some slewing drives are standard, while others are designed with special features. Raydafon manufactures heavy-duty slewing drives A slewing drive is a gear that turns a rotating shaft or axle. It is often comprised of a slewing ring, worm shaft, housing, and motor. They are commonly used in aerial platforms. These drives are designed for axial, radial, and tilting moments. The advantages of slewing drives include easy installation, easy maintenance, and compact size. Slewing drives have a long history. Their development might have started as early as ancient Greece with the invention of the endless screw. They were also common in the Renaissance, but the technology used to create them has advanced considerably. Today's heavy-duty slewing drives are made of more complex materials and can perform more sophisticated tasks, but their primary function hasn't changed much. Slewing drives are used in industrial applications to move industrial machinery. These gearless units deliver high-precision positioning and require minimal maintenance. They are used in industrial machinery and manufacturing plants and can be found in robotics and construction equipment. A robotic arm is a mechanical device that bends and moves in one direction. It is controlled by an electric motor and can be programmed to perform different tasks, such as lifting heavy objects. Its accuracy and versatility have made it a standard component of many types of heavy-duty slewing drives. Slewing rings come in two forms: plastic and ball bearing-based. The former is more suited for horizontal applications while the latter is better suited to vertical applications. Both slewing rings contain gears to assist movement. They are designed to be durable and reliable in a variety of applications. These drives provide high torque and precision, making them the preferred choice for a wide range of industries. Raydafon slewing drive has better anti-fatigue and bonding ability Wea slewing drives are characterized by their curved tooth structure, which improves the anti-fatigue and bonding abilities. This series of slewing drives is ideal for medium-speed and low-speed applications. Its full sealed design, better anti-fatigue properties, and reduced weight make it a popular choice for heavy-duty applications. Raydafon slewing bearing co.,lt., has been making slewing drives for over 30 years and continues to improve its products. Raydafon slewing drives are the most versatile slewing drive options, featuring a variety of designs for a variety of applications. They can be used on wind turbines, digger derricks, fog cars, and other industrial machinery. The slewing drive is also available in enclosed designs to reduce the risk of workplace injuries. The Raydafon slewing drive has a higher anti-fatigue and bonding ability than traditional drives, which can cause fatigue or a loss of performance. FWA slewing drive Compared to other slewing drives, the FWA series is designed to handle heavier loads and have higher carrying capacities. These slewing drives feature an enclosed design and have two or more worms. They are highly durable and require little space for installation. They are often used in applications like mining, agriculture, and manlift platforms. They are also used in a wide range of maritime applications. This slew drive is available in a variety of standard series or can be customized to meet your specific needs. Various configurations are available, including ones suitable for high temperatures or for use in extreme environments. For optimum performance, consider the mounting structure and application. Raydafon's engineers can help you design a slew drive that will meet your needs.

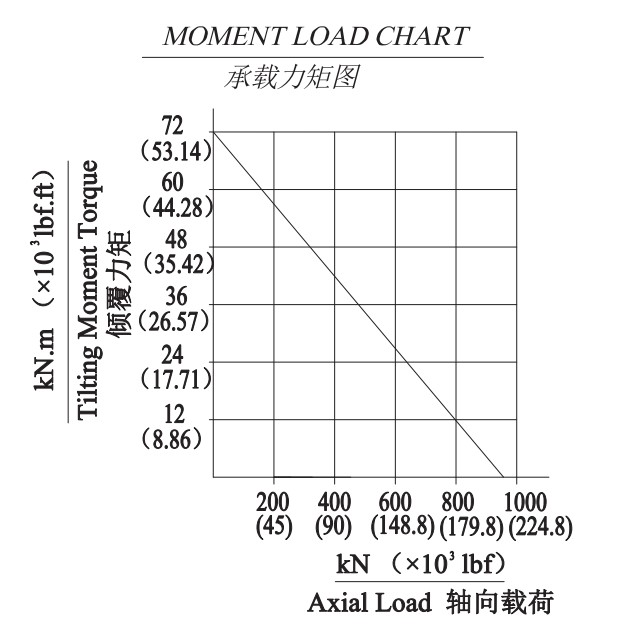

Output torque	Lifting moment torque	Holding torque	Axial load	Radial load	Ratio	Backlash	Weight
10.8 KN.M	71.2 KN.M	49.5 KN.M	960 KN	360 KN	86:1	≤0.15°	75kg
7970 LBF.FT	52.5*10³ LBF.FT	36.5*10³ LBF.FT	215.8*10³ LBF	80.9*10³ LBF	86:1	≤0.15°	75kg

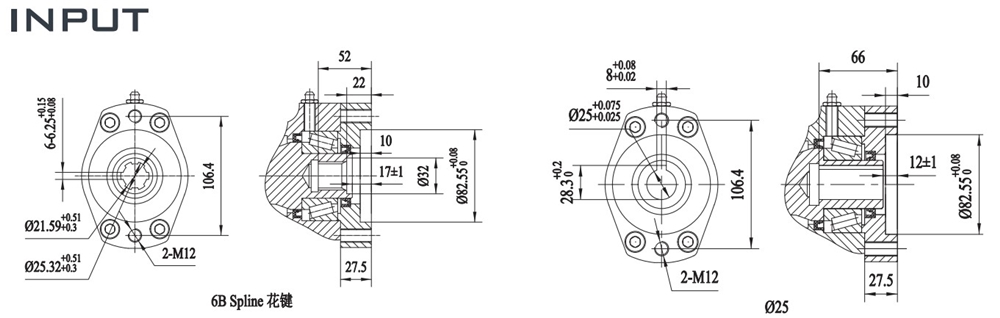

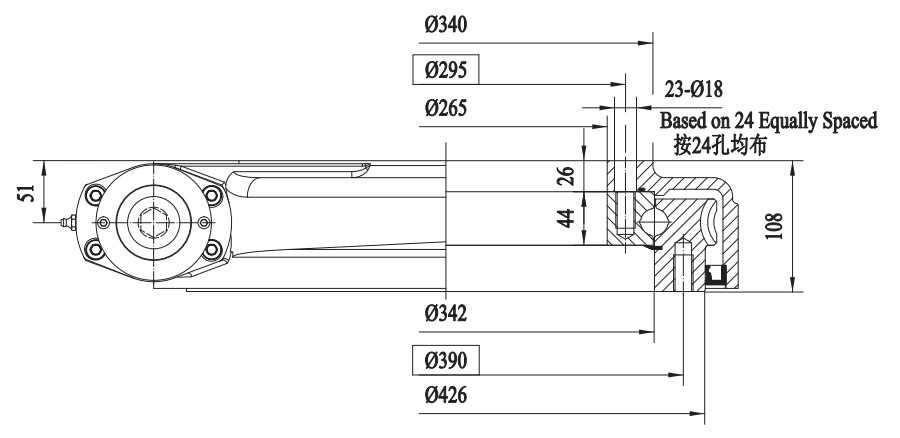

Front View

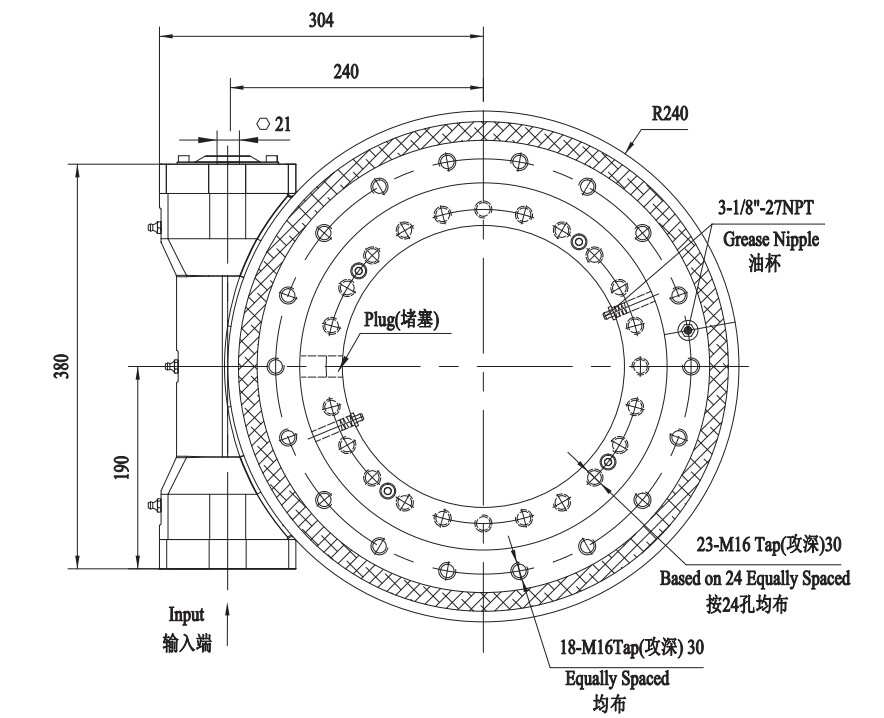

Top View

Note: customized design can be carried out according to customer requirements

Application

The special-shaped customized rotary device can be designed and manufactured according to customer requirements. Raydafon can independently complete the design and manufacture of high-end customized transmission parts. It is composed of inner and outer shells, rolling bodies, etc. the main materials are ductile iron, cast aluminum, steel forged metal rolling bodies, modified plastic rolling bodies, etc. the device can integrate the upper and lower mounting plates, and carry out design innovation such as flattening, lightweight, fully enclosed and high safety for the final product.

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.

Hot Tags: Promotional Various Durable Using Fwa Series Fwa14 Slewing Drive Gearbox For Truck Mixers - Buy Slewing Drive Gearbox For Truck Mixers,Slewing Drive,Fwa Series Fwa14 Gearbox Product on Raydafon
