We're one of leading manufacturers in China who are specialized in designing and manufacturing hydraulic slewing drives, planetary gearboxes, travel gearbox and wheel gearbox, hydraulic winches. With strong research and development capability, we have achieved 20 invention patents and 20 pract......

Send Inquiry

Product Description

We're one of leading manufacturers in China who are specialized in designing and manufacturing hydraulic slewing drives, planetary gearboxes, travel gearbox and wheel gearbox, hydraulic winches.

With strong research and development capability, we have achieved 20 invention patents and 20 practical innovation patents.
Meanwhile, we have more than 100 sets of advanced production and inspection equipment, which ensures the quality of
our products.

Our products have been widely used in Offshore Application, Agriculture Industry, Fishing Equipment, Construction Machinery,
Petroleum Industry, Coal Mining, Geological Prospection, Marine Application, Metallurgical Engineering, Light Industry,
as well as Environmental Protection and other industries.

As a trustworthy manufacturer and supplier, we have a dominating market share in China, and we also enjoy an increasing
market share worldwide. Our products have been exported to:

-Europe:Germany, Norway
-North America: USA, Canada
-South America: Brazil, Argentina
-Russia, Australia,Turkey, Southeast Asia, Middle East, India and other countries in the world

Rexroth GFT of GFT13T2,GFT17T2,GFT17T3,GFT24T3,GFT36T3,GFT50T3,GFT60T3,GFT110T3,

GFT220T3,GFT330T3 high speed reducer

1. Range from GFT 13T2 to GFT 330T3

2. Completely interchangeable with original

3. Planetary Gearboxes for Mobile Equipment

4. For travel drives in tracked and wheeled vehicles

5. Also suitable for other applications, e.g. rotary motion sequences,

drum drives, milling drum drives etc.

6. High speed cranked shell reducer

8. Compact two-, three- or four-stage planetary gearboxes

9. Cageless planetary gear bearing

10. Robust main bearing

11. Optimized seals

12. Integr. multi-disc parking brake

13. Optional with wheel drives: mechanical disconnecting device

14. Optional for mounting Rexroth fixed or variable motors (A2FM/E, A6VM/E, A10VE)

15. Easy mounting

16. Easy oil change

17. Low-noise operation

18. Very competitive price

19. 1 year of warranty.

Besides the standard ratio of rexroth, we can do the modular design and make the track and winch drives according to customer's specifications.

Technical Specifications

Model	Max. output torque Tmax N.m	Rotation Ratio	Hydraulic Motor		Max. input rotating r/min	Static brake torque Tbrmax. N.m	Brake working pressure Mpa
GFT 13T2	13000	16.3,22.6,32.1,37.6	A2FE45, A2FE56, A2FE63	A6VE28, A6VE55	2000	450-900	1.8-5
GFT 17T2	17000	26.4,32.1,45.5,54	A2FE45, A2FE56, A2FE63	A6VE55	2000	500-1000	1.8-5
GFT 17T3	17000	77.9,88.2,102.6	A2FE28, A2FE32, A2FE45, A2FE56	A6VE28, A6VE55	2000	220-450	1.8-5
GFT 24T3	24000	90.1,102.6,120.5	A2FE45, A2FE56, A2FE63	A6VE55	2000	400-750	1.8-5
GFT 36T3	36000	67,79.4,100,116.6	A2FE45, A2FE56, A2FE63, A2FE80, A2FE90	A6VE55, A6VE80	2000	450-800	1.8-5
GFT 50T3	50000	84.2,91.1,99.8,125.7,146.4	A2FE80, A2FE90	A6VE80, A6VE107	2000	600-1100	1.8-5
GFT 60T3	60000	86.5,94.8,105.5,119.8,139.9,169.9	A2FE80, A2FE90, A2FE107, A2FE125	A6VE80, A6VE107, A6VE160	2000	800-1200	1.8-5
GFT 110T3	1100000	95.8,114.8,128.6,147.2,173.9,215	A2FE107, A2FE125, A2FE160, A2FE180	A6VE107, A6VE160	2000	900-2000	1.8-5
GFT 220T3	2200000	188.9,246.1,293	A2FE107, A2FE125, A2FE160, A2FE180	A6VE107, A6VE160	2000	1200-2400	1.8-5
GFT 330T3	3300000	168.9,209.9,252,302.4	A2FE250, A2FE355	A6VE250, A6VE355	2000	1500-3500	1.8-5

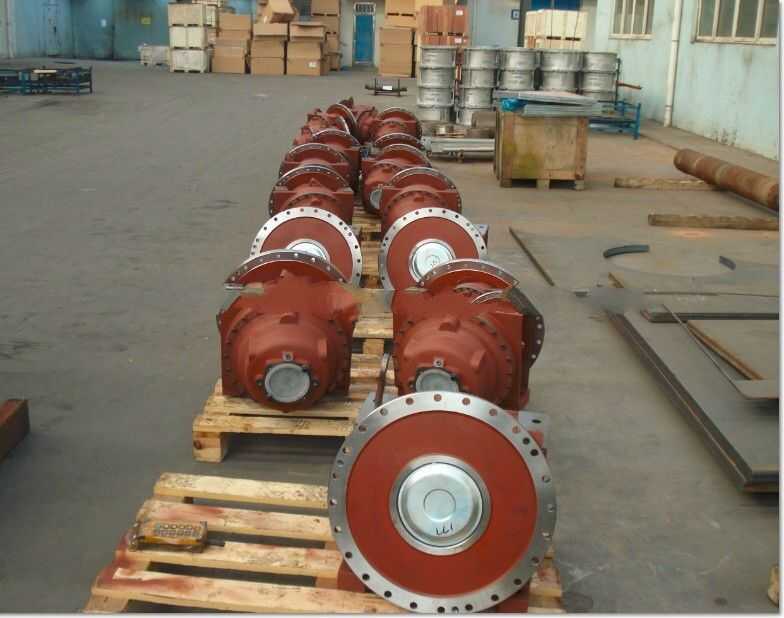

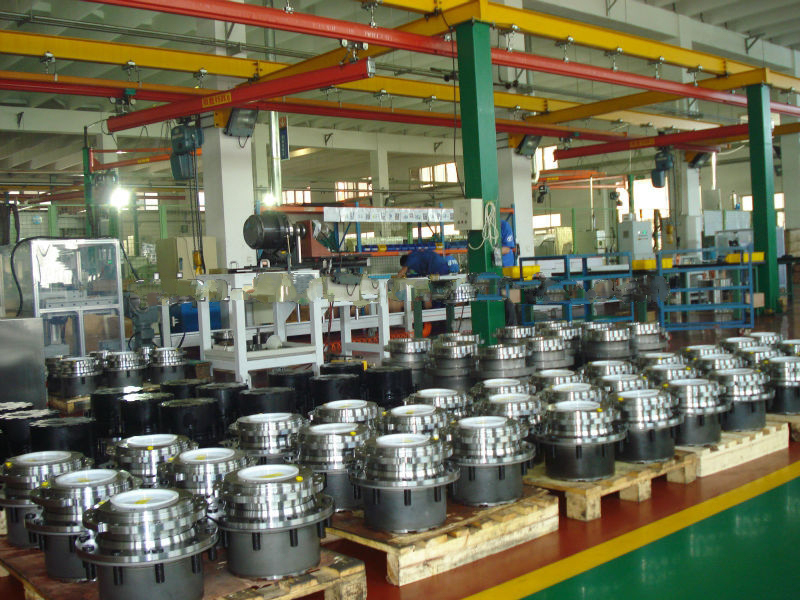

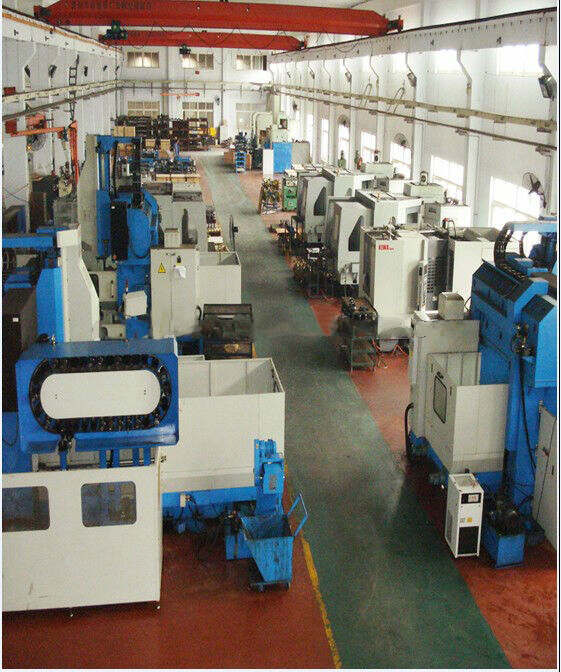

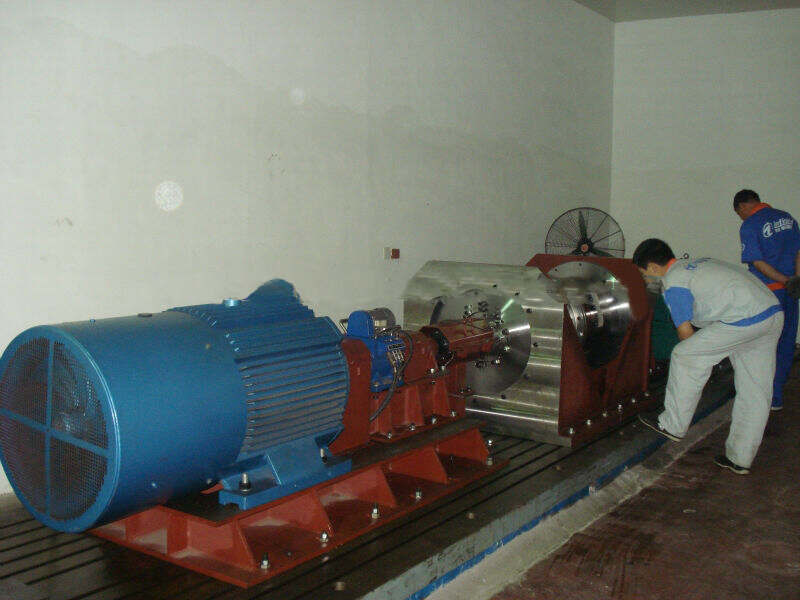

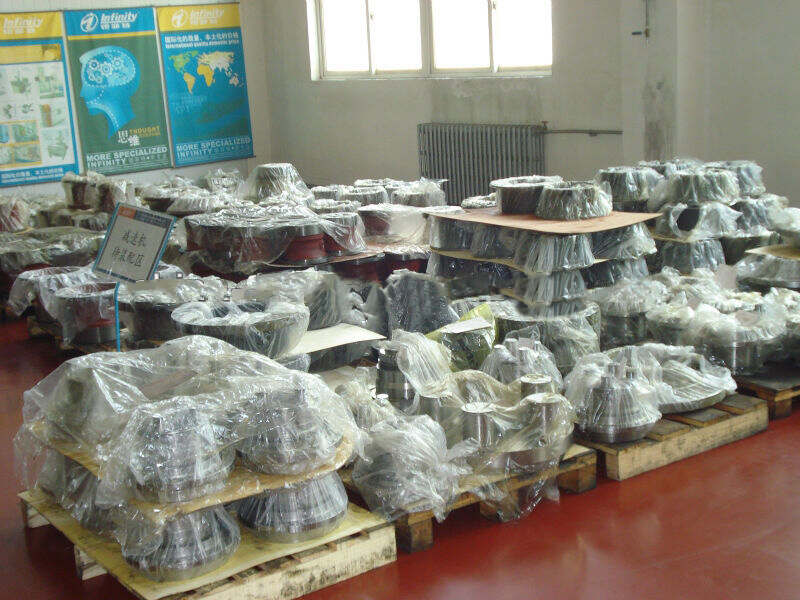

Company Show
