WT-H430 Special Design Widely Used China Industrial Cnc Machining Center Accessories

Horizontal micro-positioning table Suitable for horizontal processing machines, hydraulic lock Heavy-duty cutting, simultaneous machiningProduct ModelWT-H430Servo motorβ22i HF-204Panel Size430×430Total Reduction Ratio1:120Disk ApertureΦ80mmMaximum Rotation Speed Of Worktable33.3 r.p.mFlat Overa......

Send Inquiry

Product Description

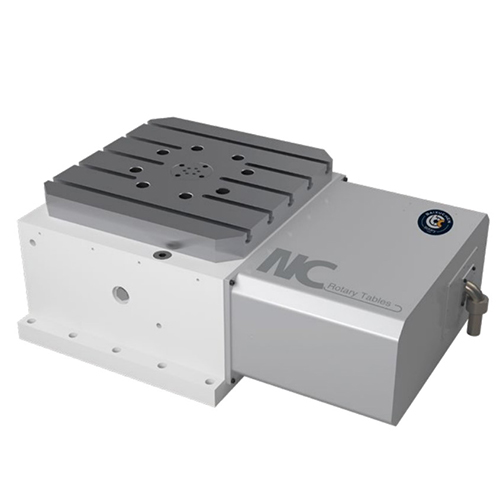

Horizontal micro-positioning table

Suitable for horizontal processing machines, hydraulic lock

Heavy-duty cutting, simultaneous machining

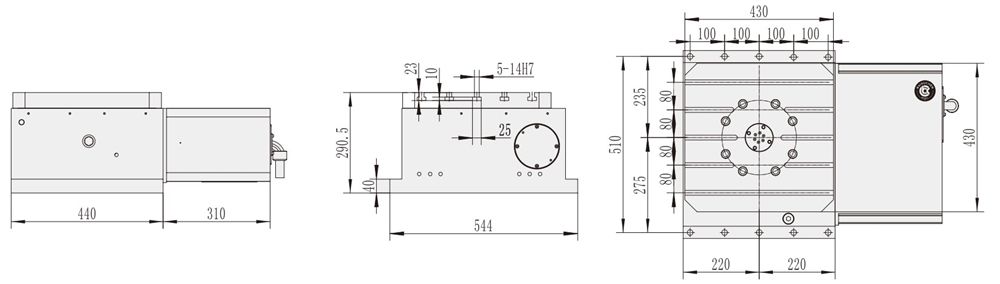

Product Model	WT-H430	Servo motor	β22i HF-204
Panel Size	430×430	Total Reduction Ratio	1:120
Disk Aperture	Φ80mm	Maximum Rotation Speed Of Worktable	33.3 r.p.m
Flat Overall Height	290.5mm	Minimum Setting Angle	0.001°deg
Disk T-Slot	12H8mm	Segmentation Accuracy	20″sec
Positioning Button	14H7mm	Repeat Positioning Accuracy	4''sec
Center Height	255mm	Locking Method	35Kg/cm²
Net Weight (about)	300Kg	Allowable Cutting Force	200Kg.m
Max.load Horizontal	500KG

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
