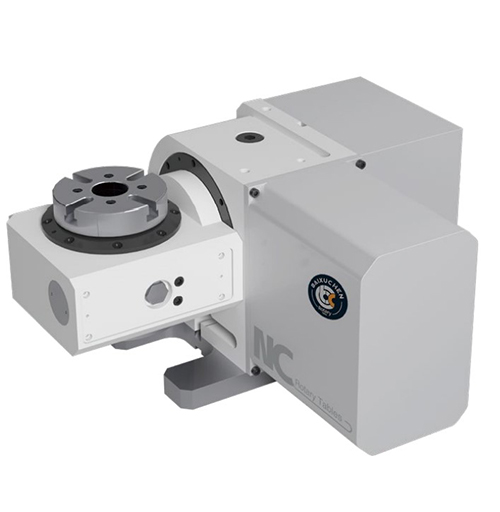

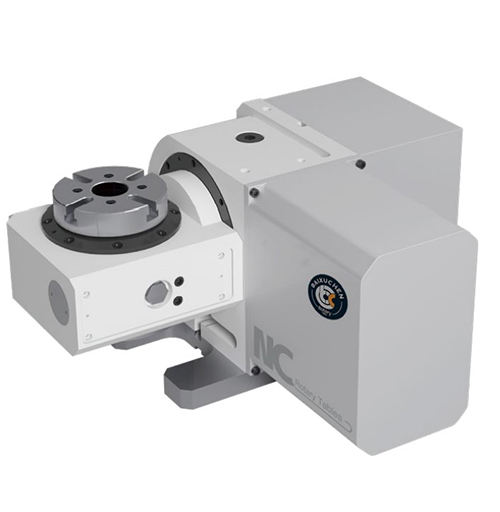

WT-RT125 China Professional Metal Vertical Cnc Machining Center Price 5 Axis Accessories

Five axis linkage machining High segmentation accuracy, high performance and high efficiency Strong braking system, Optional hydraulic brakeProduct ModelWT-RT125Servo motor (optional)β4i HF-54;β8i HF-104Panel SizeΦ125mmReduction Ratio1:90 ;1:90Disk ApertureΦ50mmMaximum Rotation Speed Of Worktable 55......

Send Inquiry

Product Description

Five axis linkage machining

High segmentation accuracy, high performance and high efficiency

Strong braking system, Optional hydraulic brake

Product Model	WT-RT125	Servo motor (optional)	β4i HF-54;β8i HF-104
Panel Size	Φ125mm	Reduction Ratio	1:90 ;1:90
Disk Aperture	Φ50mm	Maximum Rotation Speed Of Worktable	55.5r.p.m; 55.5r.p.m
Center Trough Hole	Φ45mm	Minimum Setting Angle	0.001°deg
Disk Height	240mm	Segmentation Accuracy	15″sec;30″sec
Disk T-Slot	12H8mm	Repeat Positioning Accuracy	4″sec;4''sec
Positioning Button	55H7mm	Locking Method	5Kg/cm²; 5Kg/cm²
Tilt Axis Angle Range	-45 ~110°	Brake Torque	10Kg/m ; 25Kg/m
Net Weight (about)	95Kg	Allowable Cutting Force	18Kg.m; 55Kg.m
Horizontal placement	40KG	Placement	90KG
