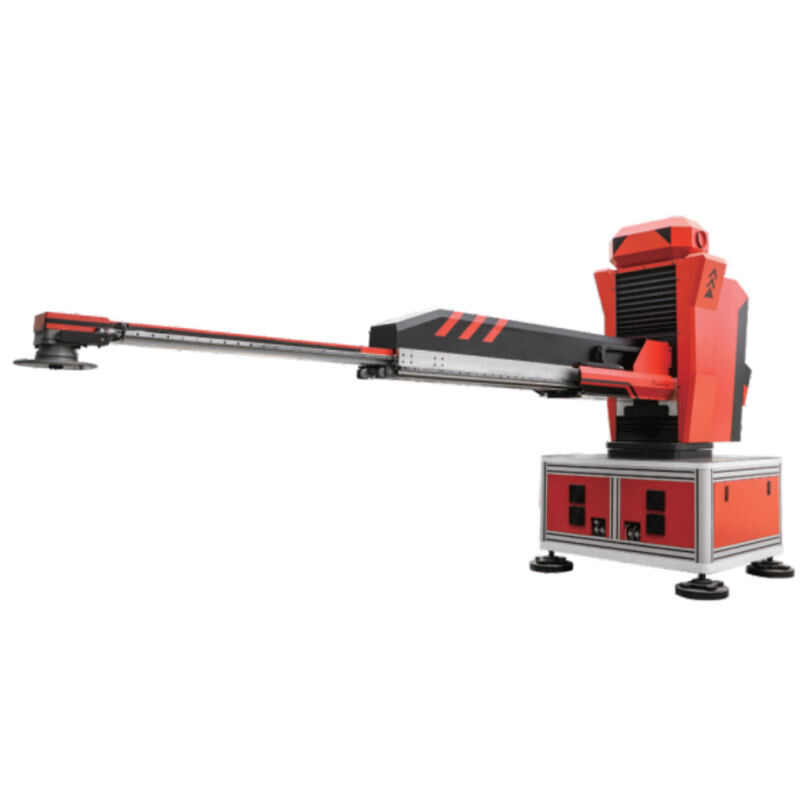

Z Series Industrial Swing Arm Manipulator for Crawl Move

Product features:-High-strength mechanical arm structure design.-Heavy-duty grabbing capability.-The swing arm type is equipped with an independent air source, which does not interfere with the on-site air source and enhances the stability of the mechanical arm operation.ModelQF-BB-Z-MD-2400-10--4/5......

Send Inquiry

Product Description

Product features: -High-strength mechanical arm structure design. -Heavy-duty grabbing capability. -The swing arm type is equipped with an independent air source, which does not interfere with the on-site air source and enhances the stability of the mechanical arm operation.

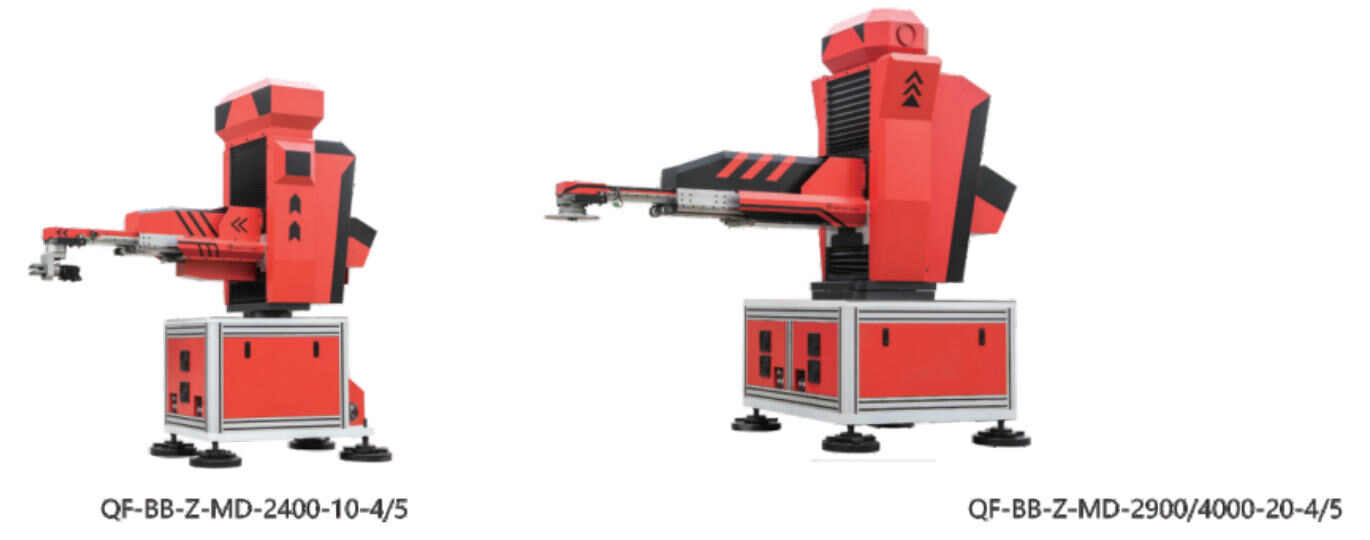

Model		QF-BB-Z-MD-2400-10--4/5	QF-BB-Z-MD-2900/4000-20--4/5
Max working radius	mm	2400	2900(S version) 4000(L version)
Min working radius	mm	1050	1250(S version) 1750(L version)
Grip size	mm	≤1000*1000	≤1500*1500
Center grip weight	kg	≤10	≤20
Max SPM	pcs/min	10	8
Position precision	mm	+-0.2
Body size （H is variable）	LWH	19509502350	270014502500
Body weight	kg	900	2200
Axial travel stroke	Arm swing angle	+-170
		Arm vertical telescopic stroke（Min grip level）	0-350（1000）	0-430（1200）
		Arm horizental telescopic stroke	1350	1650(S version) 2250(L version)
		Arm turning angle	+-180
		Suction disc rotating angle	+-360

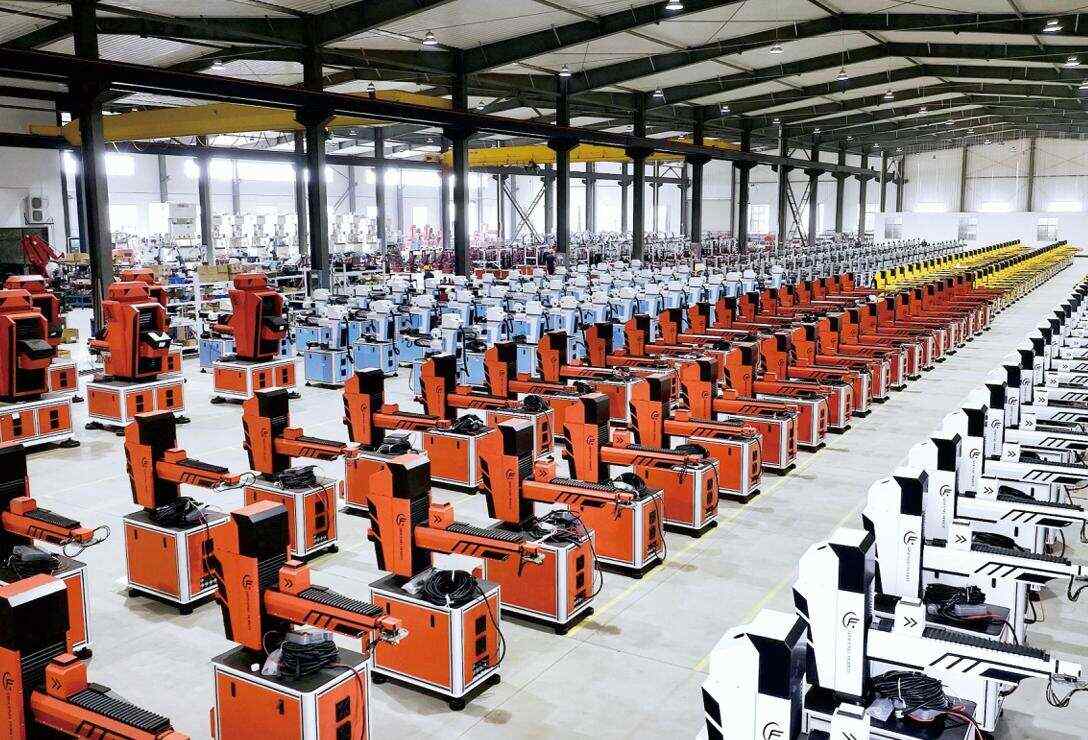

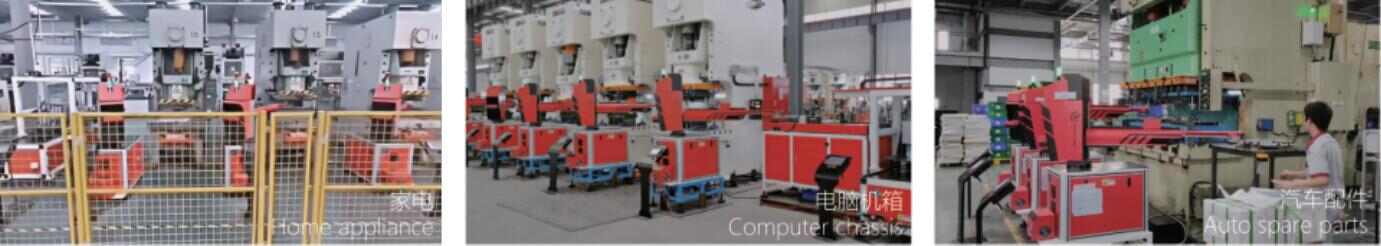

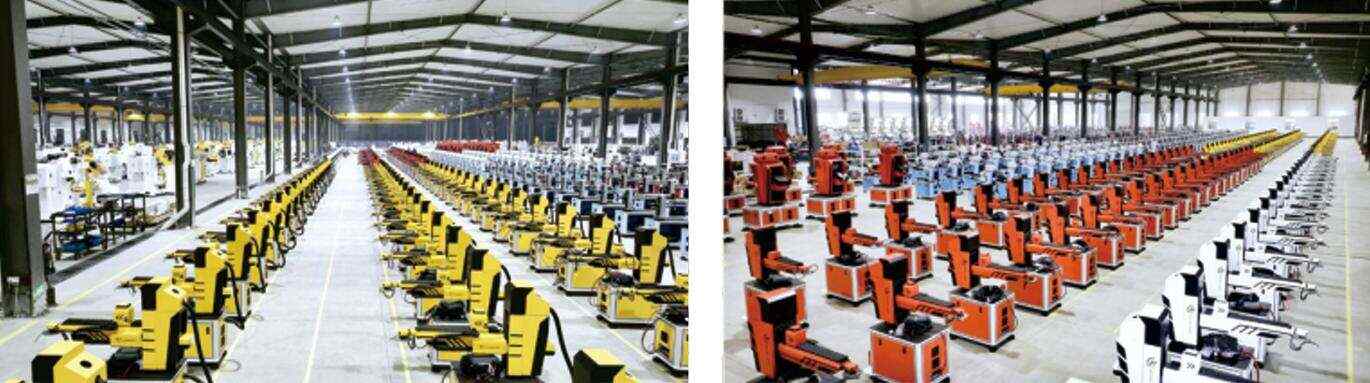

We are a manufacturer of stamping unmanned automation equipment integrating design, production, sales and service. The company is mainly engaged in the research and development and production of multi-station stamping and handling automation equipment and production lines. The main products include two-dimensional stamping manipulators, large/small three-dimensional stamping manipulators, independent handling manipulators, multi-machine linkage manipulators, single-machine in-mold manipulators and truss manipulators, etc., as well as other non-standard customized automation production lines. Widely used in automobiles, home appliances, communications, electrical, medical and other fields, providing customers with high-quality equipment and complete system solutions. Committed to promoting and popularizing stamping automation, providing safe, reliable, mature and stable stamping automation equipment to serve customers, improving the safety, production efficiency and automation level of stamping work, thereby freeing the operator's hands from simple, heavy and dangerous labor, allowing employees to do more valuable work.

Each machine undergoes more than 30,000 life tests before leaving the factory. We strictly follow the requirements of the quality management system and establish a complete management mechanism from product design, process development, production process, correction and prevention to customer satisfaction, insisting that every product delivered to customers is qualified.
