38.5kg EB02 Tricycle Rear Differential Axle Assembly for 3.5KW Electric Tricycle

Product FeaturesEB02 Rear Axle Assembly is currently used for the rear axle of 3.5KW electric tricyclesProduct PerformanceMax Input TorqueT max22N.mMax Input Rotation Raten max4500r/minCentre.to-centre SpacingA136mmGear RatioU10.088Application of rear axle assemblyWe can provide various modification......

Send Inquiry

Product Description

Product Features

EB02 Rear Axle Assembly is currently used for the rear axle of 3.5KW electric tricycles

Product Performance
Max Input Torque	T max	22N.m
Max Input Rotation Rate	n max	4500r/min
Centre.to-centre Spacing	A	136mm
Gear Ratio	U	10.088

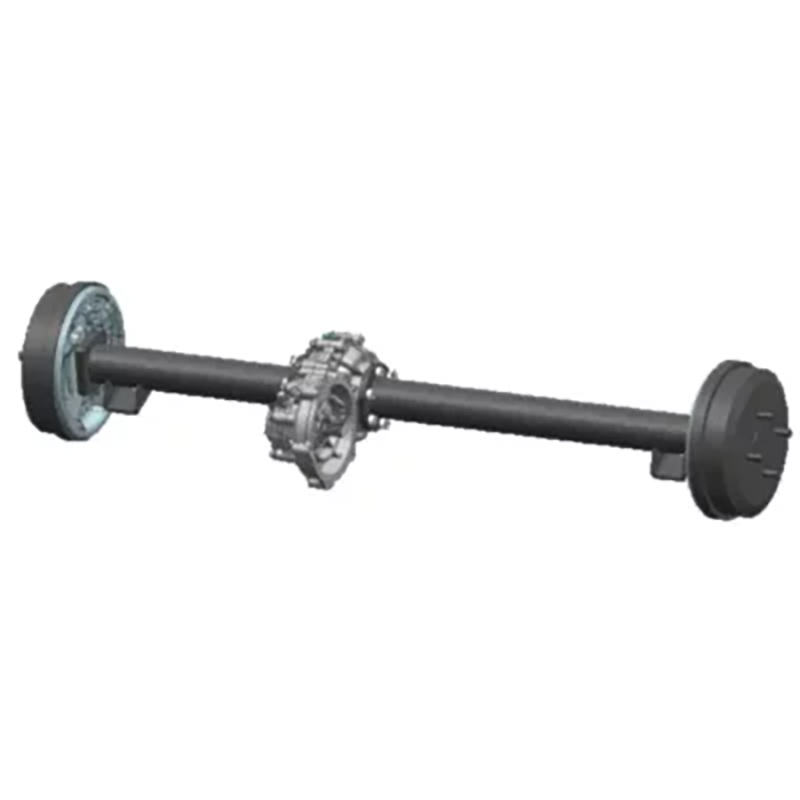

Application of rear axle assembly We can provide various modification solutions and have our own axle chassis modification factory. If you need to replace the original rear axle of the car, modify self-made dining cars, tricycles, four-wheeled vehicles, go-karts, forklifts, flatbed trucks, rail cars, trailers, and construction site material trucks, accessories can be provided

Input & Output Spline Parameters
Tooth system		Input internal spline	Output end internal spline
modulus	m	1	1
number of teeth	z	18	25
Pressure angle	a	20°	45°
the modification coefficient	x	0.8	0.1
