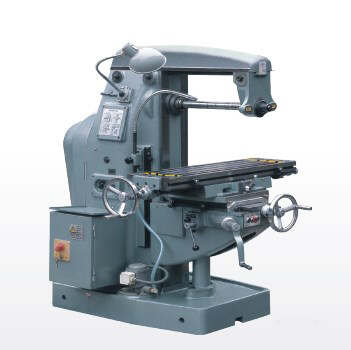

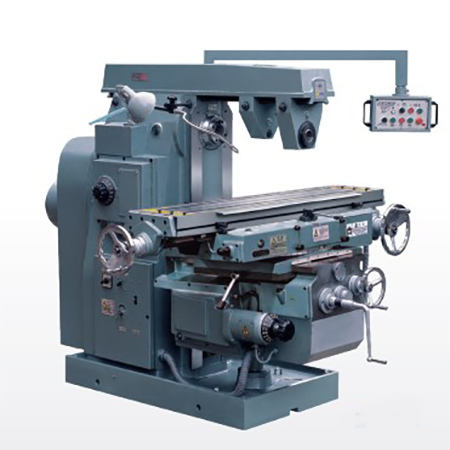

57-3D Horizontal Knee-Type Milling Machine

A horizontal knee-type milling machine is a type of milling machine that features a horizontal spindle and a knee-type
construction. This type of machine is commonly used for horizontal milling operations and offers certain advantages and
applications.

Item	Unit	57-3D	X6130C	X6132B	X6036	X6142
Worktable size	mm	250×900	300×1250	300×1320	360×1600	420×1800
T slot (N×W×D)	mm	3×14×54	3×14×63	3×18×80	3×16×63	3×18×90
Max. load bearing of worktable	kg	200	250	500	500	800
Longitudinal travel (Manual/Power) X	mm	480	800	800/780	1020/1000	1200/1180
Cross travel (Manual/Power) Y	mm	165	235	300/280	300/280	360/350
vertical travel (Manual/Power) Z	mm	300	400	410/400	410/400	470/450
Max. rotary angle of worktable	mm	±45°	±45°	±45°	/	±45°
Spindle hole taper	mm	Mt3 7:24 30#	7:24 No.40	7:24 No.50	7:24 No.50	7:24 No.50
Arbor diameter	mm	Φ22 Ø27	Φ22 Ø27	Φ22 Φ27 Φ32	Φ22 Φ27 Φ32	Φ32 Φ50
Distance from spindle end to worktable surface	mm	60 ~ 360	30 ~ 470	40 ~ 440	50 ~ 460	40 ~ 500
Distance from table center to vertical guide way	mm	205-370	190-420	235 ~ 535	235 ~ 535	280 ~ 650
Distance from spindle center to arm	mm	160	162	155	155	200
Spindle speed steps	strps	12	12	18	18	18
Spindle speed range	r/min	32 ~ 1250	35 ~ 1600	30 ~ 1500	30 ~ 1500	30 ~ 1500
Feed speed steps	steps	12	12	18	18	18
Main motor power	kw	2/2.4	4	7.5	7.5	11
Feed speed range: Longitudinal X/Y/Z	mm/min	5.6 ~ 181	15 ~ 800	15 ~ 750	15 ~ 750	22 ~ 1100
	mm/min	11.3 ~ 366	15 ~ 800	15 ~ 750	15 ~ 750	22 ~ 1100
	mm/min	4.5 ~ 146.2	6 ~ 270	5.7 ~ 280	5.7 ~ 280	8.3 ~ 410
Rapid feed speed range (X/Y/Z)	mm/min	/	2100/2100/880	2250/2250/844	2250/2250/844	2400/2400/900
Feed motor power	kw	/	0.75	1.5	1.5	3
Machine dimension	mm	1400/1330/1478	1650/1540/1720	2327/1792/1720	2327/2067/1720	2522/2262/2047
Package dimension	mm	1330/1430/1930	1650/1570/2160	2200/1780/2120	2200/2070/2280	2470/2300/2300
Machine weight	kg	1100	1750	2850	2850	4200
Voltage/ Frequency	V/Hz	380/50	380/50	380/50	380/50	380/50

Features: 1. Horizontal Spindle: Horizontal knee-type milling machines have a spindle that is oriented horizontally. This allows for horizontal milling operations, such as slab milling, slotting, and facing. 2. Knee-Type Design: These machines feature a knee that can be adjusted vertically to accommodate different workpiece heights. The knee provides stability, rigidity, and versatility, allowing for precise positioning and ease of setup. 3. Diverse Speed Range: Horizontal knee-type milling machines typically offer multiple speed options. This allows operators to select the appropriate speed for different machining operations, providing flexibility to handle various materials and cutting requirements. 4. Swiveling Milling Head: Many horizontal knee-type milling machines have a milling head that can be swiveled. This feature provides additional flexibility in machining angles and compound angles, enabling the production of complex parts and contours. 5. Versatile Tooling Options: Horizontal knee-type milling machines are compatible with a wide range of tooling options, including cutters, end mills, drills, and more. This versatility allows for the machining of different materials and the execution of various milling operations. Applications: 1. General Metal Machining: Horizontal knee-type milling machines are well-suited for general metal machining applications. They can perform tasks like face milling, end milling, slotting, drilling, and more on various materials, including steel, aluminum, and brass. These machines find applications in industries such as general machinery manufacturing, automotive, and fabrication shops. 2. Production Machining: The stability, rigidity, and versatility of horizontal knee-type milling machines make them suitable for production machining. They can efficiently produce parts in large quantities with consistent quality and precision, making them valuable in high-volume manufacturing environments. 3. Toolroom Operations: Horizontal knee-type milling machines are commonly used in toolrooms for prototyping, repair work, and maintenance. Their flexibility and ability to handle diverse machining tasks make them valuable for tool and die makers, allowing the production and repair of various tooling components. 4. Education and Training: Horizontal knee-type milling machines are often used in educational institutions and training facilities to teach milling operations and provide hands-on experience to students and trainees. Their knee-type design and ease of use make them suitable for learning the fundamentals of milling. In summary, a horizontal knee-type milling machine is a versatile machine that offers horizontal milling capabilities, knee-type construction for stability and adjustability, a diverse speed range, a swiveling milling head, and compatibility with various tooling options. They are used in general metal machining, production machining, toolroom operations, and educational environments where stability, versatility, and precision are required for milling operations.

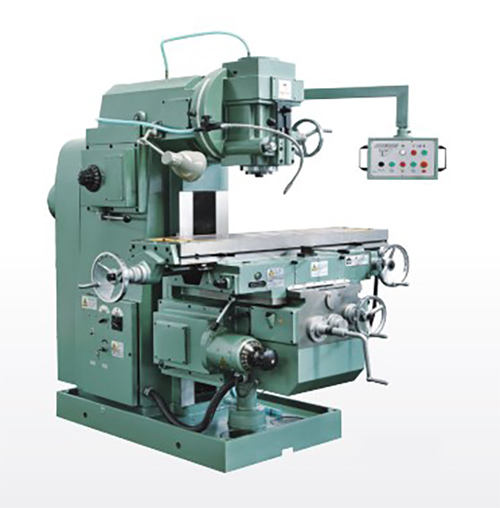

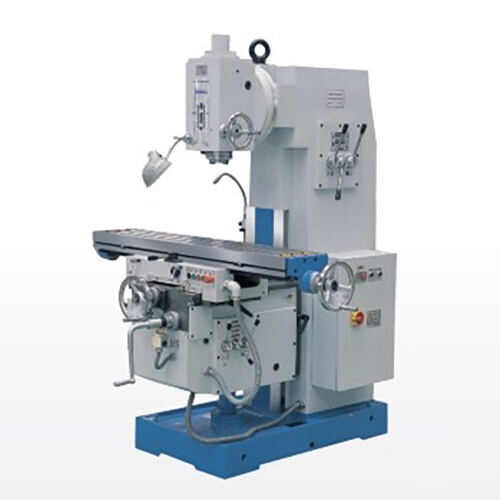

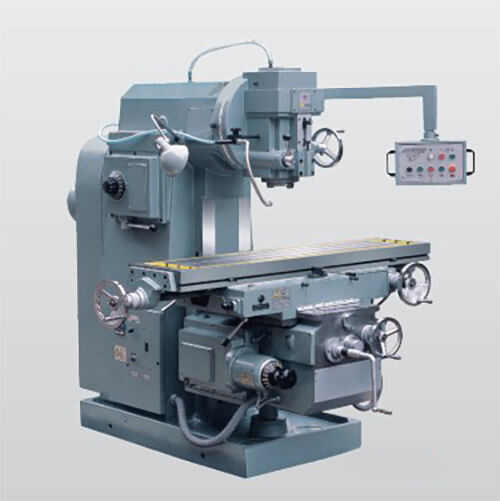

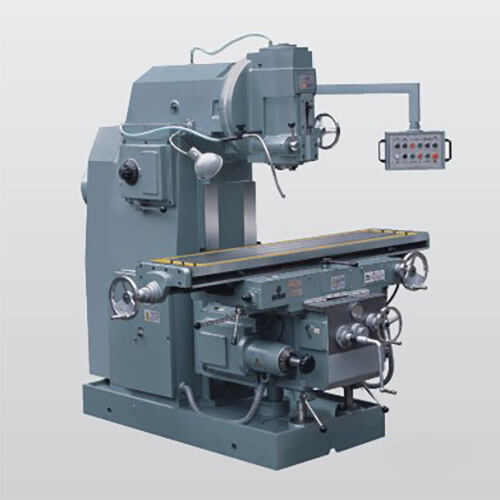

Vertical head: Vertical head can rotate ± 45 ° The spindle sleeve can move 75mm

Three axes driven by servo motor and ball screw:Three AIX are driven by servo motors and ball screws. They are controlled by a CNC system and can improve efficiency.

Transmission: The main shaft is driven by hardened gears, with a speed range of 18 levels. It provides a high rigidity process. The maximum torque can reach 2800N. M.

Optional accessories at extra cost(For conventional machines)

System and tool magazine

Raydafon is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Raydafon not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Raydafon is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

Raydafon has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
