Agricultural Adjustable Category CAT 1 2 3 3-pt Tractor Quick Attach 3 Point Quick Hitch Replacement of Kubota With Adapter

It can also be referred to as a three point quick hitch or a 3 point quick attach. The three-point quick Hitch device is a kind of agricultural machinery accessory, which is used to connect agricultural machinery and agricultural equipment conveniently and quickly, improving work efficiency.3 Point ......

Send Inquiry

Product Description

3 Point Quick Hitch

FEATURES:
- Adapt Your Category 1 or 2, 3 Point to a 3 Point Quick Hitch
- Built with 3" x 3" tubular steel
- Reinforced with 9-Gauge Steel gusset plates
- Lightweight design saving on your 3 Pointâ€s lifting capacity
- Spring loaded levers to lock lower lift pins into place
- No welding or modifications needed. Attaching is simple and quick.
- Adjustable top hook to fit most attachments

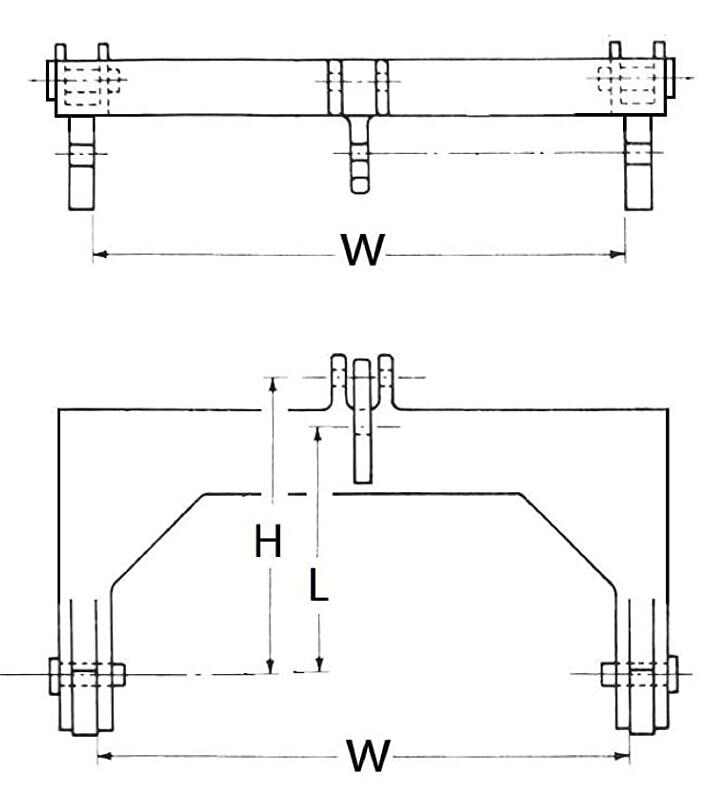

Category	W(IN)	H(IN)	L(IN)	Weight(LB)
CAT 1 quick hitch	27.25	18.5	15-18..5	80
CAT 2 quick hitch	32.75	21.5	15	139
CAT 2 HD quick hitch	32.5	21.5	15	165
CAT 3 quick hitch	38.25	24.5	19	182
CAT 3 NARROW quick hitch	32.6	24.5	19	176

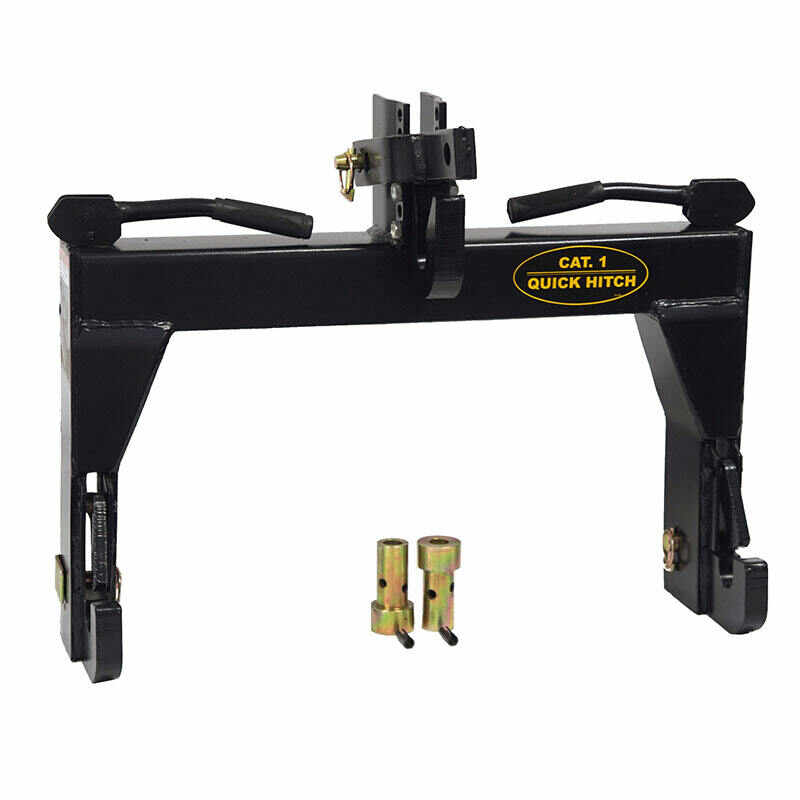

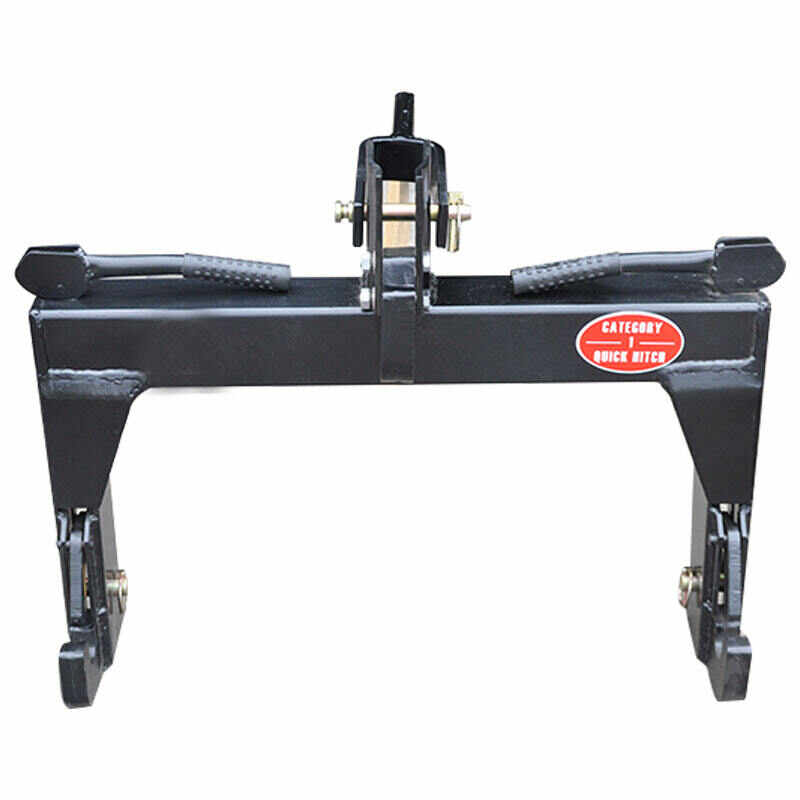

CAT 1 3-Point Quick Hitch (Category Ⅰ)

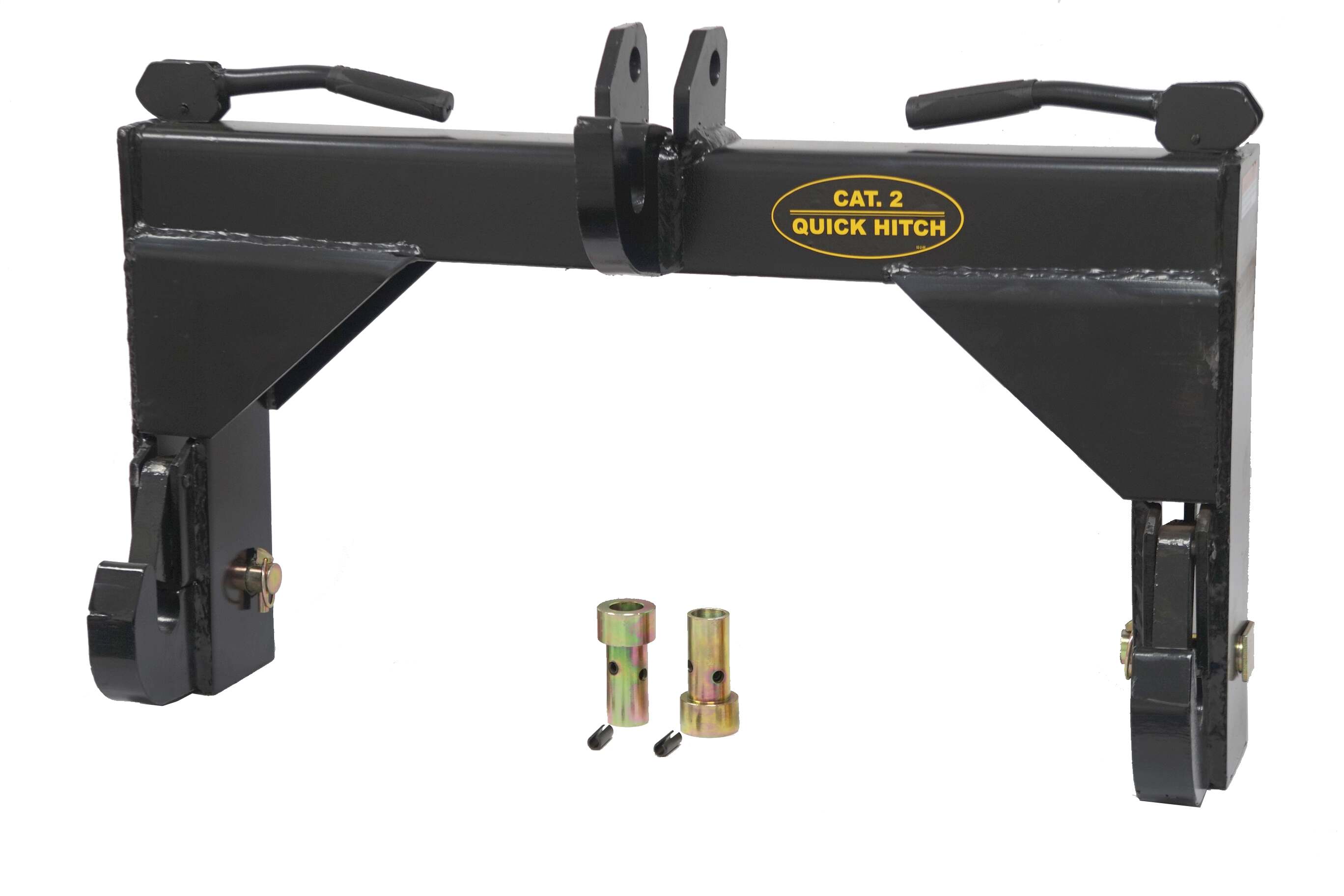

CAT 2 3-Point Quick Hitch (Category Ⅱ)

CAT 2 Heavy Duty 3-Point Quick Hitch (Category Ⅱ HD)

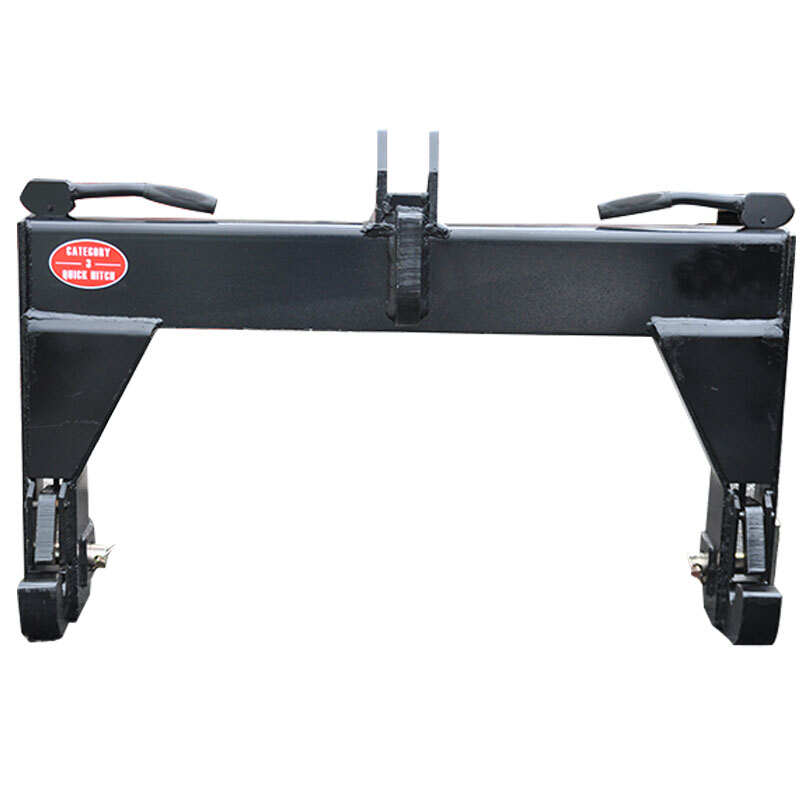

CAT 3 3-Point Quick Hitch (Category Ⅲ)

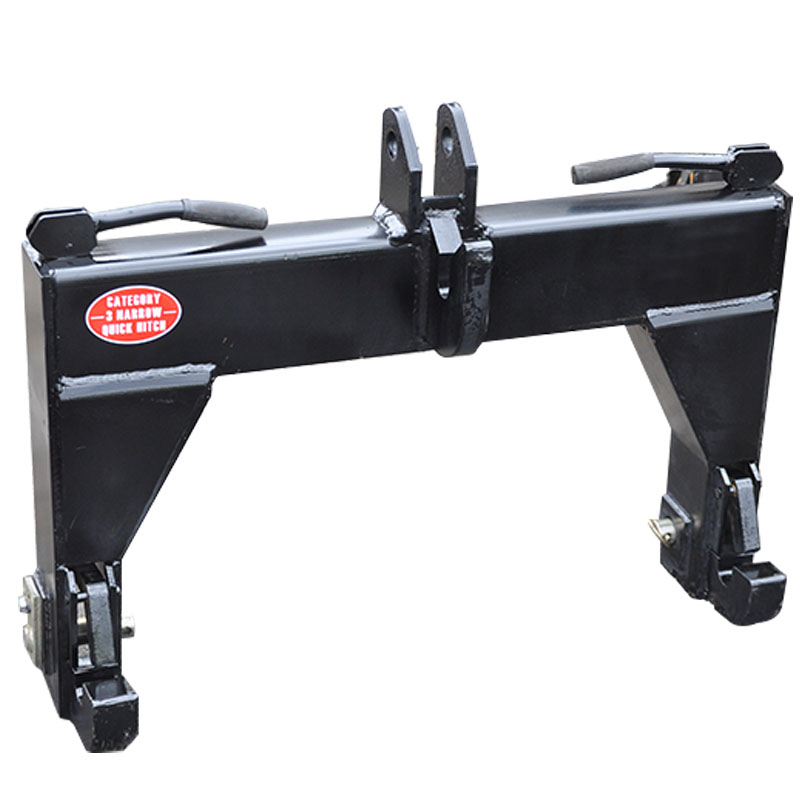

CAT 3 Narrow 3-Point Quick Hitch (Category Ⅲ N )

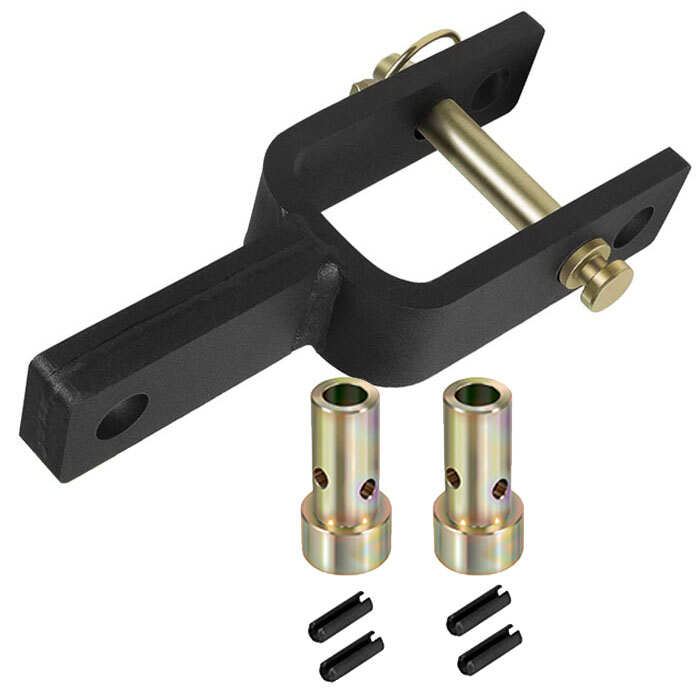

3-Point Quick Hitch Adapter & Bushings

Category 1 & 2 Tractors

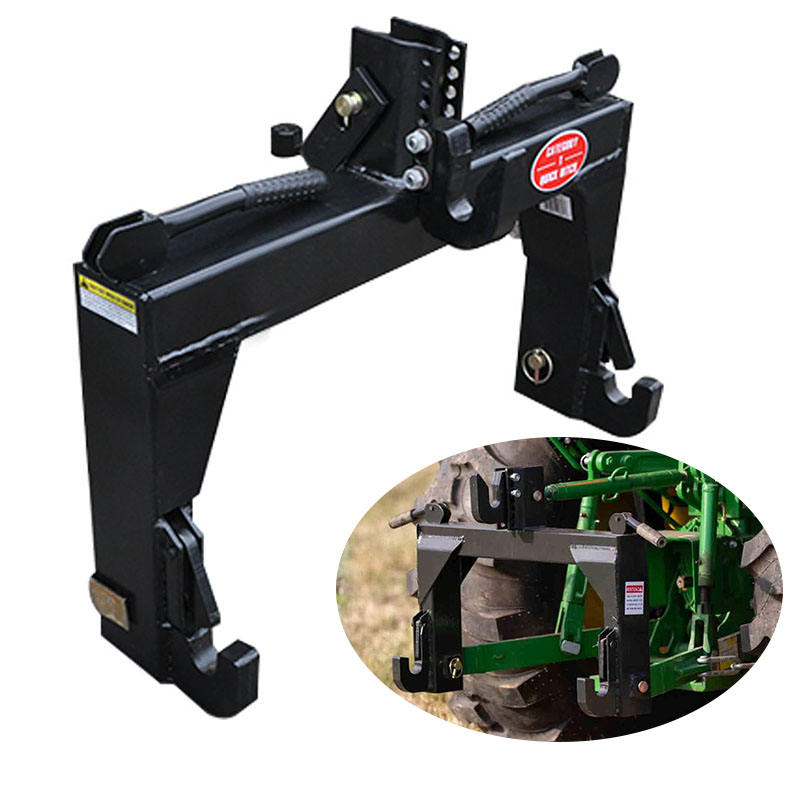

This heavy-duty reinforced 3-point quick hitch is designed to convert your category 1 or category 2 3 point hitch into a quick hitch. It is commonly used in landscaping and construction.

No Welding Needed

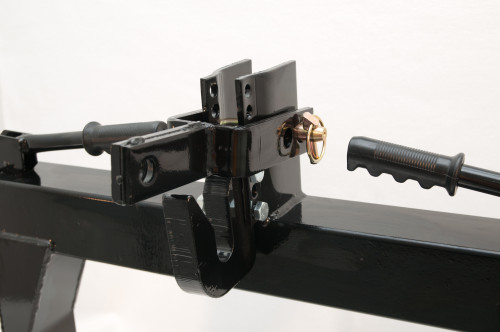

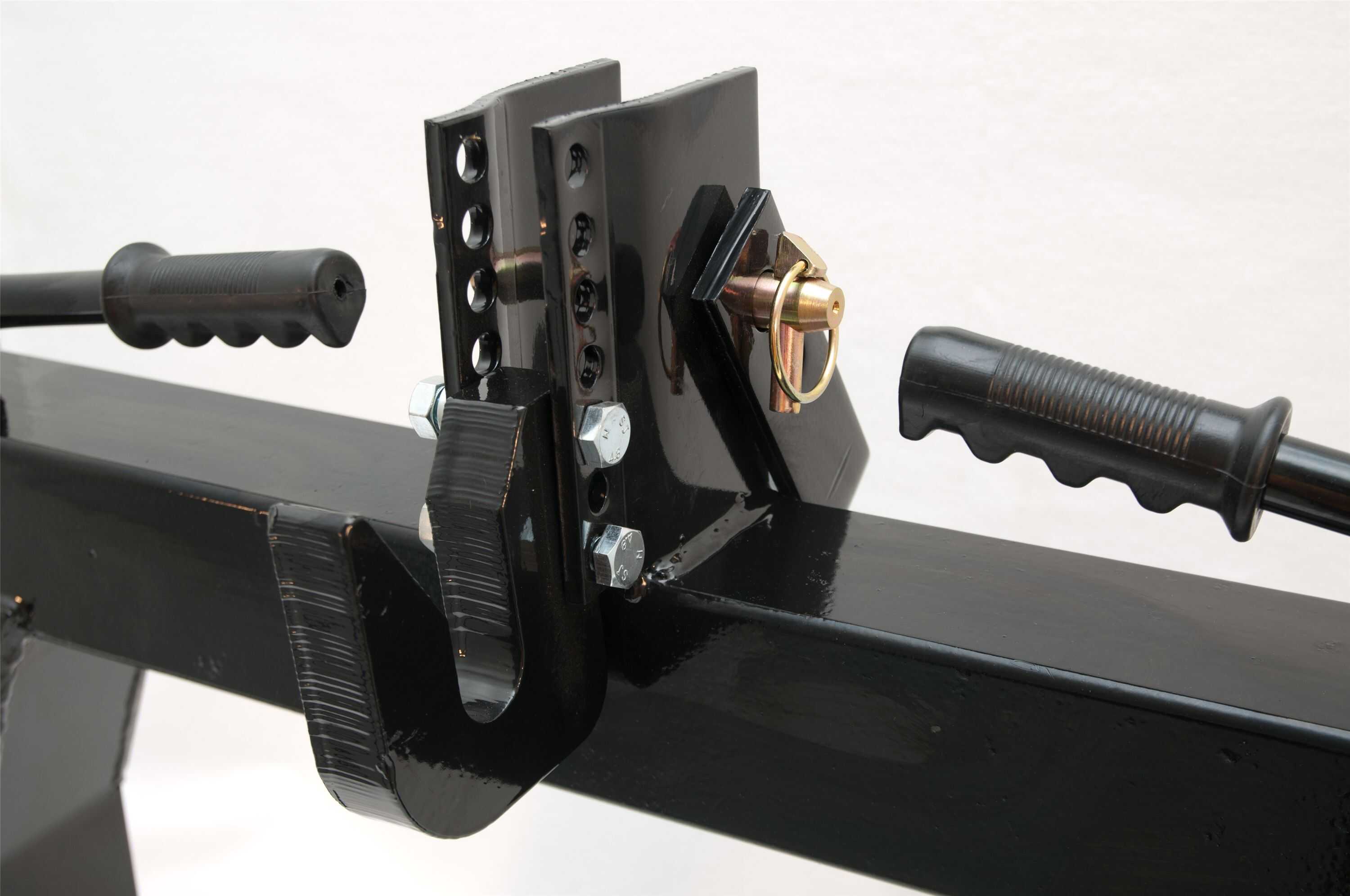

This quick hitch comes ready to attach directly to your Tractors 3-Pt hitch without any modifications or welding required. The 5-level adjustable top hook can be adjusted and fixed with bolts.

Heavy Duty Alloy Steel

The quick hitch for the tractor adopts high-strength alloy steel, which has high strength and strong compression resistance. Moreover, due to its good plasticity, it is not easy to crack after pressure processing.

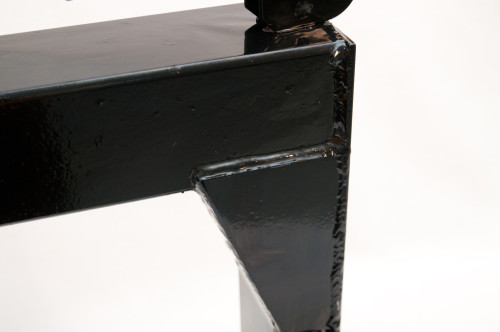

Dimensions of Reinforcement

32" x 24" x 9", The top steel plate is thickened, the thickness is 0.16", and a triangle plate strengthens the two sides. The lower lifting pin hooks are located 29" from center to center, 1.25" thickness.

Thoughtful Design

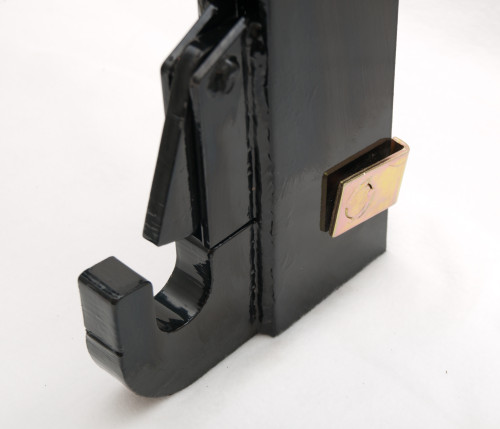

The lower link on the tractor has 3 points quick hitch. The force direction is vertical, with Spring-loaded levers to lock lower lift pins into place. The purpose of the pin hook is to fix the position.

Powder Coating

The surface of the device is treated with powder coating, which has good adhesion, impact resistance, and toughness. In addition, the powder coating has high edge coverage, excellent corrosion resistance performance.

For more models or customization, please click here!

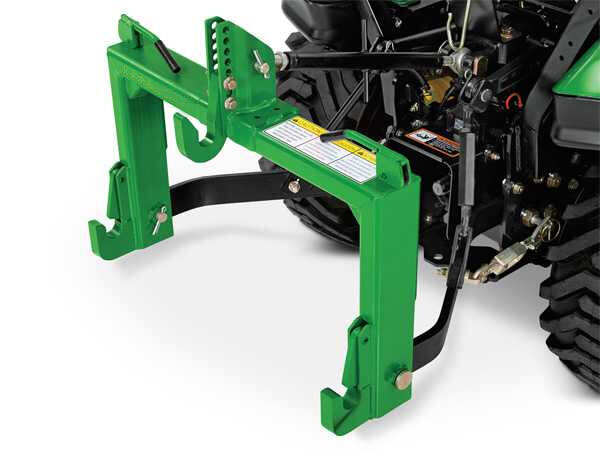

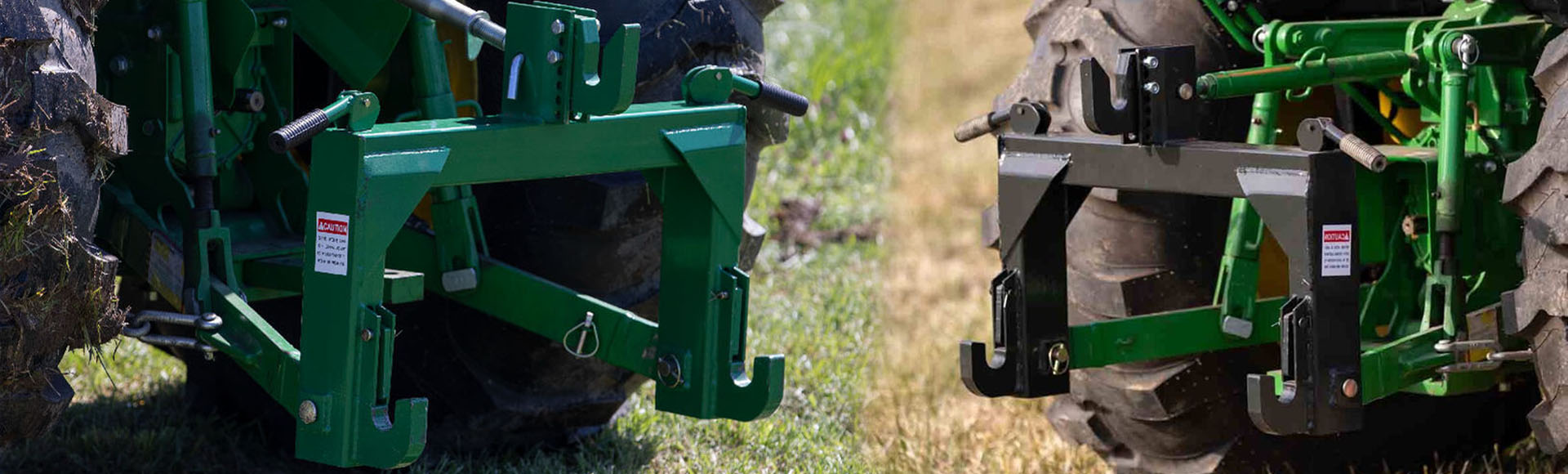

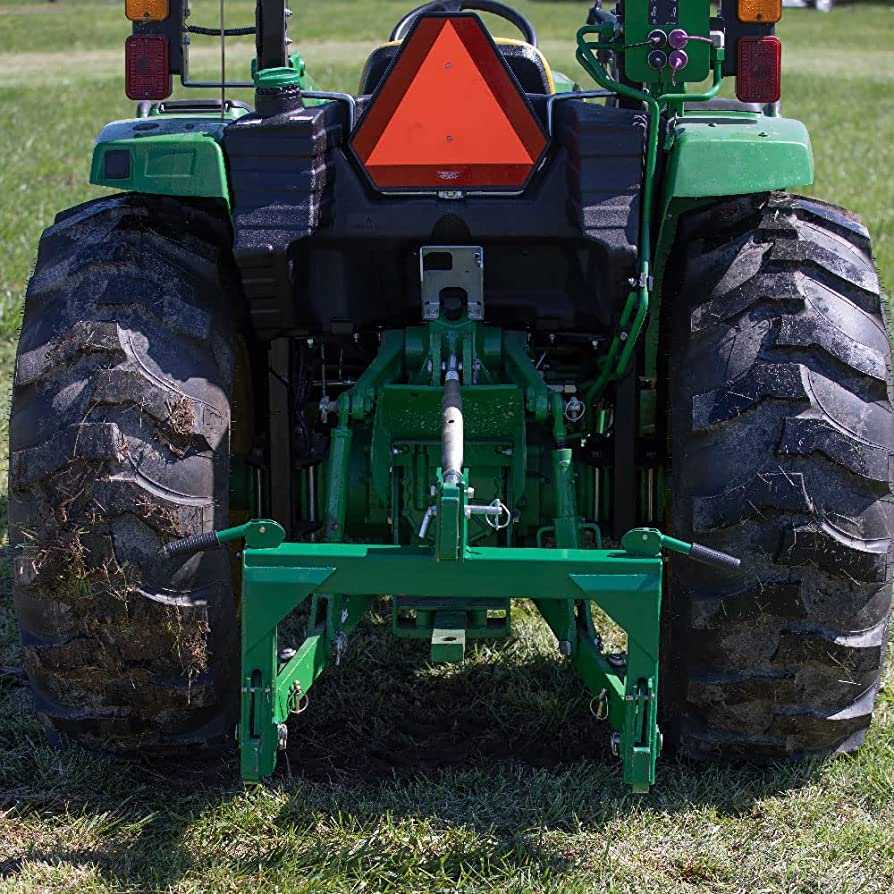

How to Connect Three Point Quick Hitch to Your Tractor?

Connecting a Three Point Quick Hitch to your tractor is a simple process. Follow these steps to connect it:
1. Position your tractor: Firstly, you need to park your tractor on a flat surface where you want to connect the hitch.
2. Align the Hitch: Move the hitch to the rear of the tractor, then align the three-point hitch arms on the hitch with the holes on the back of the tractor.
3. Lower the Hitch: You need to lower the hitch so that it can connect with the arms projecting from the back of the tractor. To do this, you can use the hydraulic lever on your tractor, which will help in lowering the hitch to the right height.
4. Lock it in Place: Once the hitch is lined up with the arms projecting from the back of the tractor, you can use the locking mechanism to connect them together. Ensure that the locking pin is pushed through the holes on the three-point hitch and the arms on the tractor securely.
5. Check the connections: Make sure to check and ensure that the quick hitch is locked securely into place before you use it.
