AI Intelligent Steel Cabinet Outdoor Liquid-Cooled ESS Energy Storage System with 200A Busbar

AI Liquid-cooling Outdoor ESS CabinetIntelligent storage liquid cooling Integrated cabinet is an innovative equipment that integrates high-efficiency energy storagesystem and advanced liquid cooling technology, aiming to improve energy efficiency and equipment safety. The converged cabinet uses a li......

Send Inquiry

Product Description

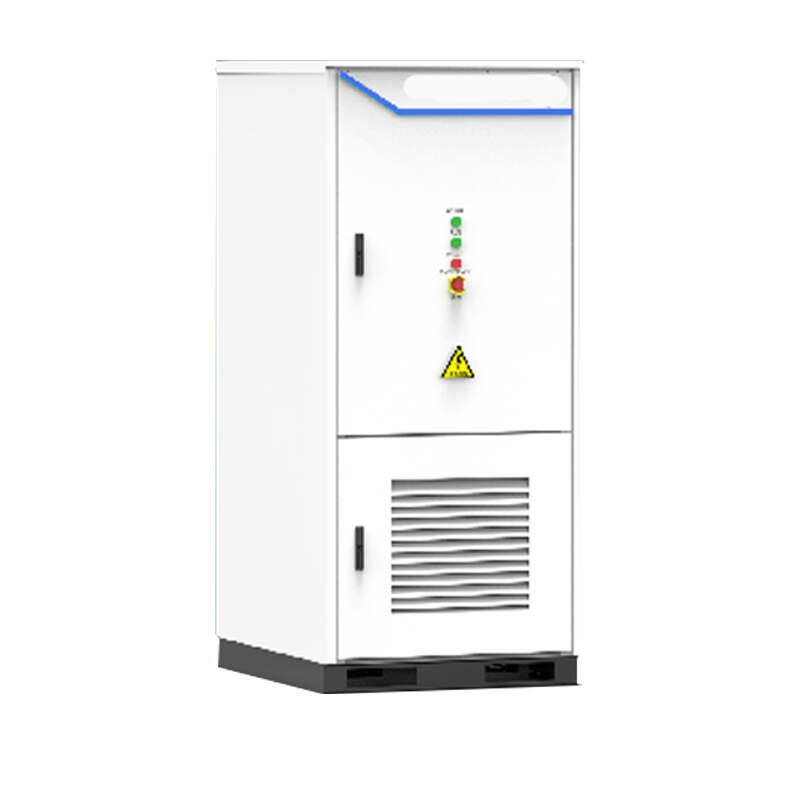

AI Liquid-cooling Outdoor ESS Cabinet

Intelligent storage liquid cooling Integrated cabinet is an innovative equipment that integrates high-efficiency energy storage
system and advanced liquid cooling technology, aiming to improve energy efficiency and equipment safety. The converged cabinet uses a liquid cooling solution to effectively control temperature fluctuations, ensure that batteries and other components operate in the best working condition, and extend the service life of the device. The intelligent storage liquid-cooled integrated cabinet will provide users with efficient and reliable energy management solutions, and is an important tool to promote the utilization of renewable energy and the construction of smart grid.

DC Data
Voltage range	DC600V~DC900V	DC channel	1
Rated current	212A	Working mode	Constant power, constant current
AC Data
AC output	3P+N+PE	Rated power	125kW
Rated voltage	380/400 Vac	Rated current	189A
Voltage range	-15%~+15%	Rated frequency	50Hz/60Hz
Frequency range	Rated frequency±2.5Hz	Power factor	-1~1
Output harmonics	≤3%
Battery Data
Number of battery clusters	1	Single combination	1P48S*5
Battery cell capacity	215.04kWh	Battery cell capacity	280Ah
Max. charge/discharge rate	0.5C	Cycle life	≥8000@25℃ 0.5C/0.5C, 90%DOD, 70%EOL
Liquid Cooling Data
Liquid cooled model	LCI-30CR-21Z3-1227	Quantity of liquid cooling	1
Rated flow rate	30L/min	Cooling Power	3kW
Heating power	2kW	Refrigerant	R410A
Environment Data
Operating temp. range	-20℃~55℃	Storage temperature	-40℃~70℃（No Battery）
Relative humidity	0%RH~90%RH, No condensation	Altitude	≤5000m（＞3000m Need to reduce the amount）
Noise	＜80dB
System Data
Communication interface	RS485、Ethernet、4G	Communication protocol	ModBus TCP/RTU
Protection grade	IP54（Power control system） IP55（Energy storage battery system）	Cooling method	Liquid-colling
Size（W×D×H）	110013502350	Weight	2500kg

On-grid Microgrid in industral Park

The industrial park grid-connected microgrid system realizes a stable supply of clean energy. The system integrates renewable energy such as solar energy, wind energy, and energy storage to form an independent small power system, which is particularly suitable for enterprises and industrial buildings with high requirements for energy stability.

Off-grid Microgrid

The off-site microgrid system provides stable and reliable electricity for remote areas and special usage situations. The system operates independently without being connected to the main power grid. It is particularly suitable for places that are difficult to cover by the main power grid, such as remote areas, islands, urban suburbs, and tourist attractions.

Services available

1.FAT (Factory Acceptance Test) : - Ensure equipment or systems are operating according to specifications. - Provide customers with the opportunity to test the equipment before shipping.

2.Service support: - Provide technical support and maintenance services. - Online support and remote diagnostics.

3.Customized solutions:

- Customized solutions according to customer needs. 4.Delivery and installation services: - Provide fast and efficient distribution and on-site installation services.

We are a comprehensive private enterprise specializing in the electrical field, integrating scientific research, development, manufacturing, and installation. Lean scientific management, professional production testing equipment, and high-quality after-sales service have driven the steady development of Hongbo. The company attaches great importance to the penetration of technology and the improvement of quality, and has successively passed ISO three system certification, national mandatory product CCC certification, voluntary product certification CQC certification, enterprise credit AAA certification, etc.

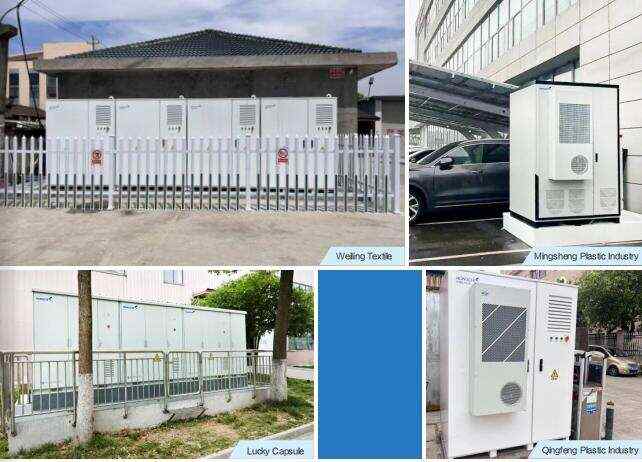

Performance cases
