Automated Production Line Solo Manipulator Series Robotic Arm for Shell Drawing Sheet Metal

Solo manipulatorThe transmission mechanism adopts double sliders, which is agile and sensitive. It is used in shell stretching and home appliancesheet metal market.Product features-Suitable for multi-station horizontal feeding stamping automatic production line.-Adopt servo control, high precision a......

Send Inquiry

Product Description

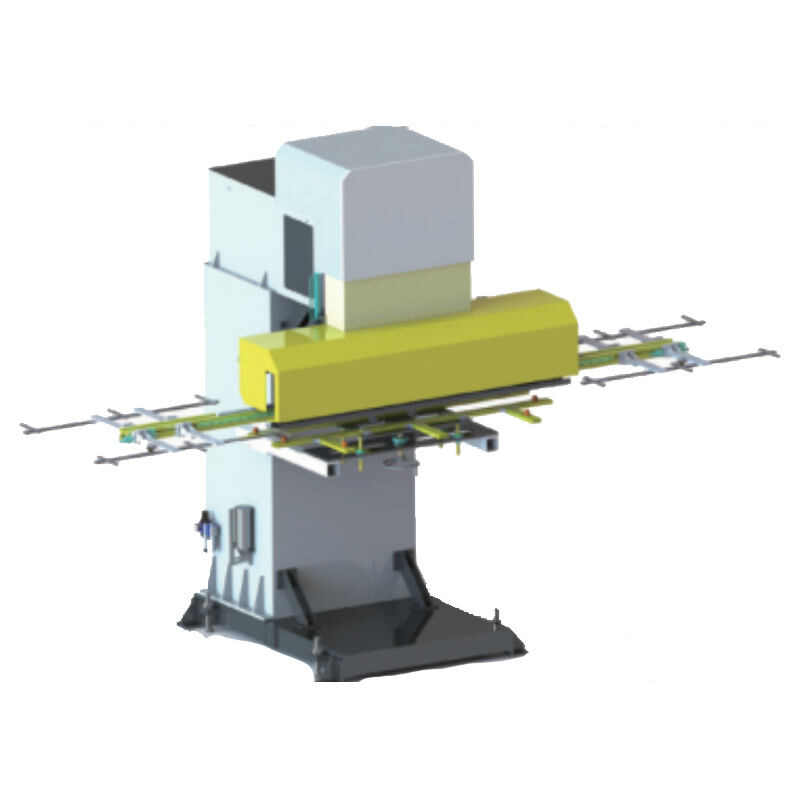

Solo manipulator

The transmission mechanism adopts double sliders, which is agile and sensitive. It is used in shell stretching and home appliance
sheet metal market.

Product features

-Suitable for multi-station horizontal feeding stamping automatic production line. -Adopt servo control, high precision and strong load-bearing capacity. -Adopt PLC control to improve product compatibility and flexibility. -Equipped with human-machine interface, easy to operate and monitor production status.

Model			Solo Manipulator
Model				QE-2D-1200-120	QE-2D-2500-120	QE-2D-3000-120	QE-2D-3500-120
Moving Storke（mm）	X-axes	1200	2500	3000	3500
		Y-axes	/
		Z-axes	0-120
Max（Min）SPM（pcs/min）	40（8）
Positioning Precision（mm）	+—0.2
Installed Power（Kw）			3.6	7.5

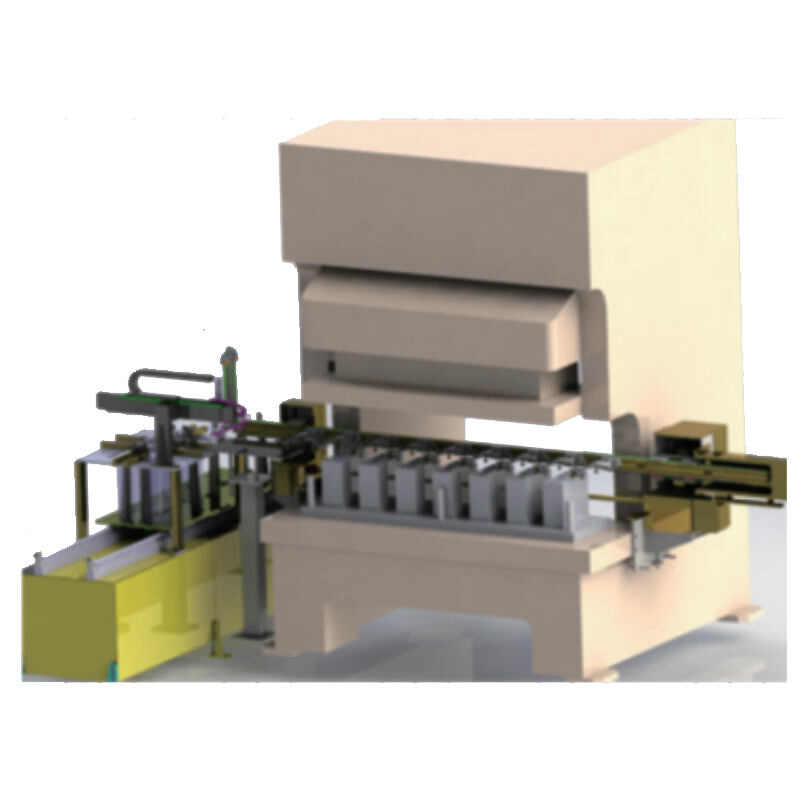

Two Dimension manipulator

The front of the punch press has an open space, which allows for easy mold replacement and maintenance. It is used in shell stretching, small parts molding, and new energy markets.

Solo Manipulator

The transmission mechanism adopts double sliders, which is agile and sensitive. It is used in shell stretching and home appliance sheet metal market.

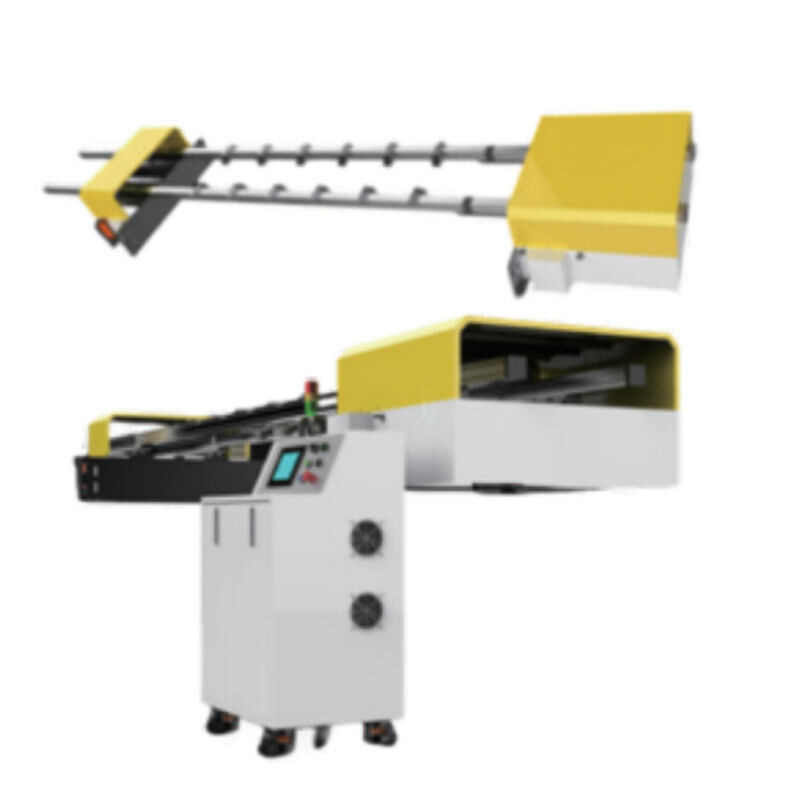

Single Rod Manipulator

The main and auxiliary machine design makes the in-mold translation feeding more stable and fast, and is applied to 3C, automobile, small and medium-sized sheet metal stamping markets.

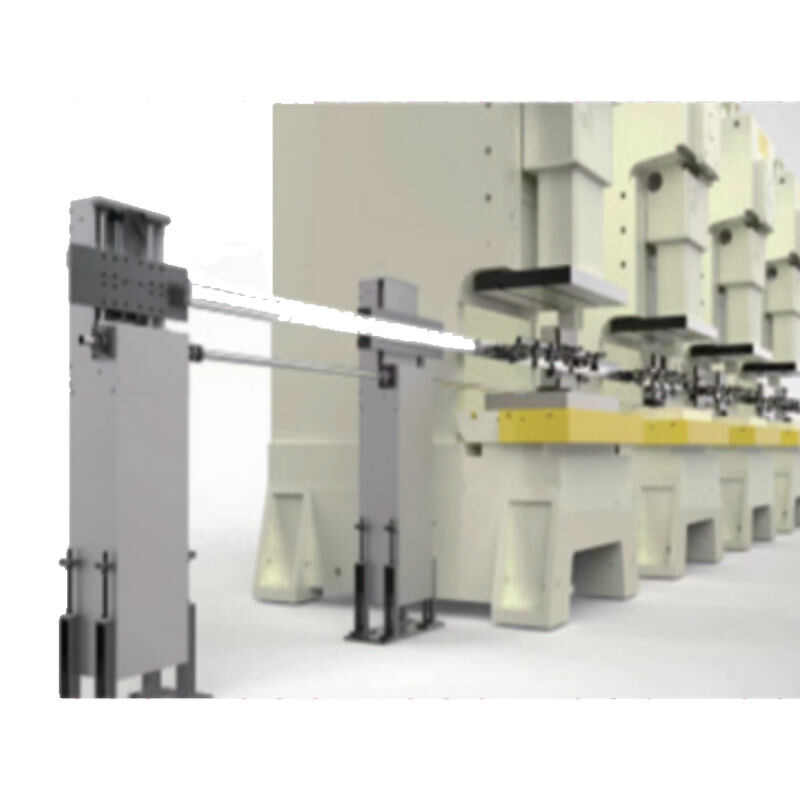

Multi Rod Manipulator

Independent center station design, through-type transmission shaft runs more smoothly, applied to 3C, automobile, home appliances, large cover sheet metal stamping market

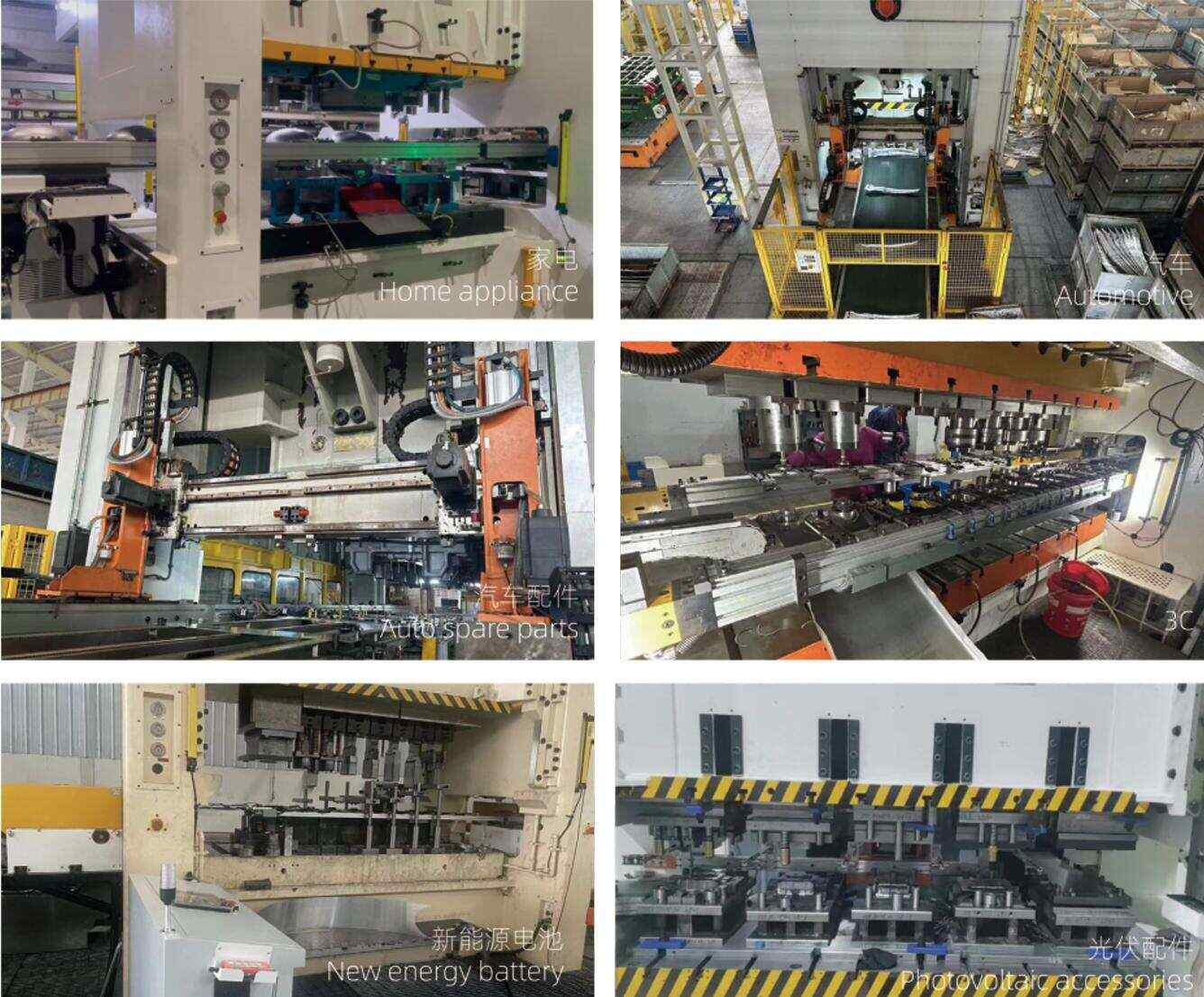

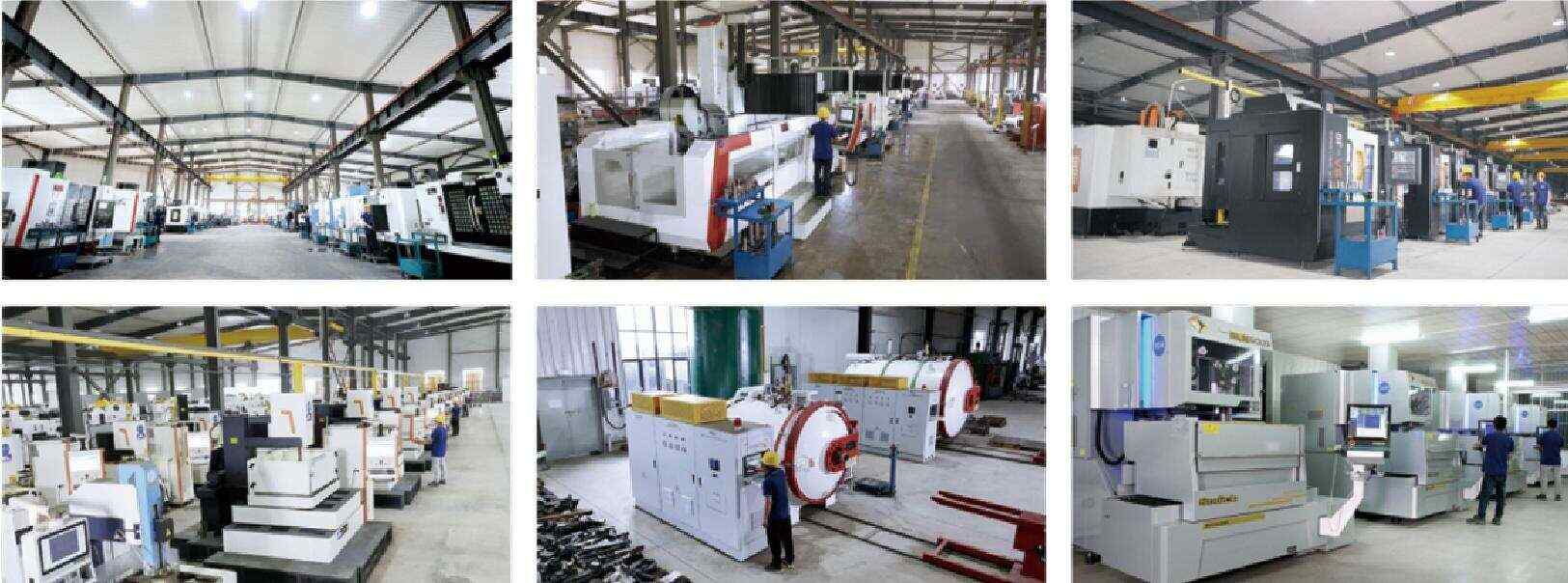

We are a manufacturer of stamping unmanned automation equipment integrating design, production, sales and service. The company is mainly engaged in the research and development and production of multi-station stamping and handling automation equipment and production lines. The main products include two-dimensional stamping manipulators, large/small three-dimensional stamping manipulators, independent handling manipulators, multi-machine linkage manipulators, single-machine in-mold manipulators and truss manipulators, etc., as well as other non-standard customized automation production lines. Widely used in automobiles, home appliances, communications, electrical, medical and other fields, providing customers with high-quality equipment and complete system solutions. Committed to promoting and popularizing stamping automation, providing safe, reliable, mature and stable stamping automation equipment to serve customers, improving the safety, production efficiency and automation level of stamping work, thereby freeing the operator's hands from simple, heavy and dangerous labor, allowing employees to do more valuable work.

Each machine undergoes more than 30,000 life tests before leaving the factory. We strictly follow the requirements of the quality management system and establish a complete management mechanism from product design, process development, production process, correction and prevention to customer satisfaction, insisting that every product delivered to customers is qualified.
