Curved tooth gear coupling CL-8 type
Advantage of Curved tooth gear coupling CL-8 type
1.Widely used in various mechanical and hydraulic fields
2.Low-cost maintenance
3.Compensation for axial, radial and angular misalignment
4.Convenient axial plugging assembly
5. Installed horizontally and vertically without using any social tools.
6.Excellent mechanical properties
7. No brittlement at low temperature
8.Good slippery and frictional properties
9.Exellent electrical insulation
Application of Curved tooth gear coupling CL-8 type
GIICL gear couplings suitable for connecting two horizontal coaxial axis transmission systems, having a certain compensatory performance for relative offset of two axes.
Technical data of Curved tooth gear coupling CL-8 type
Type | Limited torque (KN.M) | Limited rotational speed (R/min) | D(MM) | D1(MM | D2(MM) |
GIICL1 | 0.4 | 4000 | 103 | 71 | 50 |
GIICL2 | 0.71 | 4000 | 115 | 83 | 60 |
GIICL3 | 1.12 | 4000 | 127 | 95 | 75 |
GIICL4 | 1.8 | 4000 | 149 | 116 | 90 |
GIICL5 | 3.15 | 4000 | 167 | 134 | 105 |
GIICL6 | 5 | 4000 | 187 | 153 | 125 |
GIICL7 | 7.1 | 3750 | 204 | 170 | 140 |
GIICL8 | 10 | 3300 | 230 | 186 | 155 |
GIICL9 | 16 | 3000 | 256 | 212 | 180 |
GIICL10 | 22.4 | 2650 | 287 | 239 | 200 |
GIICL11 | 35.5 | 2350 | 325 | 276 | 235 |
GIICL12 | 50 | 2100 | 362 | 313 | 270 |
GIICL13 | 71 | 1850 | 412 | 350 | 300 |
GIICL14 | 112 | 1650 | 462 | 418 | 335 |
GIICL15 | 180 | 1500 | 512 | 465 | 380 |
GIICL16 | 250 | 1300 | 580 | 522 | 430 |
GIICL17 | 355 | 1200 | 644 | 582 | 490 |
GIICL18 | 500 | 1050 | 726 | 654 | 540 |
GIICL19 | 710 | 950 | 818 | 748 | 630 |
GIICL20 | 1000 | 800 | 928 | 838 | 720 |
GIICL21 | 1400 | 750 | 1022 | 928 | 810 |
GIICL22 | 1800 | 650 | 1134 | 1036 | 915 |
GIICL23 | 2500 | 600 | 1282 | 1178 | 1030 |
GIICL24 | 3550 | 550 | 1428 | 1322 | 1175 |
GIICL25 | 4500 | 460 | 1644 | 1538 | 1390 |

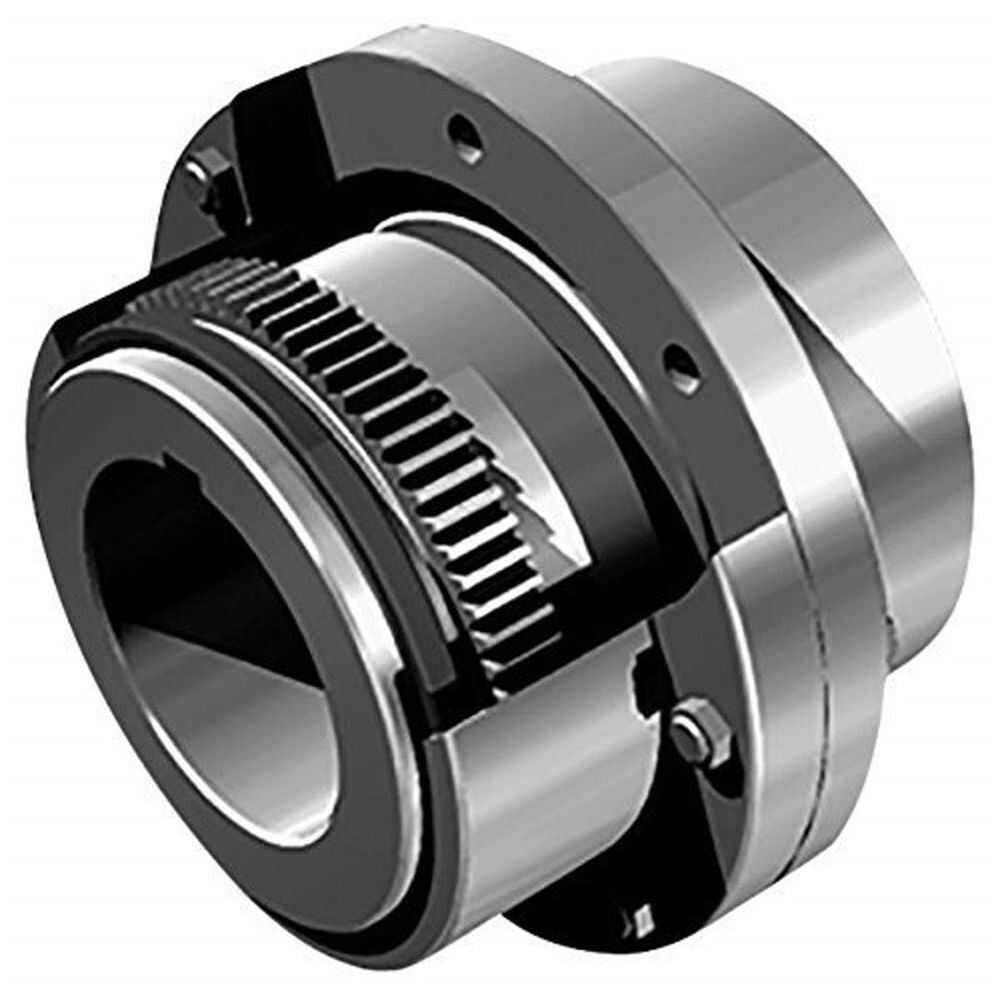

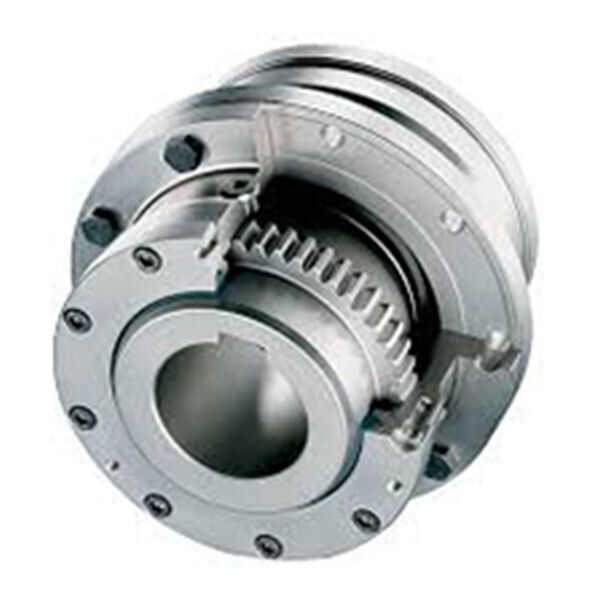

Photo of Curved tooth gear coupling CL-8 type
Package of Curved tooth gear coupling CL-8 type:
Plywood case / Carton / Customized
Service of Curved tooth gear coupling CL-8 type
1. 12 months warranty period .
2. Free maintenance .
3. High quality, Lowest price , Fast delivery, Perfect service after sale
4. Chinese golden supplier, many years engaged in couplings
Raydafonis the professional designer and manufacturer of Mechanical Transmission Products, we specialize in Shaft Couplings covering: Beam Coupling, Bellow Coupling, Star Coupling, (Curved Teeth) Gear Coupling, Oldham Coupling, Spring Coupling, Jaw Coupling, Disc Coupling, L Coupling, Flex-Pin Couplings(FCL), Chain Coupling, HRC Coupling and Universal Joint etc.
1. Star Couplings: Which are totally replaceable with Rotex and Rotex GS Couplings |
2. Servo Couplings: Including Miniature Disc Couplings, OLDHAM Couplings, Beam Couplings , Spring Couplings etc. |
3. Universal Joint: Single Joint, Double Joint, and Extensible; Double Joint, Block and Pin type |
4. Needle; Bearing type, Cross shaft and Needle bearing type Tool |
5.Bellow Couplings: Totally replaceable with KTR Tool flex. Bore type: Clamp type, Setscrew Type, Keyless Lock Type Hub material: Aluminum, Alloy Bellow material: Stainless Steel |
6.Curved Teeth Gear Couplings: with Nylon Inner Gear Sleeve and Steel Inner Gear Sleeve |
7. L Coupling: L035-L100 Sintered Powder, L110-L225 Cast Iron GG25 |
FAQ of Curved tooth gear coupling CL-8 type
1. Q: We are looking for a stable supplier, how can we trust you ?
A: Welcome to our factory. You will see the great couplings and the whole production line. Or We'd love to send the free sample for your reference.
2. Q: How can you control the quality ?
A: ISO9000 Management is fully committed to quality. A quality manual exists, containing all quality procedures. An internal audit is conducted on a regular basis. A formal procedure for calibration of inspection tools exists and is being implemented. A formal procedure for control of records exists and is being implemented
