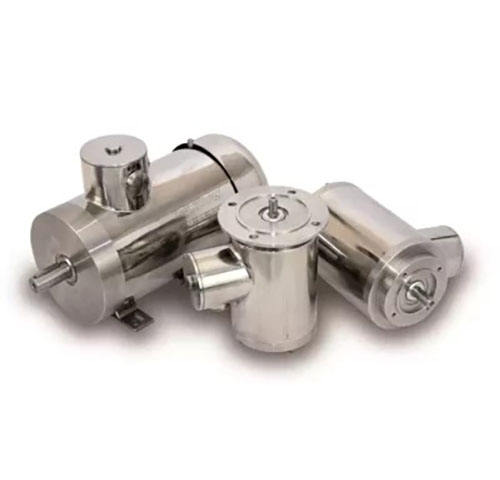

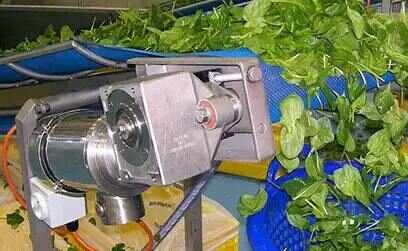

Corrosion Resistance Food Grade Waterproof Ip69k B3 Foot Mounted IEC 304 Stainless Steel Motor for Food Processing Plant

Description Of Stainless Steel MotorThe AQUA-TECH SERIES of stainless steel motor, which have special feat performance and value, top-notch features make AQUA-TECH SERIES products the be a worldwide influence. It includes NEMA and IEC standard motors which have per differ manufacturer standardFrame ......

Send Inquiry

Product Description

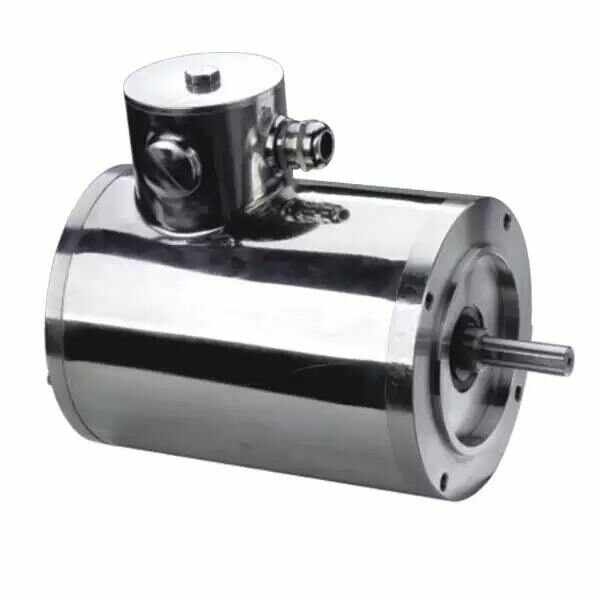

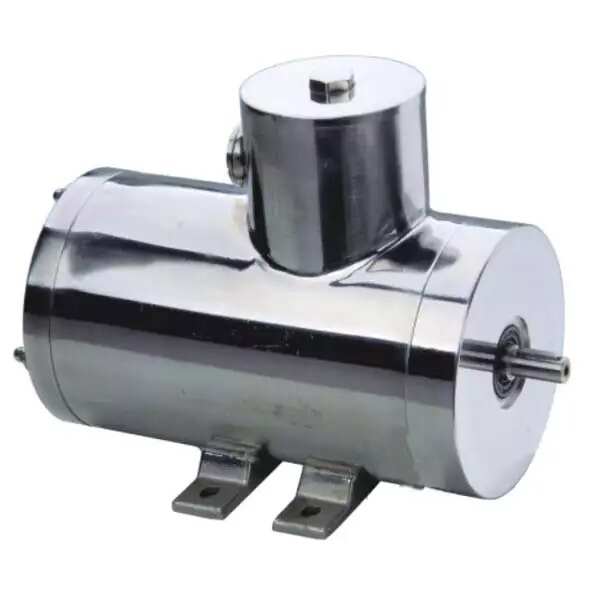

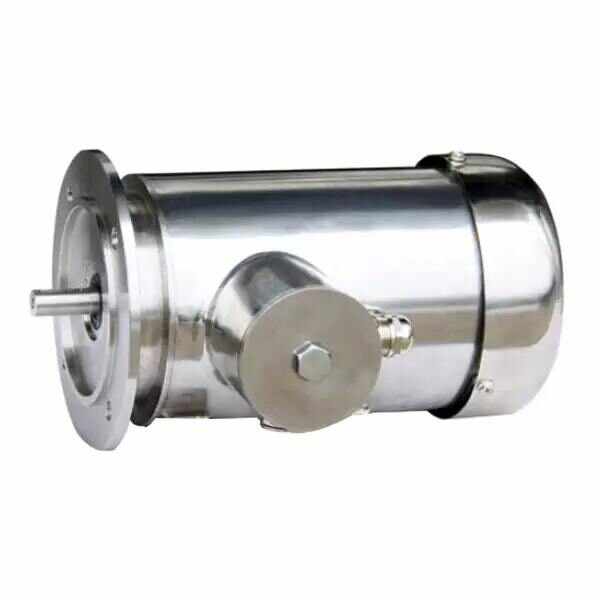

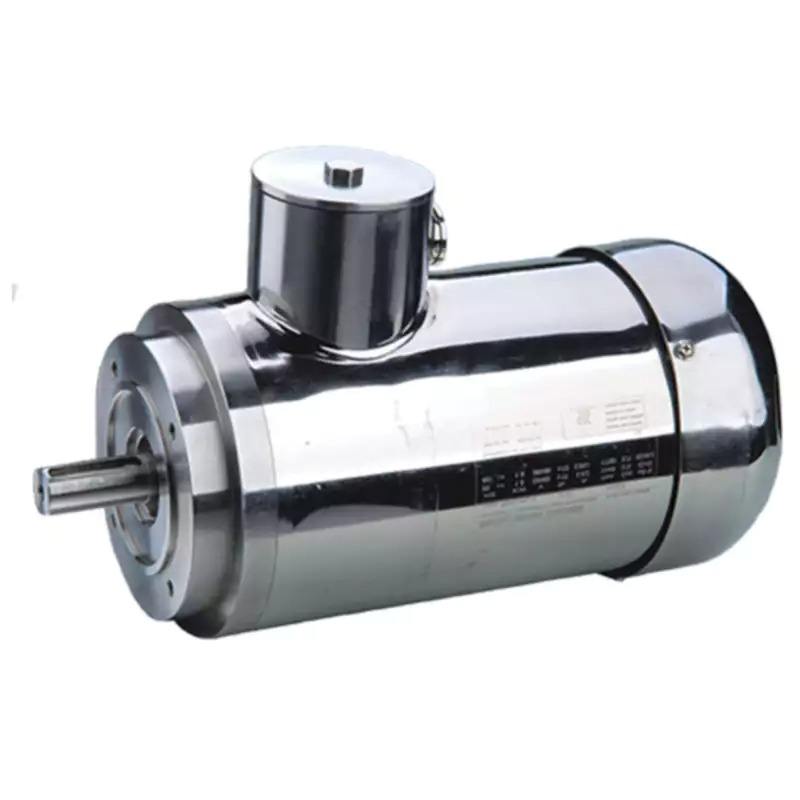

Description Of Stainless Steel Motor
The AQUA-TECH SERIES of stainless steel motor, which have special feat performance and value, top-notch features make AQUA-TECH SERIES products the be a worldwide influence. It includes NEMA and IEC standard motors which have per differ manufacturer standard

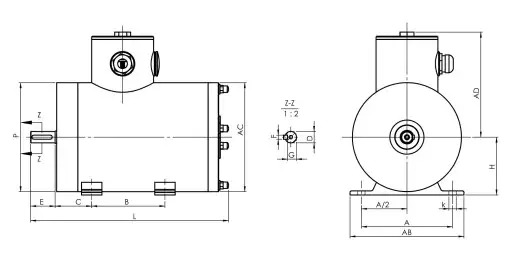

Frame Type	Poles	A	A/2	B	C	D	E	F	G
H	K	P	Shaft Hole	AB	AC	AD	63	2, 4	100
50	80	40	11	23	23	8.5	63	7	114
M4	125	114	117	71	2,4,6	112	56	90	45
14	30	30	11	71	7	134	M5	140	134

Specifications of IEC Stainless steel motor

Frame	KW	Mounting	IP
63	0.18	B3, B5, B14, B34, B35	IP55
71	0.25, 0.37
80	0.55, 0.75
90	1.1, 1.5
100	2.2, 3.0
112	4.0
1332	5.5, 7.5

It is also available if you have any special requirements for the motor.

Features of IEC Stainless steel motor
Stainless steel servo motor, static torque 0.45 to 20nm, peak torque 64nm
Stainless steel servo reduction motor with planetary gear or bevel gear
The shell adopts stainless steel V2a 1.4301 (AISI 304) or V4A 1.4404 (AISI 316L) or an anodized aluminum shell
Surface and flange installation (imb5, IMB14)
Protection grade up to ip66k / ip69k under flushing conditions
Large speed regulation range
Ul/CSA certification
EHEDG certification is pending (expected in 2022)
Feedback using a resolver or preface, EnDat, or drive clip encoder
Single cable technology (OCT)
Braking options
AC servo motor, DC servo motor, and AC asynchronous motor
Decentralized servo motor with integrated servo controller

Delivered with servo controller or frequency converter
Custom design
