Product Description

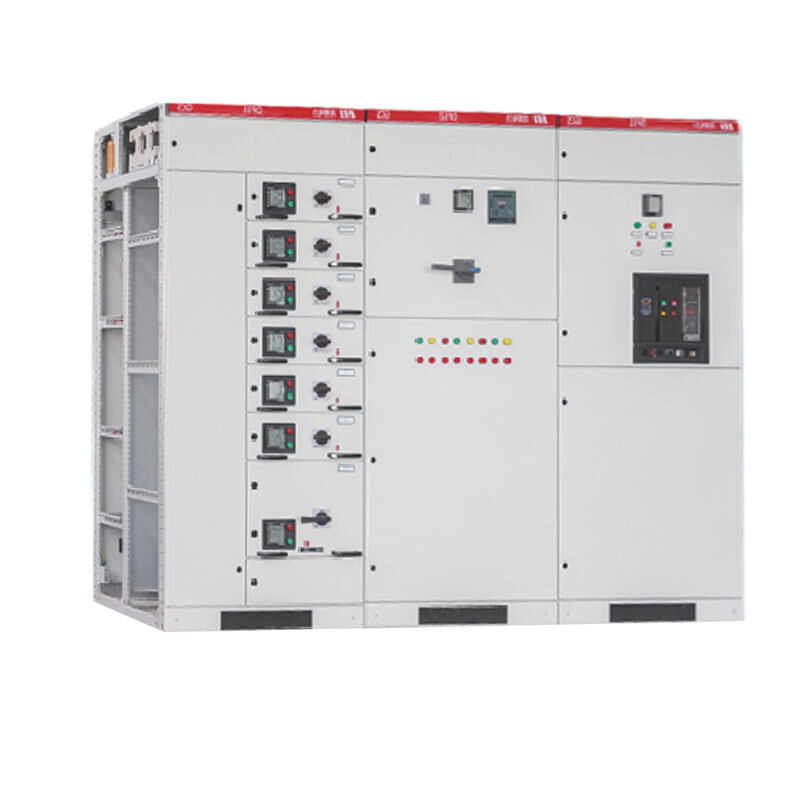

GCS AC Low-voltage Draw Out Switchgear

GCS is suitable for low-voltage distribution systems in power plants, substations, petrochemical departments, factories, mining
enterprises, hotels, and high-rise buildings. It consists of power distribution and motor control centers, capacitor compensated
motor control centers, and capacitor compensated energy conversion, distribution, and control.

It can meet the special needs of computer interface in power applications such as low voltage power control centers and motor control centers in large single unit capacity power plants, large-scale petrochemical industries, and other industries.
The device is designed according to the requirements of the superior authorities of the Ministry of Electricity, the vast number of power users, and the design department, in order to meet the needs of continuously developing the power market for capacity expansion, computer interface, centralized power control, convenient installation and maintenance, and shortened accident handling time. A new low-voltage withdrawable switchgear designed based on the principles of safety, economy, rationality, and reliability.
The product has high breaking and connecting capabilities, good dynamic stability, flexible electrical schemes, convenient
combination, strong practicality, novel structure, and high protection level. It can be used as a replacement product for
low-voltage withdrawable switchgear.

Serial number	Project			Unit	Parameter
01	Rated working voltage			V	380
02	Rated frequency			Hz	50 60
03	Rated insulation voltage			V	660
04	Control motor capacity			KW	0.5~155
05	Mechanical life			Time	500
06	Rated current	Horizontal busbar	A	1600 2500
				Vertical busbar		800 1000
				Main circuit contact connector		100~630
				Auxiliary circuit contact connector		20
				Maximum current of feed circuit		400
				Receiving circuit		1000 1600 2000 2500
07	Rated short time withstand current (effective value, 1s)			KA	15 30 50
08	Rated peak withstand current (peak)			KA	30 63 105
09	Dielectric strength (1min)			V	1890

On-grid Microgrid in industral Park

The industrial park grid-connected microgrid system realizes a stable supply of clean energy. The system integrates renewable energy such as solar energy, wind energy, and energy storage to form an independent small power system, which is particularly suitable for enterprises and industrial buildings with high requirements for energy stability.

Off-grid Microgrid

The off-site microgrid system provides stable and reliable electricity for remote areas and special usage situations. The system operates independently without being connected to the main power grid. It is particularly suitable for places that are difficult to cover by the main power grid, such as remote areas, islands, urban suburbs, and tourist attractions.

Services available

1.FAT (Factory Acceptance Test) : - Ensure equipment or systems are operating according to specifications. - Provide customers with the opportunity to test the equipment before shipping.

2.Service support: - Provide technical support and maintenance services. - Online support and remote diagnostics.

3.Customized solutions:

- Customized solutions according to customer needs. 4.Delivery and installation services: - Provide fast and efficient distribution and on-site installation services.

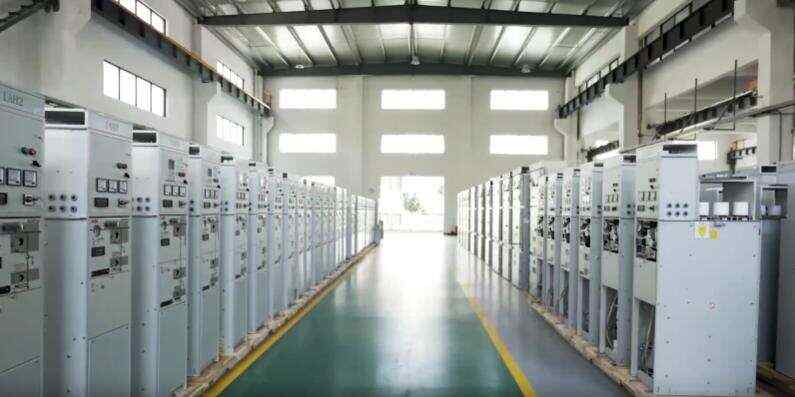

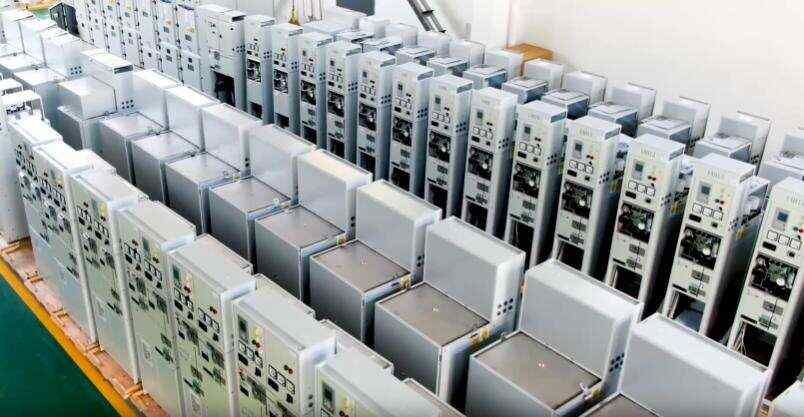

We are a comprehensive private enterprise specializing in the electrical field, integrating scientific research, development, manufacturing, and installation. Lean scientific management, professional production testing equipment, and high-quality after-sales service have driven the steady development of Hongbo. The company attaches great importance to the penetration of technology and the improvement of quality, and has successively passed ISO three system certification, national mandatory product CCC certification, voluntary product certification CQC certification, enterprise credit AAA certification, etc.

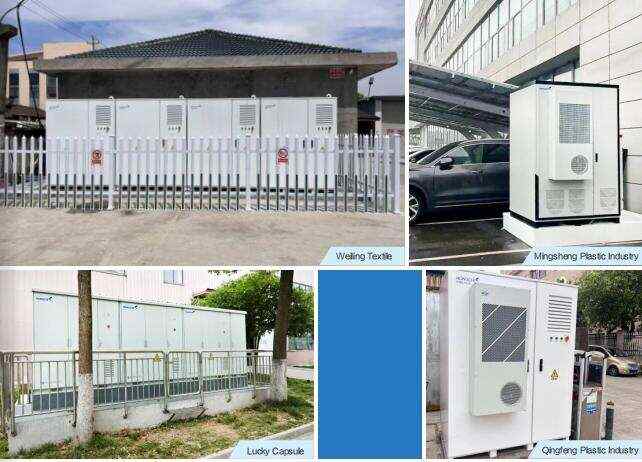

Performance cases
