Product Description

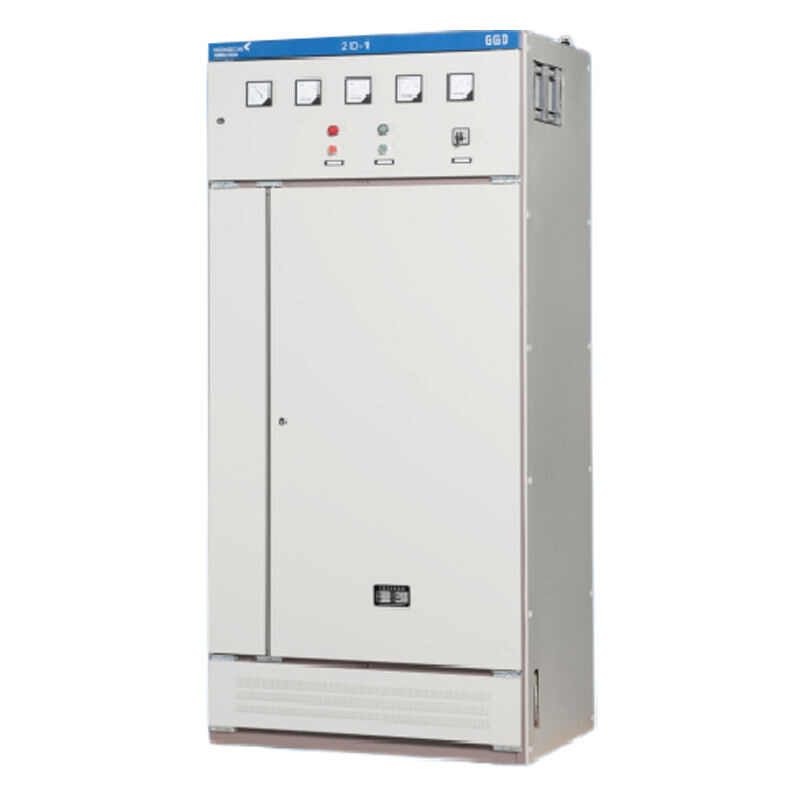

GGD AC Low Voltage Switchgear

GGD type AC low voltage distribution cabinet is suitable for power plants, substations, mining enterprises and other power users
with AC 50Hz, rated working voltage 380V, and rated working current up to 3150A in distribution systems. It is used for power conversion, distribution, and control of power, lighting, and distribution equipment.

The cabinet body adopts the form of a universal cabinet, and the frame is assembled by partial welding of 8MF cold-bent steel. The frame parts and special supporting parts are supplied by the designated steel production factory to ensure the accuracy and quality of the cabinet body. There are different numbers of heat dissipation slots at both ends of the cabinet body. When the electrical components in the cabinet are heated, the heat rises and is discharged through the upper slots, while the cold air is continuously replenished into the cabinet from the lower slots, so that the sealed cabinet body forms a natural ventilation duct from bottom to top to achieve the purpose of heat dissipation. The cabinet door is connected to the frame with a rotating shaft movable chain, which is easy to install and disassemble. A mountain-shaped rubber-plastic strip is embedded at the folding edge of the door. When the door is opened, the strip between the door and the frame has a certain compression stroke, which can prevent the door from directly colliding with the cabinet body and also improve the protection level of the door.

Model	Rated current(A)			Rated short-circuit breaking current(kA)	Rated short time withstand current(IS)(kA)	Rated peak withstand current(kA)
GGD1	A	1000	15	15	30
		B				600(630)
		C				400
GGD2	A	1500(1600)	30	30	63
		B				1000
		C
GGD3	A	3150	50	50	105
		B				2500
		C				2000

On-grid Microgrid in industral Park

The industrial park grid-connected microgrid system realizes a stable supply of clean energy. The system integrates renewable energy such as solar energy, wind energy, and energy storage to form an independent small power system, which is particularly suitable for enterprises and industrial buildings with high requirements for energy stability.

Off-grid Microgrid

The off-site microgrid system provides stable and reliable electricity for remote areas and special usage situations. The system operates independently without being connected to the main power grid. It is particularly suitable for places that are difficult to cover by the main power grid, such as remote areas, islands, urban suburbs, and tourist attractions.

Services available

1.FAT (Factory Acceptance Test) : - Ensure equipment or systems are operating according to specifications. - Provide customers with the opportunity to test the equipment before shipping.

2.Service support: - Provide technical support and maintenance services. - Online support and remote diagnostics.

3.Customized solutions:

- Customized solutions according to customer needs. 4.Delivery and installation services: - Provide fast and efficient distribution and on-site installation services.

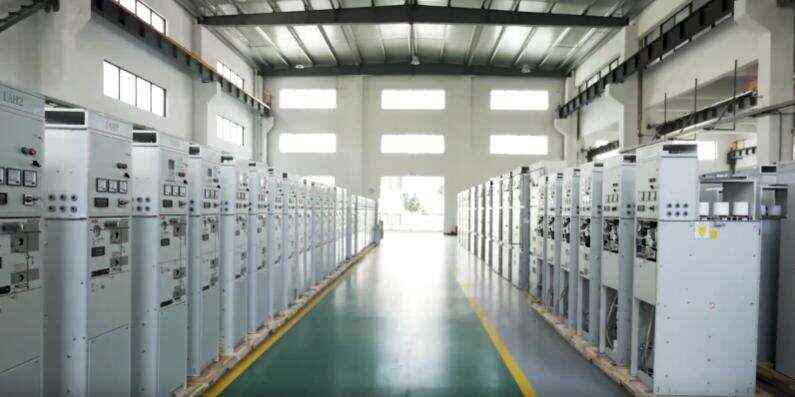

We are a comprehensive private enterprise specializing in the electrical field, integrating scientific research, development, manufacturing, and installation. Lean scientific management, professional production testing equipment, and high-quality after-sales service have driven the steady development of Hongbo. The company attaches great importance to the penetration of technology and the improvement of quality, and has successively passed ISO three system certification, national mandatory product CCC certification, voluntary product certification CQC certification, enterprise credit AAA certification, etc.

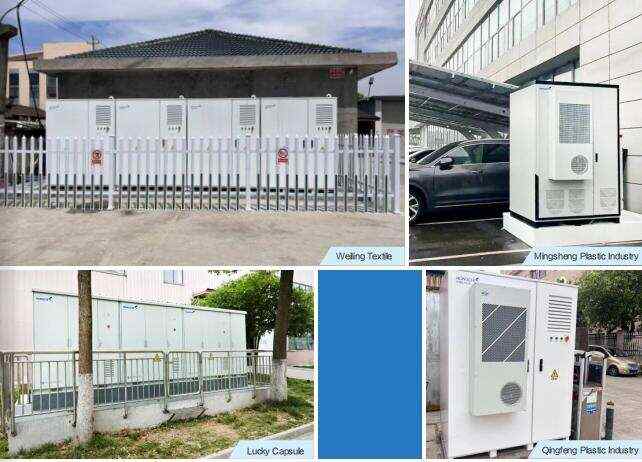

Performance cases
