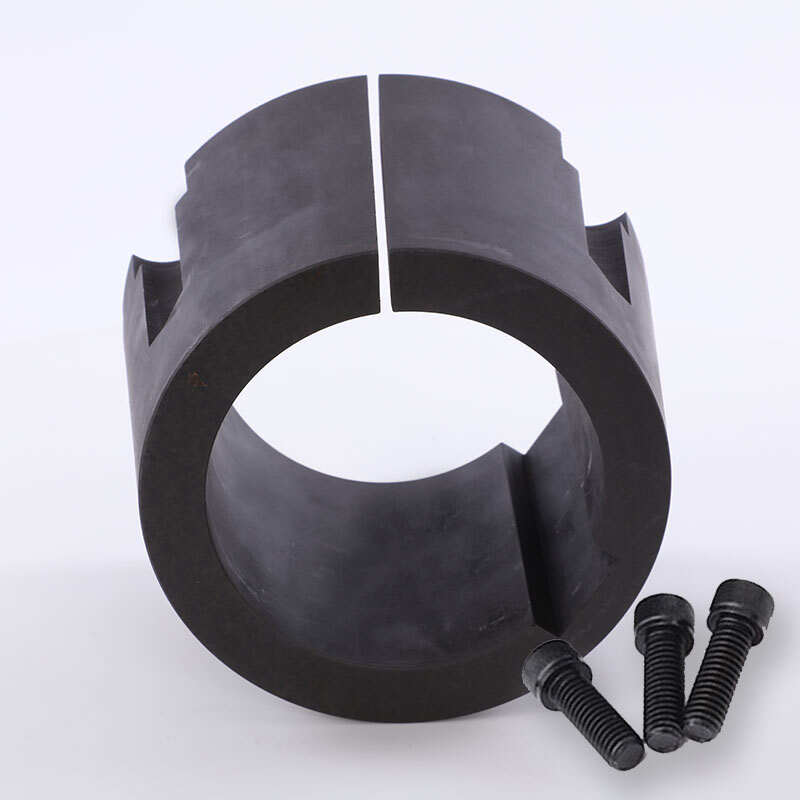

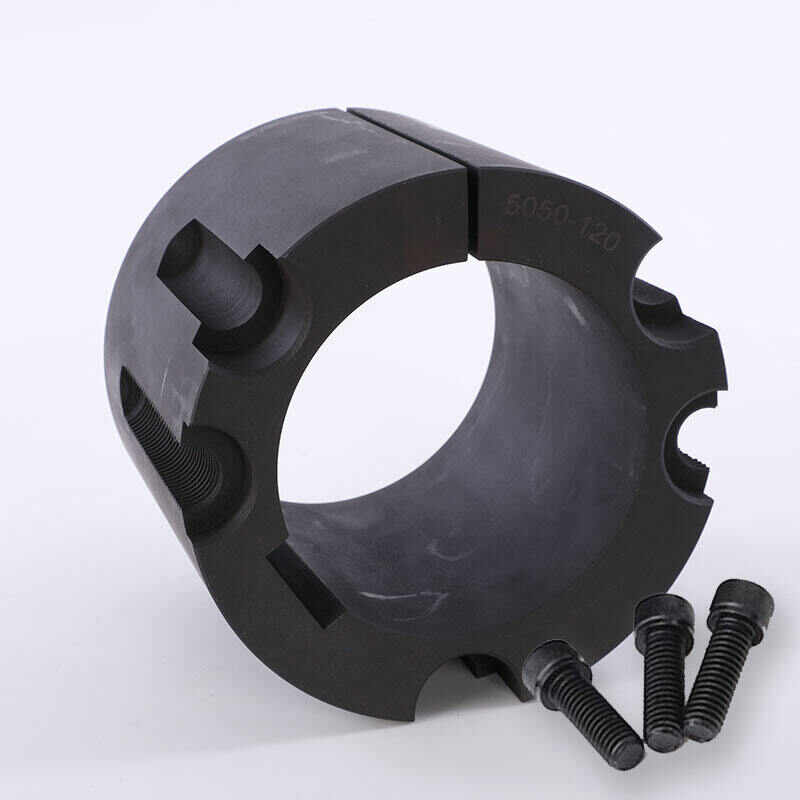

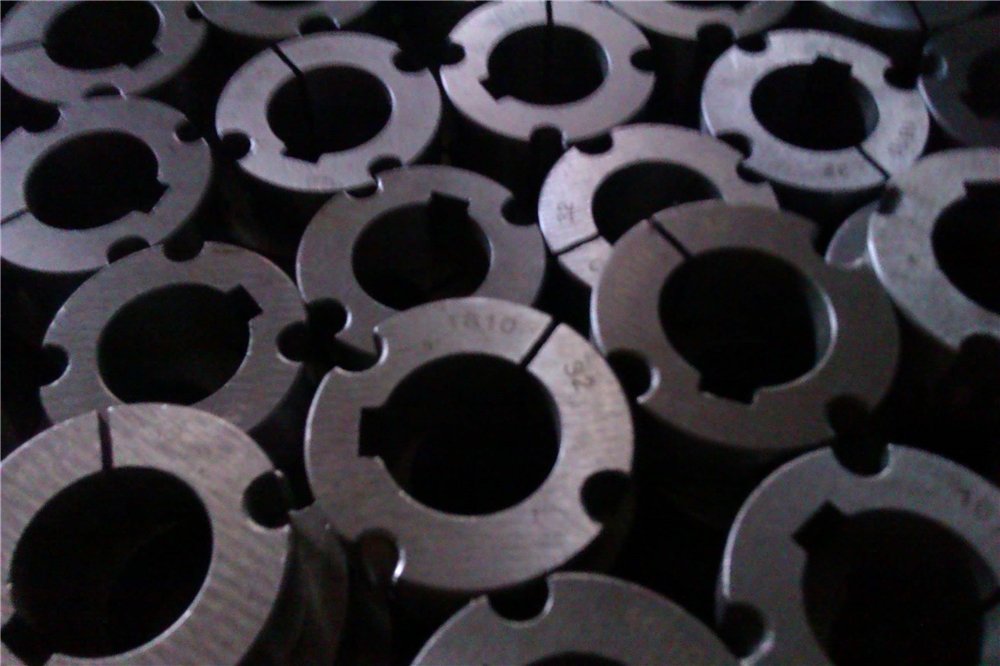

High Quality 1310/3535/1108 Taper Lock Bushing

Product Information Product Information Common specifications and sizes model Big end diameter/mm small end diameter/mm height/mm weight/kg 1610 57.15 53.6 25.4 0.2-0.4 2012 69.85 65.4 31.8 0.4-0.8 2517 85.73 79.51 44.5......

Send Inquiry

Product Description

Product Information

Common specifications and sizes

      model
  Big end diameter/mm
  small end diameter/mm
  height/mm
  weight/kg

  1610   57.15   53.6   25.4   0.2-0.4
  2012   69.85   65.4   31.8   0.4-0.8
  2517   85.73   79.51   44.5   0.7-1.7
  3020   107.96   100.86   50.8   1.5-3.0
  3535   127   114.56   89   3.3-6.8
  4040   146.05   131.85   101.6   5.4-11.2
  5050   177.8   160.05   127   9.4-17.2


High Quality 1310/3535/1108 Taper Lock Bushing

  For more models, please click here!

Warranty	1 year
Certification	ISO, ISO9001
Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Construction works, Energy & Mining
Customized support	OEM
Place of Origin	China
China	Zhejiang
Brand Name	EPG
Product name	taper bush
Model Number	7060
Surface Treatment	phosphating
Shaft size(mm)	10mm or could be custermized
shaft tolerance	H7, H8
Body Material	cast iron
Bore type	Finished Bore/stock bore
keyway	aviable
tyre	brand new rubber
