Product Description

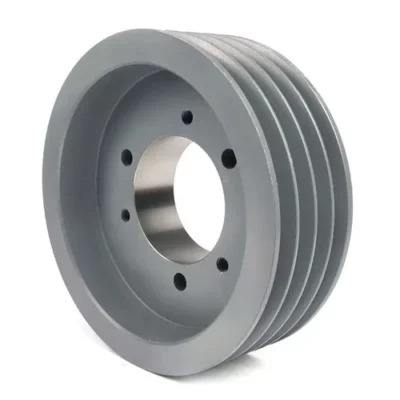

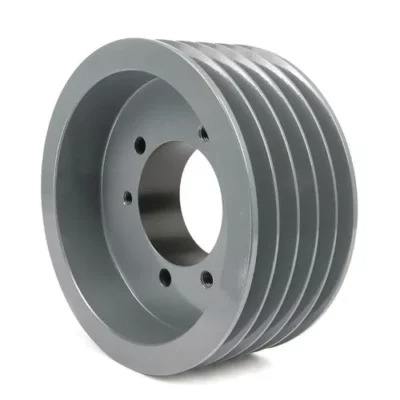

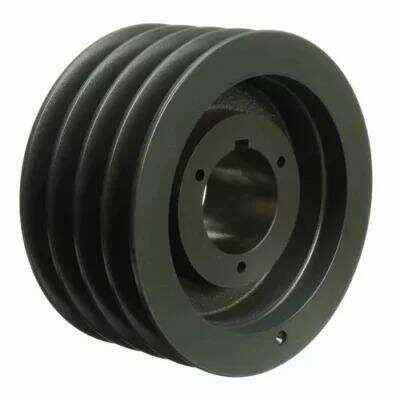

3V Series Cast Iron Four-Groove QD Sheaves for "3V" Belts

3V series four groove QD (quick disassembly) bushing pulley is applicable to 3V, 3VX, belt 3V and belt 3VX belts. Their diameters range from 2.65 "to 33.50". Depending on the pulley size, they use JA, SH, SDS, SK, SF or E QD bushings, which we also have in stock. Our four groove 3V QD pulleys are mostly made of high-strength 35 grade cast iron, coated with phosphate and anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

Four-Groove 3V QD Sheave Size Chart

For more details, please click here to contact us!

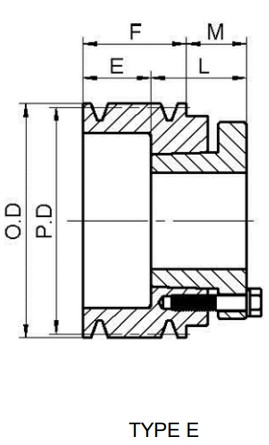

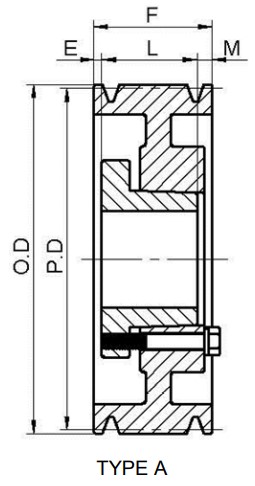

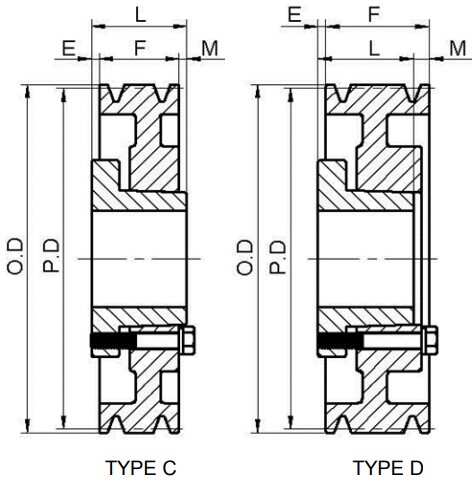

Size	Bushing Type	Type	Pitch Diameter	Outside Diameter	(E)	(F)	(L)	(M)	Weight (LBS)
43V265JA	JA	D	2.60"	2.65"	3/8	1 29/32	1	1 9/32	1.3
43V280JA	JA	D	2.75"	2.80"	3/8	1 29/32	1	1 9/32	1.7
43V300SH	SH	E	2.95"	3.00"	1 1/2	1 29/32	1 5/16	29/32	2.0
43V315SH	SH	E	3.10"	3.15"	1 1/2	1 29/32	1 5/16	29/32	2.2
43V335SH	SH	D	3.30"	3.35"	17/32	1 29/32	1 5/16	1 1/8	2.3
43V365SH	SH	D	3.60"	3.65"	17/32	1 29/32	1 5/16	1 1/8	2.8
43V412SH	SH	A	4.07"	4.12"	5/32	1 29/32	1 5/16	7/16	3.4
43V450SDS	SDS	A	4.45"	4.50"	5/32	1 29/32	1 5/16	7/16	4.0
43V475SDS	SDS	A	4.70"	4.75"	5/32	1 29/32	1 5/16	7/16	4.6
43V500SDS	SDS	A	4.95"	5.00"	5/32	1 29/32	1 5/16	7/16	5.2
43V530SDS	SDS	A	5.25"	5.30"	5/32	1 29/32	1 5/16	7/16	5.8
43V560SDS	SDS	A	5.55"	5.60"	5/32	1 29/32	1 5/16	7/16	6.8
43V600SK	SK	D	5.95"	6.00"	5/32	1 29/32	1 15/16	1/8	8.3
43V650SK	SK	D	6.45"	6.50"	5/32	1 29/32	1 15/16	1/8	10.0
43V690SK	SK	D	6.85"	6.90"	5/32	1 29/32	1 15/16	1/8	11.9
43V800SK	SK	D	7.95"	8.00"	5/32	1 29/32	1 15/16	1/8	13.0
43V1060SK	SK	D	10.55"	10.60"	5/32	1 29/32	1 15/16	1/8	16.5
43V1400SK	SK	D	13.95"	14.00"	5/32	1 29/32	1 15/16	1/8	22.5
43V1900SF	SF	D	18.95"	19.00"	7/32	1 29/32	2 1/16	1/16	35.0
43V2500SF	SF	D	24.95"	25.00"	7/32	1 29/32	2 1/16	1/16	57.0
43V3350E	E	C	33.45"	33.50"	21/32	1 29/32	2 3/4	3/6	84.0

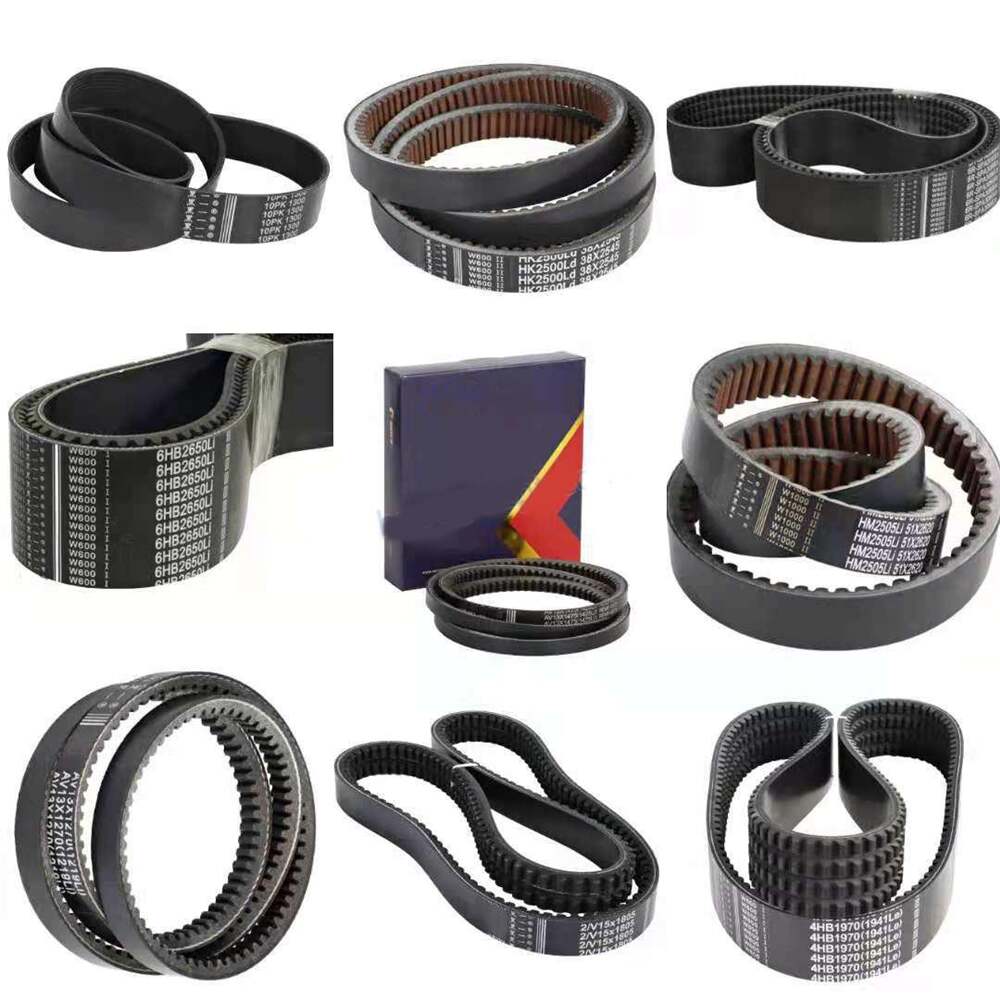

Match 3V, 3VX series V belt (1) 3V series deep wedge V-belt The classic 3V series V-belt has a top width of 0.38 ", a thickness of 0.31" and an angle of 38 °, which also classifies it as a deep wedge V-belt. The 3V series belt is designed to be more compact and more powerful than the standard 40 ° angle v-belt. Because of their long-term success and economic operation, they are also one of the most widely used belt series in the industry. The high-quality 3V series v-belts we provide are manufactured according to ISO 9001 specifications and ARPM standards; They are oil and heat resistant and can be directly interchanged with other brands. The 3V conveyor belt is made of natural rubber compound and polyester rope, and is covered with a mixture of cotton and polyester, with high durability. The 3V series belts are used with HVAC, lawn and garden equipment, and agricultural equipment for most general heavy industrial applications. We also stock a complete set of high-power v-belts and matching v-belt pulleys/pulleys. (2) 3VX toothed V-belt The top width of the 3VX toothed v-belt is 0.38 "and the thickness is 0.31". Our grooved 3VX v-belts are manufactured with rough sidewalls to eliminate slip, improve efficiency and save operating costs. They are also manufactured according to ARPM standards and are oil and heat resistant. The 3VX conveyor belt is composed of high-quality neoprene compound and high-strength polyester string, and the top fabric is made of cotton polyester blend. In addition to performance, durability and energy saving advantages, our toothed v-belts will also be used with existing vertical pulleys/pulleys.

(3) 3V series ribbon V-belt The 3V series v-belts are part of the "classic" series of v-belts because they are one of the oldest and most common styles used. Our belts are manufactured according to ARPM standards and have excellent strength, durability and performance. The top width of each belt (belt/rib) of the 3V series v-belt is 0.38 inches. (4) 3VX belt toothed V-belt All our v-belts are manufactured according to ARPM specifications, with excellent performance and durability. All our v-belts are manufactured according to ARPM specifications, with excellent performance and durability. Because of its design, the belt 3VX toothed v-belt runs more smoothly and loosely, and is generally more durable than the standard belt C v-belt. They also provide higher efficiency than ordinary v-belts, which means less energy costs.

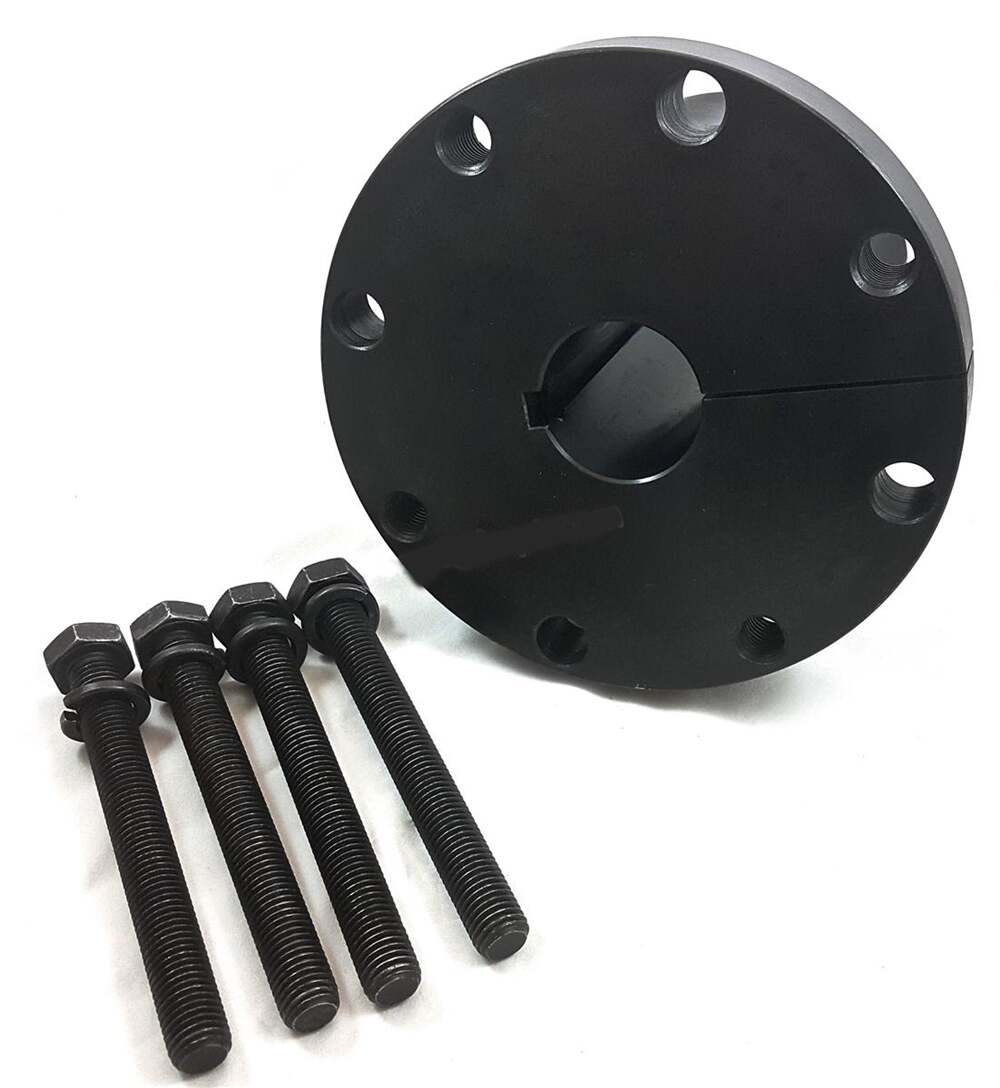

Accessories Of QD Bushings QD bushings are used in various sprockets, pulleys, pulleys and synchronous drives throughout the industrial power transmission and agricultural industries. They are designed for easy installation and unloading; They are also commonly referred to as quick disconnect bushings. The QD bushing facilitates normal installation on the outside of the flange and reverse installation on the inside of the flange, and utilizes a single split that extends over the entire length of the bushing. Our QD bushings can be interchanged with other brands and are made of high-grade steel by precision machining, which is suitable for perfect installation. Advantages of QD casing compared with different types of casing include:; Easy to install/unload, strong grip and excellent strength. We stock all standard size QD bushings and provide custom QD bushings (including stainless steel bushings) upon request. QD casing is found in some of the strongest applications in the world; Please contact our customer service team immediately for a quote or other information on the quality QD casing.

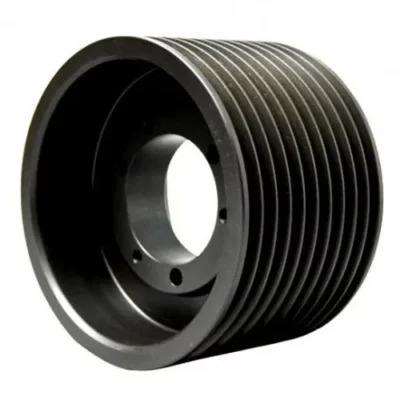

V-belts and V-pulleys V-belts provide impeccable speed, traction, carrying capacity and comprehensive services. In the early days of automation, V-belts were developed to improve the accuracy and torque transmission from the crankshaft to the rotating components. It is a mechanical link that uses a cross section, including the shape of an isosceles trapezoid. V-pulleys transmit energy between axles by using V-belts. Their performance is only to transfer vitality between two parallel axes. V-belt is equipped with matching pulley, forming a streamlined belt drive. These devices prevent slip and misalignment, resulting in a reliable alternative to high-speed energy transmission. HZPT includes a variety of V-belts and V-pulleys for selection. Depending on your specific application, you will find many sizes and types of v-pulleys.

Common application of QD pulley *Machine tool *Crusher, pulverizer, crusher, classifier, vibrating screen *Material conveying system *Fans, blowers and exhausters *Pumps and compressors *Woodworking saw, milling machine, planer, lathe

We also provides belts matching pulleys:https://planetary-gearboxes.en.Raydafon/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11

Technological Processing

Warehouse inventory The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
