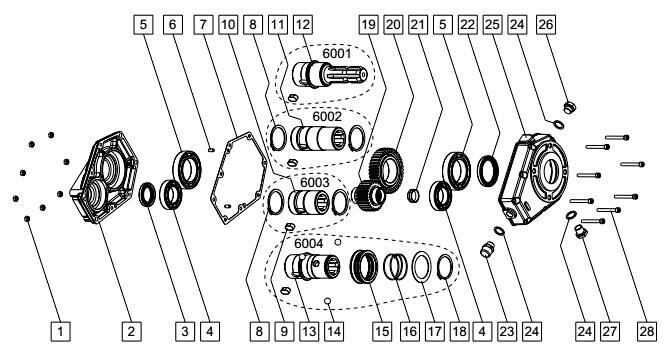

No. | Description | Quantity | No. | Description | Quantity |
1 | Nut M6 | 8 | 15 | Spring ring | 1 |
2 | Nut M6 | 1 | 16 | Spring | 1 |
3 | Sealing ring 35 x 52 x7 | 1 | 17 | Ring | 1 |
4 | Bearing type 6007 | 2 | 18 | Snap ring 48 | |
5 | Bearing type 6010 | 2 | 19 | Pinion gear | 1 |
6 | Peg6x12 | 2 | 20 | Ring gear | 1 |
7 | Gasket | 1 | 21 | Cap DIN 470 27 | 1 |
8 | Snap ring dia.50 | 2 | 22 | Sealing ring 50x65x8 | 1 |
9 | Key 12x8 | 1 | 23 | Oil filling cap 3/8” | 1 |

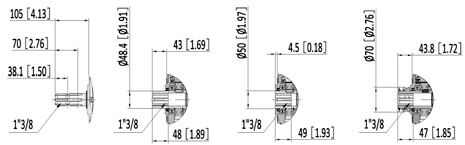

10 | Female 1 3/8" DlN 9611 short | 1 | 24 | Gasket | 1 |
11 | Female 1 3/8" DlN 9611 | 1 | 25 | Housing | 1 |
12 | Male 1 3/8" DIN 9611 | 1 | 26 | Oil drain plug 3/8" | 1 |
13 | Female 1 3/8" DlN 9611 + tightening | 1 | 27 | Oil level plug 3/8” | 1 |
14 | Ball | 3 | 28 | Socket capscrew M6x50 | 8 |
Input torque Nm | Output toque Nm | Input speed r/min | Ratio | Output speed r/min | Power Kw | Weight Kg |
178 | 119 | 540 | 1.5 | 810 | 10 | 5.8 |
152 | 76 | 540 | 2 | 1080 | 10 | 5.8 |
165 | 66 | 540 | 2.5 | 1350 | 10 | 5.8 |
180 | 55 | 540 | 3 | 1680 | 10 | 5.8 |
186 | 58 | 540 | 3.5 | 1836 | 10 | 5.8 |
159 | 42 | 540 | 3.8 | 2052 | 10 | 5.8 |
