MINI High Quality Professional 10kw Hydraulic Motor 12v Hydraulic Pump Motor

Product DescriptionIMB series fixed diaplacement radial piston hydraulic motor range varies from 988 cc/rev to 6807 cc/rev displacement. Product NameIPM Series Hydraulic MotorMaterialMetal SteelColorOEM or Customer's RequestApplicationHeavy MachineryMotorHydraulic MotorCertificateISO9001:2008Pow......

Send Inquiry

Product Description

IMB series fixed diaplacement radial piston hydraulic motor range varies from 988 cc/rev to 6807 cc/rev displacement.

Product Name	IPM Series Hydraulic Motor	Material	Metal Steel
Color	OEM or Customer's Request	Application	Heavy Machinery
Motor	Hydraulic Motor	Certificate	ISO9001:2008
Power	Hydraulic System	OEM	Yes

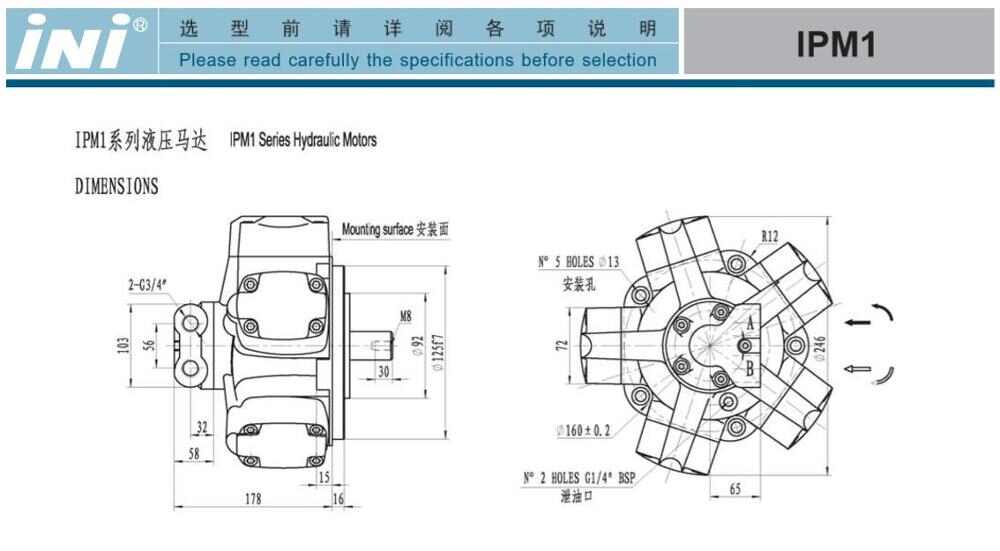

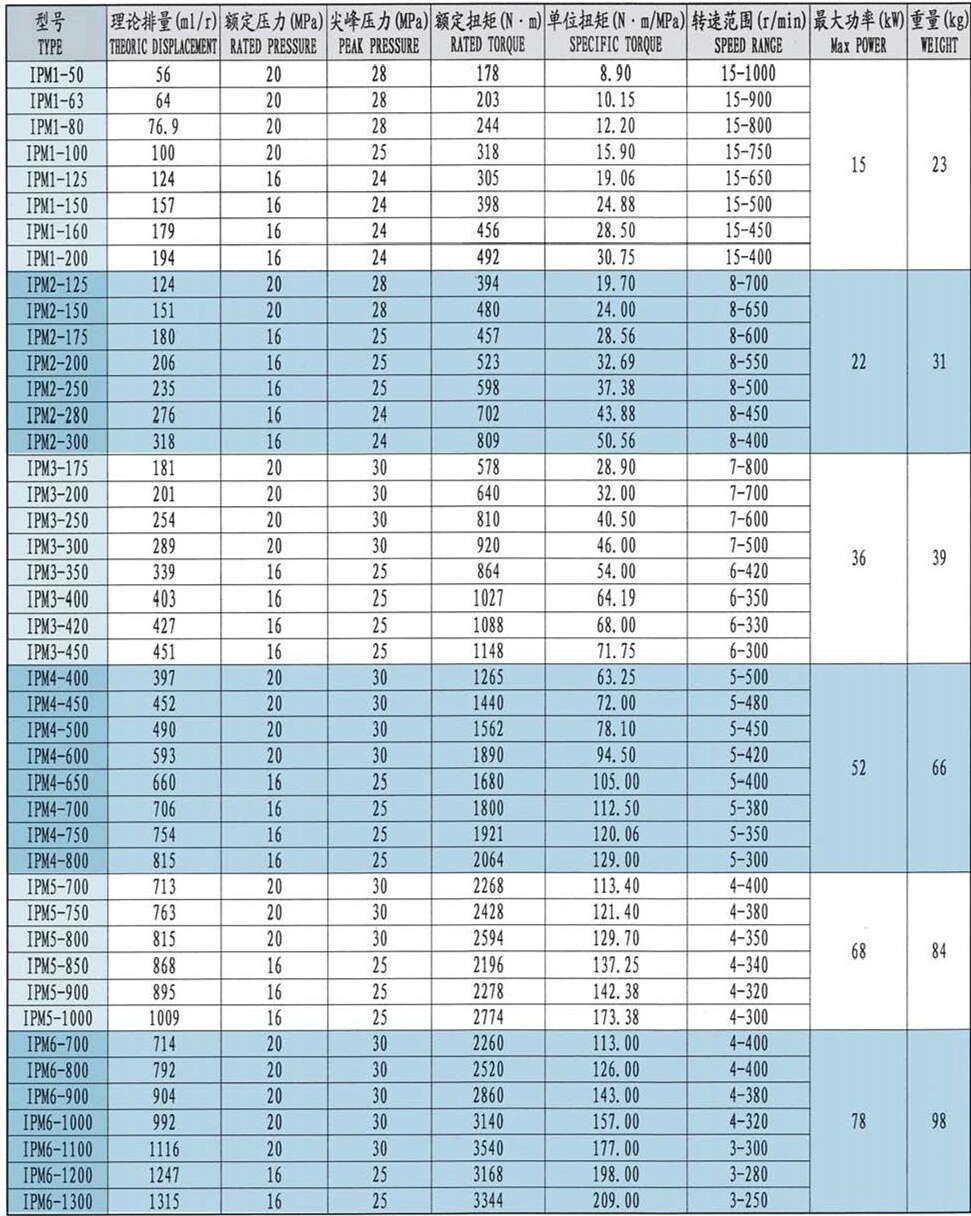

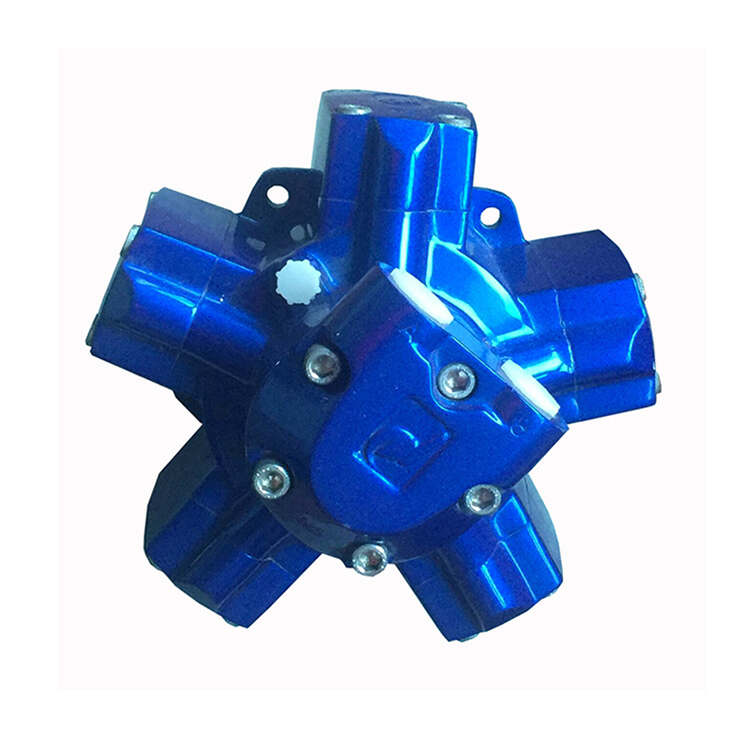

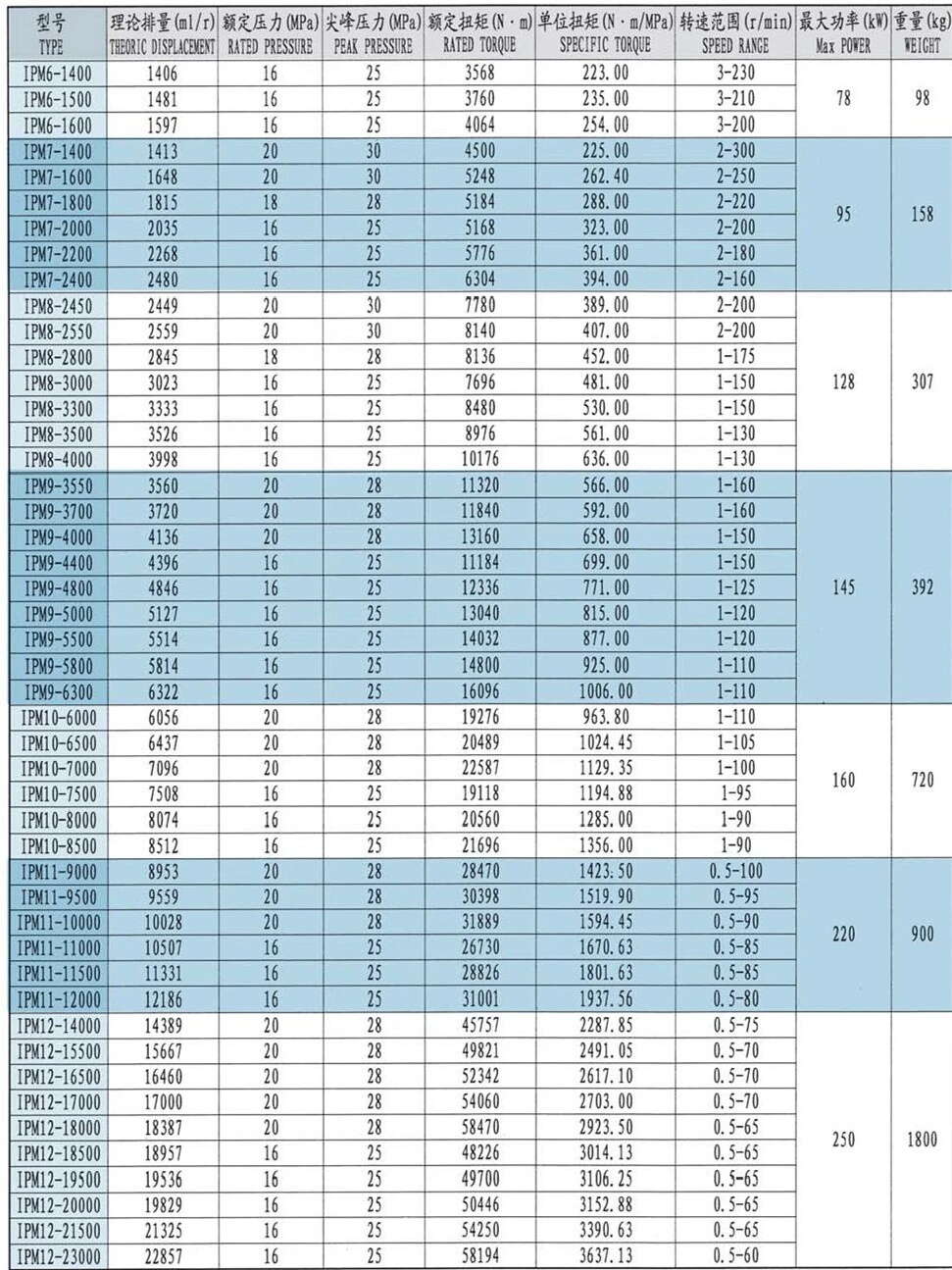

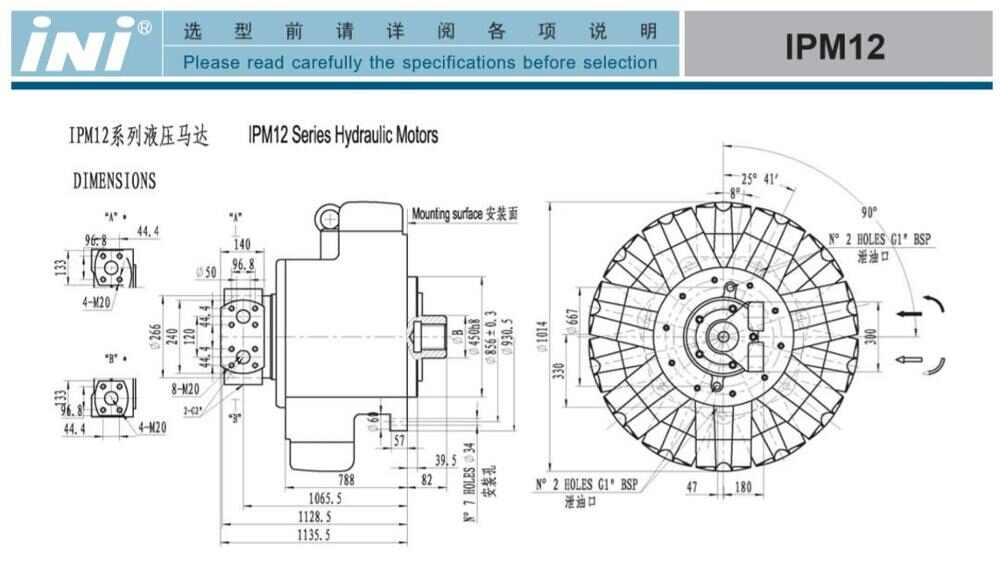

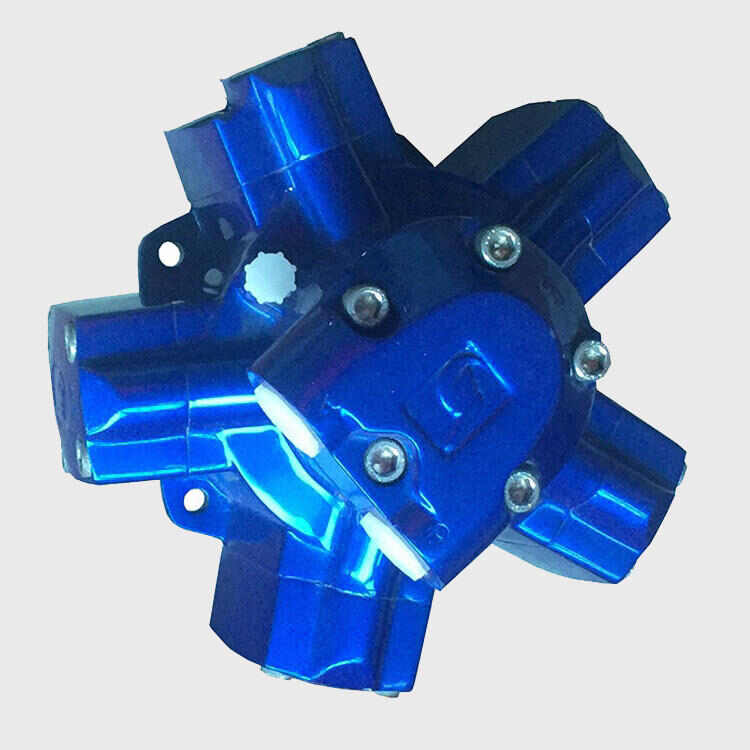

IPM Series Hydraulic Motors

IPM series motors are fixed displacement radial piston hydrauclic motors. Our motor range varies from 56 cc/rev to 22857 cc/revdisplacement.

Technology: radial piston Other characteristics: fixed-displacement, low-speed, high-torque
Displacement: Max.: 22875 cm³ (773.5 fl us oz)，Min.: 56 cm³ (1.89 fl us oz)

Application:

It has been widely used in light indutry, epecially for plastic injection machines.

Main features:

high mechanical/volumetric efficency, high starting torque.
good stability and reliability.
long lifetime, low noise.
compact design, light weight.
good sealing capability,low leakage

Customizations are Welcome :)

to get the latest quotation

>>>>>

Other Products

IMB Series High Torque Radial Piston Hydraulic Motor

•Technology: Radial Piston
•Displacement: Min.: 988 cm³ (33.41 fl us oz),Max.: 6807 cm³ (230.17 fl us oz)
•Application: heavy duty applications such as ship and deck machinery, construction machinery and equipment, plastic injection machine, heavy metallurgical machinery.

IPM Series Radial Piston Hydraulic Motor

•Technology: Radial Piston
•Characteristics: Fixed-Displacement, Low-speed, High-Torque Compact Design, Light Weight. Good Sealing Capability Low Leakage
•Displacement: Max: 22875 cm³ (773.5 fl us oz),Min.: 56 cm³ (1.89 fl us oz)
•Application: It Has Been Widely Used In Light Indutry, Epecially For Plastic Injection Machines.

IPM-2 Series Radial Piston Hydraulic Motor

•Technology: Radial Piston
•Characteristics: Fixed-Displacement, Low-speed, High-Torque Compact Design, Light Weight. Good Sealing Capability Low Leakage
•Displacement: Max.: 22875 cm³ (773.5 fl us oz),Min.: 56 cm³ (1.89 fl us oz)
•Application: It has been widely used in light indutry, epecially for plastic injection machines.

IMC Series Hydraulic Motor

•The IMC Series Hydraulic Motor Inherits The IMB Series Hydrortatic Balance Motor Structure，High Efficiency，High Starting Torque，High Volumetric Efficiency Etc.
•Two Speed-Low Speed & High Torque
•Application: Captan, Hoist,Windless Machinery,Hydraulic Drive for Automobiles Etc.

INM-3 Series Hydraulic Motor

• Incorporate A Number Of Design Variations With Respect To The Technology Intended To Increase The Strength Of The Motor Casings
• The Load Capacity Of The Internal Dynamic Components.
• High Continuous Power Ratings Because of the High Mechanical
• Volumetric Efficiency that Contribute in Reducing the Amount of Heat Produced

INM Series Radial Piston Hydraulic Motor

•Technology: Radial Piston
•Other Characteristics: Fixed-Displacement
•Rotational Speed: Max.: 1000 Rpm (6283.19 Rad.Min-1),Min.: 1 Rpm (6.28 Rad.Min-1)
•Displacement: Max.: 4298 Cm³ (145.33 Fl Us Oz),Min.: 59 Cm³ (2 Fl Us Oz)
•Application: Plastic Injection Machines Hoisting Winches And Capstans Swing Drives, Ship And Deck Machinery
