Multifunctional Vehicle Planetary Industrial Mechanical Hydraulic Recovery Rope Winch Truck for Wholesales

Product DescriptionISYJ series hydraulic vehicle recovery winches patent product of our company. Its a huge success with tow truck manufactures. We have wide line pull available ranging from 1 ton to 30 ton. It has a brake and a manual declutch system which is fitted at thefinal stage of gearbox. Wh......

Send Inquiry

Product Description

ISYJ series hydraulic vehicle recovery winches patent product of our company. Its a huge success with tow truck manufactures. We have wide line pull available ranging from 1 ton to 30 ton. It has a brake and a manual declutch system which is fitted at the
final stage of gearbox. When we pull out the handle, the drum can rotate freely
The power generated by the hydraulic motor is transferred to the drum by way of planetary gear units incorporated in the drum.

Product Name	ISYJ Series Hydraulic Winch	Material	Metal Steel
Color	OEM or Customer's Request	Application	Heavy Machinery
Motor	Hydraulic Motor	Certificate	ISO9001:2008
Power	Hydraulic System	OEM	Yes

Application

They can be used to pull salvage vehicles, cross country vehicles, heavy trucks and bulldozers which are damaged or stuck in mud and they can be used for self recovery.

A range of accessories such as rope guides and pressure rollers are available on request.

Options Example

ISYJ2.5-10-103-8-ZPL represents that he modules of the gearbox of the winch is 2.5. The rated single pull on 1st layer is 10kN, drum capacity is 103m, rope diameter is 8 mm. The winch is fitted with brake, counterbalance valve and clutch.

MAIN FEATURES

• we can provide tailored solution to customers
• wide line pull range up to 30 ton.
• high starting& working efficiency
• simple structure and longer lifetime
• Low maintenance relieves your anxiety

Customizations are Welcome :)

to get the latest quotation

>>>>>

Other Products

IYJ17 Series Single Phase Compact Planet Hydraulic Winch

•Technology: Hydraulic System

•The hydraulic motor, planetary gearbox and brake are installed in the drum of the winch, so the overall length is kept to the minimum. It is very suitable for applications where the installing room is limited.

•Application: mining industry, deck machinery and truck cranes, mobile crane，aeriel platform，Machinery or Marine

ISYJ Series hydraulic recovery rope winch truck

•Technology: Hydraulic Systemwide line pull：available ranging from 1 ton to 30 ton.
•It has a brake and a manual declutch system which is fitted at the final stage of gearbox. When we pull out the handle, the drum can rotate freely

•Application: ship and deck machinery, construction machinery, Machinery or Marine

IYJ-N Series Built-in Hydraulic Winch

• We can design and manufacture special winches according to customers' specifications.Wide line pull range up to 60 ton compact design & high reliability• easy to install, high starting& working efficiency,Reliable operation with little noise ,Low maintenance relieves your anxiety

•Application:ship and deck machinery, construction machinery, Machinery or marine

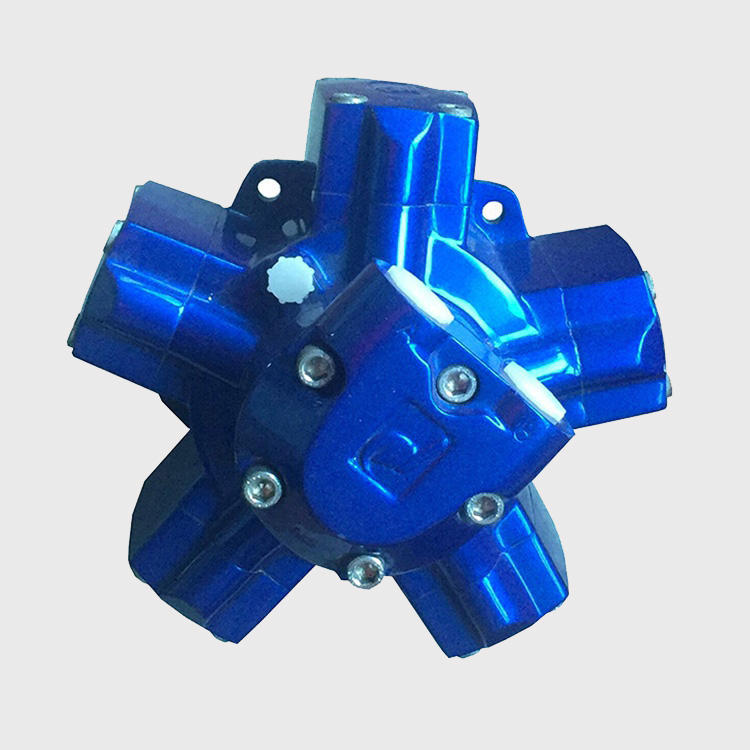

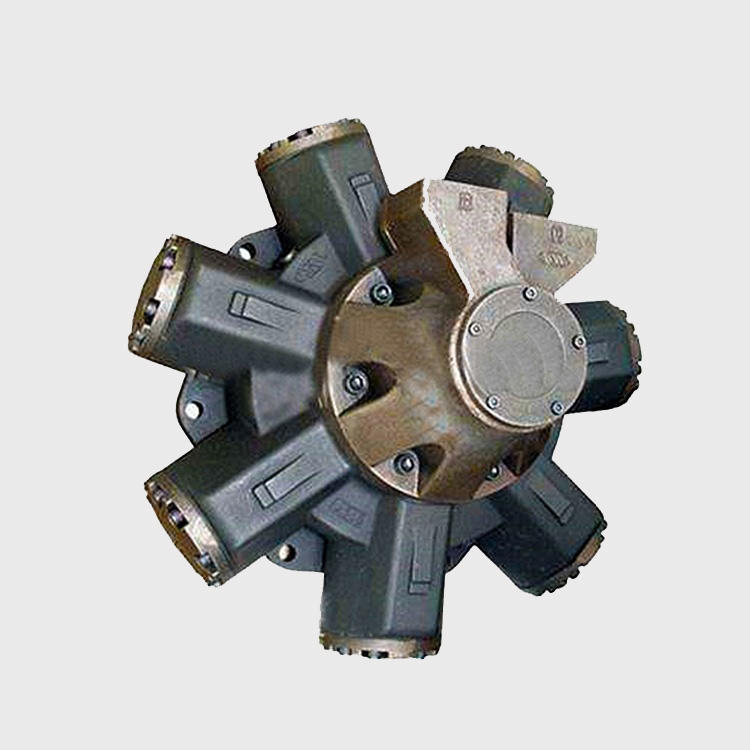

IMC Series Hydraulic Motor

•use the patent technique of our company and consist of a variety of valve blocks with function of braking and single
counterbalance valve, high speed hydraulic motor, Z type brake, KC type or GC type planetary gearbox, drum, frame and clutch. •The
user only needs to provide a hydraulic power pack and directional valve.
•Application:construction, petroleum, mining, geological drilling, ship and deck machinery.

ISYJ Series Compact Logging Hydraulic Winch

•We have wide line pull available ranging from 1 ton to 30 ton. It has a brake and a manual declutch system which is fitted at the final stage of gearbox.•When we pull out the handle, the drum can rotate freely•They can be used to pull salvage vehicles, cross country vehicles, heavy trucks and bulldozers which are damaged or stuck in mud and they can be used for self recovery.

IYJ15 Series Marine Haul Barge Winches Systems

the winch is fitted with brake, counterbalance valve, and is driven by a high speed axial hydraulic motor.

This winch series can be equipped with a rope roller, alarm system for the last three winding ropes, rope-guider, output shaft for rotation speed measurement, these items are optional.

•Application:construction, petroleum, mining, geological drilling, ship and deck machinery
