Product Description

Tough Equipment & Tools, Pay Less

Raydafon is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, Raydafon is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, Raydafon's products are sold in more than 200 countries and regions with 10 million plus members worldwide.

Why Choose Raydafon?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

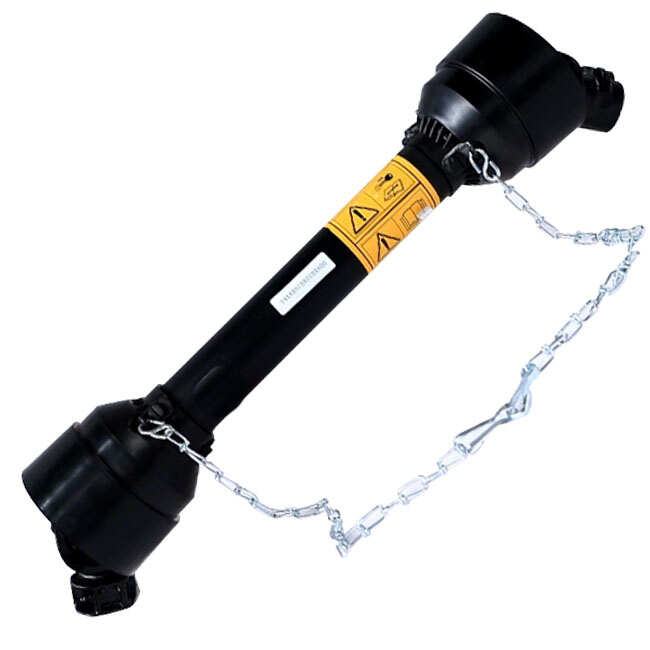

T5 PTO Drive Shaft

43"-57", 1-3/8" 6 Spline Ends, Black

This splined PTO shaft is built by sturdy steel and features 1-3/8" 6-spline on both tractor and implement ends. It stands out by its adjustable telescoping tube, strong horsepower, and simple replacement. It can serve as farm power tools to improve your work efficiency significantly.

Quality T5 Pto Shaft
1 3/8" X 6 Spline Ends
Telescop Tube Design
Safer Use & Compact


Heavy-Duty PTO Shaft This T5 tiller PTO shaft is made of high-quality 20CrMnTi carburized steel and Q345 tube steel, with a black-painted surface to strengthen its durability and stand large impacts, higher torque, and high-speed.	1-3/8" Connection Ends Featuring the 6-spline shaft end in both tractor and implement ends, the tractor PTO link shaft can match with 1 3/8" PTO powered farm equipment or machinery. It stands out with superior power-transfer ability.	43"57" Stretchable Length The PTO extender has a flexible expending design with a compressed length: 43"/ 1100 mm and an extended length: 47"/ 1450 mm. At 540rpm with 57hp, 35Kw, and 620 nm torque; 75hp, 55Kw, and torque 500 nm at 1000rpm.


Compact Transmit Structure The PTO shaft is assembled in a compact structure, consisting of a telescoping tube, a universal joint, yokes, a plastic shield and chain for protection. It allows two speeds on both ends and transfers the power into the equipment.	Simple & Quick Installation The PTO shaft for the bush hug with spline ends to attach to the implements and tractors quickly. If you want to cut it to the proper length, please read the manual carefully and remember to deburr the edges after cutting.	Wide Range Application The PTO shaft, proving robust power force to the PTO powered attachment, is most commonly used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, etc.

Package Content

1 x PTO Shaft
1 x User Manual

Specifications

Model: T5-B P*1100mm*5.05.05B*5FFV1
Part Type: PTO Drive Shaft
Certificate: CE Certification
Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic
Tractor End: 1-3/8" x 6 Spline
Implement End: 1-3/8" x 6 Spline
Compressed Length: 43" / 1100 mm
Extended Overall Length: 57" / 1450 mm
At 540RPM: 47hp, 35Kw, 620Nm
At 1000RPM: 75hp, 55Kw, 500Nm

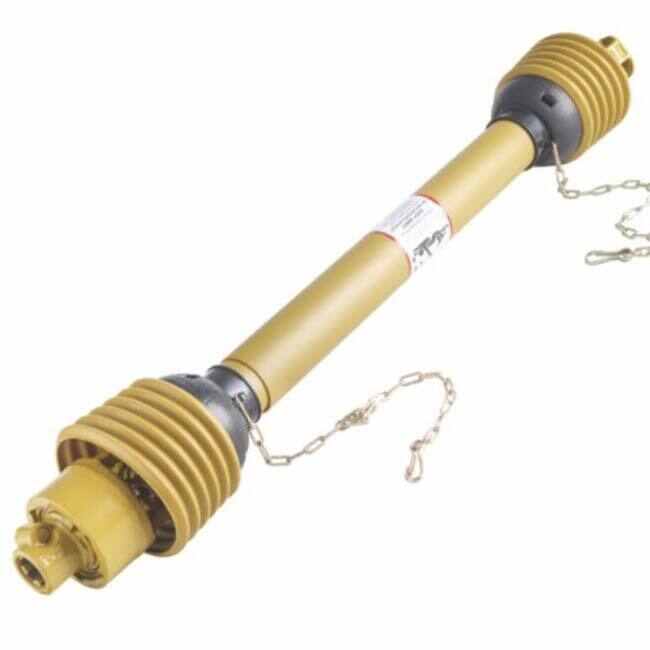

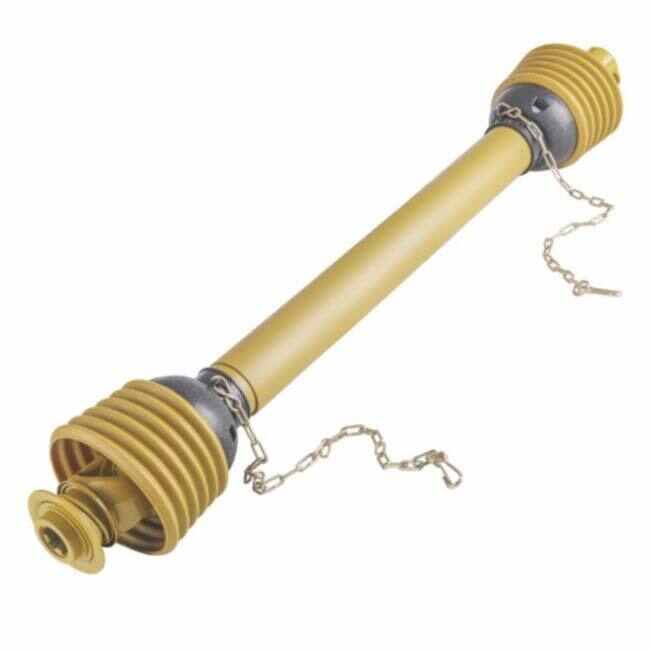

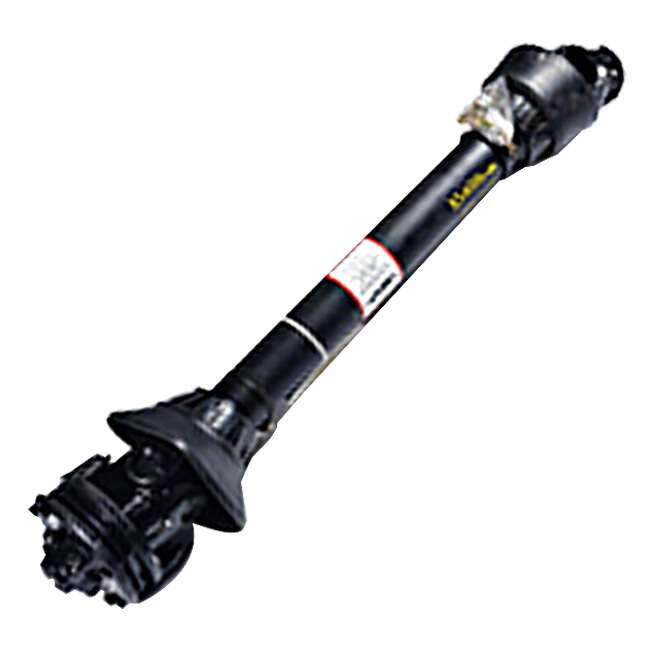

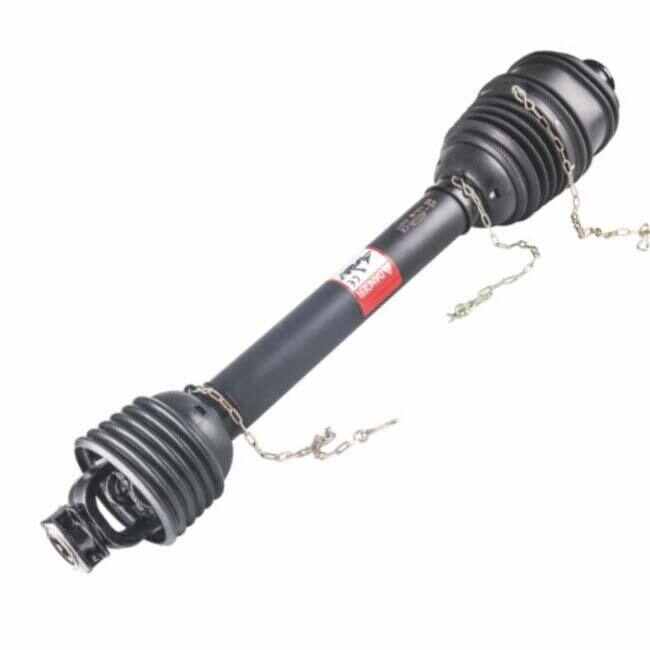

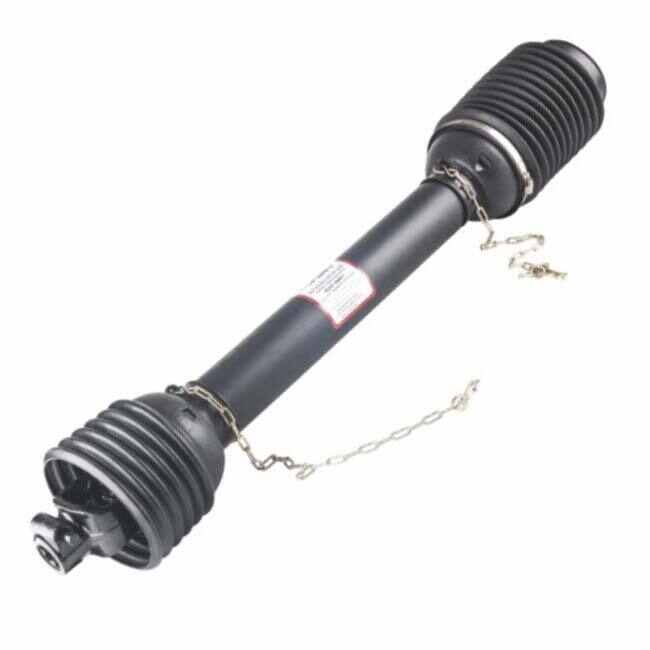

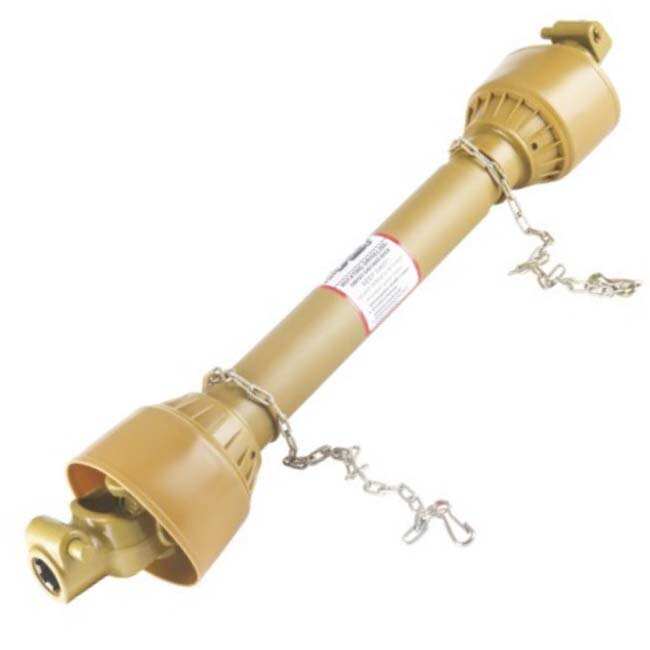

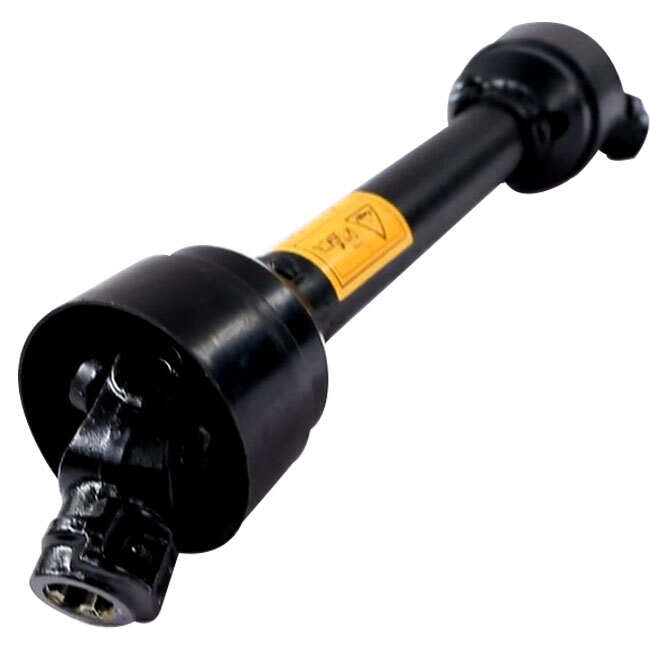

	T4 PTO Drive Shaft 30-39"	PTO Drive Shaft 35"-45"	PTO Drive Shaft 43"-61"	PTO Drive Shaft 39"-55"	PTO Drive Shaft 43"-57" with Slip Clutch	PTO Drive Shaft 49"-71" with Slip Clutch
Tractor End:	1-3/8" x 6 Spline	1-3/8" x 6 Spline	1-3/8" x 6 Spline	1-3/8" x 6 Spline	1-3/8" x 6 Spline	1-3/8" x 6 Spline
Implement End:	1-3/8" x Round End	1-3/8" x 6 Spline	1-3/8" x 6 Spline	1-3/8" x 6 Spline	1-3/8" x 6 Spline	1-3/8" x Round End
Compressed Length:	30" / 750 mm	35" / 900 mm	43" / 1100 mm	39" / 1000 mm	43" / 1100 mm	49" / 1250 mm
Extended Overall Length:	39" / 980 mm	45" / 1150 mm	61" / 1550 mm	55" / 1400 mm	57" / 1450 mm	71" / 1800 mm
At 540RPM:	35hp, 26Kw, 460Nm	35hp, 26Kw, 460Nm	35hp, 26Kw, 460Nm	35hp, 26Kw, 460Nm	47hp, 35Kw, 620Nm	35hp, 26Kw, 460Nm
At 1000RPM:	53hp, 39Kw, 360Nm	53hp, 39Kw, 360Nm	53hp, 39Kw, 360Nm	53hp, 39Kw, 360Nm	75hp, 55Kw, 500Nm	53hp, 39Kw, 360Nm
