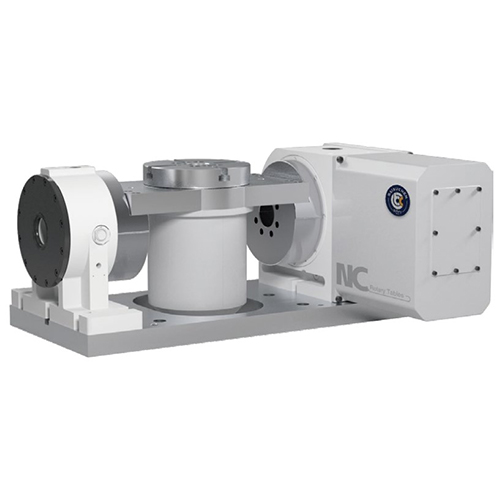

RTS-170 Cnc Machining Center 5 Axis Accessories for Numerical Control Machine

High precision, high performance, high efficiency Five axis machining, modular designOptional fixture oil circuit, Optional hydraulic brakeProduct ModelRTS-170Servo motor (optional)β2iFANUC;β8iFANUCPanel Size170mmReduction Ratio1:121 ;1:90Disk Aperture40mmMaximum Rotation Speed Of Worktable33.3 r.p.......

Send Inquiry

Product Description

High precision, high performance, high efficiency

Five axis machining, modular design

Optional fixture oil circuit, Optional hydraulic brake

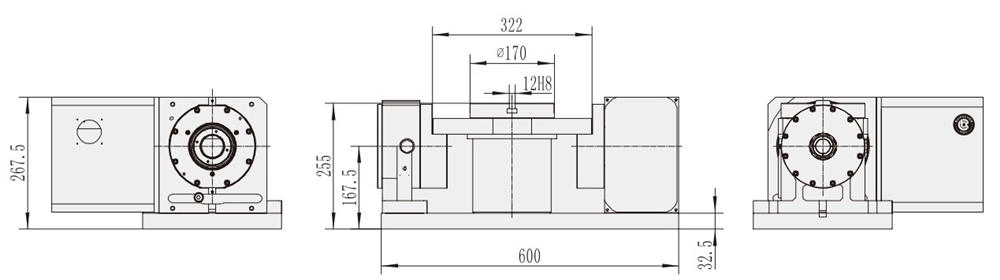

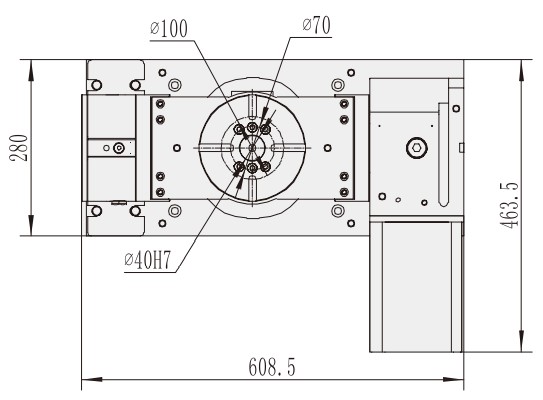

Product Model	RTS-170	Servo motor (optional)	β2iFANUC;β8iFANUC
Panel Size	170mm	Reduction Ratio	1:121 ;1:90
Disk Aperture	40mm	Maximum Rotation Speed Of Worktable	33.3 r.p.m
T-groove Of Disk Surface	12H8mm	Minimum Setting Angle	0.001°deg
Tilt Angle	±110°deg	Segmentation Accuracy	20″sec;15″sec
Rotation Angle	360°deg	Repeat Positioning Accuracy	4″sec;4''sec
0 ° Time Disk Height	255mm	Locking torque of rotating shaft	412N.m;450N.m
90° Time Center Height	135mm	Brake Pressure	;15Kg/cm²
Net Weight (about)	180Kg	Allowable Cutting Force	18Kgf-m;30Kgf-m
Horizontal placement	80KG	Ninety ° Time	50KG
