UDL Series NMRV Transmission Reduction Servo Stepless Motor Planetary Gear Box Speed Increaser Reducer Worm Variator Gearbox

UDL Series Gearbox UDL series stepless speed variators are widely used for foodstuffs, ceramics, packing, chemicals, pharmacy, lastics, paper-making, machine-tools, and all kinds of automatic lines, ......

Send Inquiry

Product Description

UDL Series Gearbox

UDL series stepless speed variators are widely used for foodstuffs, ceramics, packing, chemicals, pharmacy, lastics, paper-making, machine-tools, and all kinds of automatic lines, pipelines and assembly lines which need speed regulation.

1. High speed-regulating ,with precision: up to 0.5-1 rotation.
2. Large speed ---changing range: The speed ratio ranges from 1:1.4 to 1:7 freely.
3. High in strength and long service life.
4. Convenient to regulate the speed.
5. Continuous in running, front-to-back in running direction, smooth in driving, stable transmission with lower noise.
6. Fully sealed and suitable for different working temperature
7. Compact structure and small volume.
8. Aluminium alloy and cast iron housing
9. Wide range of adaptation. UDL series stepless speed variators can be combined with all kinds of speed reducers,so as to achieve low stepless speed changing.

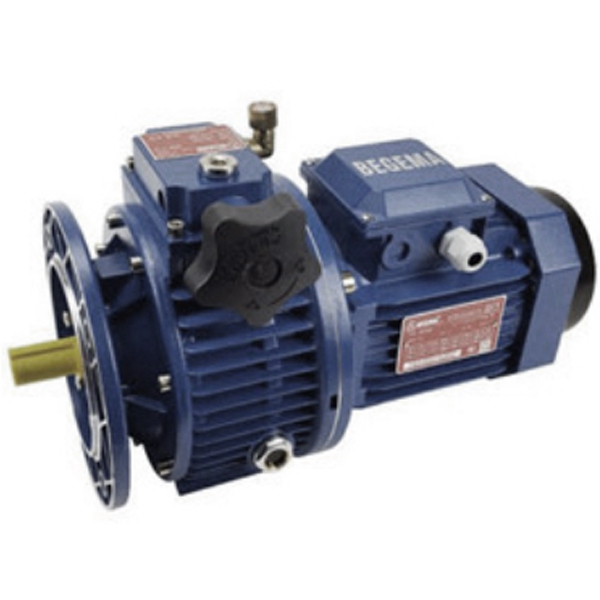

UDL + MOTOR

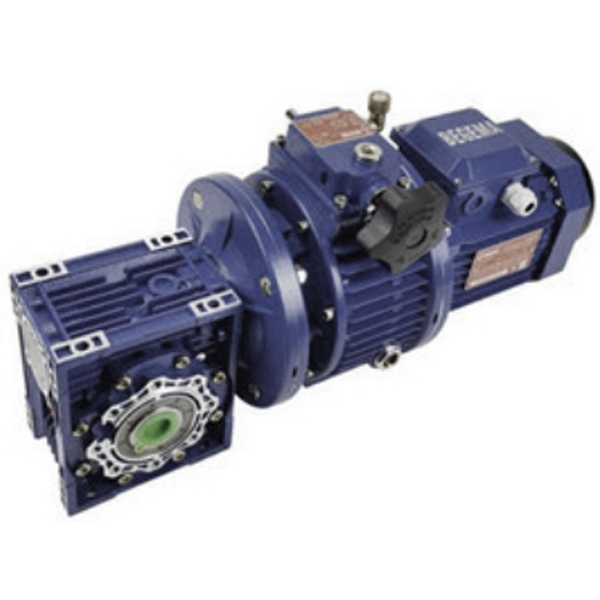

NMRV+UDL+MOTOR

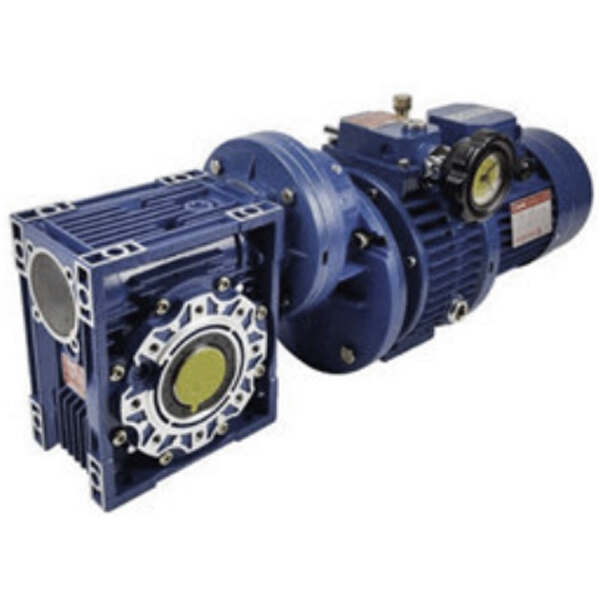

NMRV+PC+UDL+MOTOR

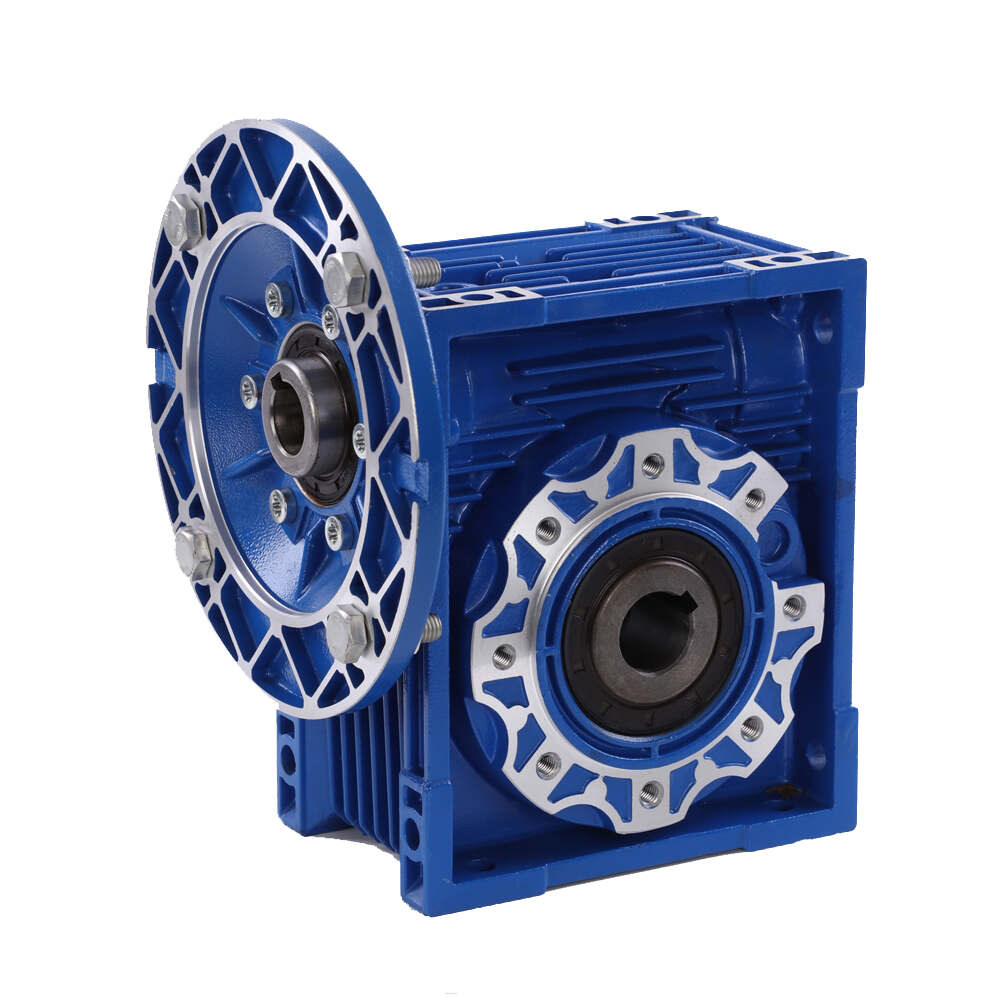

NMRV Series

High modular design, biomimetic surface with owned intellectual property right. Adopt German worm hob to process the worm wheel. With the special gear geometry, it gets high torque, efficiency and long life circle.
It can achieve the direct combination for two sets of gearbox. Mounting mode: foot mounted, flange mounted, torque arm mounted. Output shaft: solid shaft, hollow shaft.

1. Housing: Die-cast Aluminium Alloy Gearbox (RV025~RV090)Cast Iron Gearbox (RV110~RV150)
2. Worm Wheel: Wearable Tin Bronze Alloy, Aluminum Bronze Alloy
3. Worm Shaft: 20Cr Steel, carburizing, quenching, grinding, surface hardness 56-62HRC, 0.3-0.5mm remaining carburized layer after precise grinding

PC Series

PC series Industrial Mechanical PC gear shifter PC Variable planet cone disk stepless speed variator transmission gearbox

Gearing Arrangement:	HELICAL	Output Torque	11.5-118N.m
Rated Power	0.18-7.5KW	Input Speed	750-1800rpm
Output Speed	200-1000rpm	Model Number	PC02-PC75
Ratio	1.4 - 7(Combined 1505)	Precision	3 rotatio
Housing material	MB02-07 are Aluminium Alloy-housing,MB15-75 are cast iron housing
Mounting	Foot mounted, flange mounted
Input form	Direct with motor, solid shaft, IEC flange

Gearboxes Catalog

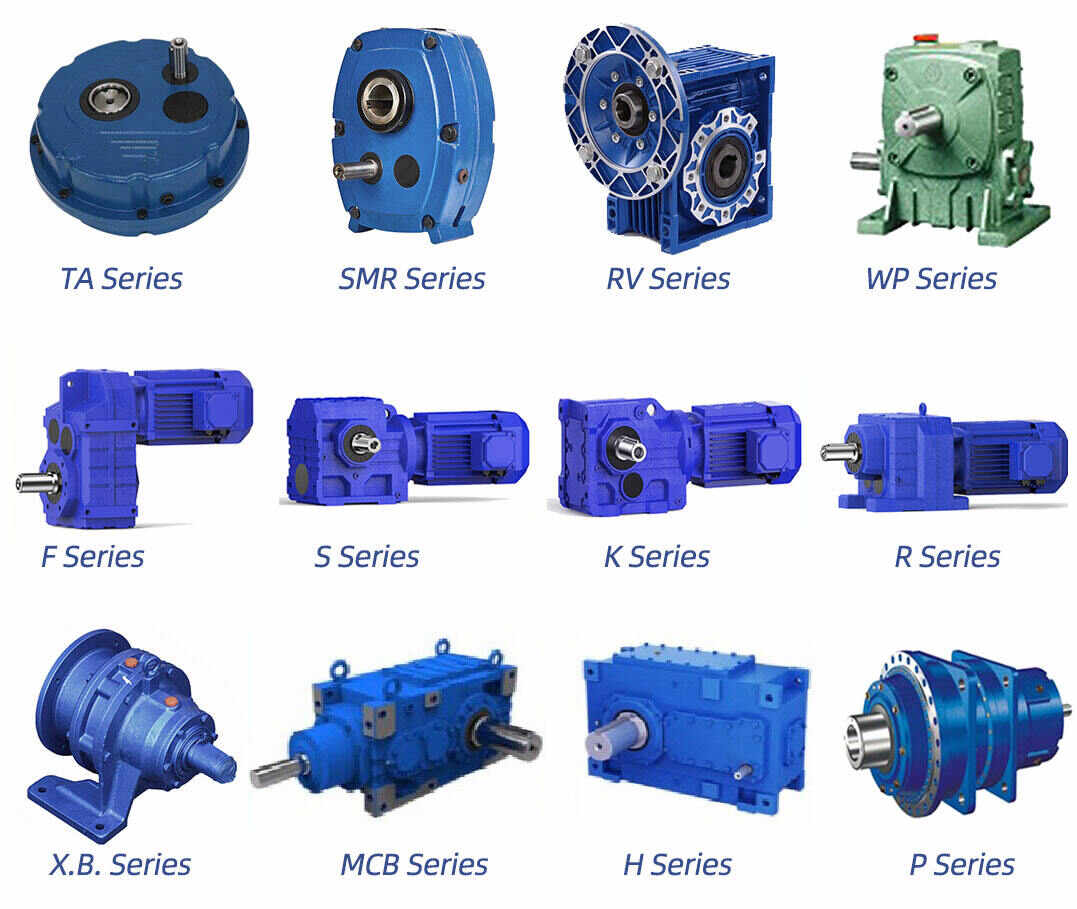

Click the picture to learn more about the corresponding products

Heat treatment

Our company has more than 10 sets of heat treatment equipment, including two carburizing and tempering production lines, two pit furnaces, and two sets of medium and high frequency induction quenching equipment, which can be used for carburizing, tempering, normalizing, tempering, high frequency quenching and other heat treatment processing. The maximum diameter of the heat treated parts is 1600mm, the maximum length is 1600mm, and the maximum single piece weight is 5000kg. The maximum diameter of medium and high frequency quenching is 500mm. Equipped with heat treatment testing equipment (metallographic microscope, metallographic sample polishing machine and metal Vickers, Brinell, Rockwell hardness tester, etc.), it can ensure that the heat treated parts are tested.

Gear machining

Our company has 40 sets of gear and shaft processing equipment, including 4 CNC lathes, 8 hobbing machines, 4 CNC shaping gear grinders, 2 machining centers, 8 internal and external cylindrical grinders, 4 EDM CNC wire cutting machines, which can process gears with a maximum diameter of 2500 mm, a maximum module of 36 mm, and a minimum module of 1.0 mm. The gear accuracy can reach Grade 4 (GB/T10095-2008), and is equipped with gear measuring centers, digital ultrasonic flaw detectors, etc, It can ensure effective detection of gears.

Raydafon Group specialist in making all kinds of mechanical transmission and hydraulic transmission like: planetary gearboxes, worm reducers, in-line helical gear speed reducers, parallel shaft helical gear reducers, helical bevel reducers, helical worm gear reducers, agricultural gearboxes, tractor gearboxes, auto gearboxes, pto shafts, special reducer & related gear components and other related products, sprockets, hydraulic system, vacuum pumps, fluid coupling, gear racks, chains, timing pulleys, udl speed variators, v pulleys, hydraulic cylinder, gear pumps, screw air compressors, shaft collars low backlash worm reducers and so on. furthermore, we can produce customized variators, geared motors, electric motors and other hydraulic products according to customers' drawings. We provides a reliable grantee for the product' s quality by advanced inspection and testing equipment. professional technical team, exquisite processing technology and strict control system. In recent years, the company has been developing rapidly by its rich experience in production, advanced management system, standardized management system, strong technical force. We always adhere the concept of survival by quality, and development by innovation in science and technology. Our Group is willing to work with you hand in hand and create brilliance together!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
