Product Description

Product introduction:

The company's development of part of the rotary valve drive, there are three series, bottom BD series, top KB series, worm split WL series. The shell is mainly made of ductile iron, cast steel, etc. the flange F07 to F60 connected with the valve has a maximum output torque of 250000nm

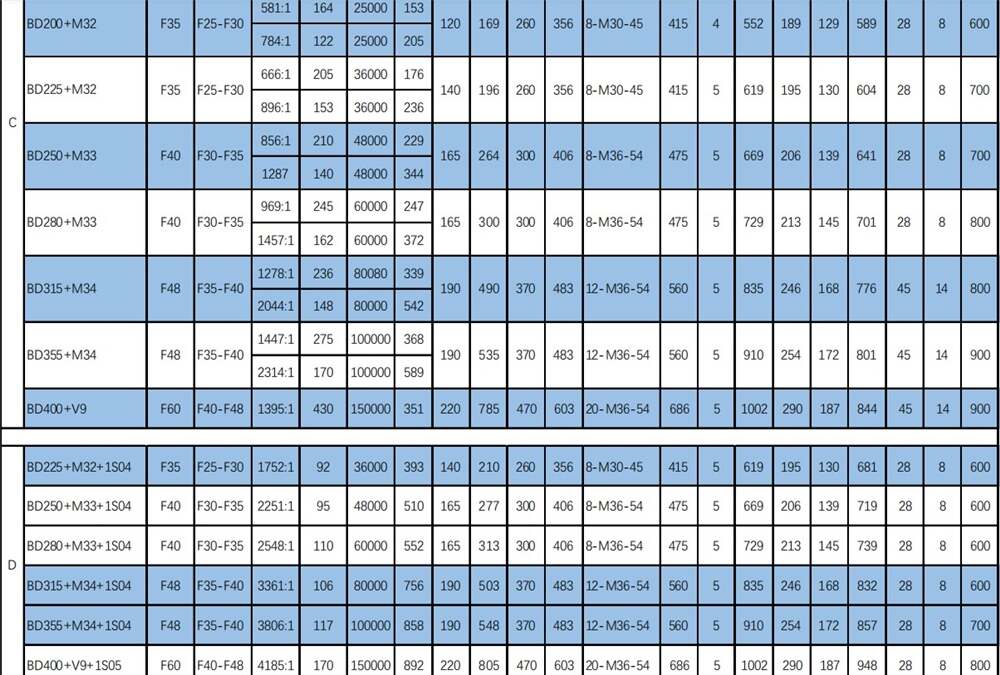

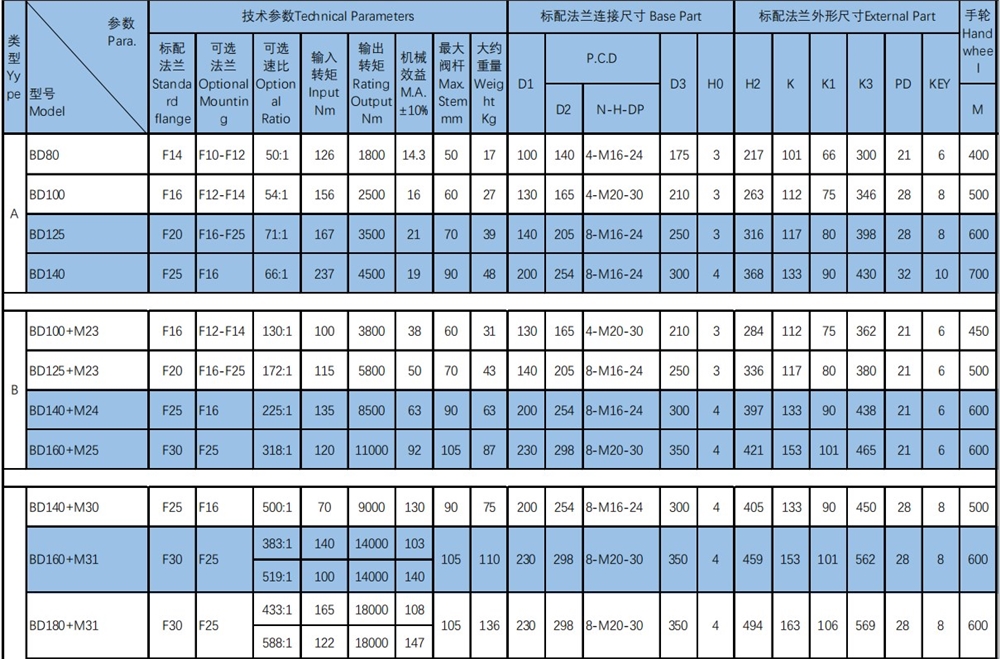

Model description:

BD number: single level, such as BD100

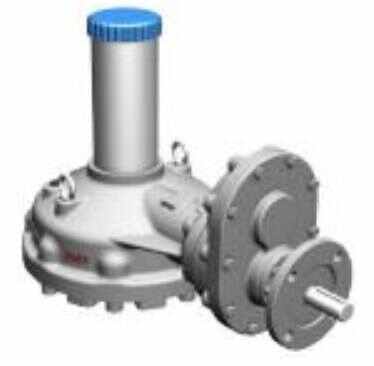

BD number + m number: double stage, M is reducer code, such as: bd140 + M24, bd140 + M30, etc
BD digital + G digital / BD digital + m digital + G Digital: refers to the buried type, G is the input reducer, such as: BD100 + G01, bd160 + M31 + G02
Add d letter in front of BD series to indicate electric, such as dbd100, dbd140 + M31, etc., indicating that the input is electric

Series features:

Change series bottom mounted type, bottom flange replacement is convenient, flange number is complete, better matching valve;
The product material is ductile iron investment casting;
The new series of models are complete, and there are many kinds of speed ratio, such as manual, electric, etc;
Optional with lock or sprocket
The standard of waterproof grade can reach IP67, and IP68 can be customized;
The normal use environment is - 20 degrees to + 120 degrees;
The series can be matched with the valve stem in the form of internal gear sleeve;
This series adopts worm gear transmission, self-locking worm gear pair and tapered roller bearing, which makes the transmission more flexible and efficient.

E Sided

Here are some of the benefits of using a BD series Type A partial rotary valve Gearbox: Increased speed: The partial rotary valve design of the BD series Type A partial rotary valve Gearbox allows it to operate at higher speeds than a traditional gear box. This makes it a good choice for applications that require high speed, such as in manufacturing or processing. Reduced noise: The BD series Type A partial rotary valve Gearbox is designed to reduce noise. This makes it a good choice for applications where noise is a concern, such as in residential or office buildings. Increased efficiency: The BD series Type A partial rotary valve Gearbox is designed to be efficient. This means that it will transmit power with less loss than a less efficient gear box. This can save money on energy costs over time. Extended life: The BD series Type A partial rotary valve Gearbox is designed to last. The heavy-duty construction and high-quality bearings help to ensure that the gear box will provide many years of reliable service. Overall, the BD series Type A partial rotary valve Gearbox is a versatile and powerful piece of equipment that offers a number of benefits for a variety of applications.

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
