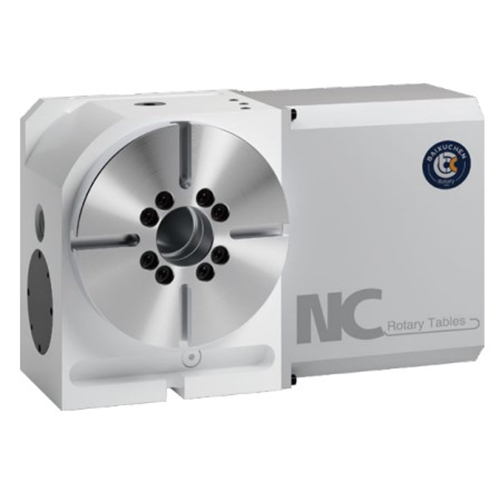

WT-210 Numerical Control Machine Cnc Machining Center Accessories

Large aperture design High segmentation accuracy high rigidity and high performanceHigh efficiency and strong braking structure systemProduct ModelWT-210Segmentation accuracy20 ″Disk DiameterΦ210mmRepeat positioning4 ″Center DiameterΦ55H7mmLocking Mode45kg.mSpindle HoleΦ50mmServo Motorβ8is;HF-104Cen......

Send Inquiry

Product Description

Large aperture design High segmentation accuracy high rigidity and high performance

High efficiency and strong braking structure system

Product Model	WT-210	Segmentation accuracy	20 ″
Disk Diameter	Φ210mm	Repeat positioning	4 ″
Center Diameter	Φ55H7mm	Locking Mode	45kg.m
Spindle Hole	Φ50mm	Servo Motor	β8is;HF-104
Center Height	160mm	Speed Reduction Ratio	1:72
T-Slot Width	12H7mm	Maximun Speed	55.5r.p.m
Positioning Button	18H7mm	Allowable Work Inertia	8.3kg.cm.sec2
Min lncrement	0.001°	Allowable Cutting Torque	18Kg.m
Weight(Without Motor)	70Kg	Vertical	80KG
Horizontal	160KG	Tailstock applied	160KG
