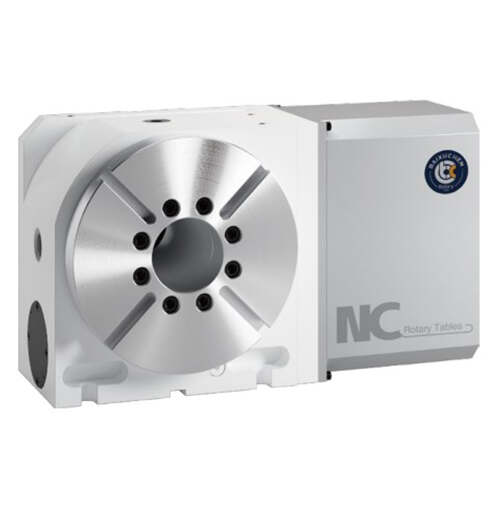

WT-255 Cnc Machining Center Accessories for Numerical Control Machine

Large aperture design High segmentation accuracy high rigidity and high performanceHigh efficiency and strong braking structure systemProduct ModelWT-255Segmentation accuracy15 ″Disk DiameterΦ255mmRepeat positioning4 ″Center DiameterΦ80H7mmLocking Mode70kg.mSpindle HoleΦ80mmServo Motorβ8is;HF-154Cen......

Send Inquiry

Product Description

Large aperture design High segmentation accuracy high rigidity and high performance

High efficiency and strong braking structure system

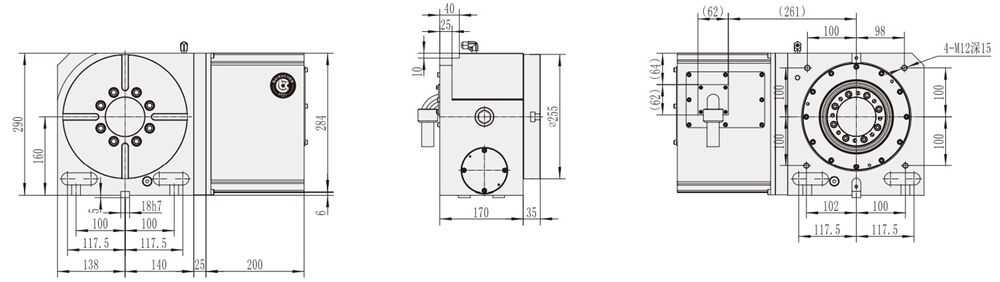

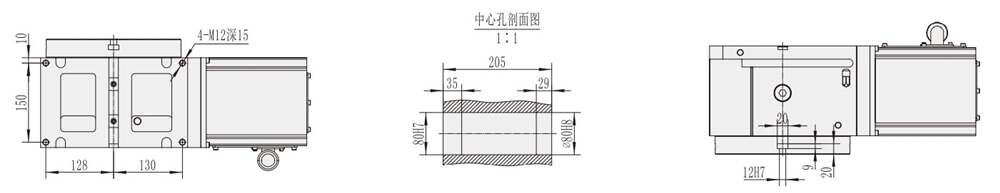

Product Model	WT-255	Segmentation accuracy	15 ″
Disk Diameter	Φ255mm	Repeat positioning	4 ″
Center Diameter	Φ80H7mm	Locking Mode	70kg.m
Spindle Hole	Φ80mm	Servo Motor	β8is;HF-154
Center Height	160mm	Speed Reduction Ratio	1:120
T-Slot Width	12H7mm	Maximun Speed	33.3r.p.m
Positioning Button	18H7mm	Allowable Work Inertia	20.3kg.cm.sec2
Min lncrement	0.001°	Allowable Cutting Torque	55Kg.m
Weight(Without Motor)	105Kg	Vertical	100KG
Horizontal	250KG	Tailstock applied	250KG
