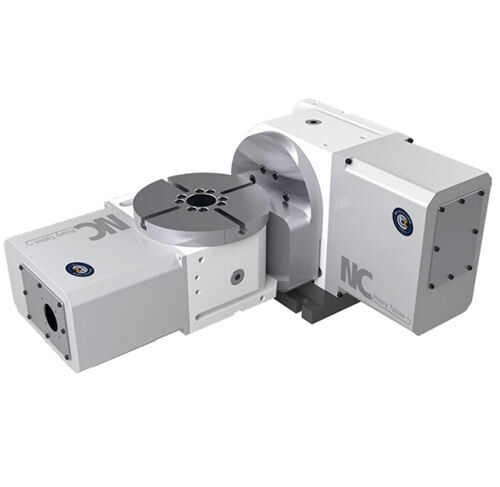

WT-H400 Sell Well New Type 4 Axis Cnc Machining Center Products Accessories

Suitable for horizontal machining Four axis linkage processing, high segmentation accuracy High performance, high efficiency and strong braking systemProduct ModelWT-H400Servo motor β22is;HF-204Panel SizeΦ400mmSpeed Reduction Ratio1:120Center DiameterΦ180H7mmMaximun Speed33.3 r.p.mSpindle HoleΦ115mm......

Send Inquiry

Product Description

Suitable for horizontal machining

Four axis linkage processing, high segmentation accuracy

High performance, high efficiency and strong braking system

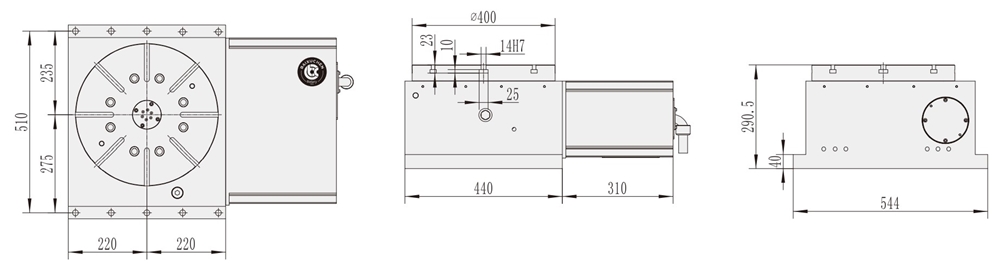

Product Model	WT-H400	Servo motor	β22is;HF-204
Panel Size	Φ400mm	Speed Reduction Ratio	1:120
Center Diameter	Φ180H7mm	Maximun Speed	33.3 r.p.m
Spindle Hole	Φ115mm	Min lncrement	0.001°
Flat Bottom Height	290.5mm	Segmentation Accuracy	15″
T-Slot Width	14H7mm	Repeat Positioning	4''
Positioning Button	18H7mm	Locking Mode	200kg.m
Tilt Axis Angle Range	-45 ~110°	Allowable Work Inertia	100kg.cm.sec2
Net Weight (about)	300Kg	Allowable Cutting Torque	170Kg.m
Horizontal	500KG
