WT-H550 Made in China Superior Quality Small Machining Center Cnc Accessories

Horizontal micro-positioning table Suitable for horizontal processing machines, hydraulic lock Heavy-duty cutting, simultaneous machiningProduct ModelWT-H550Servo motorβ22i HF-204Panel Size550×550Total Reduction Ratio1:120Disk ApertureΦ80mmMaximum Rotation Speed Of Worktable33.3 r.p.mFlat Overa......

Send Inquiry

Product Description

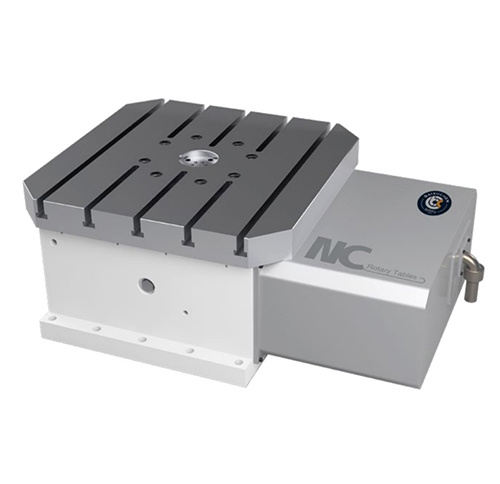

Horizontal micro-positioning table

Suitable for horizontal processing machines, hydraulic lock

Heavy-duty cutting, simultaneous machining

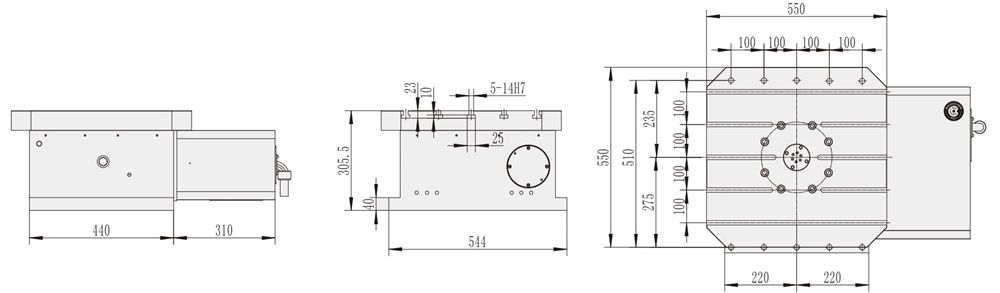

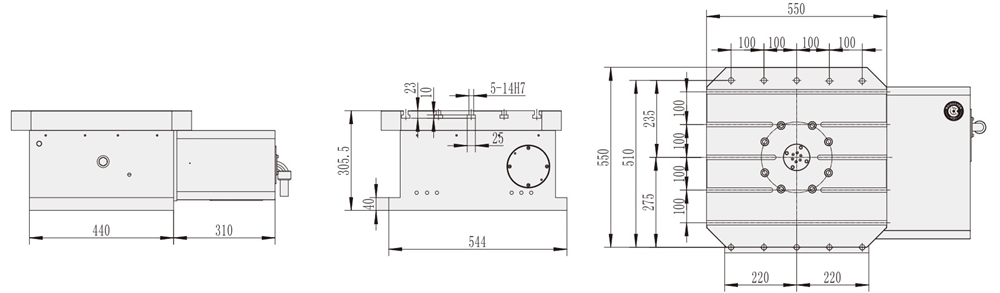

Product Model	WT-H550	Servo motor	β22i HF-204
Panel Size	550×550	Total Reduction Ratio	1:120
Disk Aperture	Φ80mm	Maximum Rotation Speed Of Worktable	33.3 r.p.m
Flat Overall Height	290.5mm	Minimum Setting Angle	0.001°deg
Disk T-Slot	12H8mm	Segmentation Accuracy	20″sec
Positioning Button	14H7mm	Repeat Positioning Accuracy	4''sec
Center Height	255mm	Locking Method	35Kg/cm²
Net Weight (about)	300Kg	Allowable Cutting Force	200Kg.m
Max.load Horizontal	500KG
