WT-RT200 Attractive Price Metal Industrial Cnc Machining Center 5 Axis Accessories

High precision, high performance, high efficiency Five axis machining, modular designOptional fixture oil circuit, Optional hydraulic brakeProduct ModelWT-RT200Servo motor (optional)β4i HF-54;β8i HF-104Panel SizeΦ200mmReduction Ratio1:90 ;1:120Disk ApertureΦ50mmMaximum Rotation Speed Of Worktable 55......

Send Inquiry

Product Description

High precision, high performance, high efficiency

Five axis machining, modular design

Optional fixture oil circuit, Optional hydraulic brake

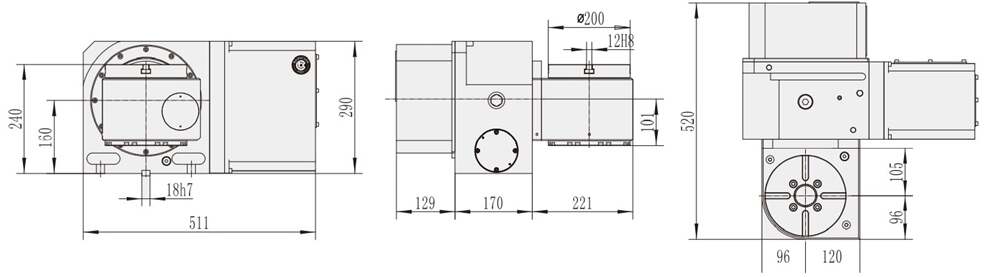

Product Model	WT-RT200	Servo motor (optional)	β4i HF-54;β8i HF-104
Panel Size	Φ200mm	Reduction Ratio	1:90 ;1:120
Disk Aperture	Φ50mm	Maximum Rotation Speed Of Worktable	55.5r.p.m ; 33.3r.p.m
Center Trough Hole	Φ45mm	Minimum Setting Angle	0.001°deg
Disk Height	240mm	Segmentation Accuracy	15″sec;30″sec
Disk T-Slot	12H8mm	Repeat Positioning Accuracy	4″sec;4''sec
Positioning Button	18H7mm	Locking Method	5Kg/cm²; 35Kg/cm²
Tilt Axis Angle Range	-45 ~110°	Brake Torque	31Kg/m ; 140Kg/m
Net Weight (about)	120Kg	Allowable Cutting Force	18Kg.m ; 55Kg.m
Horizontal placement	75KG	Placement	40KG
