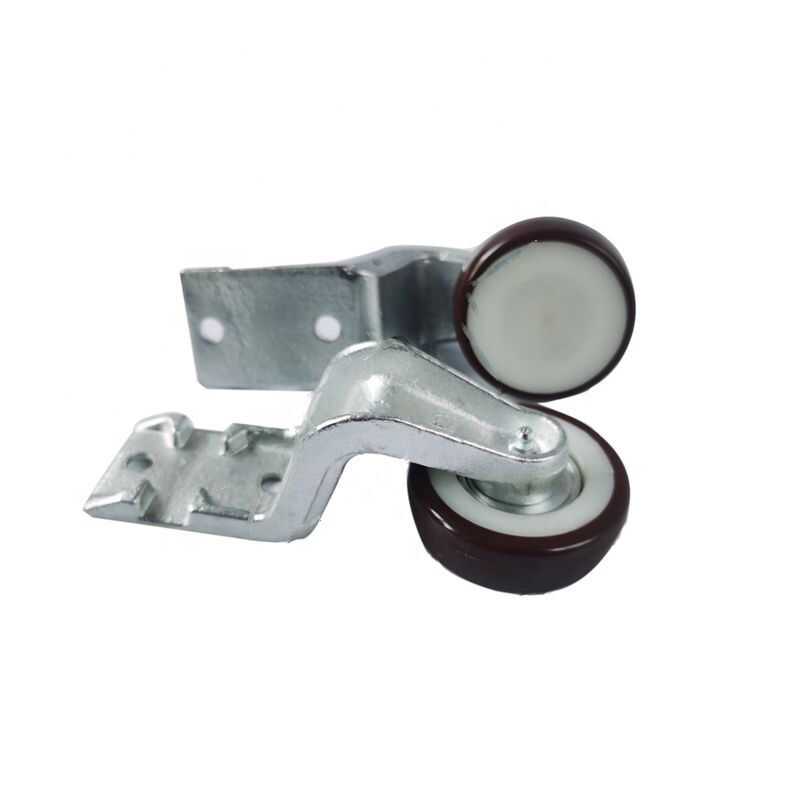

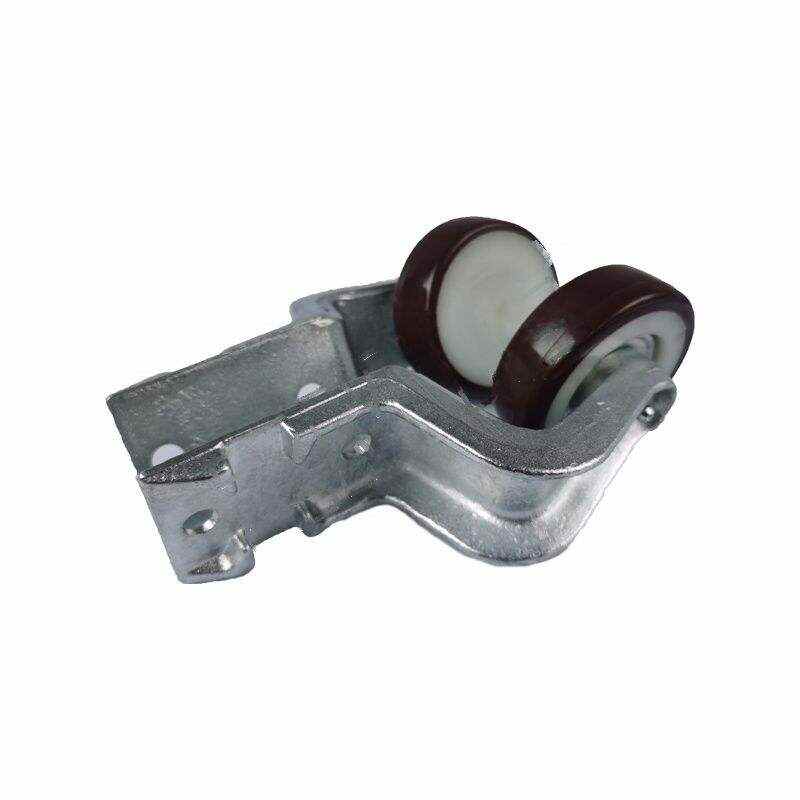

X458 zinc plated overhead trolley with plastic wheels
| Trolley Size | Matched Chain | Trolley Dimensions | Type | |||||||
| A | B | C | D | E | F | G | H | |||
| 4" | 458,100 | 5.35" | 0.71" | 5.06" | 3.19" | 3.19" | 2.13" | 0.39" | 7.187" | A |
| 136mm | 18mm | 128.6mm | 81mm | 81mm | 54mm | 10mm | 182.6mm | |||
| 4" | 458,100 | 5.35" | 0.71" | 5.91" | 3.19" | 4.02" | 2.13" | 0.39" | 8" | A |
| 136mm | 18mm | 150mm | 81mm | 102mm | 54mm | 10mm | 203.2mm | |||
| 4" | 458,100 | 5.35" | 0.71" | 5" | 3.15" | 3.19" | 2.13" | 0.39" | 7.187" | B |
| 136mm | 18mm | 127mm | 80mm | 81mm | 54mm | 10mm | 182.6mm | |||
| 4" | 458,100 | 5.35" | 0.71" | 5.91" | 3.15" | 4.02" | 2.13" | 0.39" | 8" | B |
| 136mm | 18mm | 150mm | 80mm | 102mm | 54mm | 10mm | 203.2mm | |||
| What's Your Packing Method? |
| For our regular products like X348, X458, X678 forged rivetless chain, trolley, attachment packed into plywood case which no need fumigate, for the assembled conveyor chain and forged fork chain with flight packed into pallet,for CC600 casting chain two packing methods are available. |
