1BJY-TJ-54 Capacity 7000LBS Drop Leg Topwind Trailer Parts New Direct-Weld Square Jack with Footplate Accessories Trailer Direct

Characteristics of Trailer JackThe multifunctional jack allows you to lift and lower trailers, making it an ideal choice for agricultural and commercial applications.Square jacks have greater lateral load-bearing capacity than round tube jacks.The top wind handle has a claw shaped grip, which is com......

Send Inquiry

Product Description

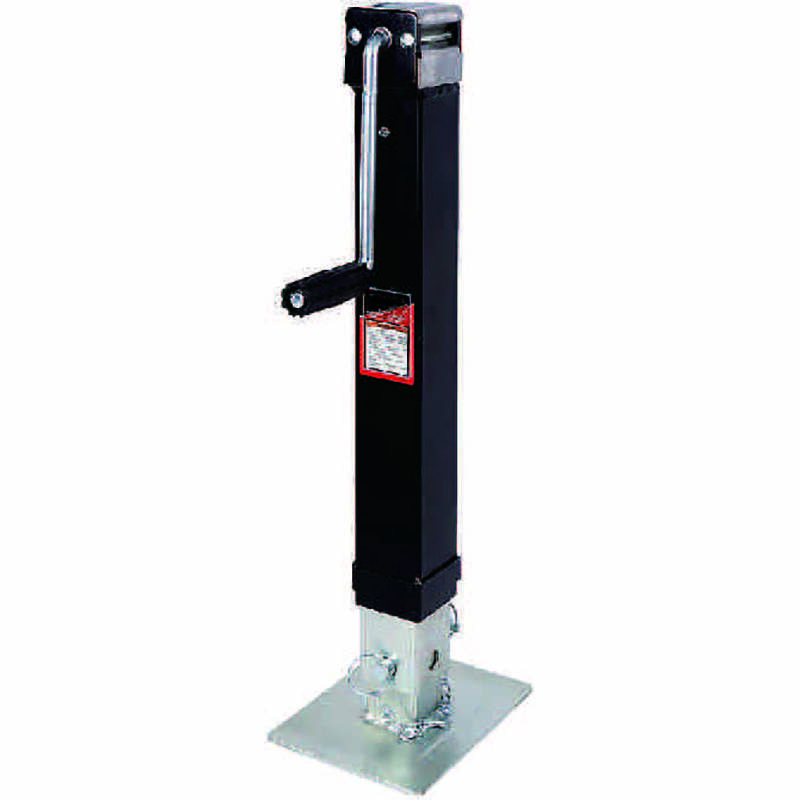

Characteristics of Trailer Jack

The multifunctional jack allows you to lift and lower trailers, making it an ideal choice for agricultural and commercial applications. Square jacks have greater lateral load-bearing capacity than round tube jacks. The top wind handle has a claw shaped grip, which is comfortable, easy to start, and easy to fold for storage. Lowering the leg can increase lift and save time during lifting and lowering, with pins and clips securing the leg in the desired position. Built in fuel nozzle for easy lubrication. Black powder coating. Galvanized inner pipes, foot pedals, and handles have corrosion resistance. Welded pedals can minimize settlement on soft soil foundations to the greatest extent possible. Welding installation.

JY NO.	Capacity	Travel	Finished	Handle Type	Feature
1BJY-TJ-35	7000LBS	15"+13"	Black	Top	Square
1BJY-TJ-36	7000LBS	15"	Zinc	Top	Square
1BJY-TJ-37	5000LBS	10"	Black	Top	Square
1BJY-TJ-38	5000LBS	15"	Black	Top	Square
1BJY-TJ-39	7000LBS	15"	Black	Top	Square
1BJY-TJ-40	7000LBS	15"+13"	Black	Top	Square
1BJY-TJ-54	7000LBS	15"+13"	Black	Side	Square

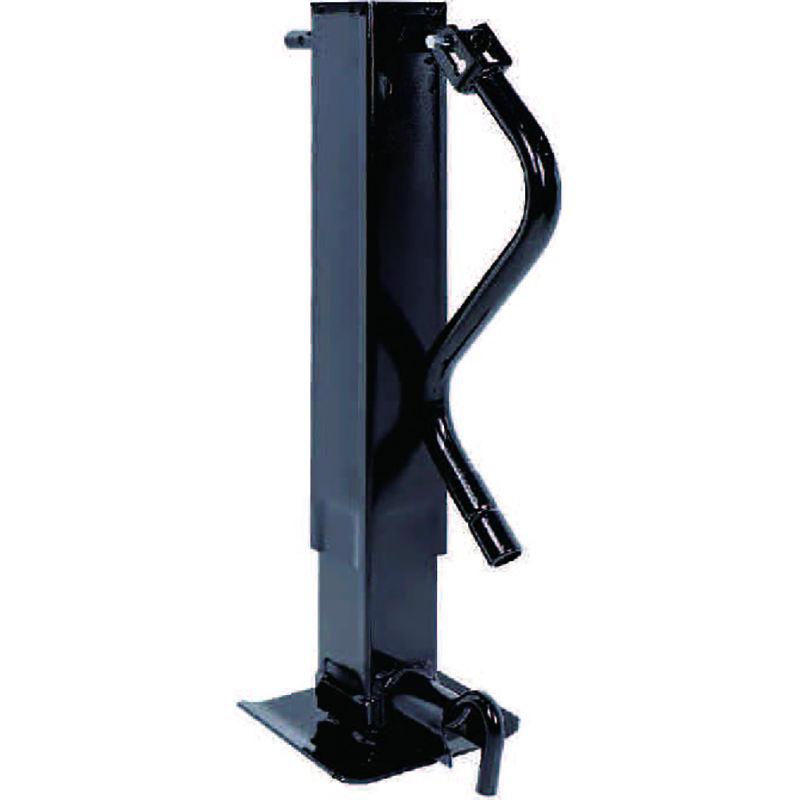

1BJY-TJ-55	12000LBS	12.5"+13.5"	Black	Pin-Front	Square
1BJY-TJ-56	12000LBS	12.5"+13.5"	Black	Pin-Side	Square

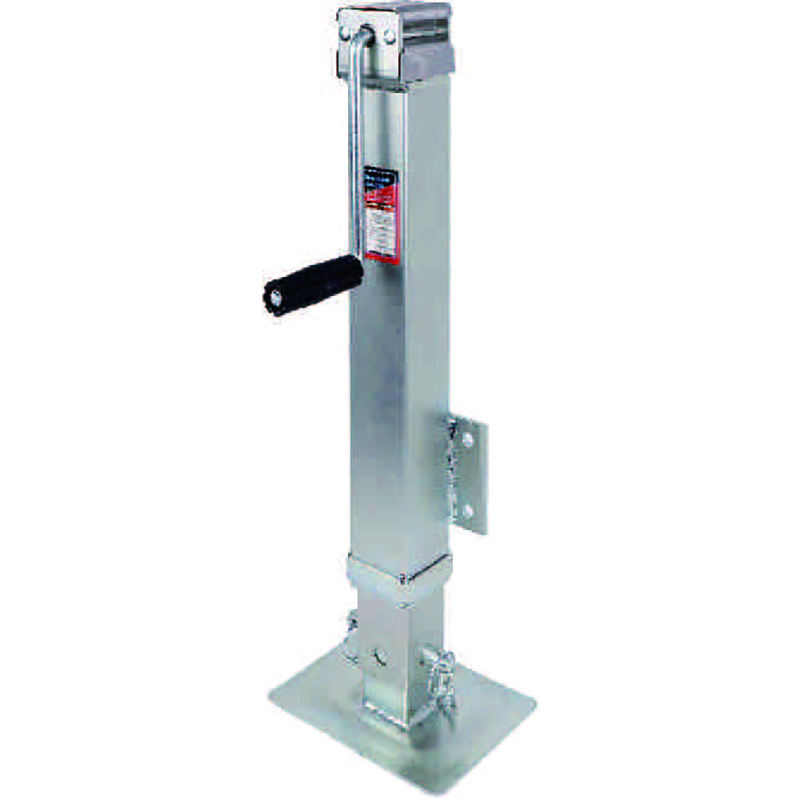

1BJY-TJ-66	7000LBS	15"+13"	Zinc	Side	Square
1BJY-TJ-67	7000LBS	15"+13"	Zinc	Side	Square.Different Plate

Applications of Direct-Weld Square Jack
1. Trailers:

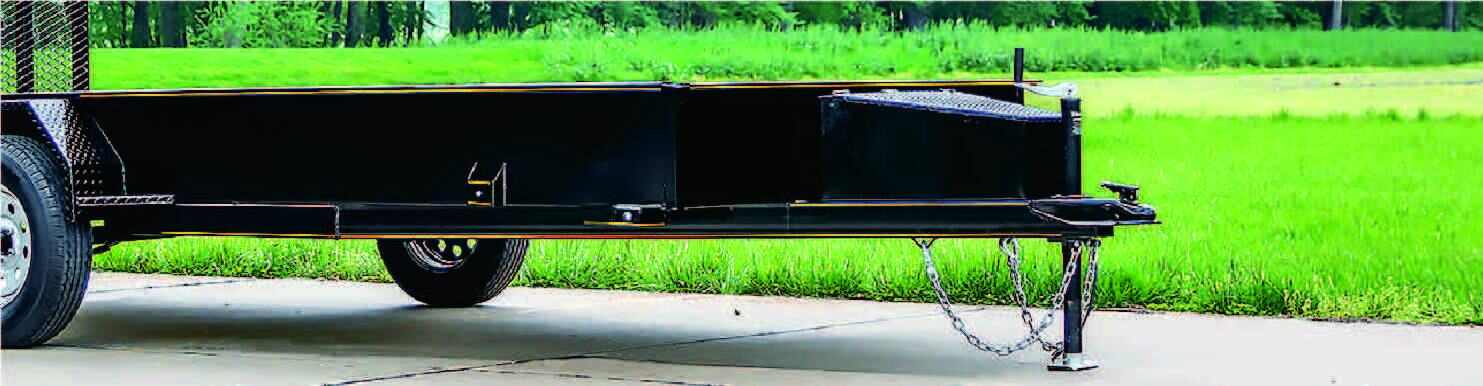

Used for stabilizing and leveling utility, cargo, and livestock trailers.

2. Agricultural Equipment:
Supports farm implements and machinery during maintenance and storage.

3. Heavy-Duty Trucks:
Assists in stabilizing trailers for loading and unloading.

4. Construction Equipment:
Provides support for construction trailers and portable buildings.

5. Industrial Uses:
Used in warehouses and factories to support heavy equipment and machinery.
