American Standard 3V Series Cast Iron Four-Groove Sheaves With Split Taper Bushings

3V Series Cast Iron Four-Groove Sheaves with Split Taper Bushings3V series four groove tapered bushing pulley is applicable to 3V, 3VX, belt 3V and belt 3VX belts. Their diameters range from 2.65 "to 33.50". According to the pulley size, they use G, H, P1, Q1 or R1 split taper bushings, wh......
Send Inquiry
Product Description
American Standard 3V Series Cast Iron Four-Groove Sheaves With Split Taper Bushings

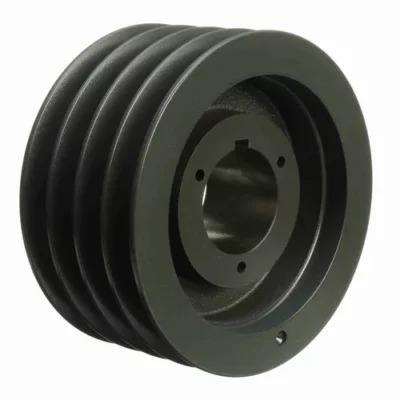

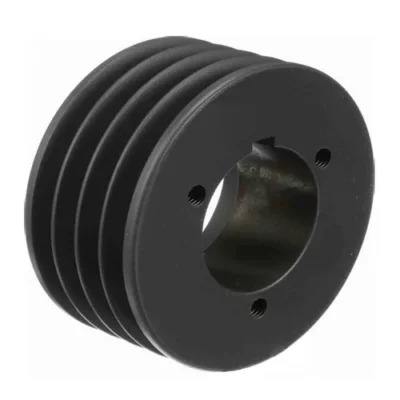

3V Series Cast Iron Four-Groove Sheaves with Split Taper Bushings

3V series four groove tapered bushing pulley is applicable to 3V, 3VX, belt 3V and belt 3VX belts. Their diameters range from 2.65 "to 33.50". According to the pulley size, they use G, H, P1, Q1 or R1 split taper bushings, which we also have in stock. Our four groove 3V split taper pulleys are mostly made of high-strength 35 cast iron, coated with phosphate coating and anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

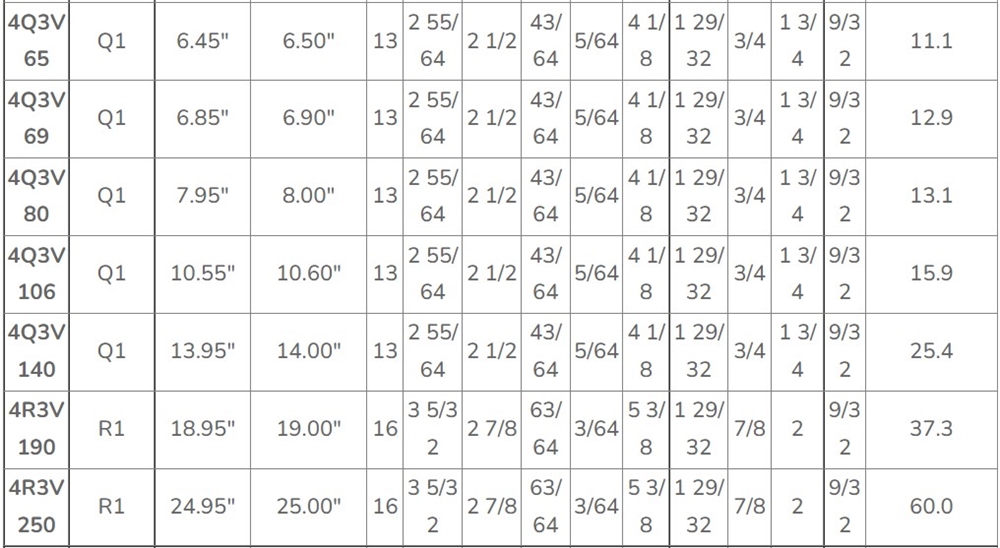

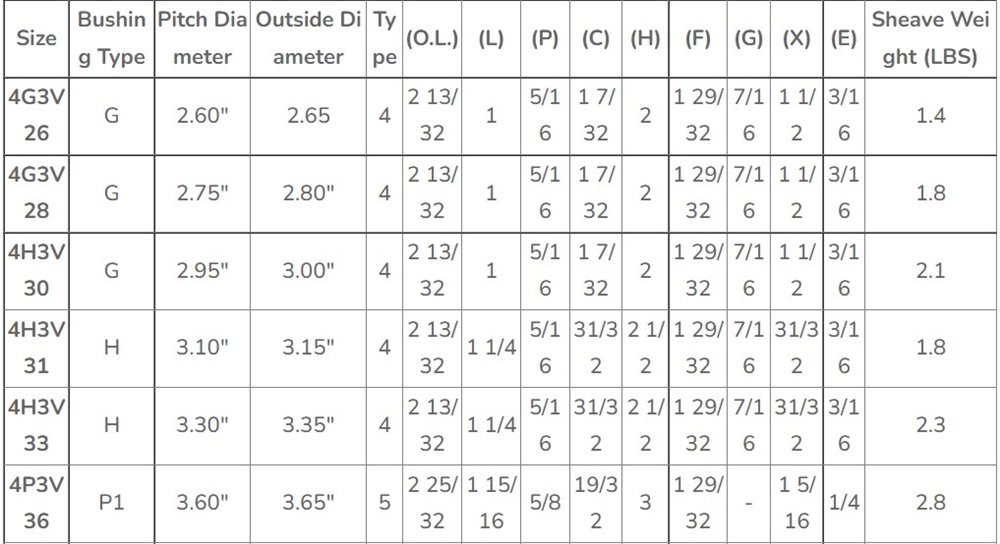

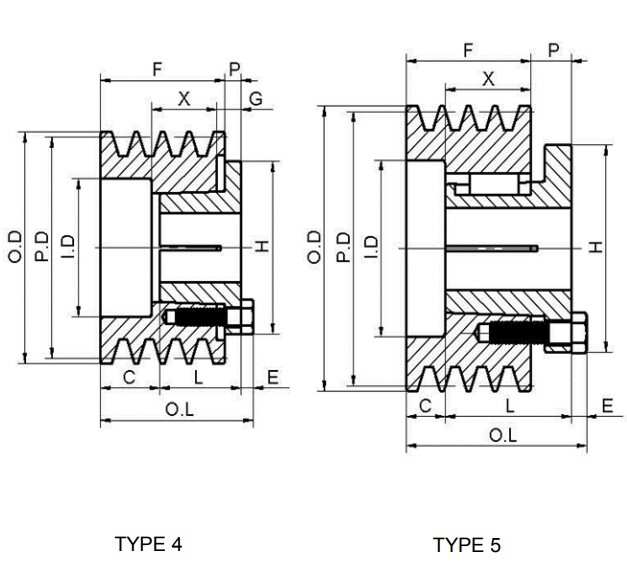

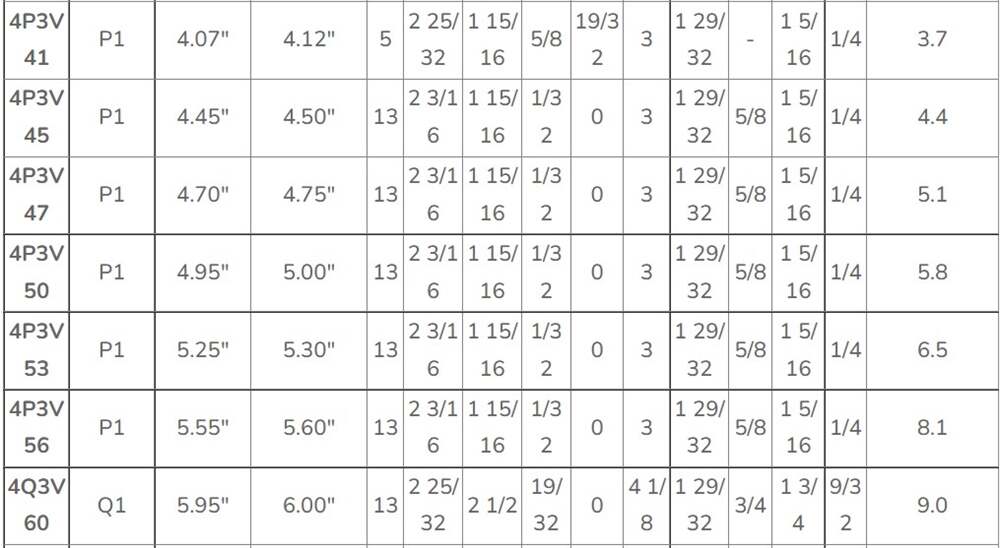

Four-Groove 3V Split Taper Sheave Size Chart
American Standard 3V Series Cast Iron Four-Groove Sheaves With Split Taper Bushings
American Standard 3V Series Cast Iron Four-Groove Sheaves With Split Taper Bushings
For more details, please click here to contact us!
American Standard 3V Series Cast Iron Four-Groove Sheaves With Split Taper Bushings
American Standard 3V Series Cast Iron Four-Groove Sheaves With Split Taper Bushings
American Standard 3V Series Cast Iron Four-Groove Sheaves With Split Taper Bushings
American Standard 3V Series Cast Iron Four-Groove Sheaves With Split Taper Bushings
V-belt Pulley American Stanard -- 3v Series American standard pulley is manufactured according to American ANSI standard. The main material is gray cast iron, which is suitable for 2L, 3L, 4L, 5L, A, B, C, D, 3V, 5V, 8V belts, J, L and M ribbed belts. American standard pulley product types: AK, BK, TA, TB, TC, B, C, D, 3V, 5V, 8V, J, L, M, VP, VL, VM. Tapered bushing pulleys are used with STB, QD, or TB tapered bushings.
Supporting use of 3V, 3VX series V belt (1) 3V series V-belt The classic 3V series V-belt has a top width of 0.38 ", a thickness of 0.31" and an angle of 38 °, which also classifies it as a deep wedge V-belt. The 3V series belt is designed to be more compact and more powerful than the standard 40 ° angle v-belt. Because of their long-term success and economic operation, they are also one of the most widely used belt series in the industry. The high-quality 3V series v-belts we provide are manufactured according to ISO 9001 specifications and ARPM standards; They are oil and heat resistant and can be directly interchanged with other brands. The 3V conveyor belt is made of natural rubber compound and polyester rope, and is covered with a mixture of cotton and polyester, with high durability. The 3V series belts are used with HVAC, lawn and garden equipment, and agricultural equipment for most general heavy industrial applications. We also stock a complete set of high-power v-belts and matching v-belt pulleys/pulleys. (2) 3V series ribbon V-belt The 3V series v-belts are part of the "classic" series of v-belts because they are one of the oldest and most common styles used. Our belts are manufactured according to ARPM standards and have excellent strength, durability and performance. The top width of each belt (belt/rib) of the 3V series v-belt is 0.38 inches.
(3) 3VX toothed V-belt The top width of the 3VX toothed v-belt is 0.38 "and the thickness is 0.31". Our grooved 3VX v-belts are manufactured with rough sidewalls to eliminate slip, improve efficiency and save operating costs. They are also manufactured according to ARPM standards and are oil and heat resistant. The 3VX conveyor belt is composed of high-quality neoprene compound and high-strength polyester string, and the top fabric is made of cotton polyester blend. In addition to performance, durability and energy saving advantages, our toothed v-belts will also be used with existing vertical pulleys/pulleys. Please contact us to get the quotation of 3VX toothed v-belt or pulley, and we are happy to help you. (4) 3VX belt toothed V-belt All our v-belts are manufactured according to ARPM specifications, with excellent performance and durability. Because of its design, the belt 3VX toothed v-belt runs more smoothly and loosely, and is generally more durable than the standard belt C v-belt. They also provide higher efficiency than ordinary v-belts, which means less energy costs.

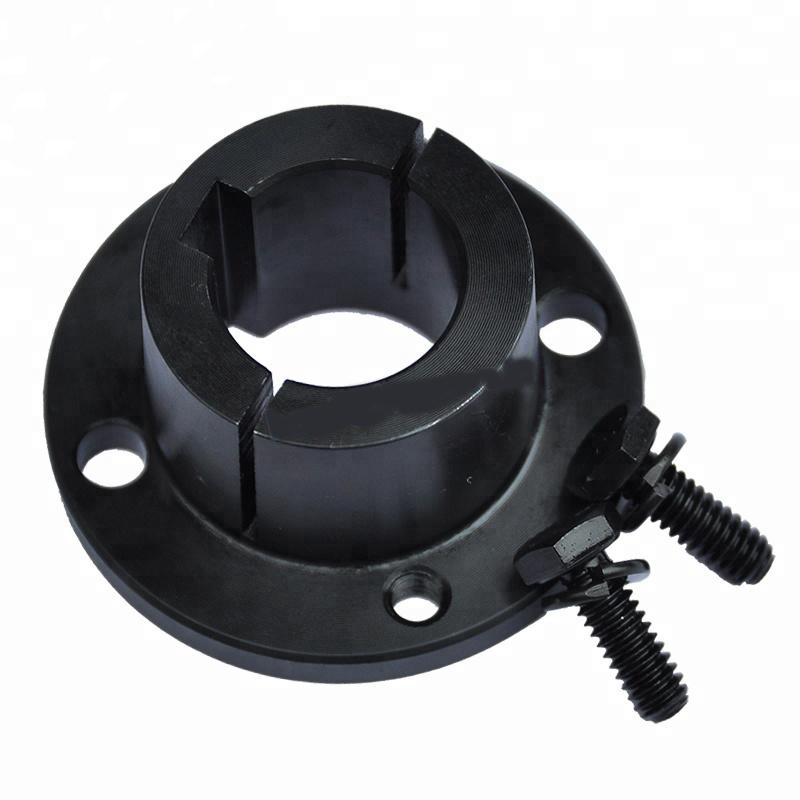

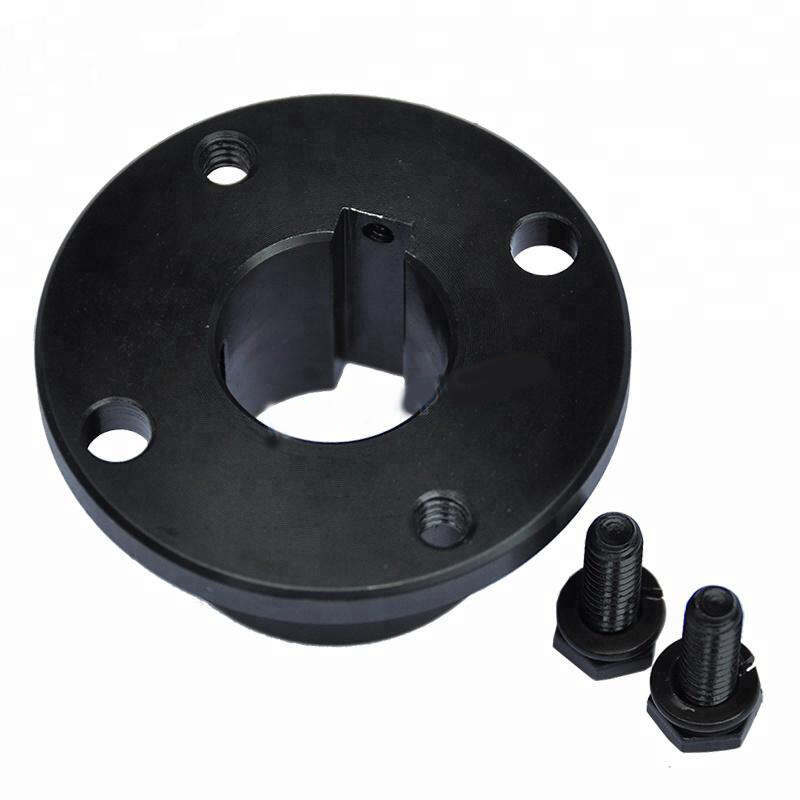

Relevant open tapered bushing Split tapered bushes are one of the most commonly used bushes because of their high overall strength, ease of installation and unloading, and high retention for successfully connecting the shaft to the drive or idler gear assembly. The open tapered bushing is used for various pulleys, conveyor pulleys, and sprockets. Our high-quality split taper bushing is made of high-quality steel or casting material and can be interchanged with any other brand. It is designed as a flange bushing with a tapered cylinder and a slit on each side. We have G series to W2 series split tapered bushings, and 0.375 inch to 7.438 inch inch inch and metric hole diameters. For more information or to get a quote for our high-strength open taper bushing, please contact our customer support team and we will be happy to help you.
American Standard 3V Series Cast Iron Four-Groove Sheaves With Split Taper Bushings
American Standard 3V Series Cast Iron Four-Groove Sheaves With Split Taper Bushings
Can tapered sleeves be purchased separately for tapered sleeve pulleys? The tapered sleeve is a connecting component between the mounting shaft and the pulley. Compared with the traditional belt pulley, the tapered sleeve belt pulley has many advantages and is gradually being widely used. Can tapered sleeves be purchased separately for tapered sleeve pulleys? Conical sleeve pulley is a new type of mechanical transmission connecting component commonly used in European and American countries. The key connects the bore of the tapered sleeve to the shaft. When pulley is connected with the shaft, a connector with the interference fit is formed. These two torques and forces are transmitted through the keys. Because of its unique removable physical structure, the tapered sleeve pulley improves the overall use efficiency and reduces the difficulty of installation and disassembly. In the past, if the traditional belt pulley was damaged, it could only be scrapped, and it would cost a lot to replace it with a new one. Tapered sleeve pulley If the tapered sleeve is worn, only replace it with a new tapered sleeve with accurate specifications and parameters. The cost of purchasing cone sleeve alone is far lower than that of replacing pulley, which can save the use and maintenance costs for enterprises. HZPT can provide high-quality tapered bushings of various types and specifications. Enterprises and agents are welcome to purchase tapered bushing products individually or in bulk. HZPT tapered bushing products are made of selected HT250 materials, with high overall hardness, good toughness, and can withstand large loads. When loading, the cone sleeve is pressed through the 8 degree outer cone and connected with the inner cone of the belt pulley, greatly improving the centering accuracy of the transmission components.

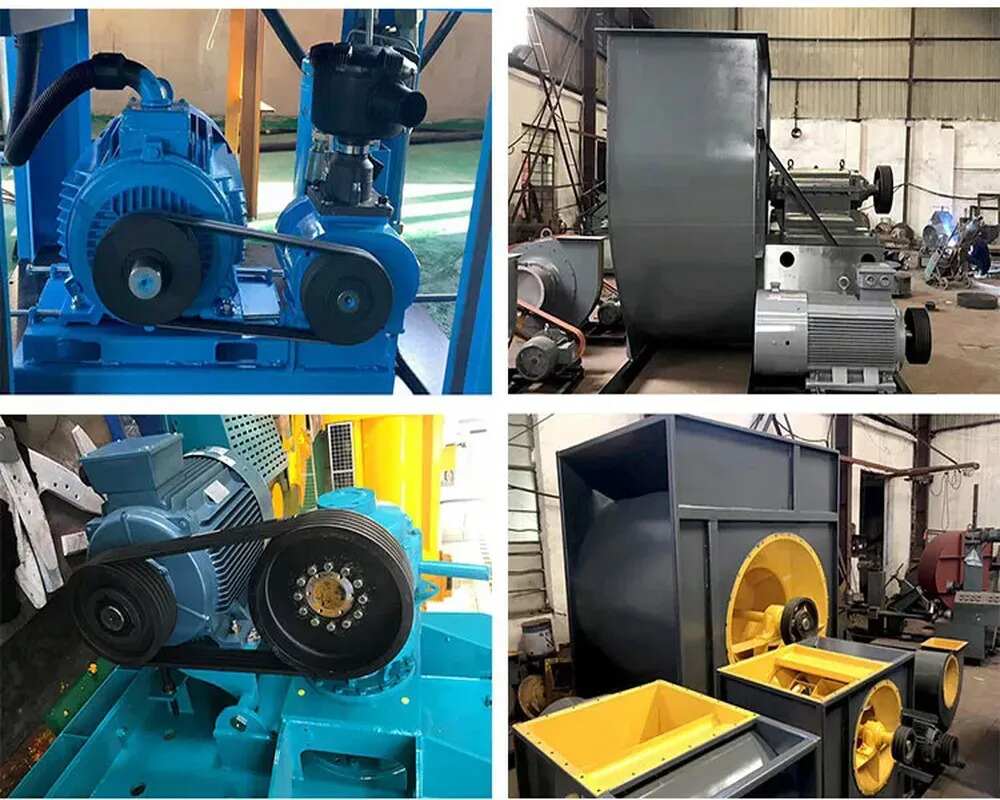

Use Scenarios of 3V Split Tapered Pulley *Machine tool *Crusher, pulverizer, crusher, classifier, vibrating screen *Material conveying system *Fans, blowers and exhausters *Pumps and compressors *Woodworking saw, milling machine, planer, lathe
American Standard 3V Series Cast Iron Four-Groove Sheaves With Split Taper Bushings
We also provides belts matching pulleys:https://planetary-gearboxes.en.Raydafon/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11
Technological Processing
American Standard 3V Series Cast Iron Four-Groove Sheaves With Split Taper Bushings
Warehouse inventory The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.
American Standard 3V Series Cast Iron Four-Groove Sheaves With Split Taper Bushings
American Standard 3V Series Cast Iron Four-Groove Sheaves With Split Taper Bushings
American Standard 3V Series Cast Iron Four-Groove Sheaves With Split Taper Bushings
Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
