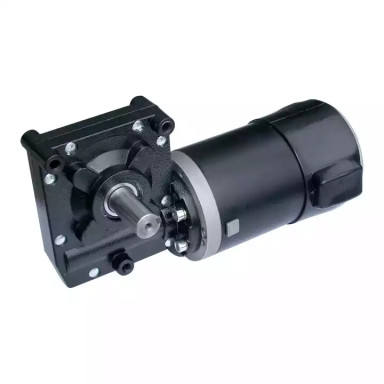

90ZYT-102WJ 12V, 24V 350W Keyway Shaft Bronze Gear PM DC Worm Gear Motor
DC WORM GEARED MOTOR 90ZYT/102WJ TYPICAL SPECS.: Voltage 24V DC Current approx. 34A Final Output Power 150W Rated Speed 65RPM Rated Torque 22.5N.m Voltage 90V DC Final Output Power 200W Rated Speed 315RPM Rated Torque 6N.m Operation Mode S1 High Temp. & Humidity Use CARAVAN / TRAILER MOVER GEAR MOTOR SPECS AND FEATURES: Voltage 12V DC Rated Current 48A No-Load Speed 4000RPM / 80RPM Rated Speed 3250RPM / 65RPM Rated Torque 0.9N.m / 22.5N.m Motor Rated Output Power 350W Gear Ratio 50/1
Benefits of DC Gear Motors
High torque output at low speed: This is their main advantage. The gearbox mechanism can significantly reduce the motor's inherent speed, thereby increasing the torque proportionally. This means that even a relatively small DC motor can generate a huge thrust when used with a gearbox, moving heavy objects or overcoming large resistances that a standalone motor cannot handle.
Precise speed control: DC motors have excellent inherent speed control capabilities, which are further optimized by gearboxes. By adjusting the supply voltage to the DC motor, the motor's speed can be varied over a wide range. The gearbox ensures that the controlled speed is effectively transmitted to the output shaft, resulting in very precise positioning and smooth, consistent motion.
Compact size and space efficiency: By integrating the motor and gearbox into a single unit, DC gear motors are extremely compact. This makes them ideal for applications where space is limited, allowing for leaner, more efficient product designs.
High starting torque: DC motors are known for their strong starting torque, which is essential for applications where initial inertia needs to be overcome to drive the load. This starting torque is multiplied when combined with a gearbox, making it ideal for quick start-stop operations or lifting heavy loads.
Reversibility: Most DC gearmotors can easily change direction of rotation simply by reversing the polarity of the input voltage. This flexibility is critical for applications that require bidirectional motion.
Energy Efficiency: Many modern DC gearmotors, especially brushless DC (BLDC) motors, are highly energy efficient. They convert most of the electrical energy into mechanical work, which is particularly beneficial for battery-powered applications, extending battery life.
Quiet Operation: DC gearmotors, especially those with high-quality gearing (such as planetary gears), operate relatively quietly and with less vibration than many AC motors or less sophisticated gear systems.
Suitable for both intermittent and continuous operation: They are rugged enough for continuous operation in a wide range of applications, while also excelling in intermittent operation that requires frequent starting and stopping.
Applications of DC Gear Motors
Robotics and Automation:
Robotic Arms and Gripper: For precise joint motion, controlled actuation, and actuation of wheels or tracks in mobile robots.
Automated Assembly Lines: In pick-and-place machines, labelers, and packaging equipment, precise and repeatable motion is critical.
UAVs and Drones: For propeller propulsion or gimbal control.
Automotive Industry:
Power Windows, Sunroofs, and Seat Adjustment: Provide the necessary torque and controlled speed for these comfort features.
Wipers: For reliable and consistent wiper blade movement.
Electric Power Steering: Assists the driver in steering.
Medical Devices:
Hospital Beds and Wheelchairs: For patient positioning and adjustment.
Infusion Pumps and Syringe Drives: For precise fluid delivery.
Rehabilitation Equipment: Provide controlled motion for therapy.
Electric surgical instruments: High torque is required in a compact, sterile package.
Consumer electronics and home automation:
Automated curtain systems and blinds: For smooth and quiet opening and closing.
Smart locks and window openers: For automatic security and climate control.
Coffee machines, blenders and food processors: For driving mixing or grinding devices.
CD/DVD drives, camera autofocus devices: Precise micro-movements are required.
Electric toothbrushes and vacuum cleaners: For driving toothbrushes or internal devices.
Industrial machinery and material handling:
Conveyors: Control the speed and movement of goods on a production line.
Sorting systems: Direct items to different bins.
Vending machines: For dispensing products.
Banking equipment (ATMs, receipt printers): For precise paper handling and cash withdrawal.
HVAC systems:
Damper and valve actuators: Control airflow and fluid flow in heating, ventilation and air conditioning systems.
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US.
