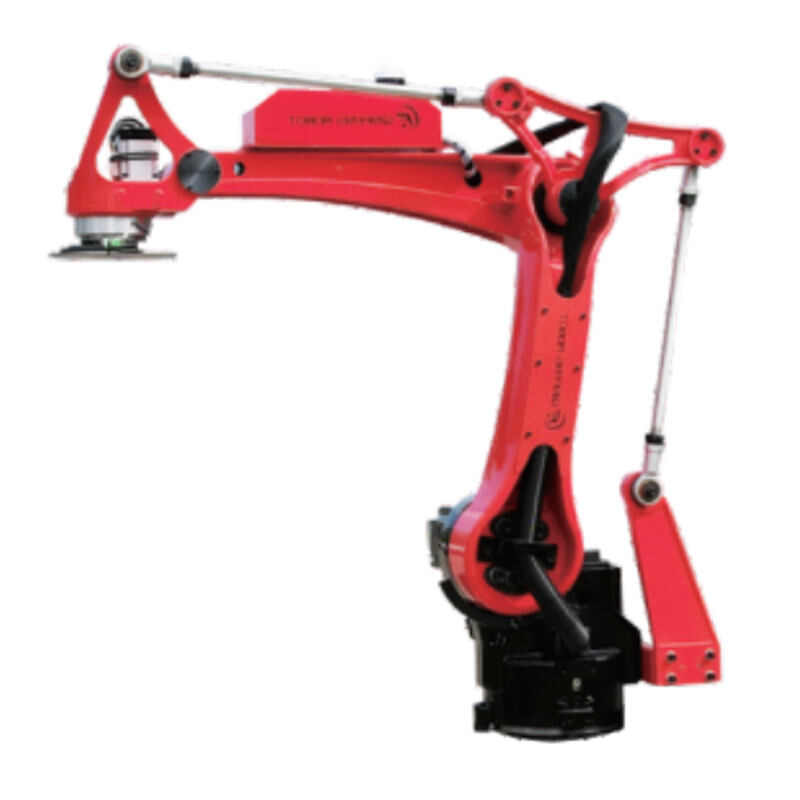

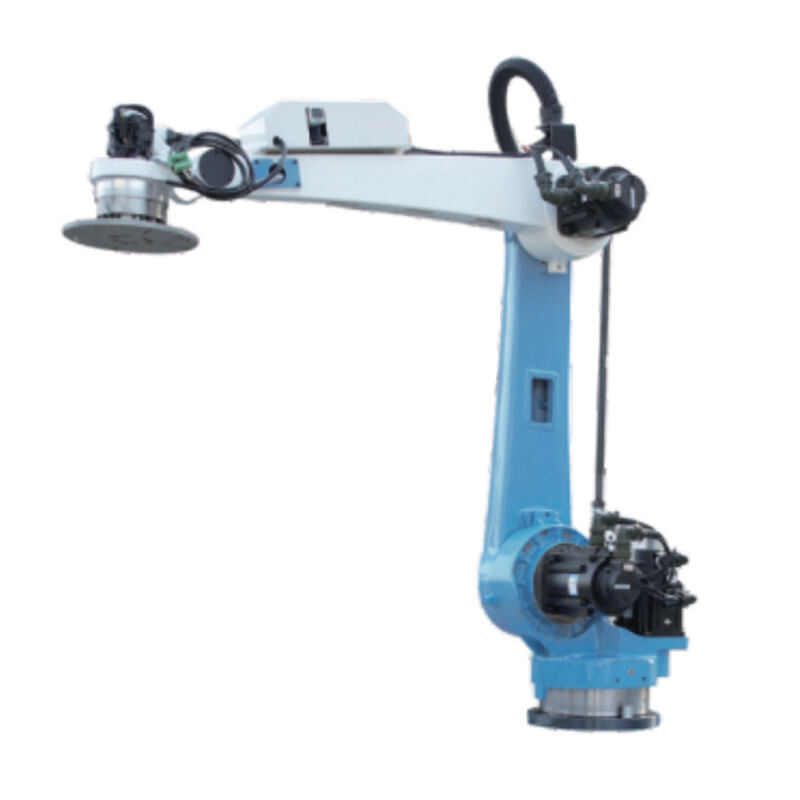

H Series Industrial Joint Robot Arm for Swing Arm Manipulator

Joint RobotProduct features:-Built-in cables for easy deployment.-Key moving parts adopt top brands to achieve high speed, high stability and high reliability.-The swing arm type is equipped with an independent air source, which is not affected by the on-site air source and enhances the stability of......

Send Inquiry

Product Description

Joint Robot

Product features: -Built-in cables for easy deployment. -Key moving parts adopt top brands to achieve high speed, high stability and high reliability. -The swing arm type is equipped with an independent air source, which is not affected by the on-site air source and enhances the stability of the robot arm operation.

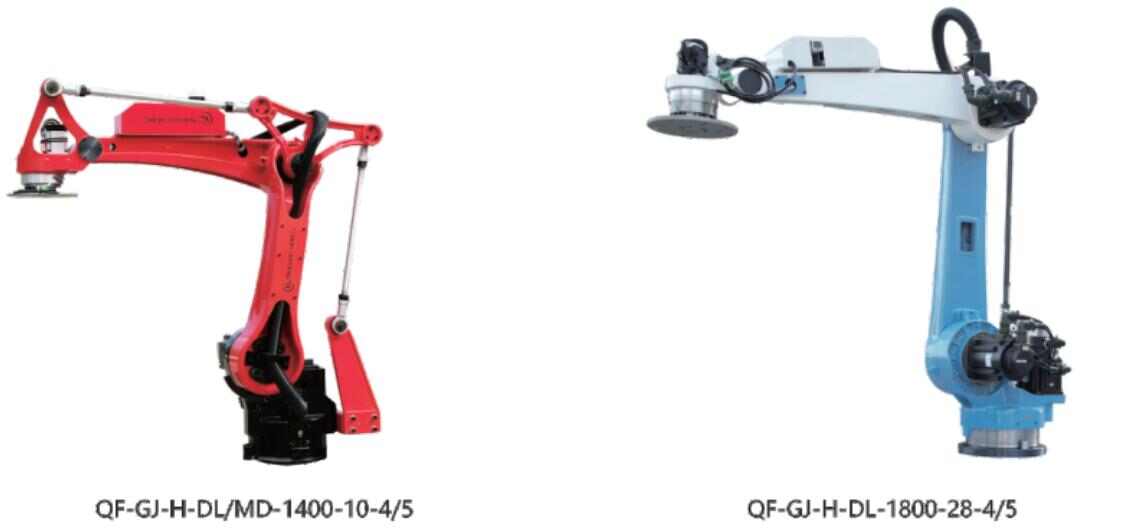

Model		QF-GJ-J-DL/MD-1400-10-4/5	QF-G-H-DL-1800-28-4/5
Max working radius	mm	1400	1800
Min working radius	mm	350
Grip size	mm	≤800*800	≤1000*1000
Center grip weight	kg	≤10	≤28
Max SPM	pcs/min	15	11
Position precision	mm	+-0.1
Body size （H is variable）	LWH	12004501920(DL) 13706001980(MD)	14704701400
Body weight	kg	275	390
Axial travel stroke
Motion range °（°/s）	J1	+-160（143.9）	+-160（174.7）
		J2	-25,+75(141.3)	-35,+75(162.1)
		J3	-75, +75(248.9)	-25,+75(171.3)
		J4	+-300(438.7)	+-300(455.6)
		J5	+-180(727.5)	+-180(870)

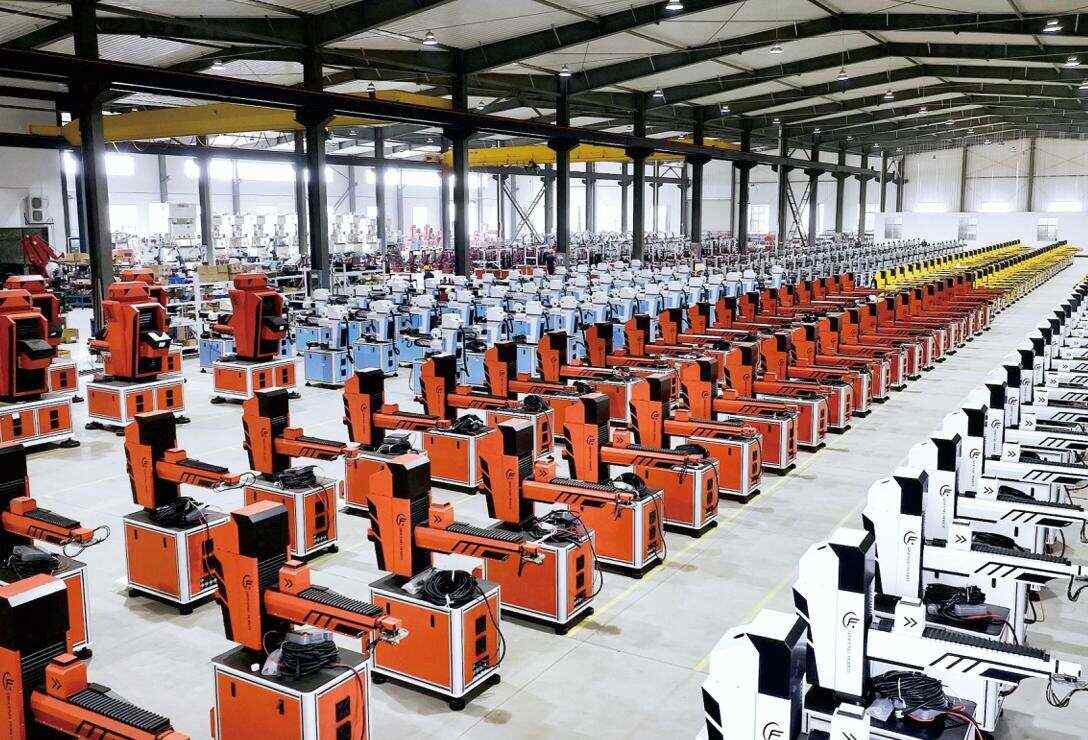

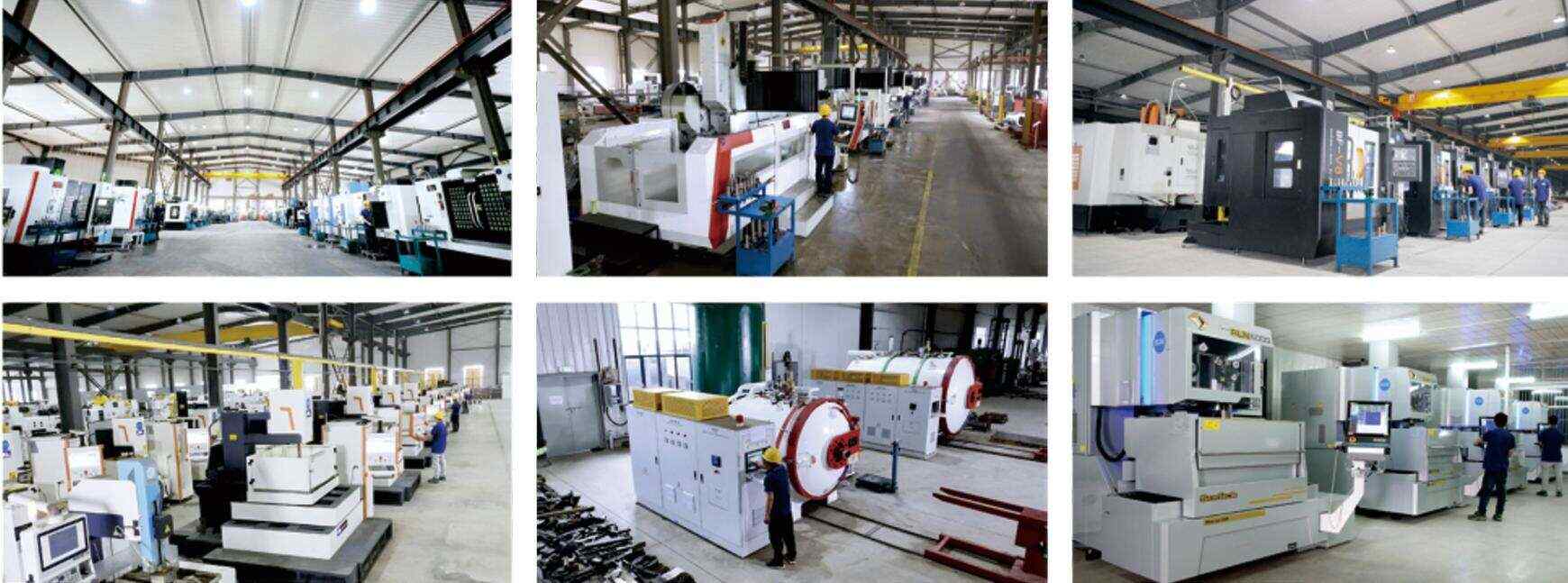

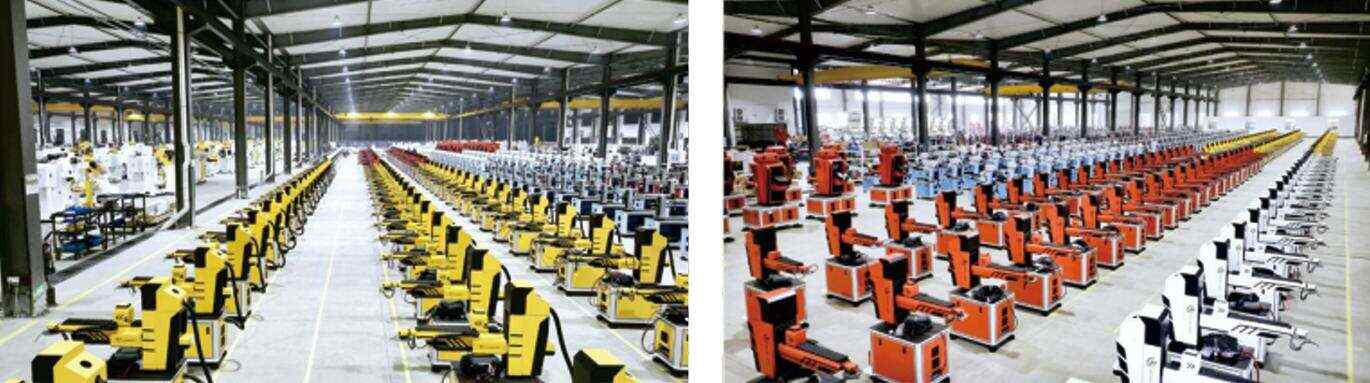

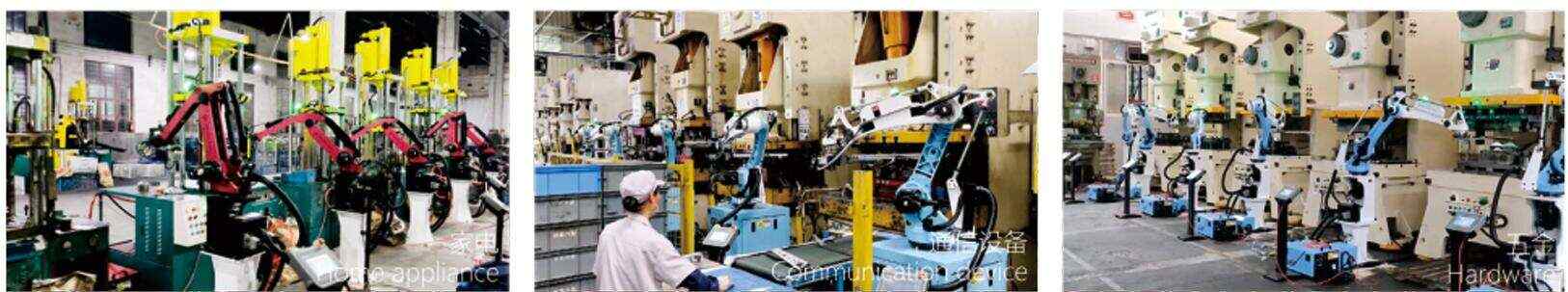

We are a manufacturer of stamping unmanned automation equipment integrating design, production, sales and service. The company is mainly engaged in the research and development and production of multi-station stamping and handling automation equipment and production lines. The main products include two-dimensional stamping manipulators, large/small three-dimensional stamping manipulators, independent handling manipulators, multi-machine linkage manipulators, single-machine in-mold manipulators and truss manipulators, etc., as well as other non-standard customized automation production lines. Widely used in automobiles, home appliances, communications, electrical, medical and other fields, providing customers with high-quality equipment and complete system solutions. Committed to promoting and popularizing stamping automation, providing safe, reliable, mature and stable stamping automation equipment to serve customers, improving the safety, production efficiency and automation level of stamping work, thereby freeing the operator's hands from simple, heavy and dangerous labor, allowing employees to do more valuable work.

Each machine undergoes more than 30,000 life tests before leaving the factory. We strictly follow the requirements of the quality management system and establish a complete management mechanism from product design, process development, production process, correction and prevention to customer satisfaction, insisting that every product delivered to customers is qualified.

Hot Tags: H Series Industrial Joint Robot Arm For Swing Arm Manipulator - Buy H Series Industrial Joint Robot Arm For Swing Arm Manipulator Product on Raydafon
