| Double flange design type AFN | |||||||||||||
| Size | Max. finish bore d1 | Dimensions[mm] | Cap screws | ||||||||||
| DH | DF | dH | L2 | L3 | E | E1 | s | b | L | M×l | z | ||
| 24 | 27 | 55 | 36 | 27 | 30 | 30.50 | 18 | 33 | 2 | 14 | 94 | M5×16 | 8 |
| 28 | 30 | 65 | 42 | 30 | 35 | 35.5 | 20 | 39 | 2.5 | 15 | 110 | M6×20 | 8 |
| 38 | 38 | 80 | 52 | 38 | 45 | 45.5 | 24 | 43 | 3 | 18 | 134 | M8×22 | 8 |
| 42 | 45 | 95 | 62 | 46 | 50 | 51 | 26 | 48 | 3 | 20 | 150 | M8×25 | 12 |
| 48 | 50 | 105 | 70 | 51 | 56 | 57 | 28 | 50 | 3.5 | 21 | 164 | M8×25 | 12 |
| 55 | 60 | 120 | 80 | 60 | 65 | 66 | 30 | 60 | 4 | 22 | 192 | M10×30 | 8 |
| 65 | 70 | 135 | 94 | 68 | 75 | 76 | 35 | 65 | 4.5 | 26 | 217 | M10×30 | 12 |
| 75 | 80 | 160 | 108 | 80 | 85 | 86.5 | 40 | 75 | 5 | 30 | 248 | M12×40 | 15 |
| 90 | 105 | 200 | 142 | 100 | 100 | 101.5 | 45 | 82 | 5.5 | 34 | 285 | M16×40 | 15 |
| 100 | 115 | 225 | 158 | 113 | 110 | 111.5 | 50 | 97 | 3 | 38 | 320 | M16×50 | 15 |
| 110 | 130 | 255 | 178 | 127 | 120 | 122 | 55 | 103 | 3.5 | 42 | 347 | M20×50 | 15 |
| 125 | 150 | 290 | 206 | 147 | 140 | 142 | 60 | 116 | 7 | 46 | 400 | M20×60 | 15 |
| 140 | 170 | 320 | 235 | 165 | 155 | 157.5 | 65 | 128 | 7.5 | 50 | 443 | M20×60 | 15 |
| 160 | 200 | 370 | 270 | 190 | 175 | 177.5 | 75 | 146 | 9 | 57 | 501 | M24×70 | 15 |
| 180 | 230 | 420 | 315 | 220 | 195 | 198 | 85 | 159 | 10.5 | 64 | 555 | M24×80 | 18 |

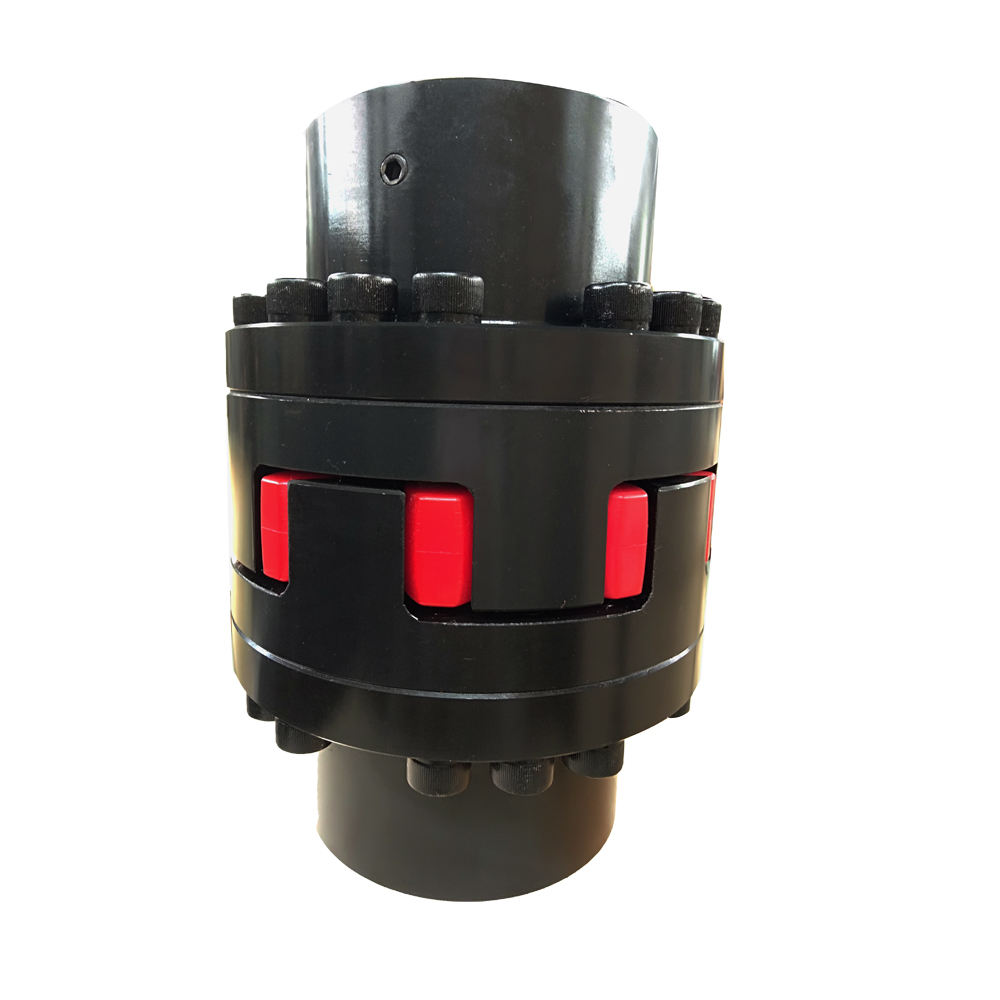

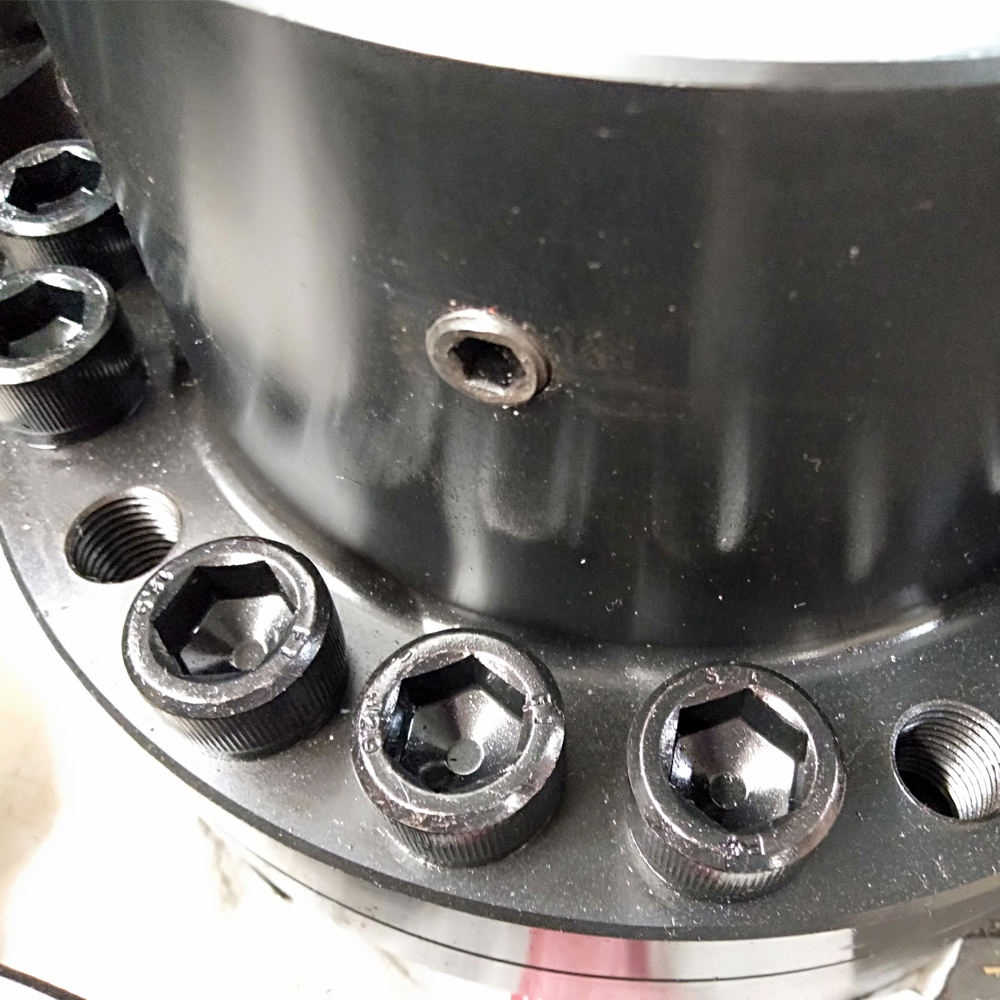

 | RUBBER Supplementary two axis offset. |
EASY MAINTENANCE small radial size no lubrication required. |  |
| BOLT KIT easy to disassemble and assemble. |
HIGH TORQUE CAPACITY rated speed:4-15680N.M | |
